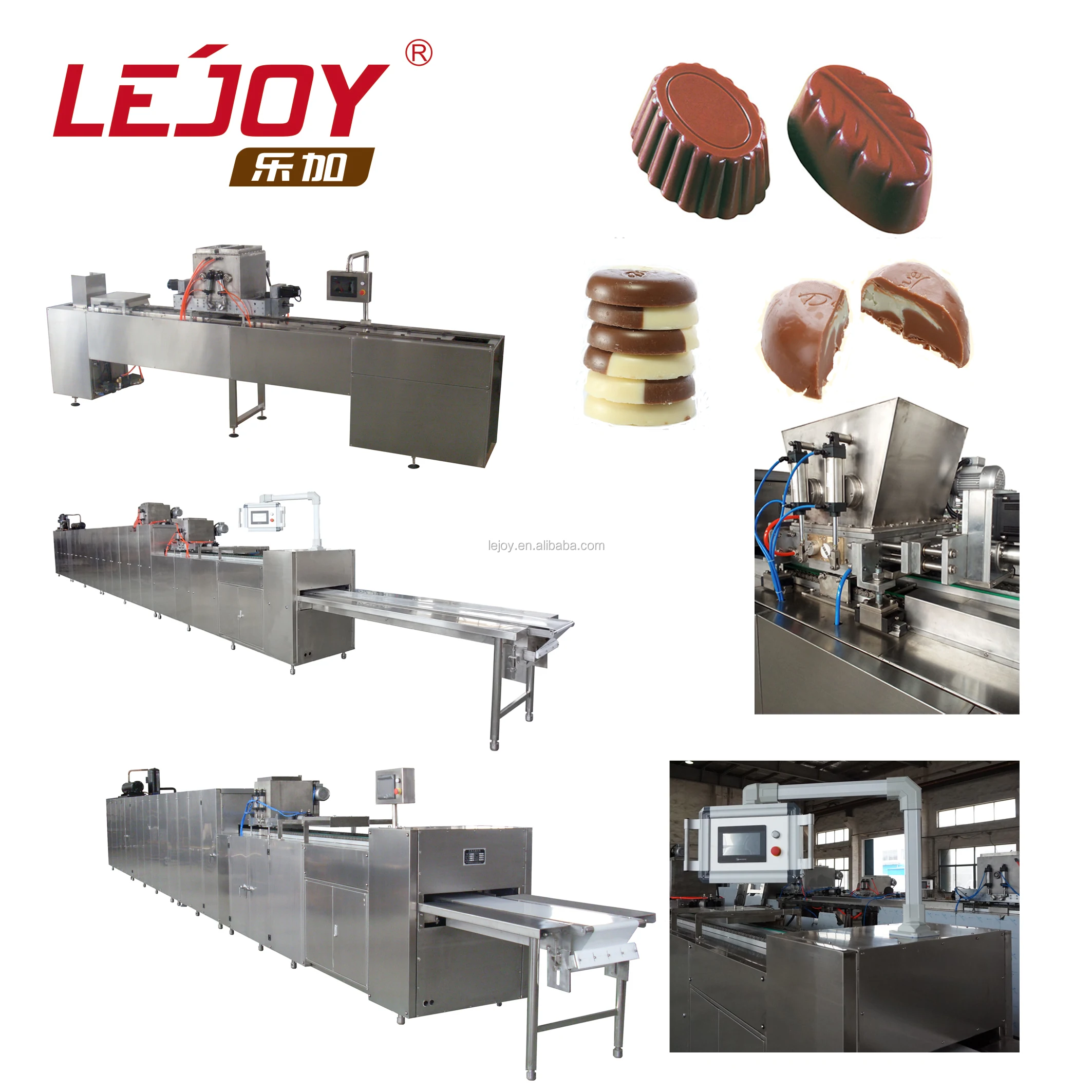

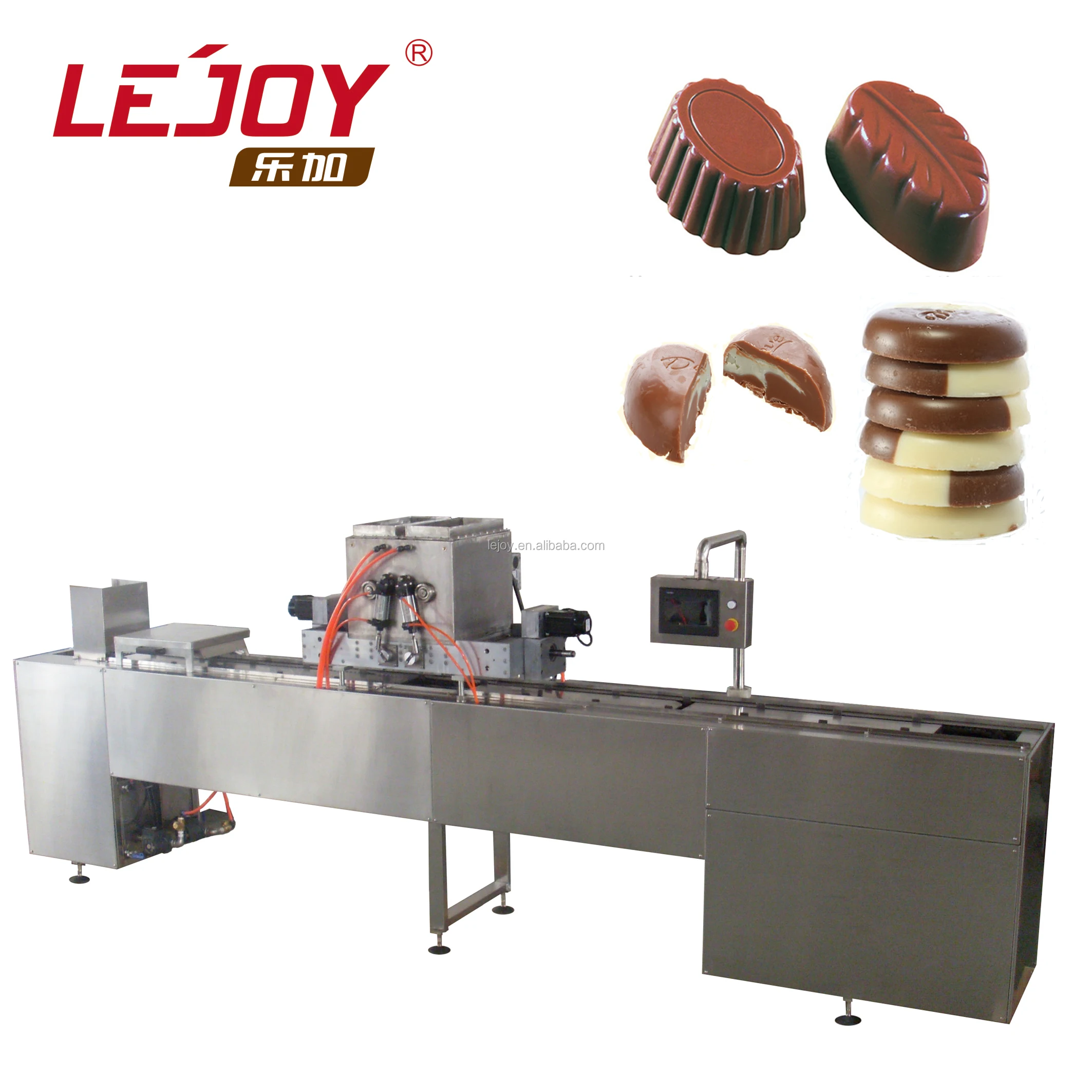

QJJ150 Semi Automatic Chocolate Depositing Machine
- Category: >>>
- Supplier: Suzhou Lejoy Machinery Co. Ltd.
Share on (62338845769):
Product Overview
Description
Product Description
Model | Production Capacity Piece of Mold/min | Whole Machine Power (kW) | Number of Mold (Piece) | Weight (kg) | Outside Dimension (mm) |
QJJ150 | 6-15 | 6 | 200 | 500 | 4000×520×1500 |
Usage:
QJJ150 Chocolate Depositing Machine can be used for the roduction of single color,two colors(left and right) and pastes central filling chocolates.This machine is a semi-automatic type and has functions of moulds pre-heating.depositing,moulds vibrating,and conveying.It adopts PLC control system and can easily change the moulds for different chocolate product varieties.It is suitable for factories with small batch and multi species production.
Other chocolate depositing machine models manufactured by our factory:
Models | QJJ175 Single Head | QJJ175 Two Heads | QJJ510 Single Head | QJJ510 Two Heads |
Production Capacity (Piece of Mould/min) | 6-15 | 6-15 | 6-15 | 6-15 |
Whole Machine Power (kW) | 19 | 23 | 21 | 25 |
Number of Mould (Piece) | 280 | 330 | 280 | 330 |
Mould Size (mm) | 330×200×30 | 330×200×30 | 510×200×30 | 510×200×30 |
Machine Weight (kg) | 3500 | 4500 | 4000 | 5000 |
Outside Dimension (mm) | 16000×1000×1600 | 16000×1000×1800 | 16000×2000×1600 | 16000×1200×1800 |
Models | QJJ330(3+2) | QJJ510(3+2) | QJJ275(3+2) | QJJ1000 |
Production Capacity (Piece of Mould/min) | 6-15 | 6-15 | 6-15 | 6-10 |
| Whole Machine Power (kW) | 28 | 47 | 61 | 49 |
| Number of Mould (Piece) | 380 | 380 | 410 | 580 |
| Mould Size (mm) | 330×200×30 | 510×200×30 | 275×175×30 | 275×175×30 |
| Machine Weight (kg) | 5300 | 7000 | 6500 | 8200 |
| Outside Dimension (mm) | 18000×1200×1900 | 19000×1300×2500 | 15420×5270×2100 | 26800×3500×2550 |
