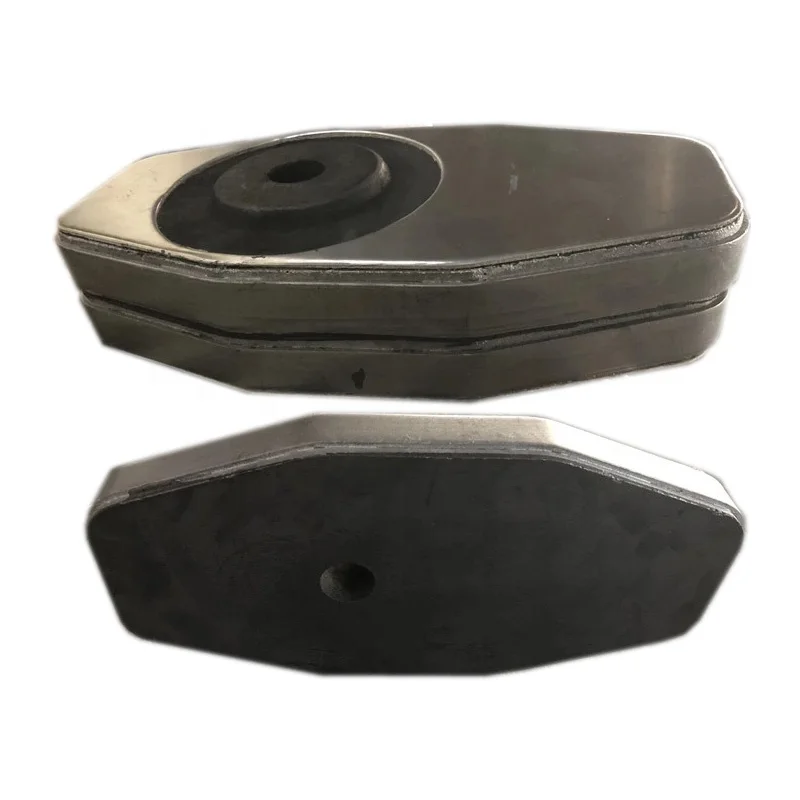

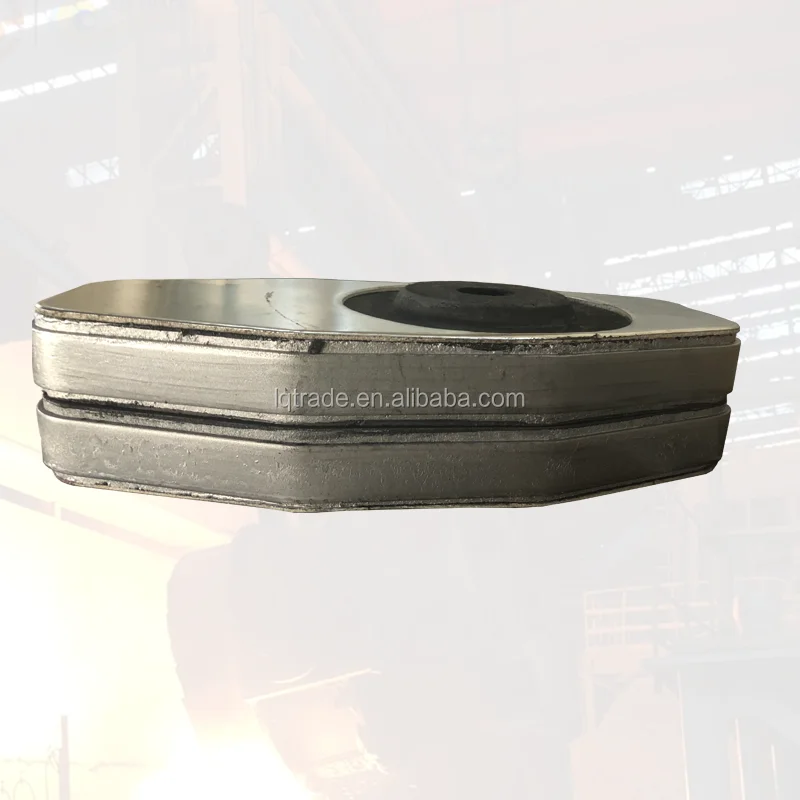

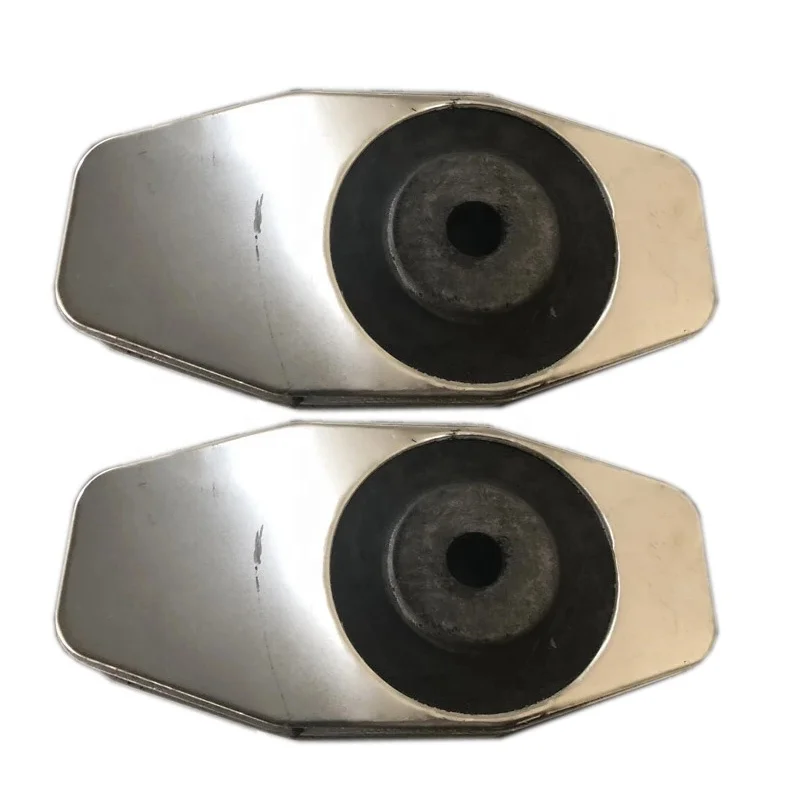

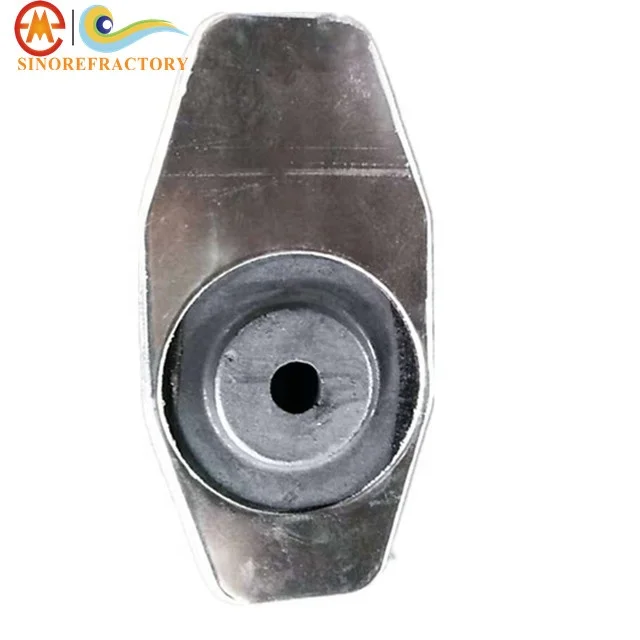

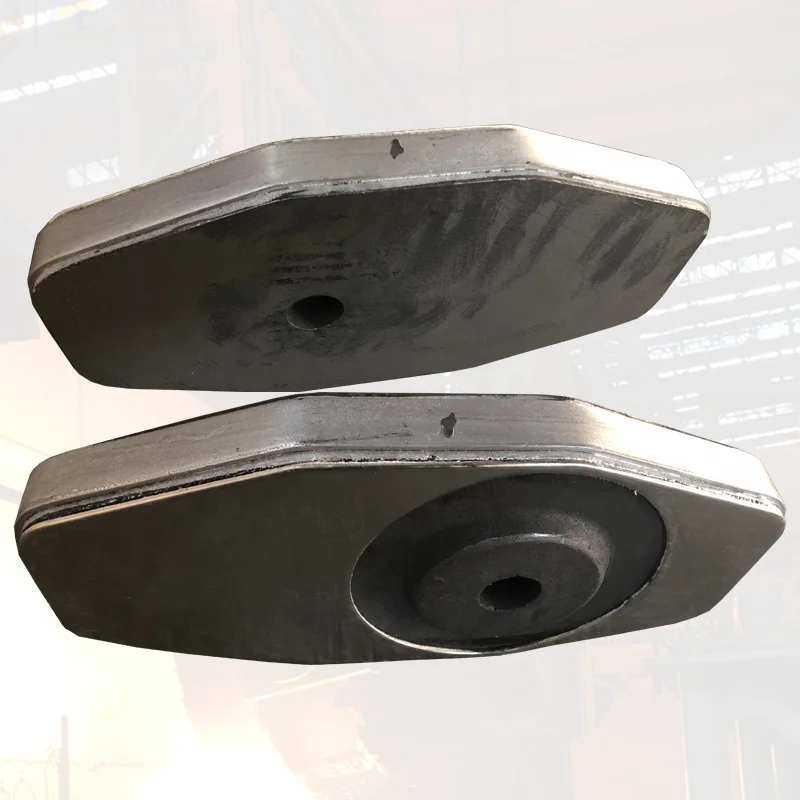

Al-Zr-C Slide Gate Plate with 2 times impregnation
Sinorefractory slide gate plate adopts tabular alumina, carbonaceous material and zirconia-containing material as main raw materials, adds in high performance antioxidants, uses phenolic resin as binder, formed under high-pressure and burned under high temperature. The slide plates have the advantages of high strength, good erosion resistance, thermal shock resistance and good stability etc., mainly used in large and medium-sized ladle.
Keywords:
Ladle slide gate plate, slide gate plate, refractory slide gate plate, refractory slide plate, refractory slide gate value,continuous casting refractory slide gate set
Ladle nozzle, collector nozzle, upper nozzle, lower nozzle, inner nozzle, refractory nozzle
Ladle well block, ladle seating well block, seating well block,ladle precast block, refractory seating block, refractory precast block...
Ladle purging plug, porous plug, slot plug, slit plug, segment plug, preassembled set, purging plug and well block
Ladle shroud, monoblock stopper, submerged entry nozzle, subentry nozzle
Tundish nozzle, tundish metering nozzle, Nonswriling tundish nozzle, tundish upper nozzle, tundish lower nozzle, tundish well block, tundish slide plate
Ladle slide gate plate, slide gate plate, refractory slide gate plate, refractory slide plate, refractory slide gate value,continuous casting refractory slide gate set
Ladle nozzle, collector nozzle, upper nozzle, lower nozzle, inner nozzle, refractory nozzle
Ladle well block, ladle seating well block, seating well block,ladle precast block, refractory seating block, refractory precast block...
Ladle purging plug, porous plug, slot plug, slit plug, segment plug, preassembled set, purging plug and well block
Ladle shroud, monoblock stopper, submerged entry nozzle, subentry nozzle
Tundish nozzle, tundish metering nozzle, Nonswriling tundish nozzle, tundish upper nozzle, tundish lower nozzle, tundish well block, tundish slide plate
Al-Zr-C Material | ||||||||||
Al2O3(≥%） | ZrO2(≥%） | C(≥%） | A.P.P(≤%） | B.D(≥g/cm3) | C.C.S(≥Mpa） | |||||
85 | 5 | 3 | 8 | 3.1 | 120 | |||||
Al-C Material | ||||||||
Al2O3(≥%） | C(≥%） | A.P.P(≤%） | B.D(≥g/cm3) | C.C.S( Mpa) | ||||
90 | 3 | 9 | 3.0 | 120 | ||||
Production Flow
Mix the raw material
Pressing the slide plate
Drying
Burning
Impregnation
Grinding
Product packaging
SLIDE GATE PLATE
LADLE INNER NOZZLE
LADLE COLLECTOR NOZZLE
POROUS PLUG
TUNDISH NOZZLE
REFRACTORY CASTABLE
Certifications
Company Profile
SINOREFRACTORY
About us:
Jinan Linquan Industry and Trade Group Co., Ltd. is a collection of scientific research, design, development, production, and import and export trade in one group of Companies, a national large-scale backbone enterprise for refractory materials.
Jinan Linquan Industry and Trade Group Co., Ltd. is a collection of scientific research, design, development, production, and import and export trade in one group of Companies, a national large-scale backbone enterprise for refractory materials.
Our company covers an area of more than 300 thousand square meters, have advanced technology and equipment, testing equipment and instruments. We mainly produce fireclay refractories, high aluminum refractories, carbon-containing refractories, and have the production line of a variety of high-purity synthetic materials.
Our most popular products: All series of Ladle and Tundish refractories
Our annual production capacity of slide gate plates is more than 80,000 tons.

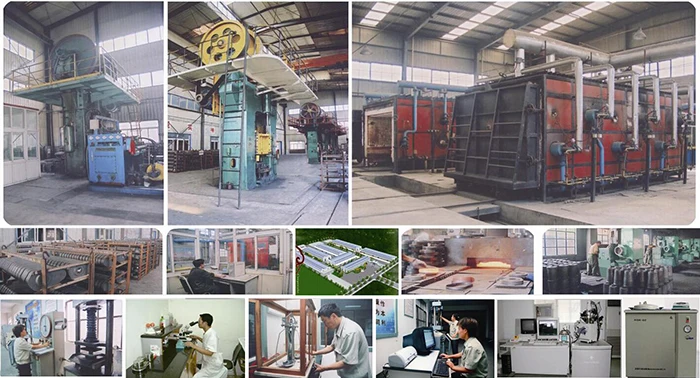

Main Production Equipment:
Friction brick press 400t 1 units
Friction brick press 500t 2 sets
Friction brick press 630t 5 sets
Friction brick press 1000t 4 sets
Vacuum composite PRESS 1000t 3 sets
Hydraulic press 630t 2 sets
Wet grinding machine 8 sets
The mixing machine 4sets
Tunnel kiln 8 sets
Shuttle kiln 3 sets
