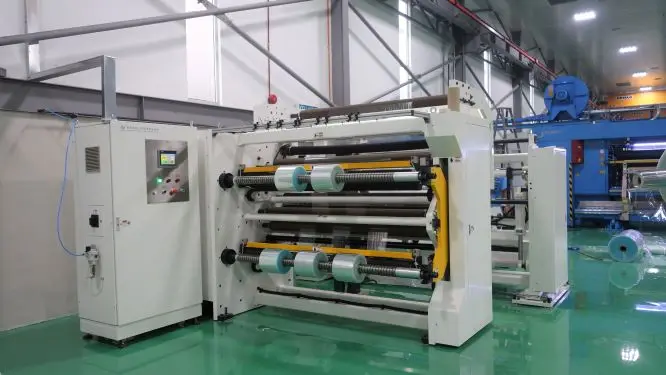

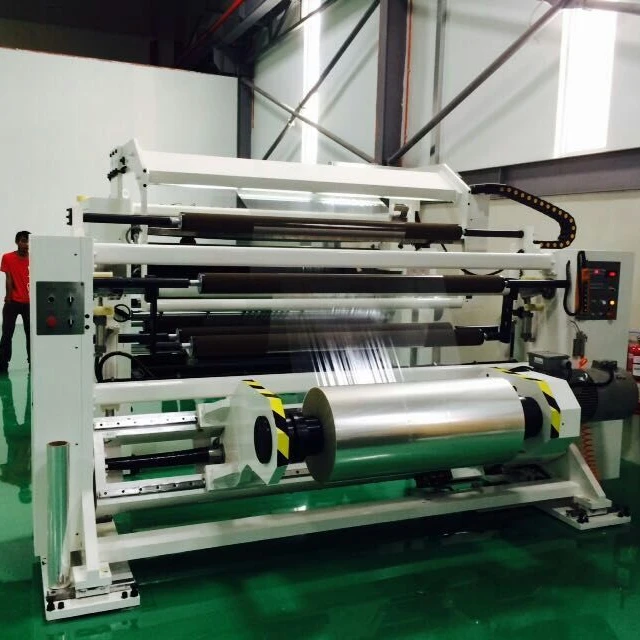

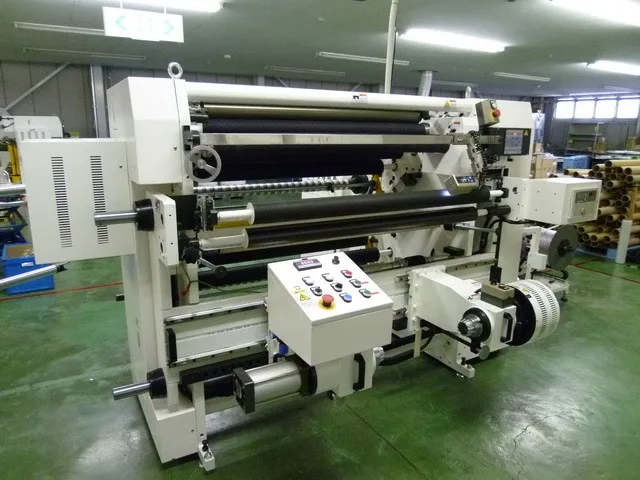

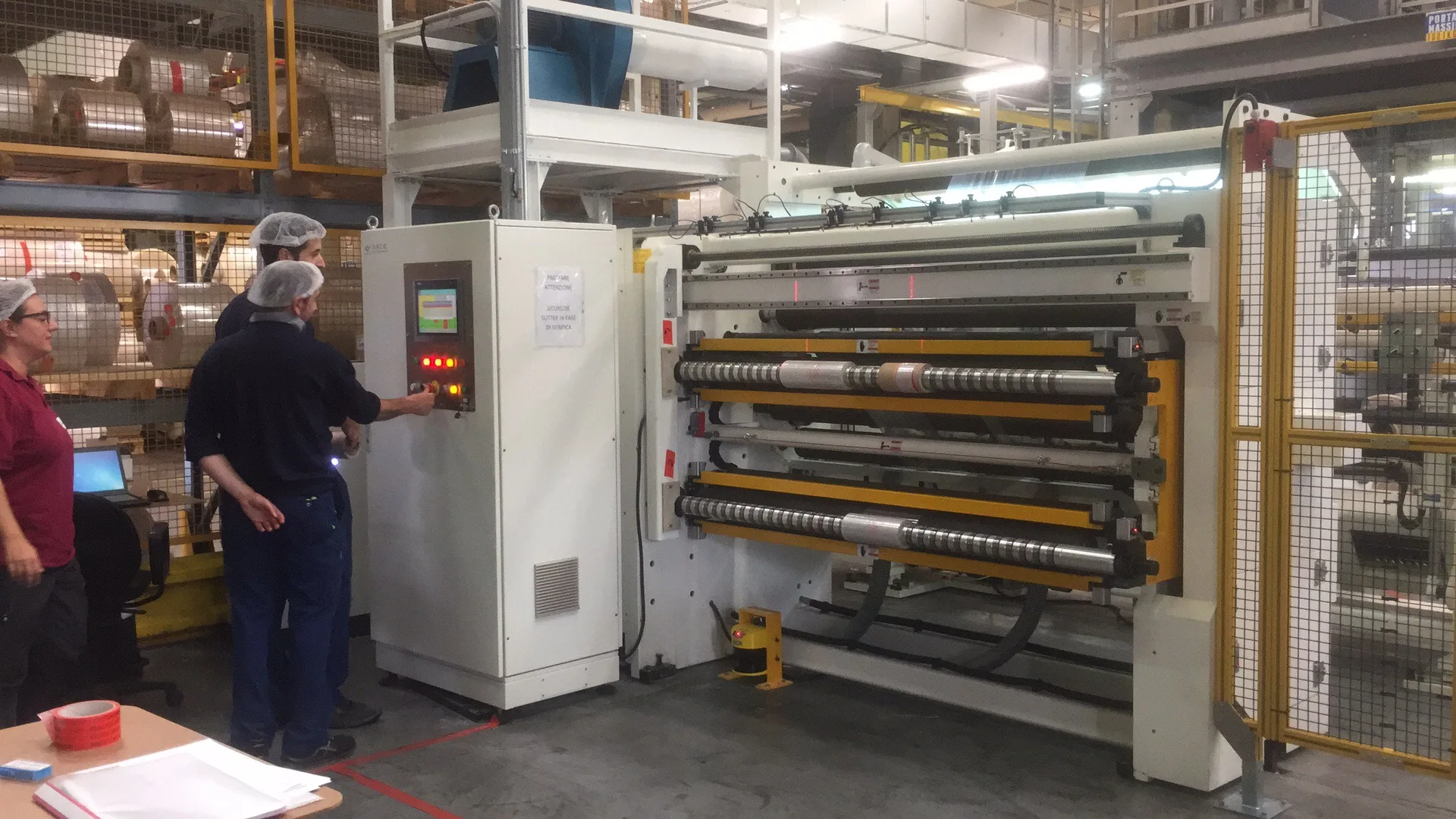

Packaging film flexible laminates slitter rewinder slitting machine

1) High speed stable running with less downtime. Improve the efficiency.

2) Accurate tension control system to ensure the good quality product roll.

3) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.

4) Compact machine design to save floor space.

5) Easy installation and operation. Less maintenance work.

Certifications

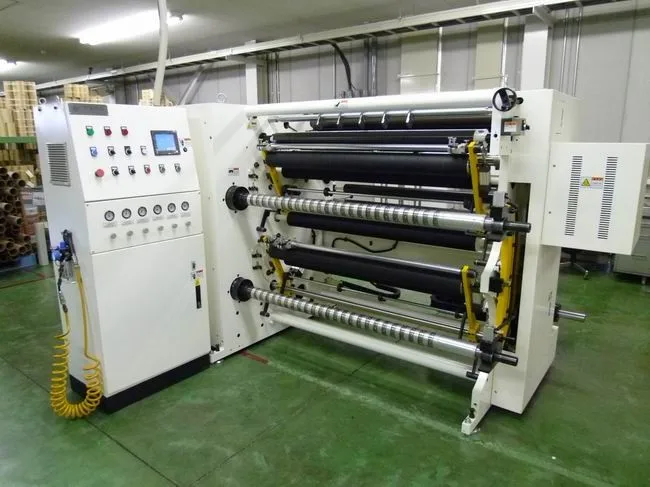

Detailed Images

Machine Parts

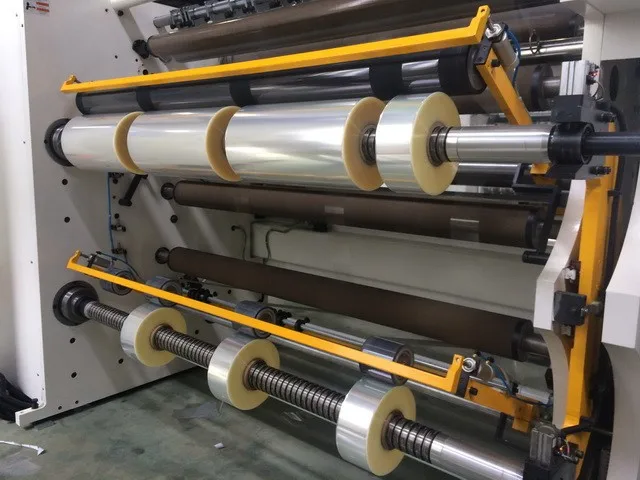

Name: Differential rewinding shaft

Brand: Dahua brand

Original: China

The friction rewinding shaft is suitable for not good

thickness tolerance material.

Main Features

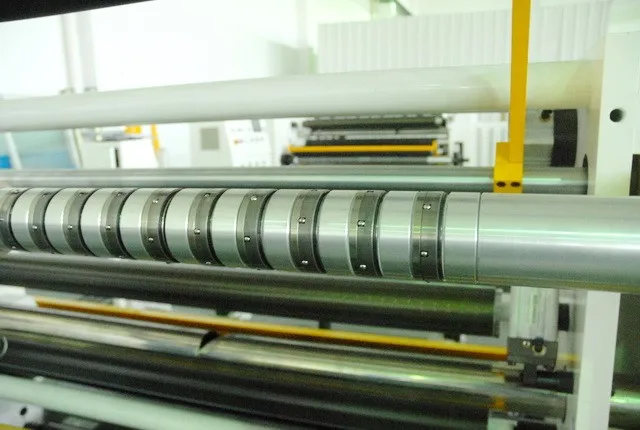

Name: Razor slitting system
Brand: Dahua
Original: China
Easy operation razor knife holder and accurate groove

shaft make the slitting setting job quickly.

Machine Parts

Name: Eccentric contact roll
Brand: Dahua
Original: China
Except the complete web contact roll, eccentric contact

roll also can be optional if the mother roll thickness

not even.

Main Features

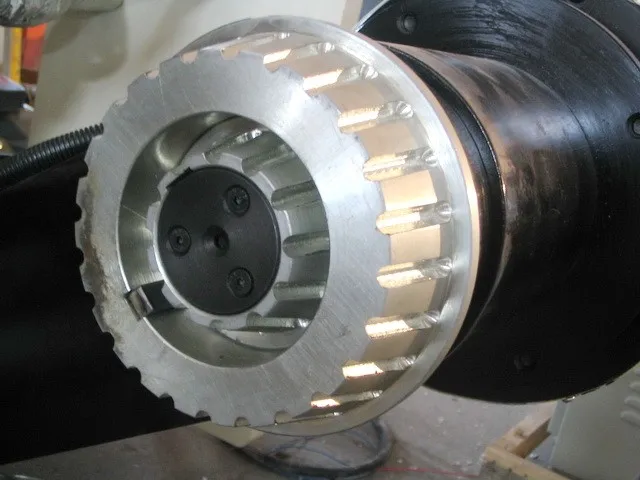

Name: Unwinding chuck
Brand: Dahua
Original: China
3" and 6" taper chuck to clamp the unwinding core easily.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample material testing support.

* View our factory.

* Visit customer factory if required

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

* Spare parts supports

* 24 Hours * 7 days service hot line

Supplier & Customer

Qualified supplier to ensure the machine quality

Respected customer to help the machine growth

Related Products

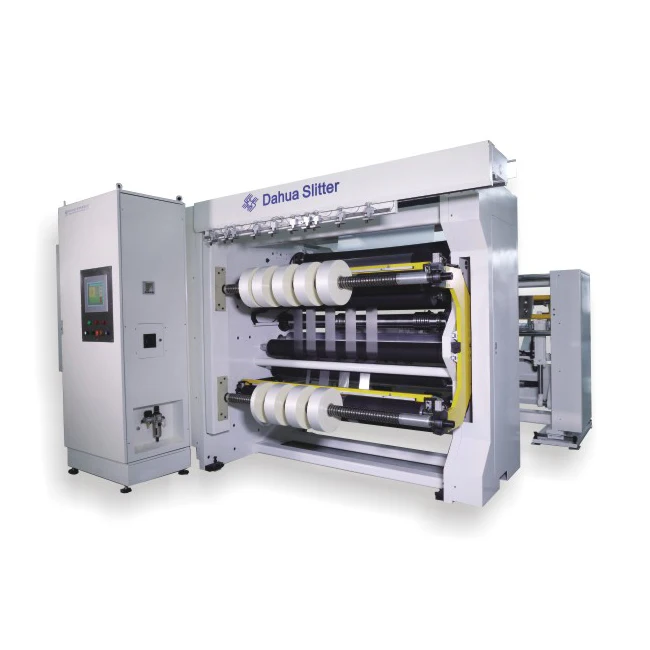

Economy separated shaft

slitter for plastic film

91.8% Response Rate

Duplex shaft plus slitter for

plastic film

91.8% Response Rate

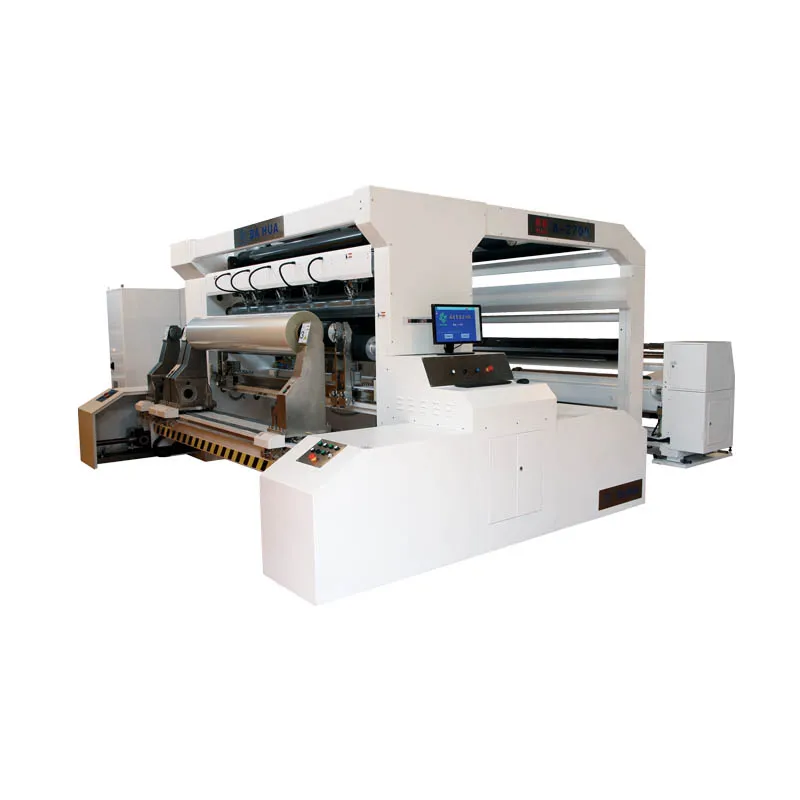

Station type plus slitter for
