2022 new type CNC galvanized electric welded iron wire mesh fence panel machine wire Diameter 2 4mm
- Category: >>>
- Supplier: Hebei Kaiye Machinery Equipment Co. Ltd.
Share on (62339078658):
Product Overview
Description
Product Description

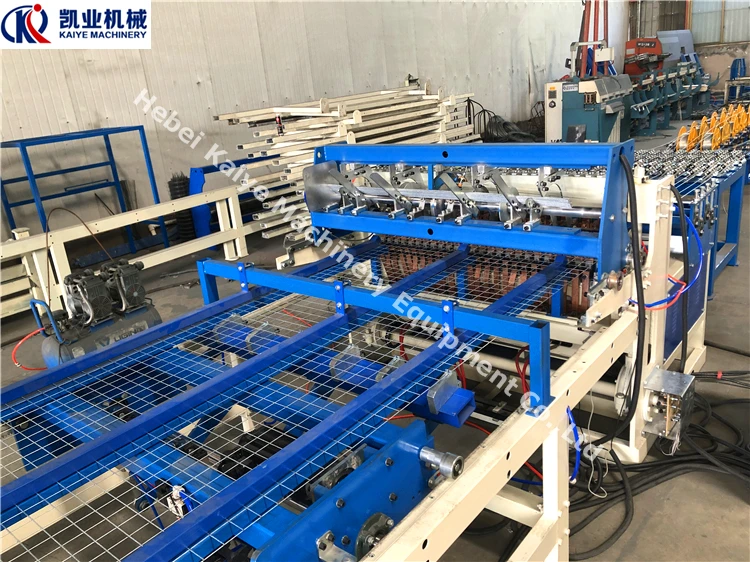

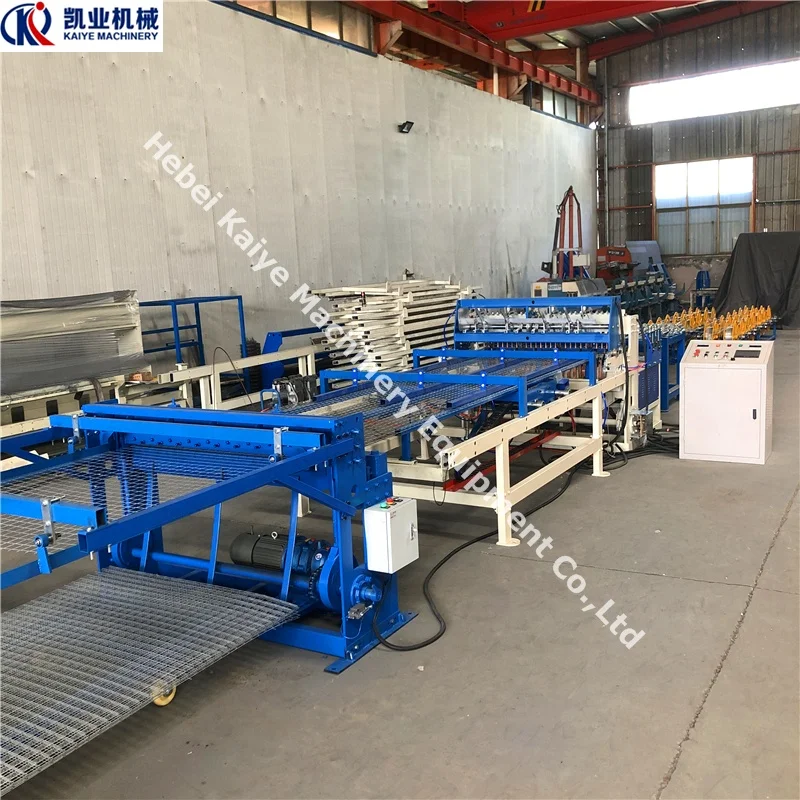

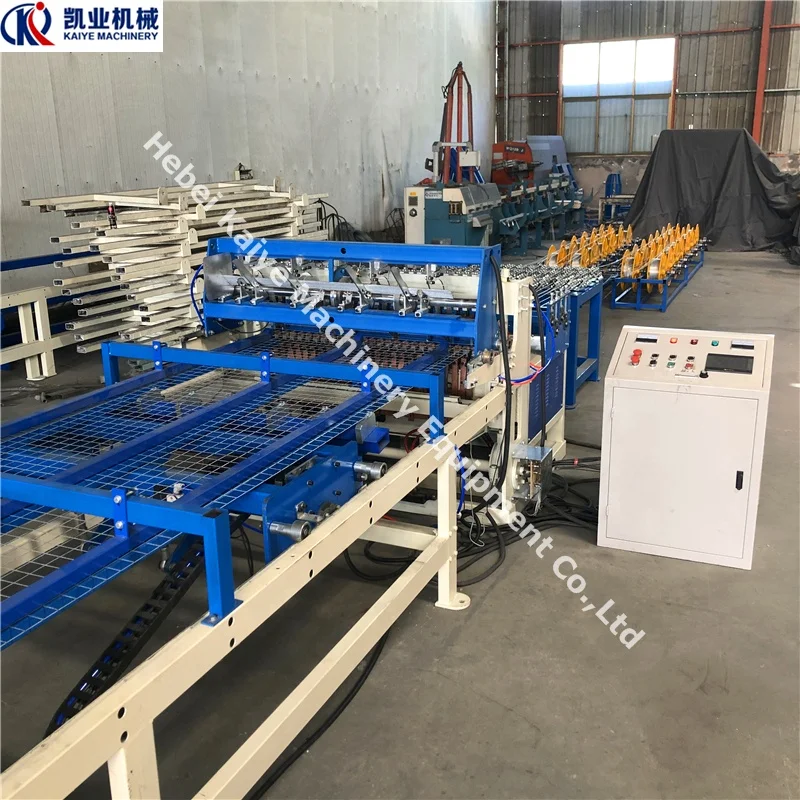

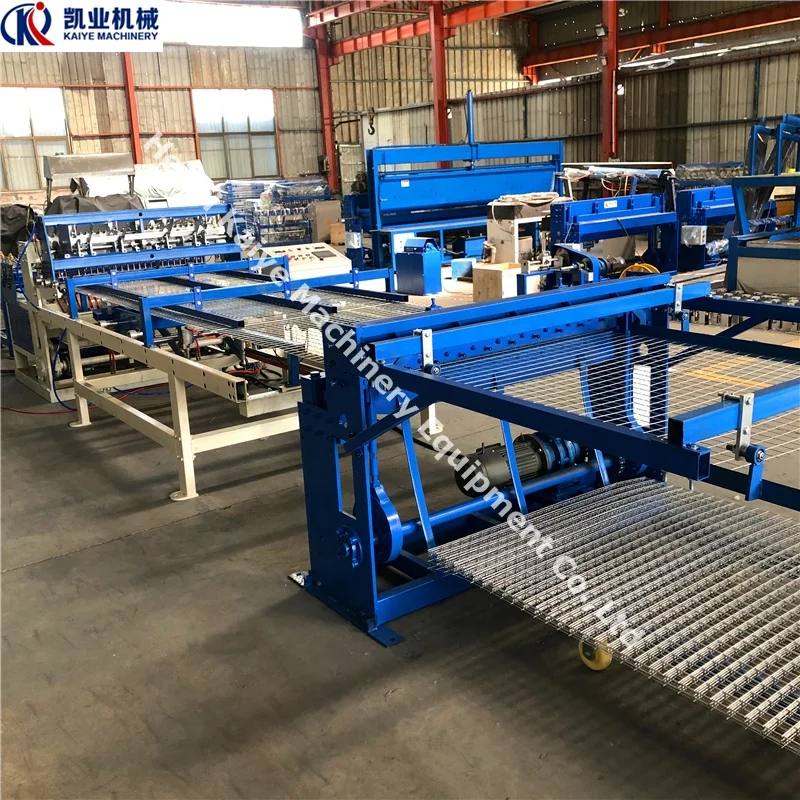

Automatic wire mesh panel welding machine
This production line is a new type of equipment developed independently by our engineers based on their years of experience in mesh welding technology and customer needs. It provides more options for the mid-range customers whose factories are developing.
Machine Specification
Model | KY-1200-J | KY-2000-J | KY-2500-J |
Mesh width | Max.1200 mm | Max.2000 mm | Max.2500 mm |
Mesh hole size | 50-300 mm | 50-300 mm | 50-300 mm |
Wire diameter | 2.0-4.0 mm | 3.0-5.0 mm | 3.0-5.0 mm |
Welding speed | 40-80 Times/min | 40-80 Times/min | 40-80 Times/min |
Transformer | 125KVA*3 | 125KVA*5 | 125KVA*6 |

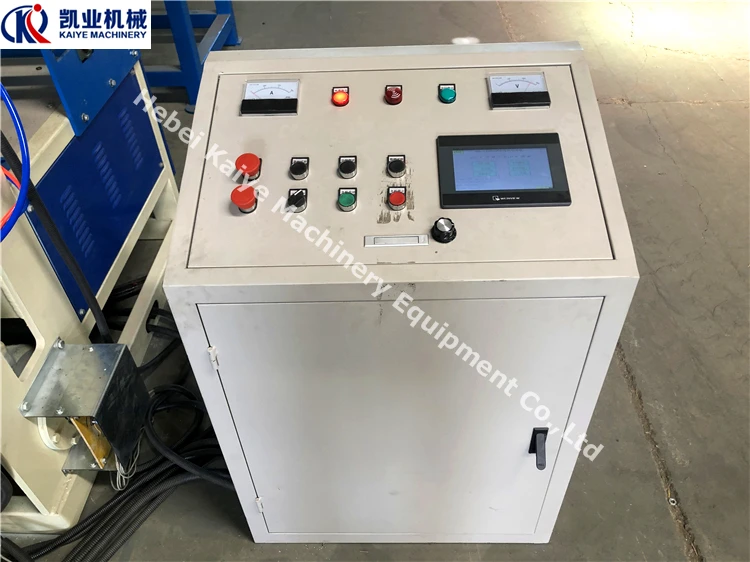

Control system | PLC touch screen | PLC touch screen | PLC touch screen |
Machine advantage
1）The whole machine is controlled by man-machine interface +plc programming control mode, with a high degree of automation.
2）The vertical dimension of the network can be changed through screen input to meet the needs of multi-specification changes in the
engineering network.
engineering network.
3）The horizontal bar blanking device adopts a stepping motor for automatic feeding to reduce labor intensity and improve efficiency.
4）The vertical dimension of the network can be changed through screen input to meet the needs of multi-specification changes in the
engineering network.
engineering network.
5）The horizontal bar blanking position is equipped with magnetic material throwing mechanism,which has fast blanking speed and high production efficiency.
6）The electrode is equipped with a device in place to ensure reliable and accurate blanking of the transv-erse reinforcement.
Machine Details

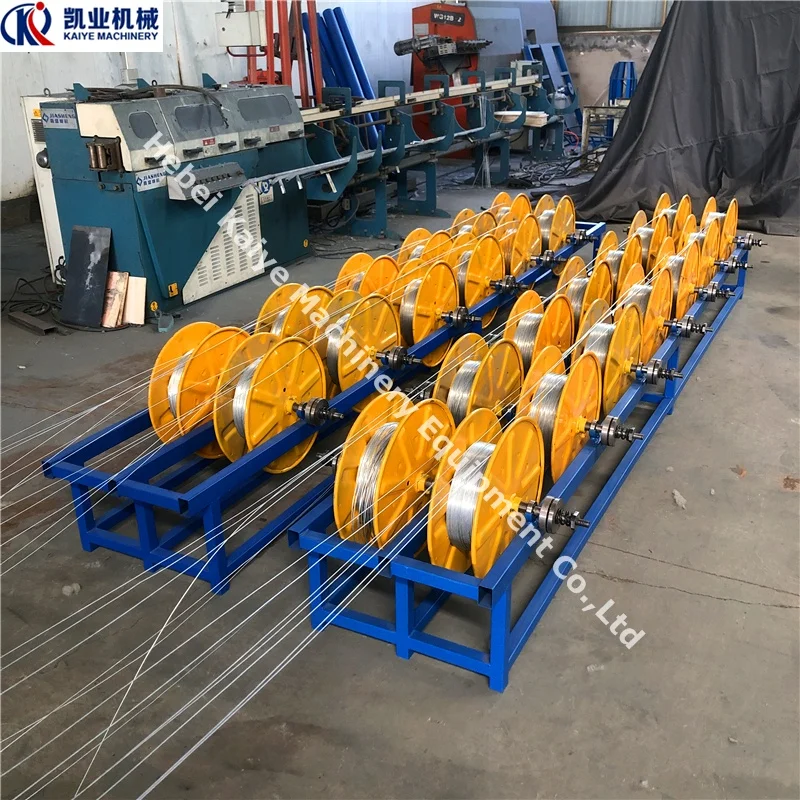

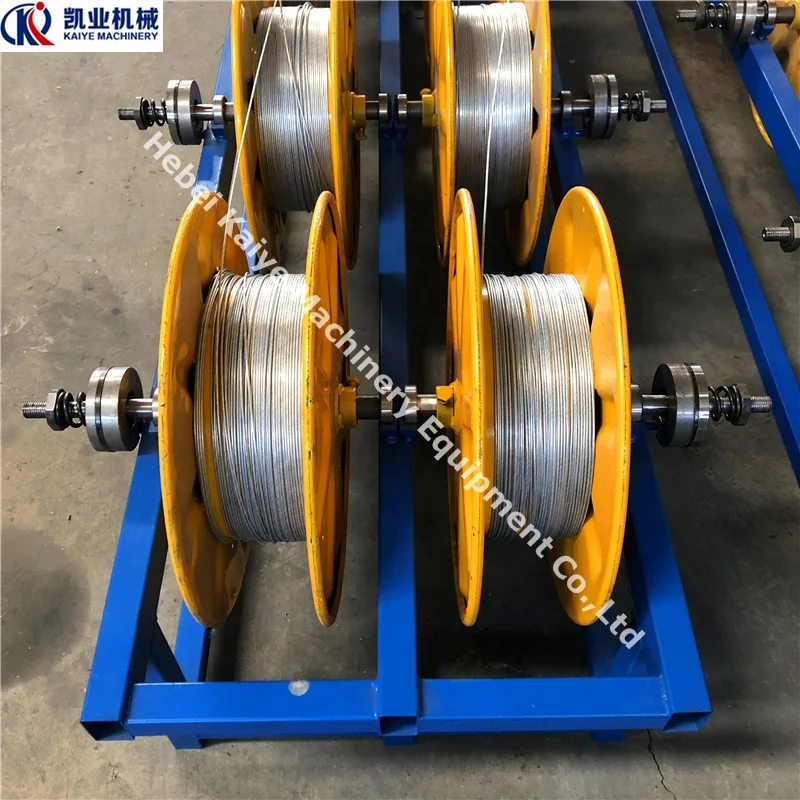

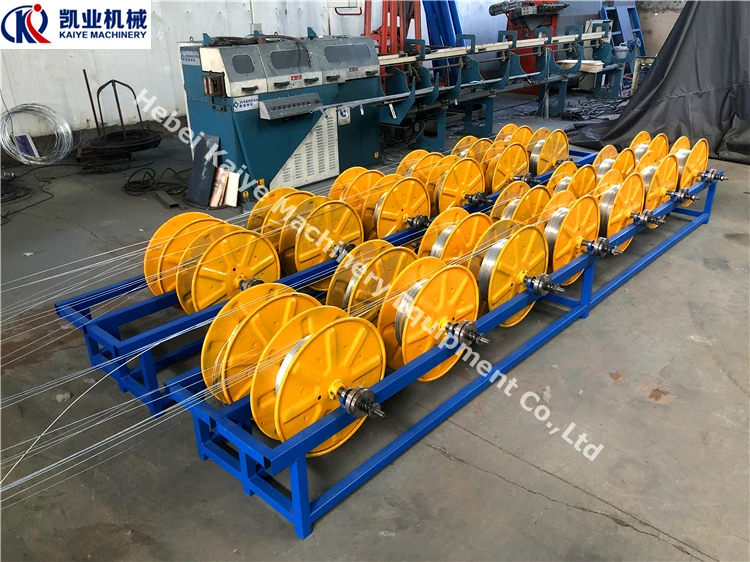

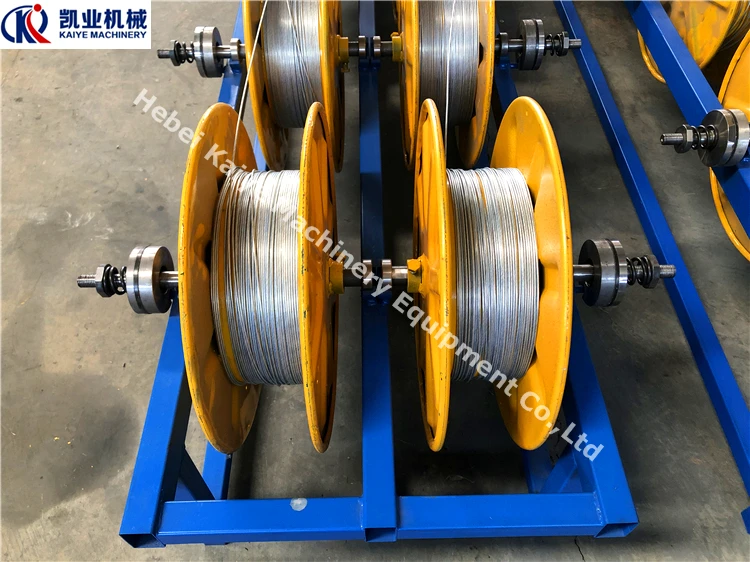

Spool wire payoff system.
This production line adopts the I-wheel paying off system, which can greatly save the mechanical floor area. The spool can wind the wire rod with a length of more than 1200meters.
Braking system.
The pay off rack is equipped with an automatic brake system, which can prevent the wire from winding due to inertia when the machine stops.
This production line adopts the I-wheel paying off system, which can greatly save the mechanical floor area. The spool can wind the wire rod with a length of more than 1200meters.
Braking system.
The pay off rack is equipped with an automatic brake system, which can prevent the wire from winding due to inertia when the machine stops.

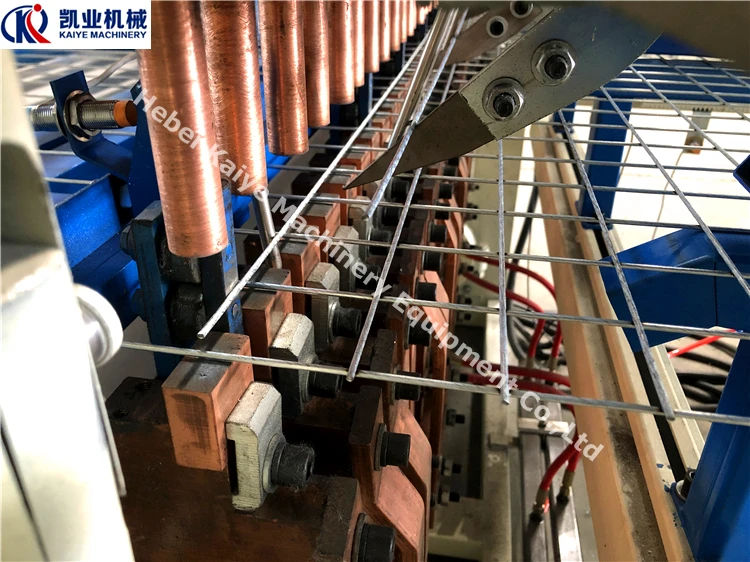

Welding electrode.
All welding electrodes are made of high chromium copper alloy, which is wear-resistant and high temperature resistant, extending the service life

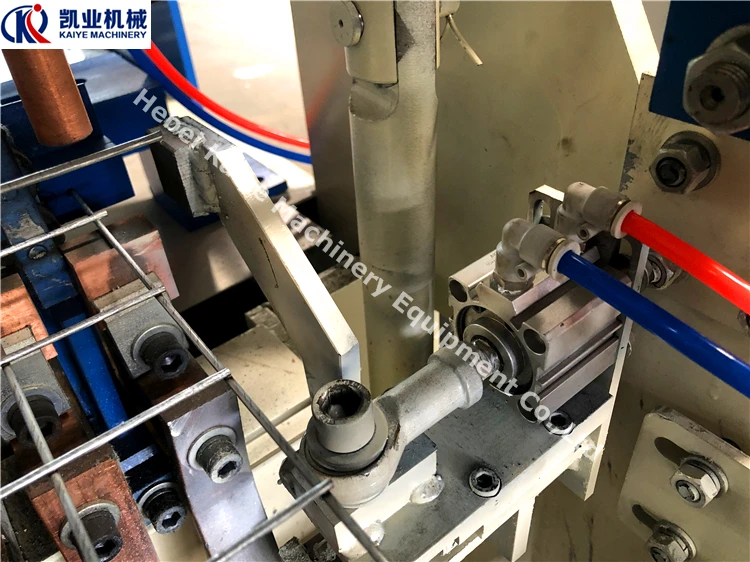

Cross wire positioning
The horizontal wire positioning device adopts a small cylinder, which is convenient and sensitive to improve the welding speed.
All welding electrodes are made of high chromium copper alloy, which is wear-resistant and high temperature resistant, extending the service life
Cross wire positioning
The horizontal wire positioning device adopts a small cylinder, which is convenient and sensitive to improve the welding speed.

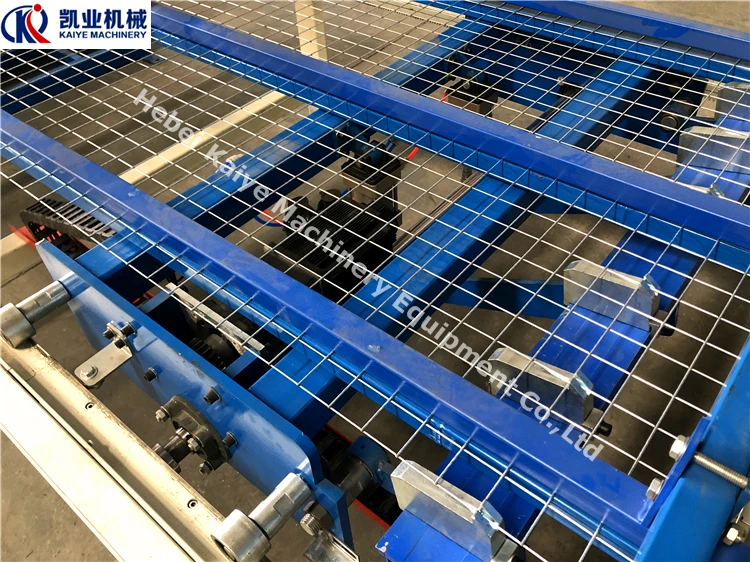

Pull mesh motor.
The mesh pulling motor uses a servo motor. The position movement is very fast and accurate, ensuring that each grid size is accurate and beautiful..

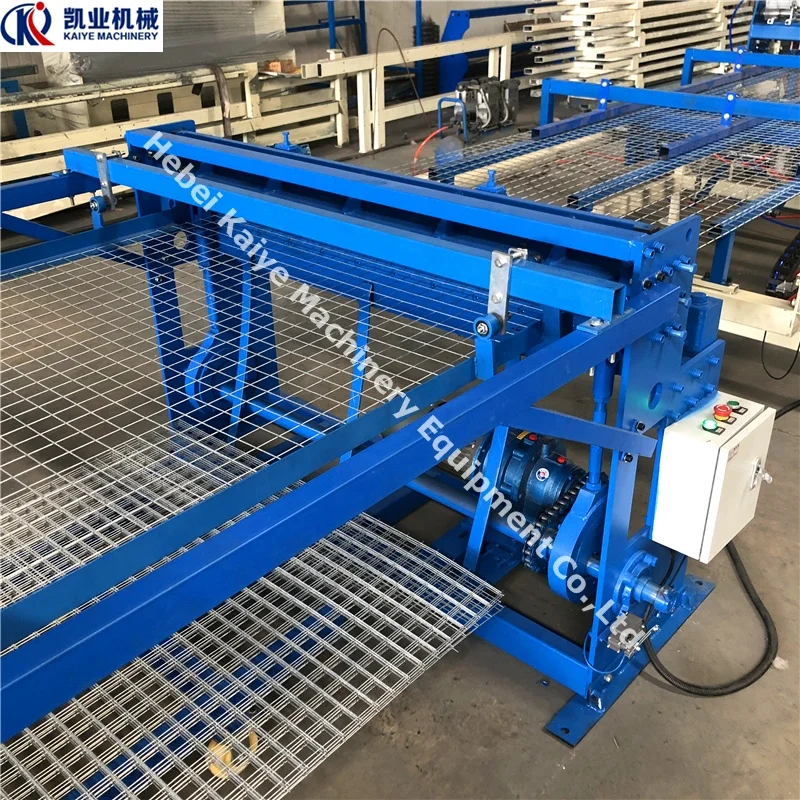

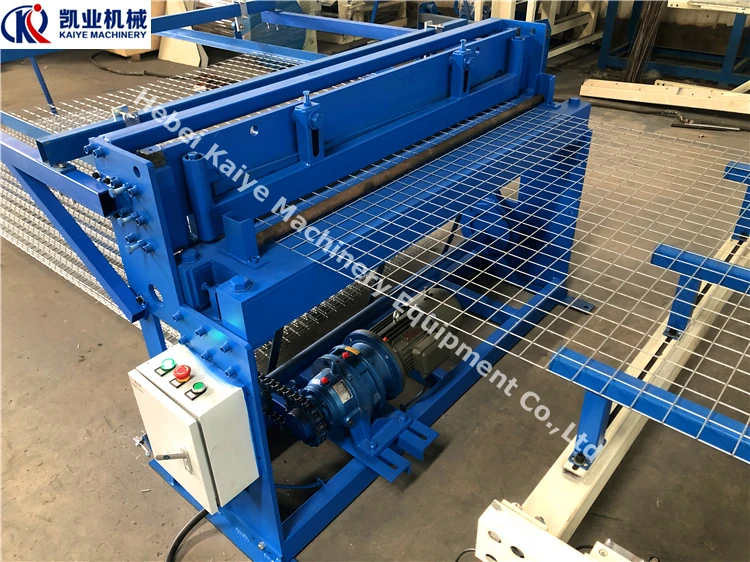

Mesh cutting machine.
The machine is equipped with a mesh cutting machine, which can set different cutting lengths on the screen to facilitate customers to produce different wire mesh sizes
The mesh pulling motor uses a servo motor. The position movement is very fast and accurate, ensuring that each grid size is accurate and beautiful..
Mesh cutting machine.
The machine is equipped with a mesh cutting machine, which can set different cutting lengths on the screen to facilitate customers to produce different wire mesh sizes

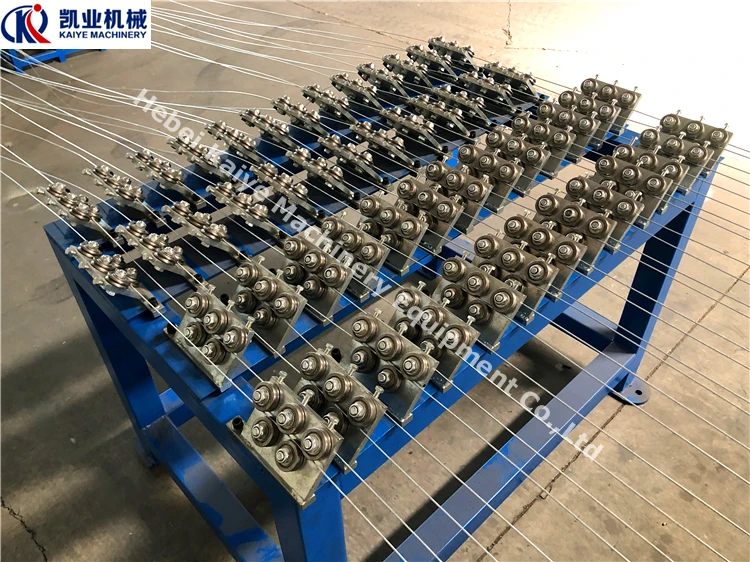

Straightening wheel system.
The wire will pass through the straightening wheel system, which can make the wire more straight and smooth, and ensure the flatness and beauty of the welded wire mesh..
The wire will pass through the straightening wheel system, which can make the wire more straight and smooth, and ensure the flatness and beauty of the welded wire mesh..

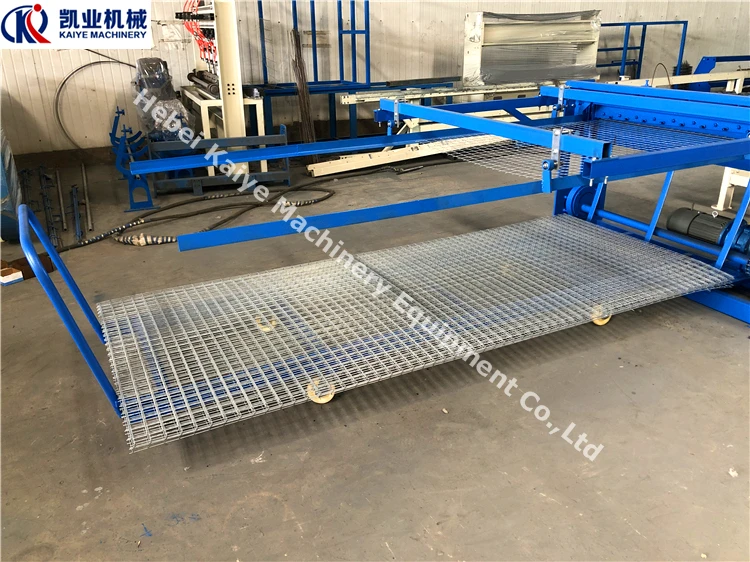

Conveying trolley.
The machine is equipped with 2 conveying trolleys to facilitate customers to stack and pack the completed wire mesh panel.
The machine is equipped with 2 conveying trolleys to facilitate customers to stack and pack the completed wire mesh panel.
Company Introduction

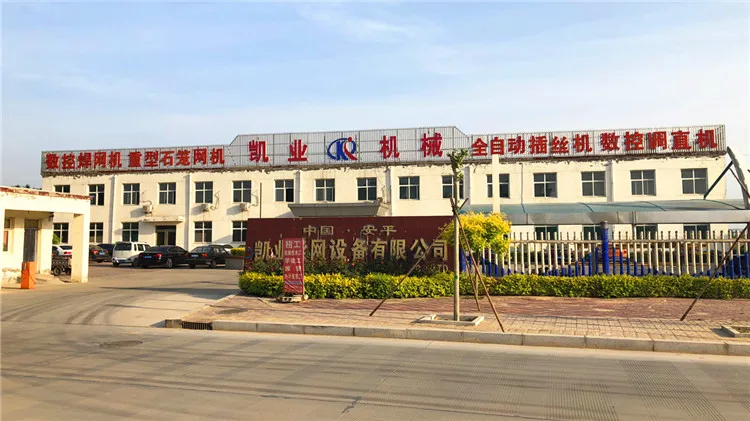

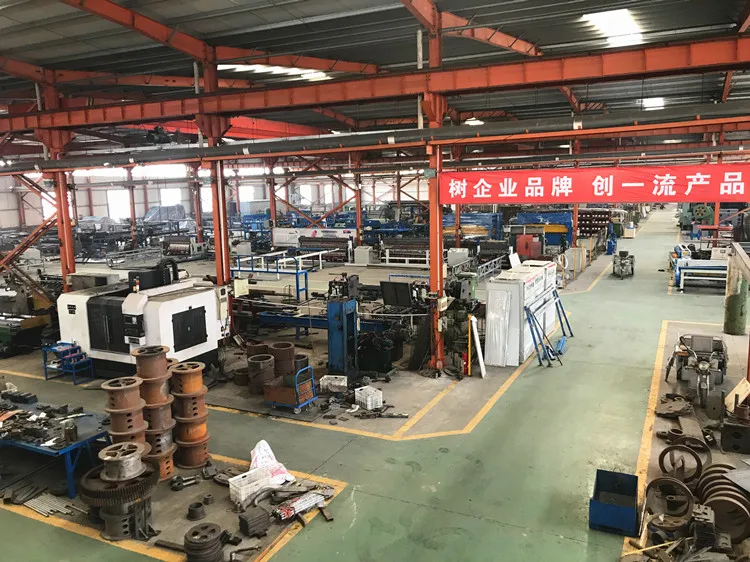

Factory History
Hebei Kaiye Machinery Equipment Co., Ltd. was established in 2002. We are mainly engaged in the R & D, design, production and sales of CNC steel wire processing equipment, providing overall solutions for CNC steel wire processing. Products are widely used in railway, highway, bridge, tunnel, real estate, animal husbandry and other large-scale infrastructure construction, steel processing and distribution center and other fields
Hebei Kaiye Machinery Equipment Co., Ltd. was established in 2002. We are mainly engaged in the R & D, design, production and sales of CNC steel wire processing equipment, providing overall solutions for CNC steel wire processing. Products are widely used in railway, highway, bridge, tunnel, real estate, animal husbandry and other large-scale infrastructure construction, steel processing and distribution center and other fields
Our main products
wire mesh welding machine, EPS 3D panel machine, reinforcement mesh welding machine,, Gabion mesh machine, wire drawing machine, hexagonal wire mesh machine, expanded metal machine,chain link fence machine, ,CNC stirrup rebar bending machine
Factory R&D Team
The factory has a strong and experienced R&D team. The average working life of team engineers has exceeded 8 years. We can design reasonable solutions according to the requirements of customers.
Certifications
Market and Customers
Friends from all over the world.
The company's machinery and equipment sell well in China, and are exported more than 100 countries and regions such as Romania,Lithuania, Turkey, Poland, Belarus, Ukraine, Russia, Kazakhstan, Saudi Arabia, Egypt, Algeria, South Africa, Vietnam,Thailand,India, Pakistan, Philippines, Indonesia, Australia, Mexico, Colombia, Argentina, Bolivia, Brazil, etc.
The company's machinery and equipment sell well in China, and are exported more than 100 countries and regions such as Romania,Lithuania, Turkey, Poland, Belarus, Ukraine, Russia, Kazakhstan, Saudi Arabia, Egypt, Algeria, South Africa, Vietnam,Thailand,India, Pakistan, Philippines, Indonesia, Australia, Mexico, Colombia, Argentina, Bolivia, Brazil, etc.
After more than ten years of development, the company has grown into one of the leading enterprises in the industry. We adhere to the tenet of "customer first, technology leading". In the future, the company will comprehensively promote industrial development and upgrading, and build the world's leading steel processing equipment.
Why choose us
Q:Where is your factory located?
A: Our factory is located in Anping county, Hebei Province of China. The nearest airport is Beijing airport or Shijiazhuang airport. We can pick you up from Shijiazhuang city.
Q: How many years are your company engaged in the wire mesh machines?
A: More than 20 years. We have our own technology develop department and testing department.
Q: Can your company send your engineers to my country for machine installation, worker training?
A: Yes, our engineers went to more than 60 countries before. They are very experienced.
Q: What's the guarantee time for your machines?
A: Our guarantee time is 2 years since the machine was installed in your factory.
Q: Can you export and supply the customs clearance documents we need?
A: We have much experience for exporting. And we can supply the CE certificate, Form E, certificate of origin etc, your customs clearance will be no problem.
A: Our factory is located in Anping county, Hebei Province of China. The nearest airport is Beijing airport or Shijiazhuang airport. We can pick you up from Shijiazhuang city.
Q: How many years are your company engaged in the wire mesh machines?
A: More than 20 years. We have our own technology develop department and testing department.
Q: Can your company send your engineers to my country for machine installation, worker training?
A: Yes, our engineers went to more than 60 countries before. They are very experienced.
Q: What's the guarantee time for your machines?
A: Our guarantee time is 2 years since the machine was installed in your factory.
Q: Can you export and supply the customs clearance documents we need?
A: We have much experience for exporting. And we can supply the CE certificate, Form E, certificate of origin etc, your customs clearance will be no problem.
