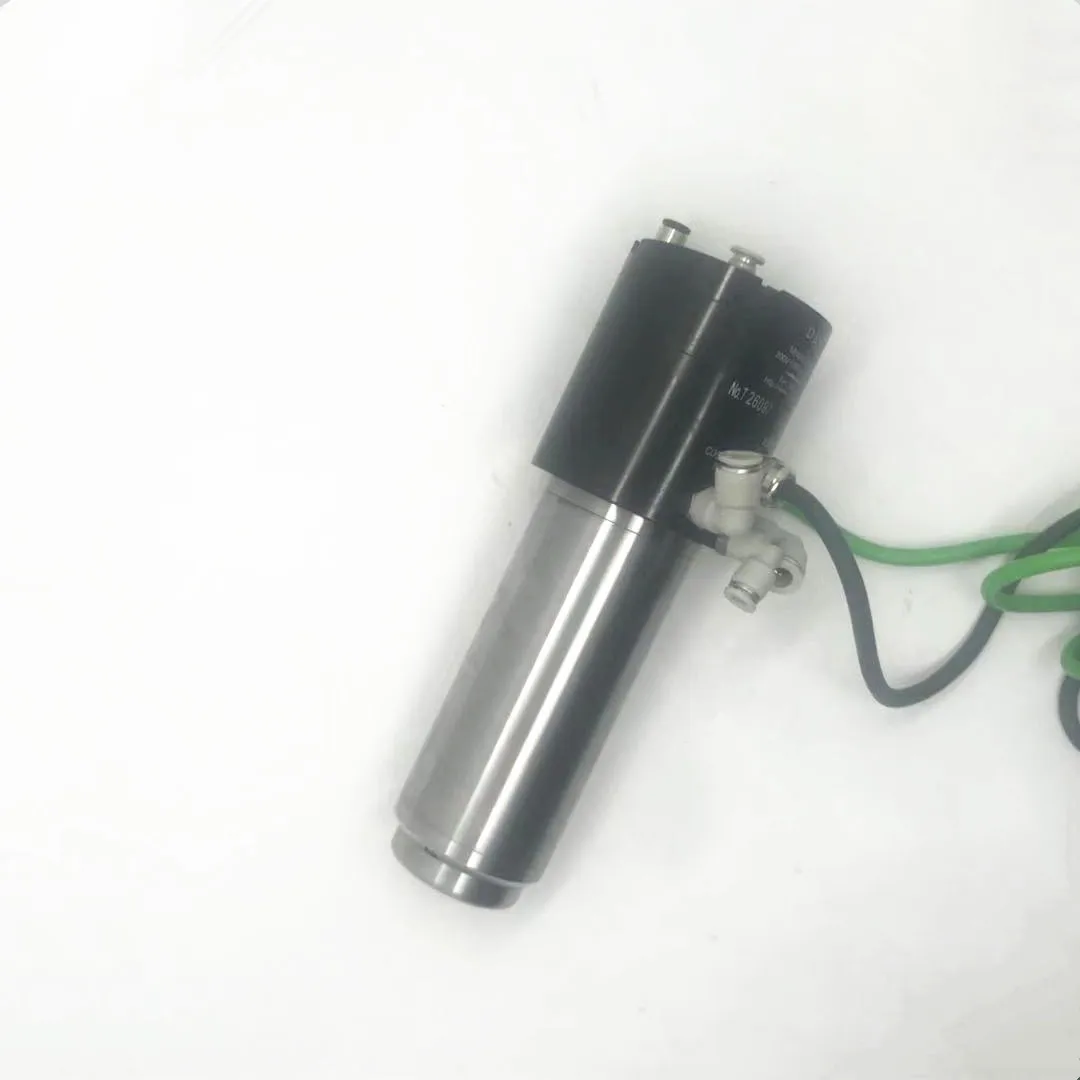

This product is a metal cutting high speed electric spindle with a maximum speed of 60000 rpm and a rated power of 1.5 kW. It is suitable for high speed, high precision milling, drilling and tapping of metal and non-metal materials.
DECI spindle Motor Feature
1) Imported bearings with good quality, long working life.
2) Application: Milling,Engraving,Drilling in all kinds of CNC Router machine.
3) There are water cooling spindle , air cooling spindle and self cooling spindle for your choose.
4) Every spindle motor must be passed polishing process, Improve spindle concentricity to increase motor working life.
DECI More Spindle is also available with best price, if needed, welcome contact us.
4.ATC spindle: cooled by water: 1.5kw,2.2kw,5.5kw,6kw,7.5kw
cooled by air: 8kw,9kw (same HSD)
5.sealing side spindle:350w,550w,700w,750w,1.1kw,1.8kw,2.2kw
Personalized customization: The company has strong research and development strength, flexible design, and can customize high-speed milling electric spindles with different functions, speed and precision according to customer needs.

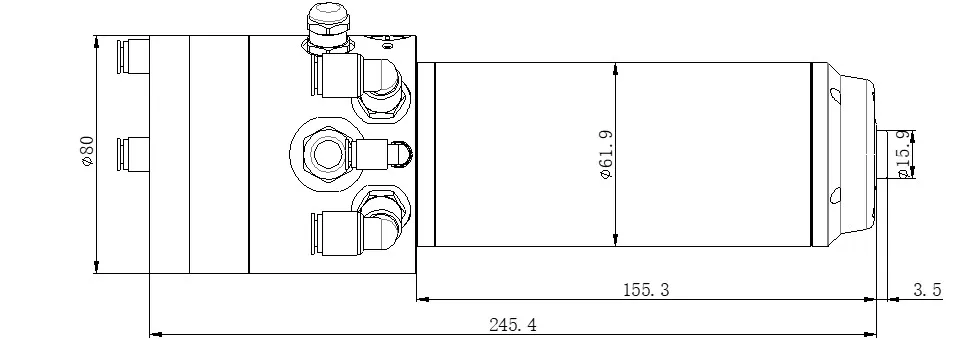

Specificiations

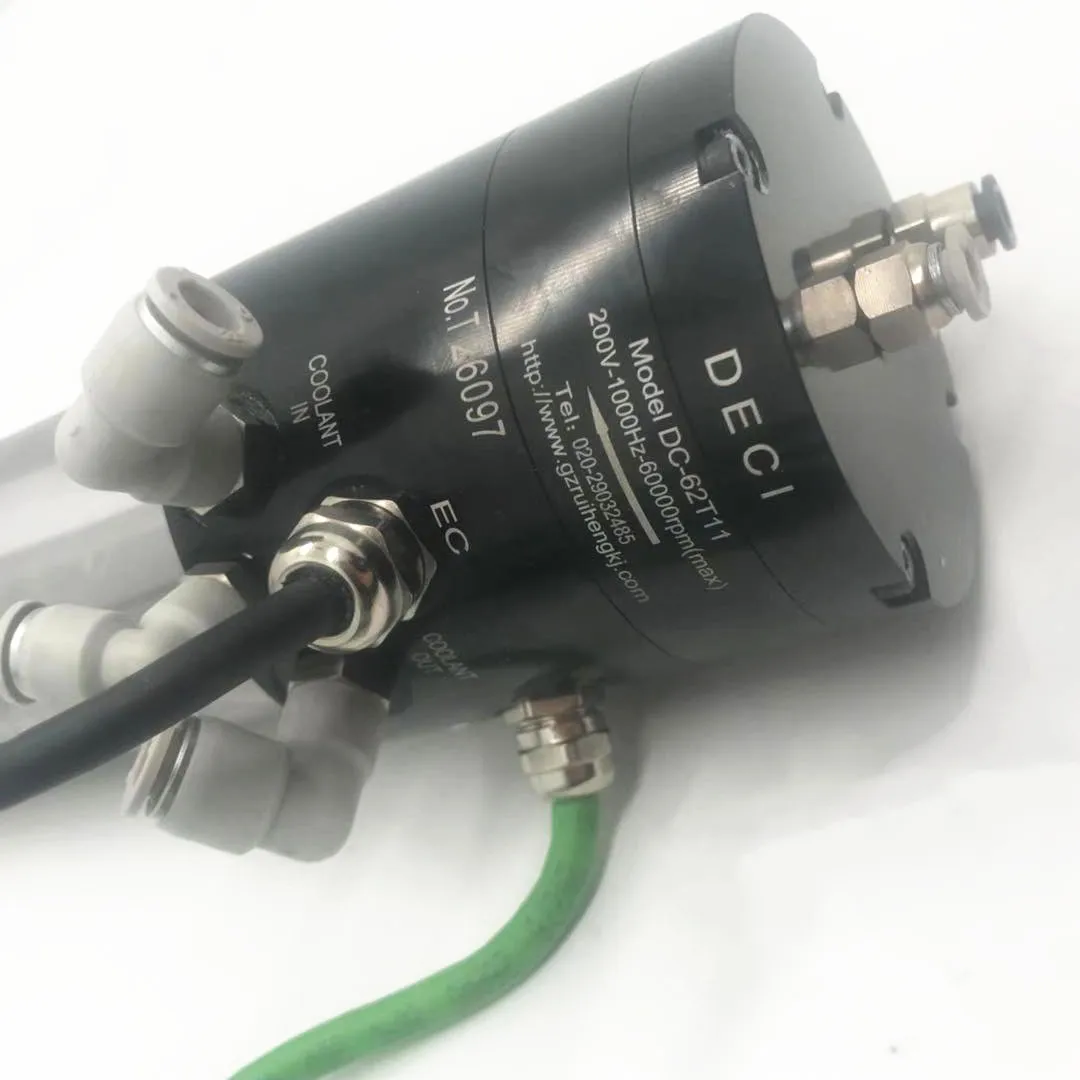

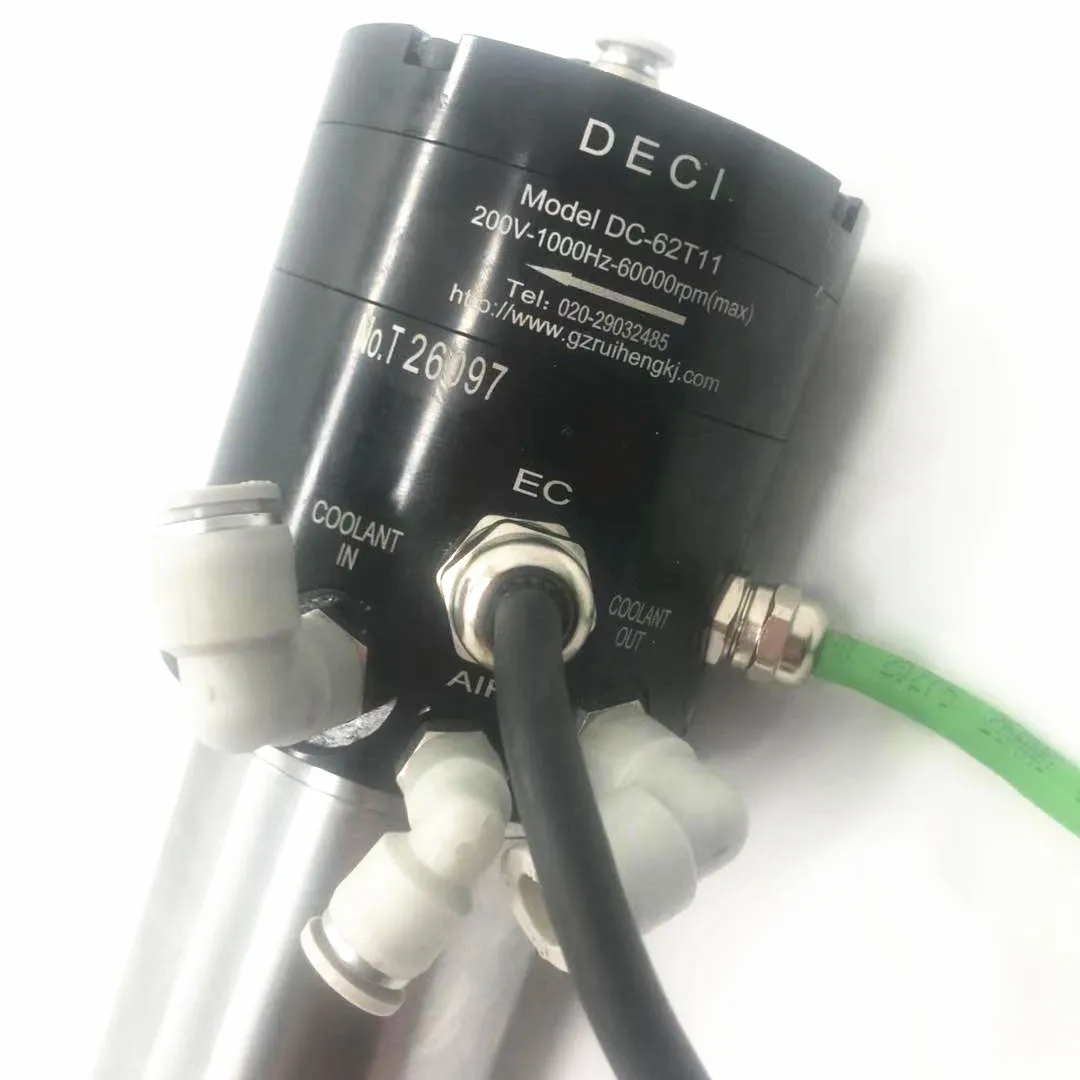

DECI DC-62T11V2
Parameters

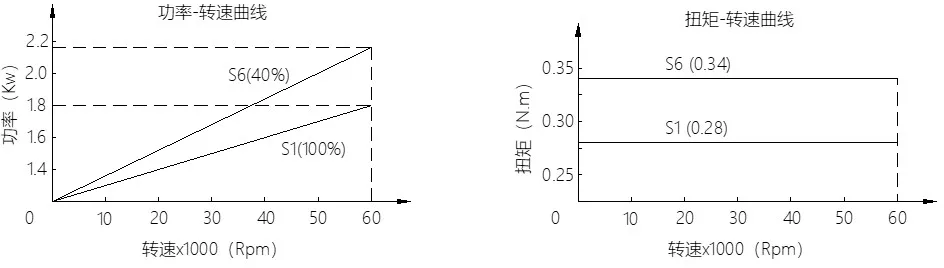

Motor Power:
1.8/2.2KW
Rated voltage:
200v(3~)
Max rotate speed :
60000rpm
Max currency:
6.5A
Max Frequency:
1000Hz
Torque:
0.28N.M
Specification
Cone surface spring at shaft end:
≤0.001mm
Tooling Releasing Air curtain:
5.6-6.0 Kgf/cm²
Tooling Exchange Method:
ATC
Air curtain pressure at front end:
2.5-3.0 Kgf/cm²
Tooling Pulling Force:
800
Tooling Back Air Pressure:
5.6-6.0 Kgf/cm²
Tooling Connection:
T11-ER11
Cooling:
water cooling
Encoder:
-
Coolant Pressure:
2.5Kgf/cm²
Approach Switch:
PNP On
Bearing Lubrication Method:
Grease
Balance Level :
G1
Tooling Instalation Method:
Clip
Vibration Value:
≤0.8
Weight:
3.9kg
Applicable industry
Packaging & Shipping
Why choose us
Company Profile
Certifications
FAQ
Q: Are you trading company or manufacturer ? A: We are the manufacturer of DECI electric spindles.
Q: Do you have other spare parts for the spindle motor, like a grab, a VFD, a chuck?
A:we have all the packages. We can get the engineer to program you
Q: What's your delivery time? A: It depends.If your order is standard and in stock,we can deliver immediately. If not,about 7 work days.
Q: Do you provide samples ? is it free or extra ? A: Sorry, we don't offer samples.
Q: Which payment method and Express can you accept?
1:Payment: T/T,e-checking, Paypal, Western union, Alipay and etc.
2:Express: UPS, DHL, FEDEX, TNT, EMS and etc.
Q: How do you make our business long-term and good relationship? A: 1. DECI keep good quality and competitive price to ensure our customers benefit ; 2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
