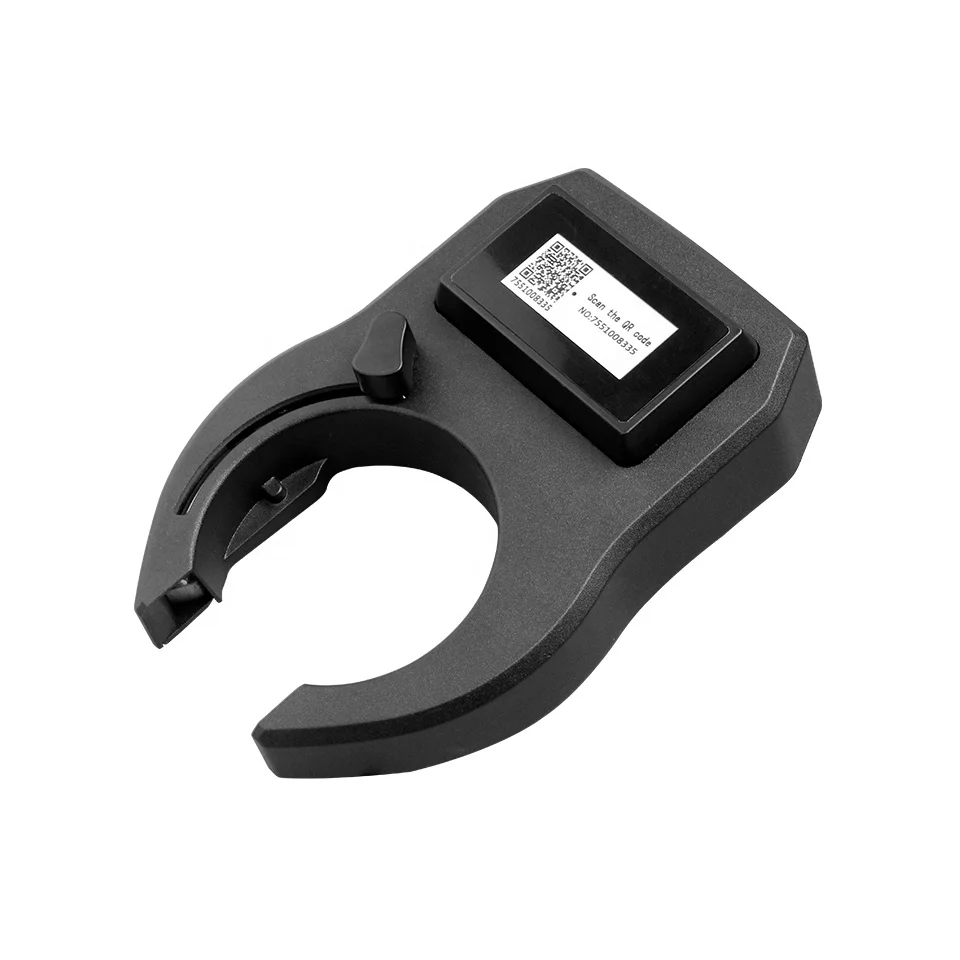

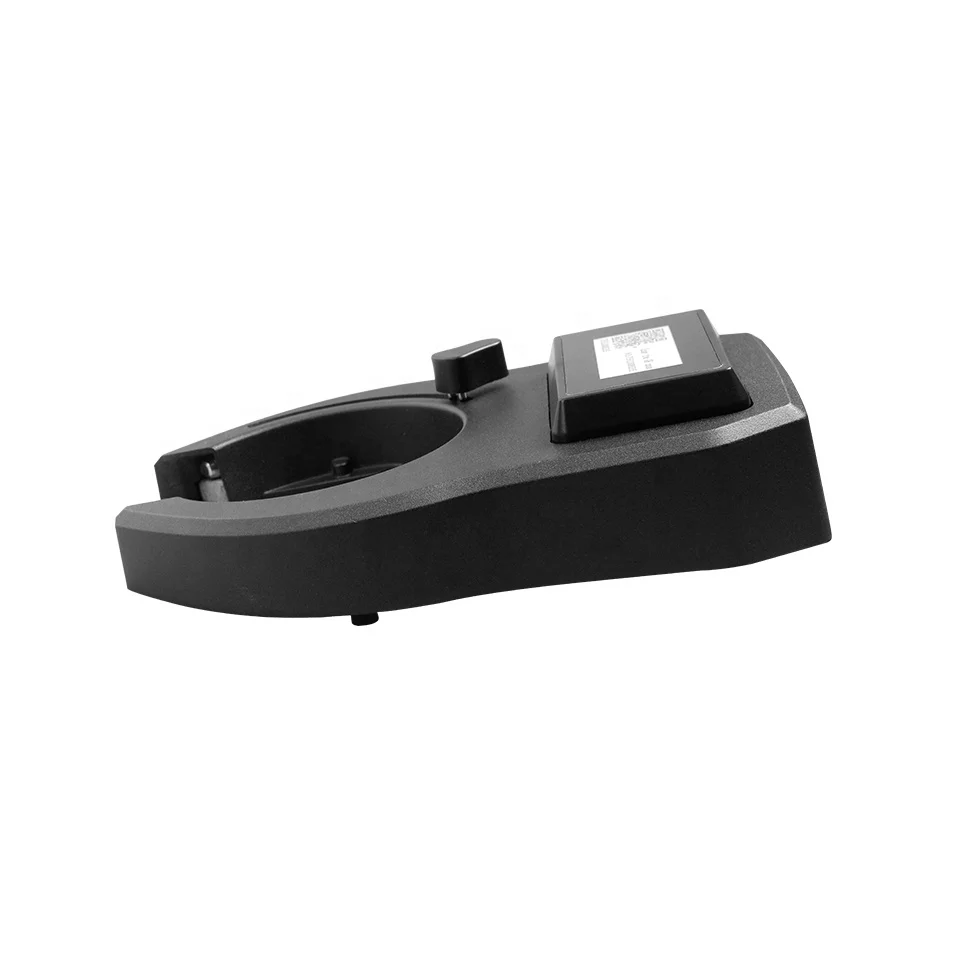

JIMI GPS tracker bike lock shared bicycle weatherproof GPS lock automatically unlock
- Category: >>>
- Supplier: Shenzhen Jimi IOT Co. Ltd.
Share on (62339196314):
Product Overview
Description

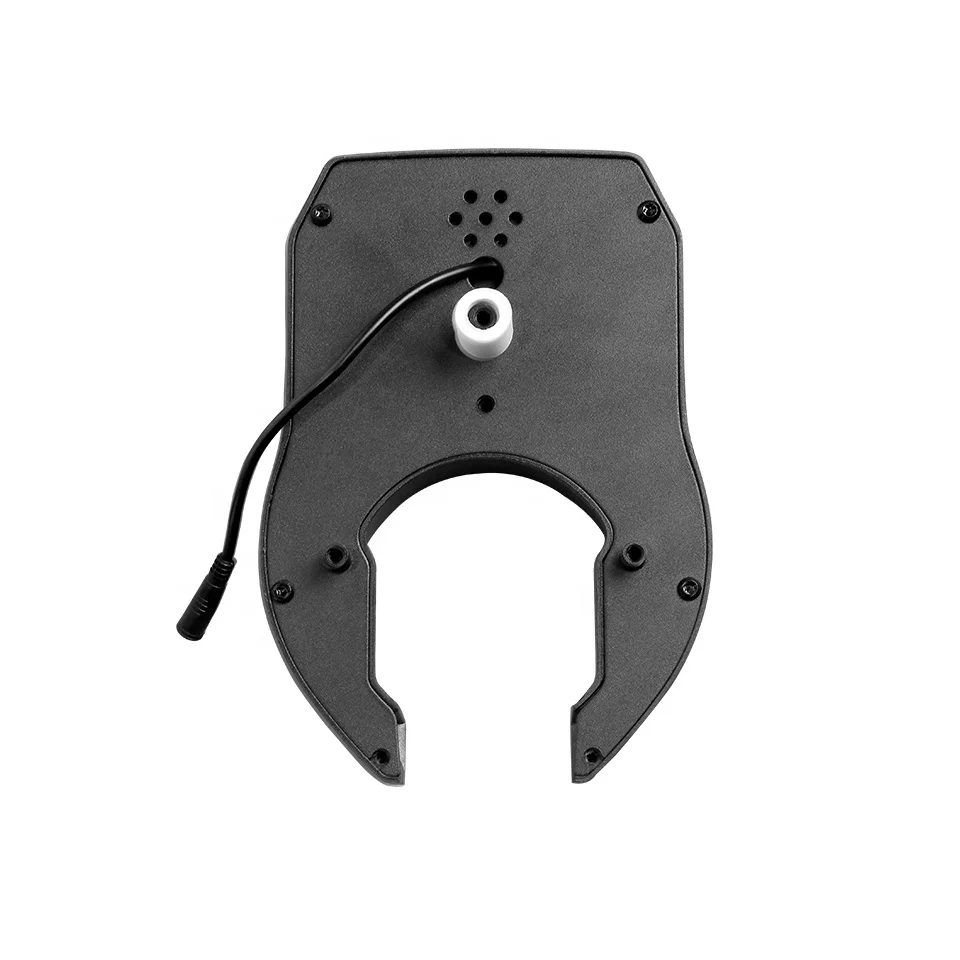

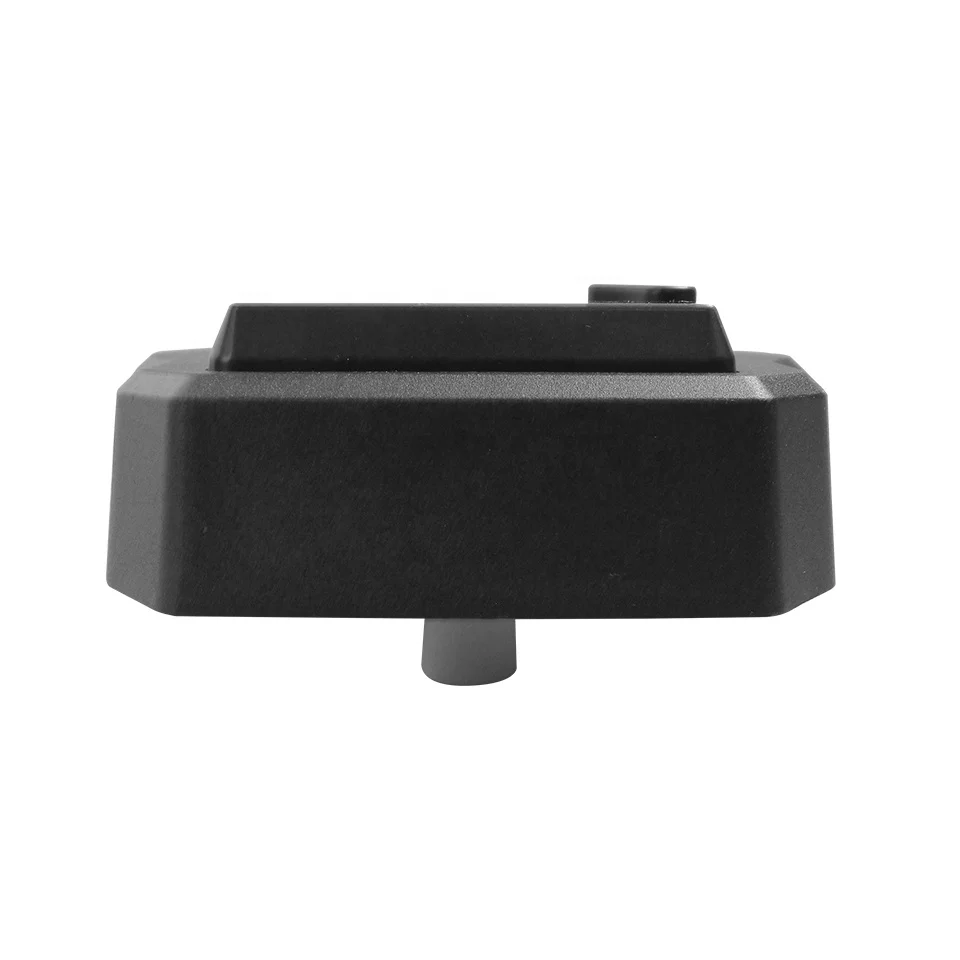

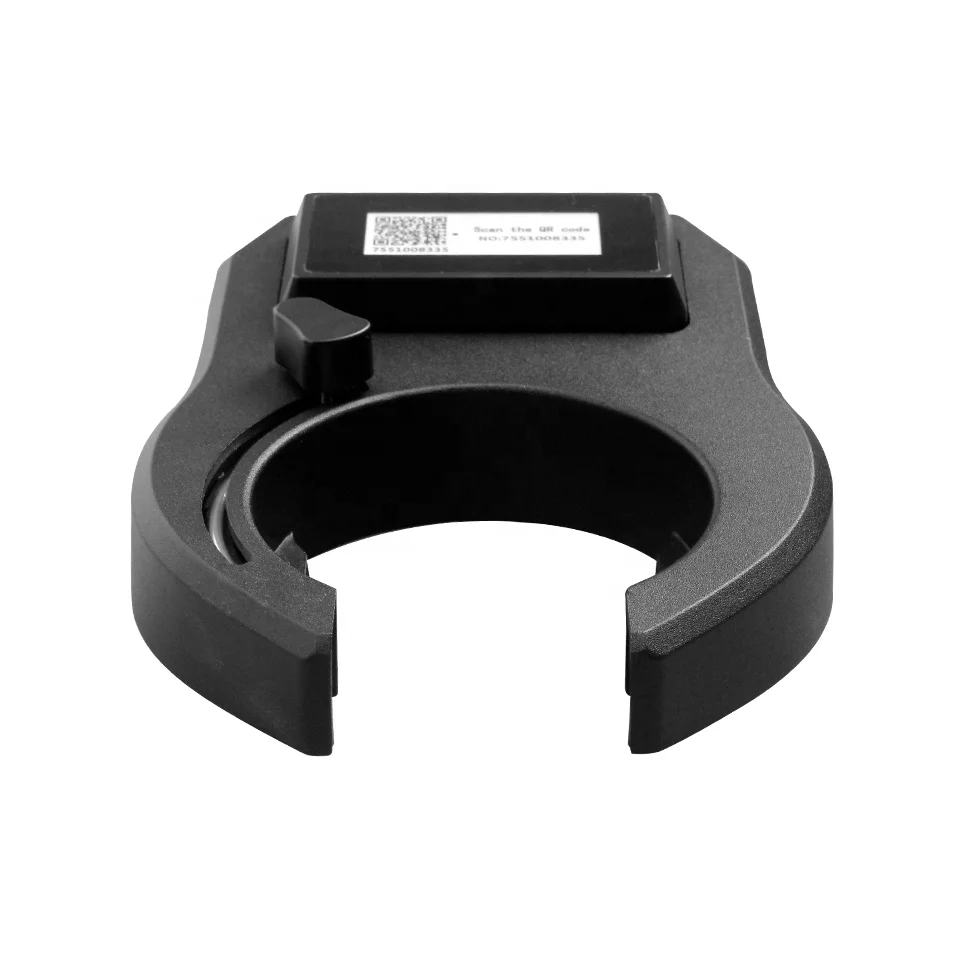

JIMI GPS bike lock BL10 for bicycle for public share bike project Powered by solar energy Stable durable hardware IPX6 water
Product Description

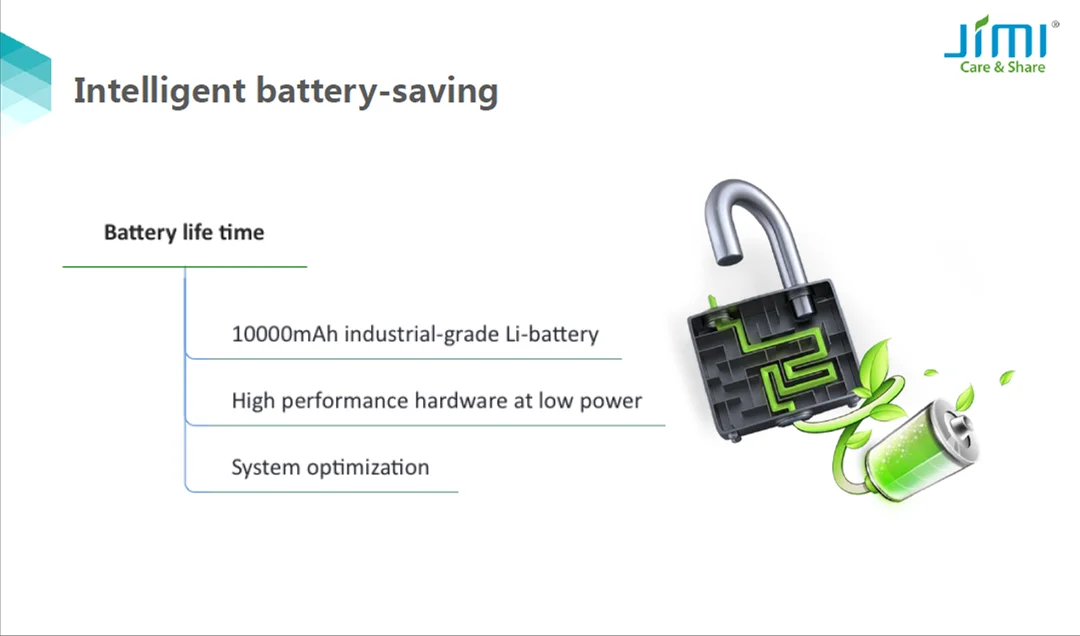

- 10000mAH battery
1000mAh battery and intelligent power management ensure 45 days working time

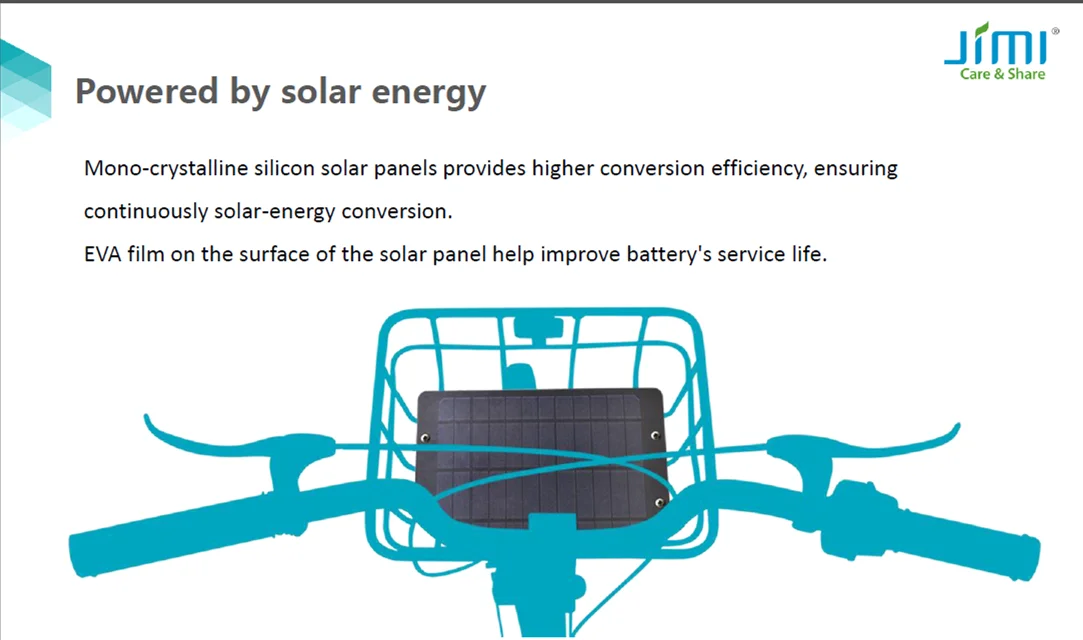

- Solar charing
Mono-crystalline silicon solar panels provide solar-energy conversion

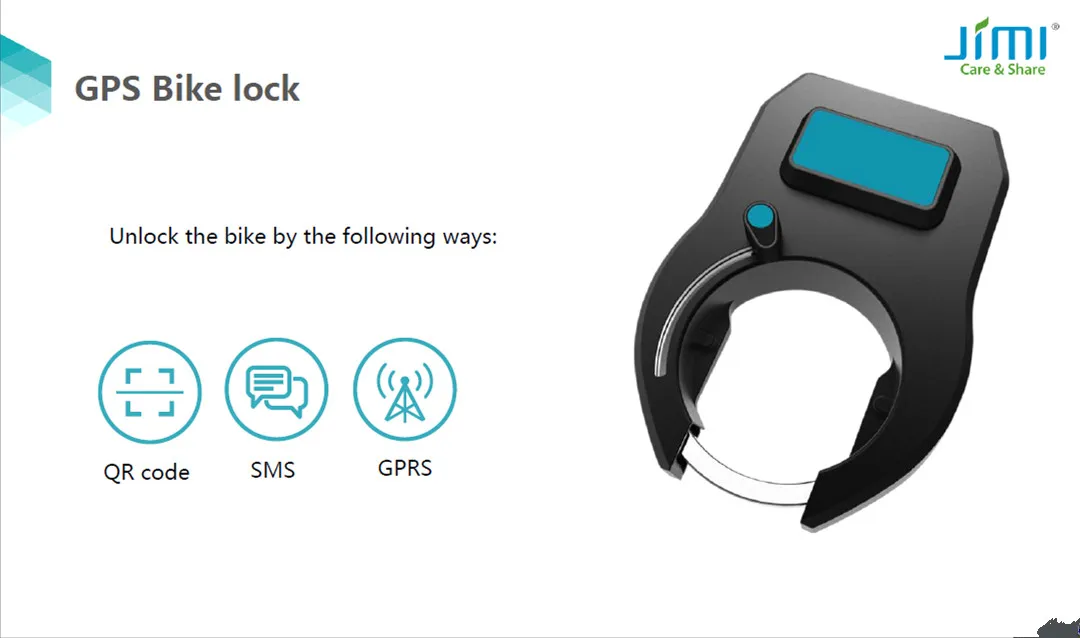

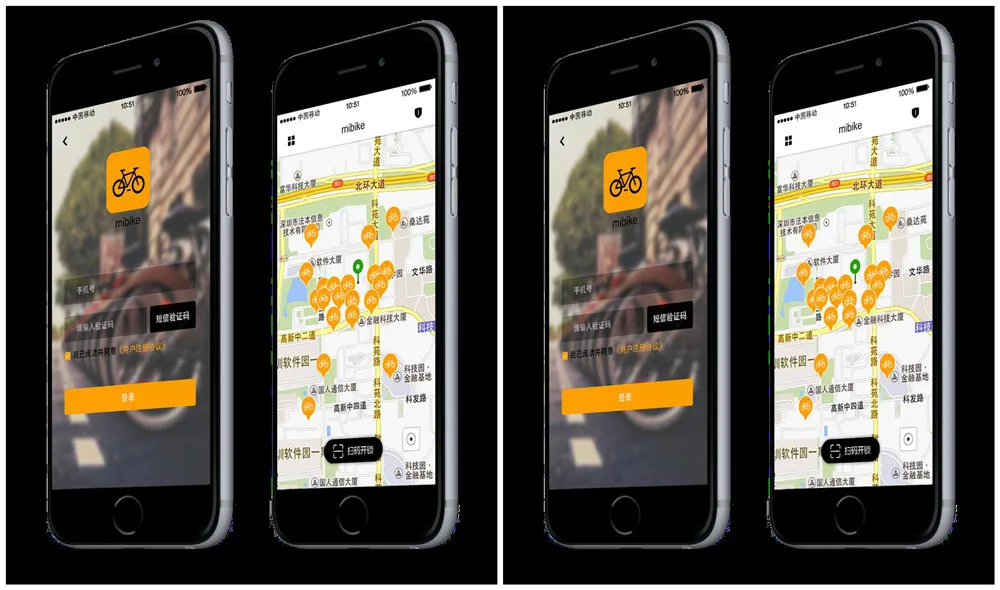

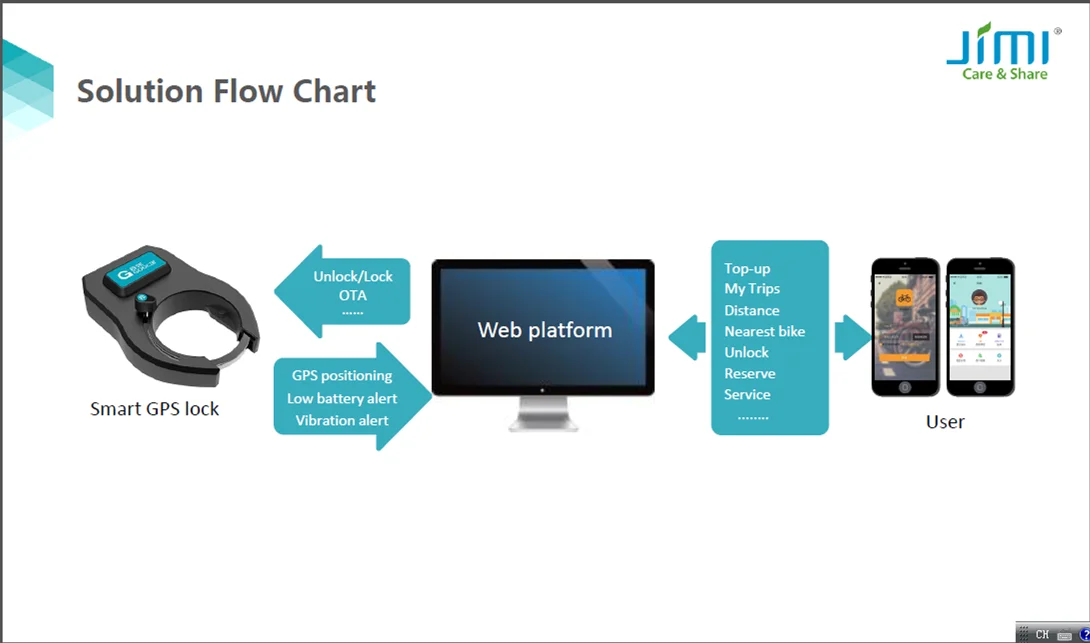

- Lock/unlock bike via SMS/APP
GPRS technology ensures efficient and reliable unlocking
- GPS /LBS positioning
Faster searching & locating speed realizes more accurate bike locating

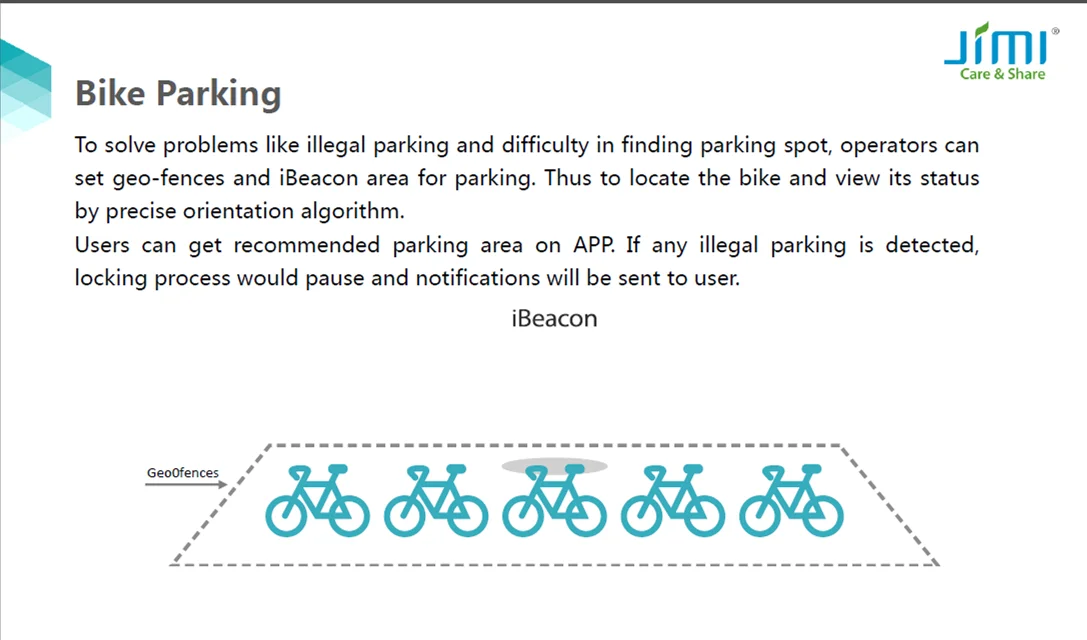

- Geo-fence
Create virtual barrier to define geographical boundaries
- IPX6 Water Proof
Able to withstand inclement weather conditions
BL10 spec
| GSM Specification | |
| CPU | CPU MTK2503, dominant frequency 260MHz |
| Communication mode | GSM |
| GSM Frequency | 850/900/1800/1900MHz |
| GPRS | Class 12, TCP/IP |
| Memory | 64Mb |
| Phrase error | RMSPE<5, PPE <20 |
| Receive sensitivity | Class II RBER2% (-102dBm) |
| GPS Specification | |
| Chip | MTK high sensitivity GPS chips |
| Frequency | GPS L1, 1575.42MHz |
| Channel | 66 |
| Location accuracy | 5-10 meters |
| Tracking sensitivity | -165dBm |
| Acquisition sensitivity | -148dBm |
| Main Specification | |
| WIFI location accuracy | 3-50 meters |
| iBeacon location accuracy | 1-10meters |
| G-sensor | BMA 250E |
| Antenna | Built-in quad band GSM antenna |
| Battery | 10000mAh (built-in 3.7v/2500mAhx4 battes 18650) |
| Charging | Solar energy(6v/5w) |
| Average working current | About 60mA |
| Average standby current | About 4mA |
| Working condition | Temperature: -20°C-60°C, Humidity 5%-95% |
| Waterproof | IPX6 |
| Packing Specification | |
| Gross weight | 3.5kg |
| Packing dimension | 21x14.5x6cm |
Packing & Shipping
1. All products have been strictly Quality Checked in house before packing.
2. All products have been well packed before shipping.
3. One year warranty is provided for all models.
4.We will bear maintenance cost during warranty.
Company Information
Jimi Electronics is a leading and advanced wireless communication solution provider in China, we mainly manufacture GPS Tracker.
Our advantages:
1. Focus on wireless communication with more than 14 years experiences.
2. Powerful R&D team with 80+ engineers.
3. 3 factories for manufacturing chips ,integrating and assembling.
4. Complete Solution –hardware/software and mobile APP.
Welcome your inquiry.
