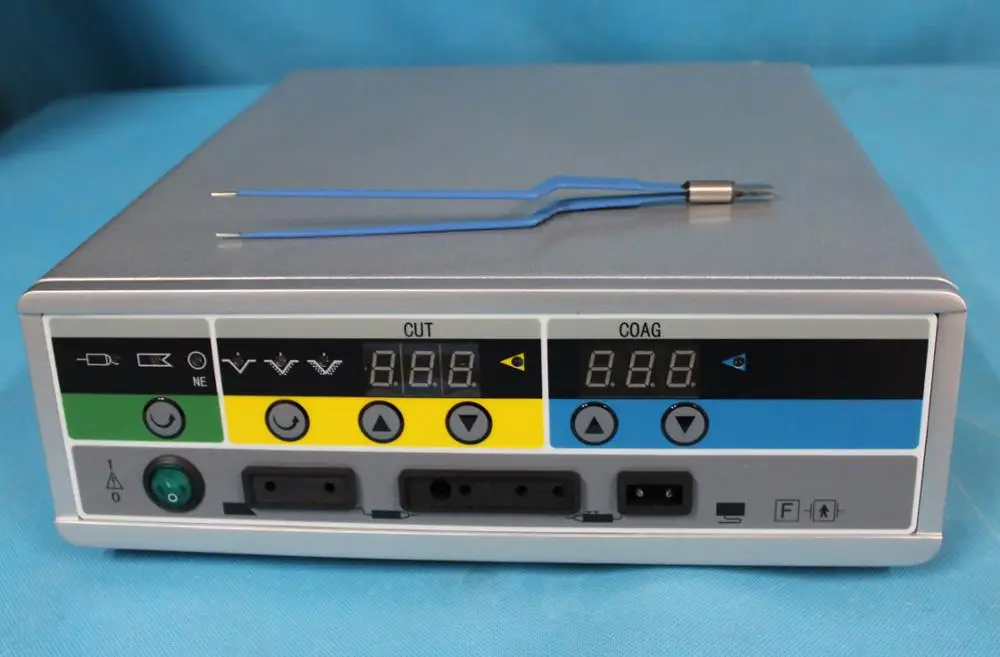

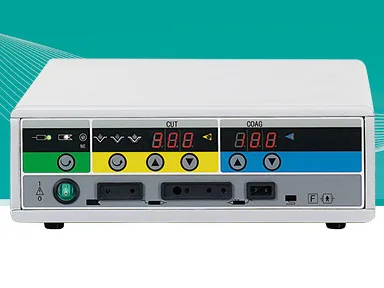

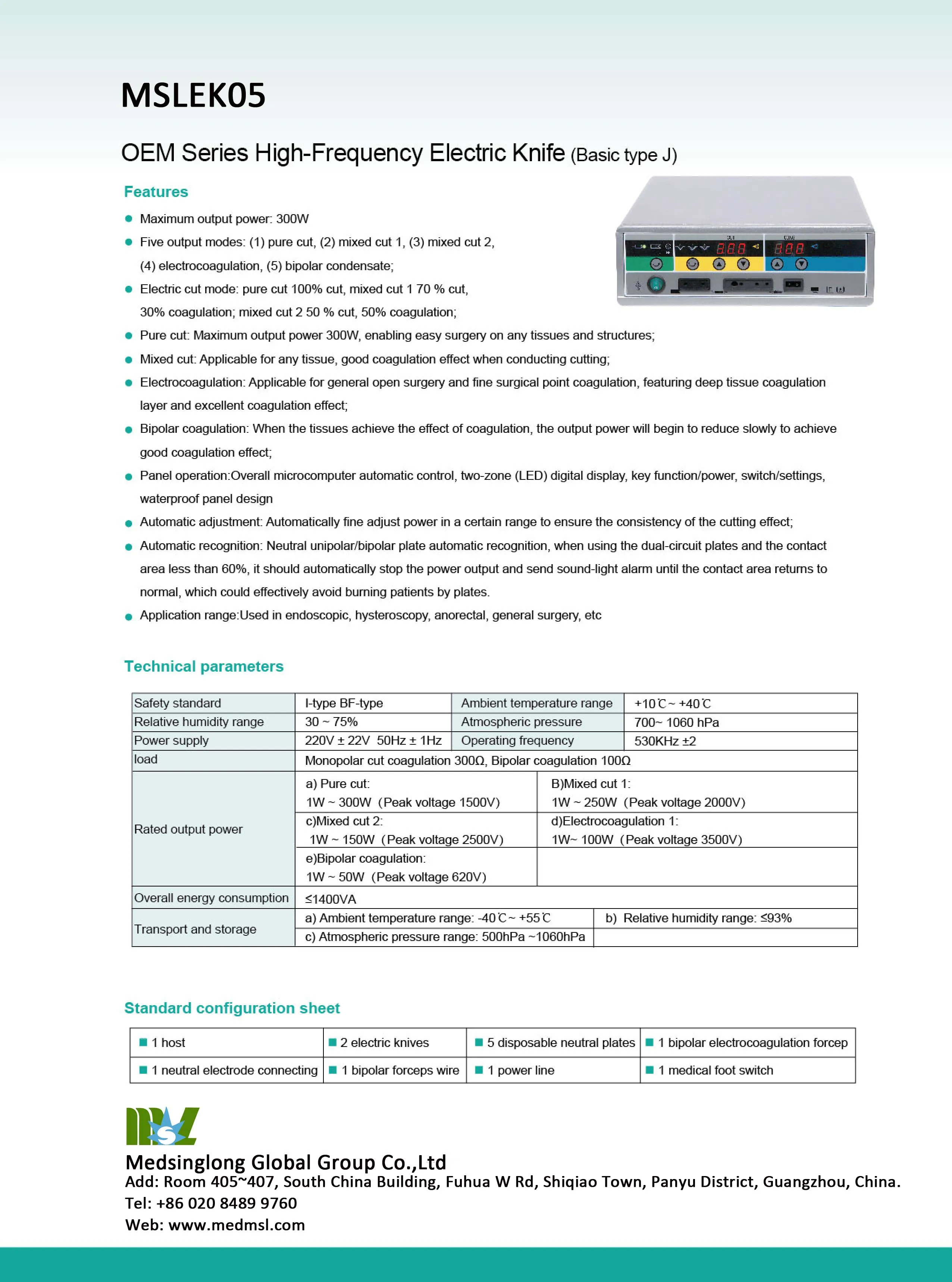

High-Frequency Electric Knife (Basic type MSLEK05)

Features

 Maximum output power: 300W

 Five output modes: (1) pure cut, (2) mixed cut 1, (3) mixed cut 2, (4) electrocoagulation, (5) bipolar condensate;

 Electric cut mode: pure cut 100% cut, mixed cut 1 70 % cut, 30% coagulation; mixed cut 2 50 % cut, 50% coagulation;

 Pure cut: Maximum output power 300W, enabling easy surgery on any tissues and structures;

 Mixed cut: Applicable for any tissue, good coagulation effect when conducting cutting;

 Electrocoagulation: Applicable for general open surgery and fine surgical point coagulation, featuring deep tissue coagulation layer and excellent coagulation effect;

 Bipolar coagulation: When the tissues achieve the effect of coagulation, the output power will begin to reduce slowly to achieve good coagulation effect;

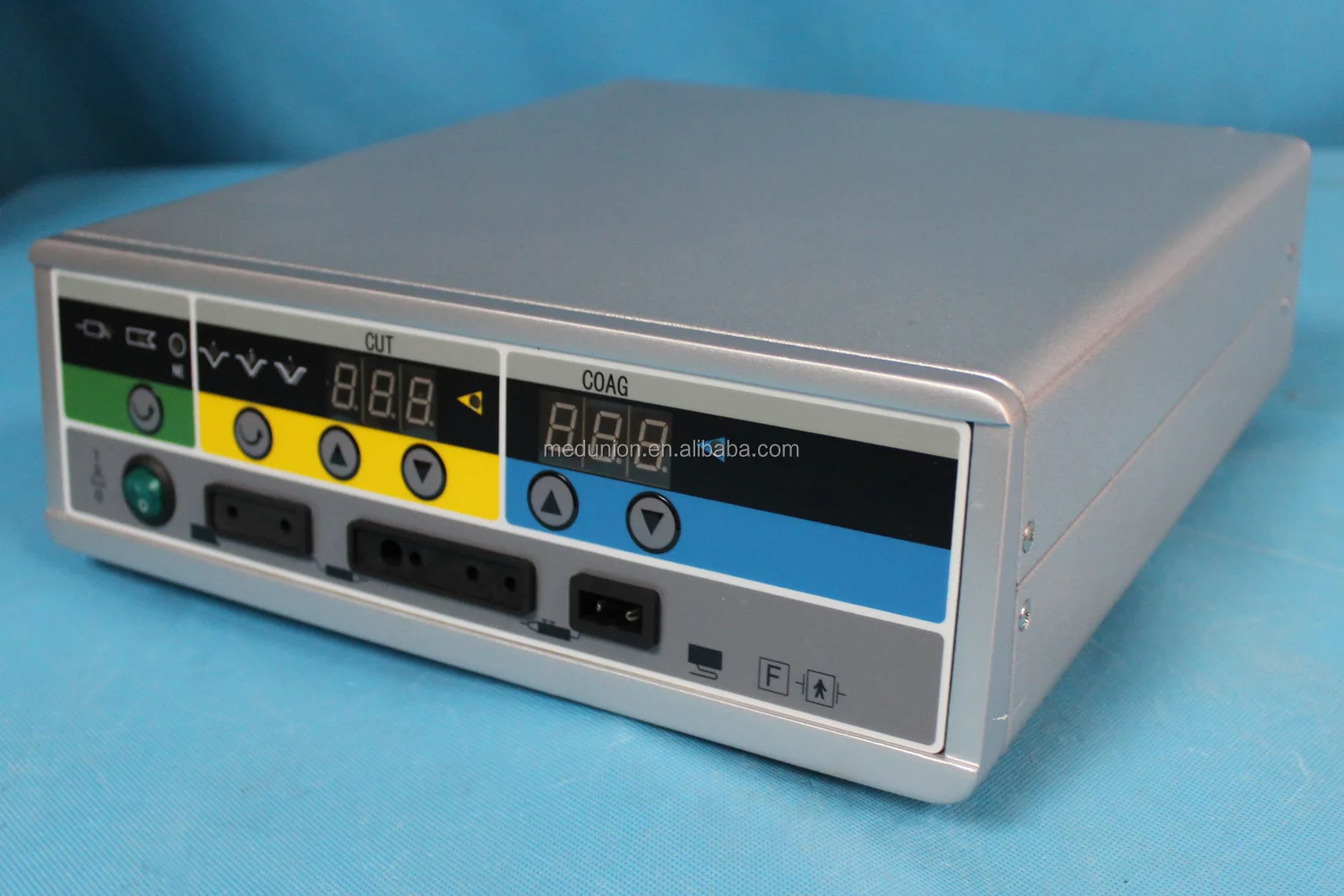

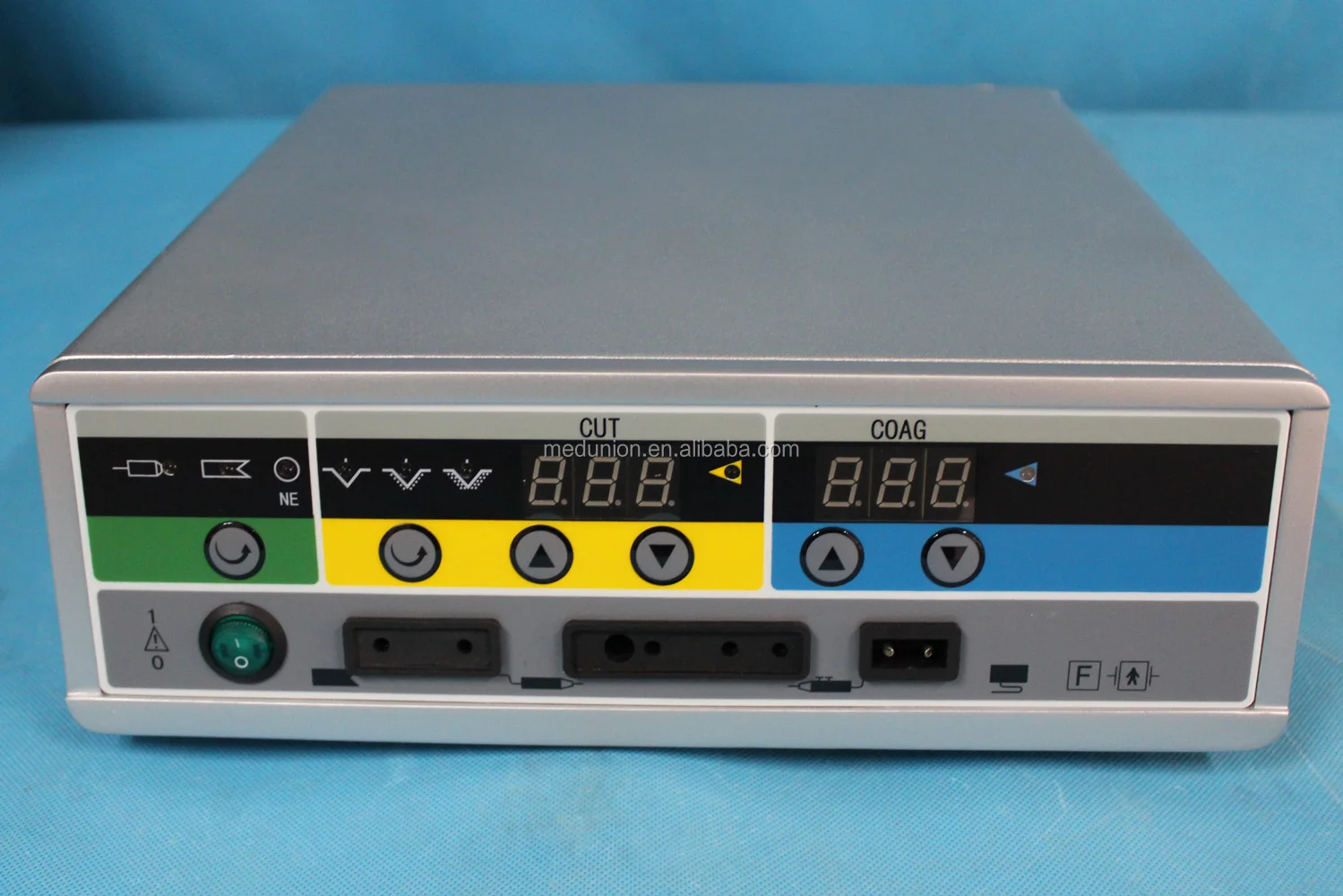

 Panel operation: Overall microcomputer automatic control, two-zone (LED) digital display, key function/power, switch/settings, waterproof panel design

 Automatic adjustment: Automatically fine adjust power in a certain range to ensure the consistency of the cutting effect;

 Automatic recognition: Neutral unipolar/bipolar plate automatic recognition, when using the dual-circuit plates and the contact area less than 60%, it should automatically stop the power output and send sound-light alarm until the contact area returns to normal, which could effectively avoid burning patients by plates.

 Application range: Used in endoscopic, hysteroscopy, anorectal, general surgery, etc

Technical parameters

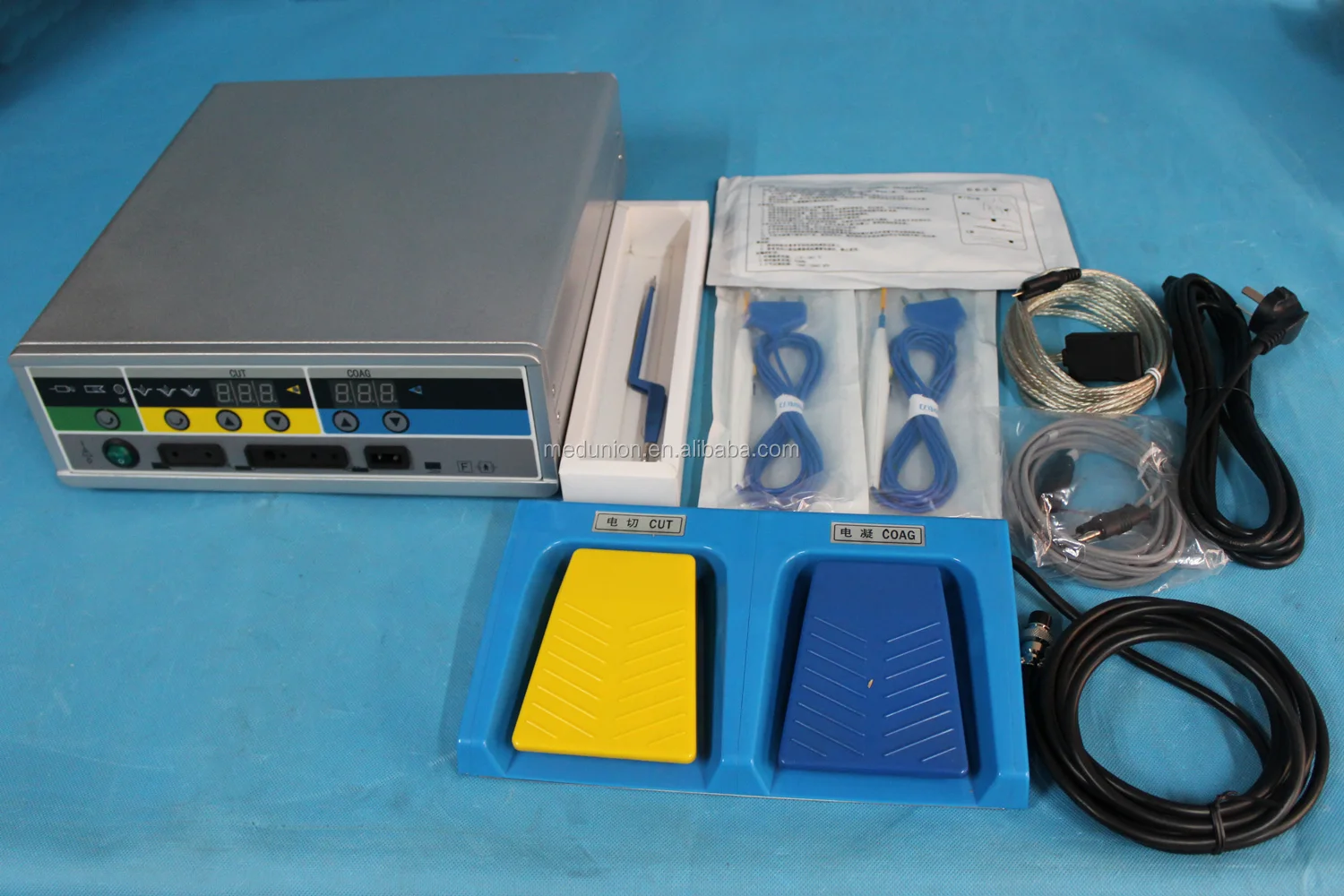

Standard configuration sheet
