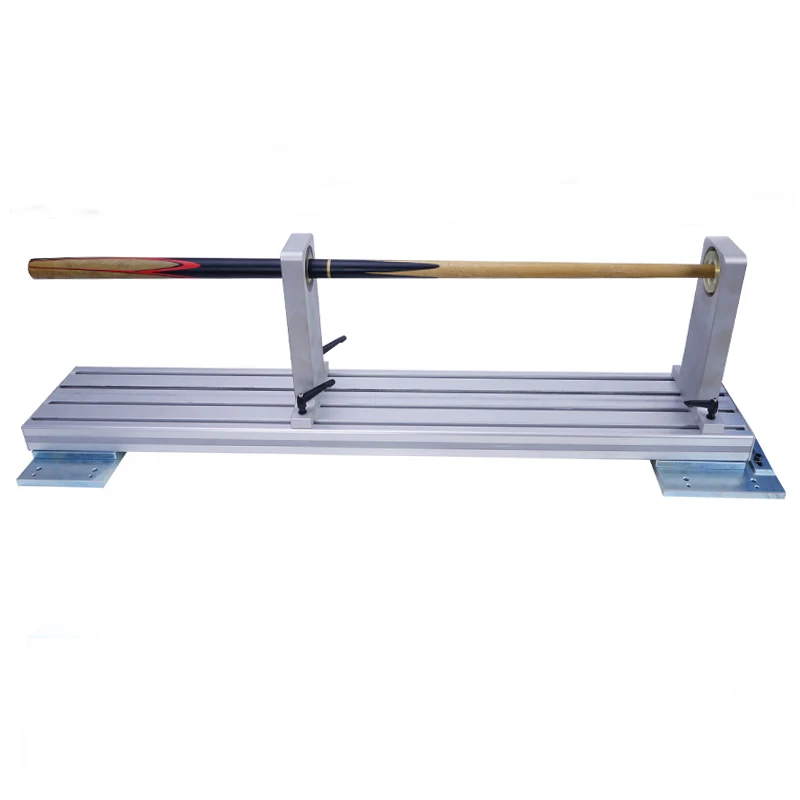

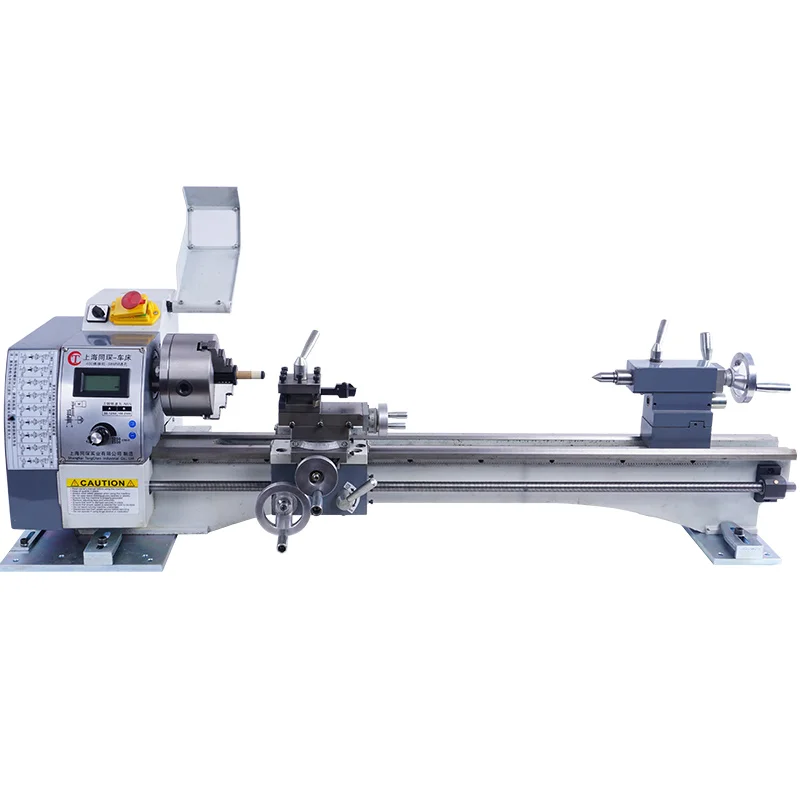

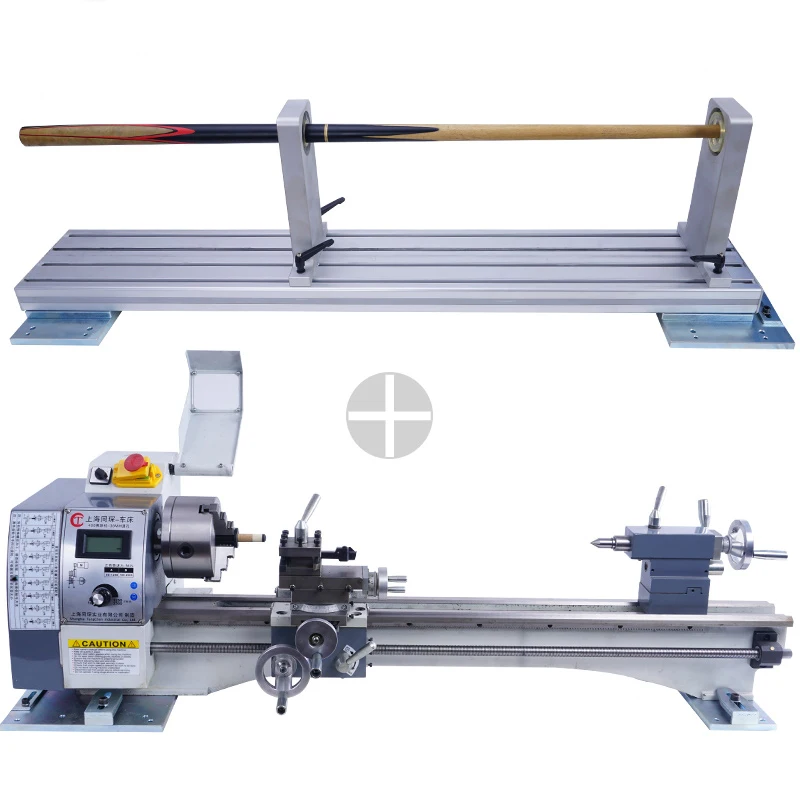

Horizontal extended edition universal woodworking lathe and pool cue repair
- Category: >>>
- Supplier: Shanghai Tongchen Import Export Co. Ltd.
Share on (62339280668):
Product Overview
Description
Product Description
Name | 210 Conventional version | 210 extension version | 210 Extended double front | 400Model Beads lathe |
voltage | 220V 50Hz | 220V 50Hz | 220V 50Hz | 220V 50Hz |
power | 750W | 750W | 750W | 750W |
| 38mm | 38mm | 38mm | 38mm |
Spindle speed | 50-2500 rev/min | 50-2500 rev/min | 50-2500 rev/min | 50-2500 rev/min |
Shift level | Infinitely variable speed | Infinitely variable speed | Infinitely variable speed | Infinitely variable speed |
Machine accuracy range | <10s | <10s | <10s | <10s |
Tool holder swing diameter | 100mm | 100mm | 100mm | 100mm |
Bed turning diameter | 180mm | 180mm | 180mm | 180mm |
Two tip distance | 400mm | 400mm | 400mm | 400mm |
Spindle bore taper | Mohs 3 | Mohs 3 | Mohs 3 | Mohs 3 |
Tailstock shaft taper | Mohs 2 | Mohs 2 | Mohs 2 | Mohs 2 |
Chuck maximum clamping | 120mm 125 chuck | 120mm 125 chuck | 120mm 125 chuck | 120mm 125 chuck |
Tool holder station | 4 stations | 4 stations | 4 stations | 4 stations |
Tool holder maximum stroke | 55mm | 55mm | 55mm | 55mm |
Middle tray travel | 75mm | 75mm | 75mm | 75mm |
Large tray travel | 276mm | 276mm | 276mm | 276mm |
Tailstock sleeve stroke | 60mm | 60mm | 60mm | 60mm |
Automatic feed range | 0.1-0.2mm | 0.1-0.2mm | 0.1-0.2mm | 0.1-0.2mm |
Lathe length | 800mm | 1200mm | 1300mm | 800mm |
Lathe width | 390mm | 390mm | 390mm | 390mm |
Lathe height | 370mm | 370mm | 370mm | 370mm |
Lathe gross weight | 75kg | 82kg | 90kg | 75kg |
