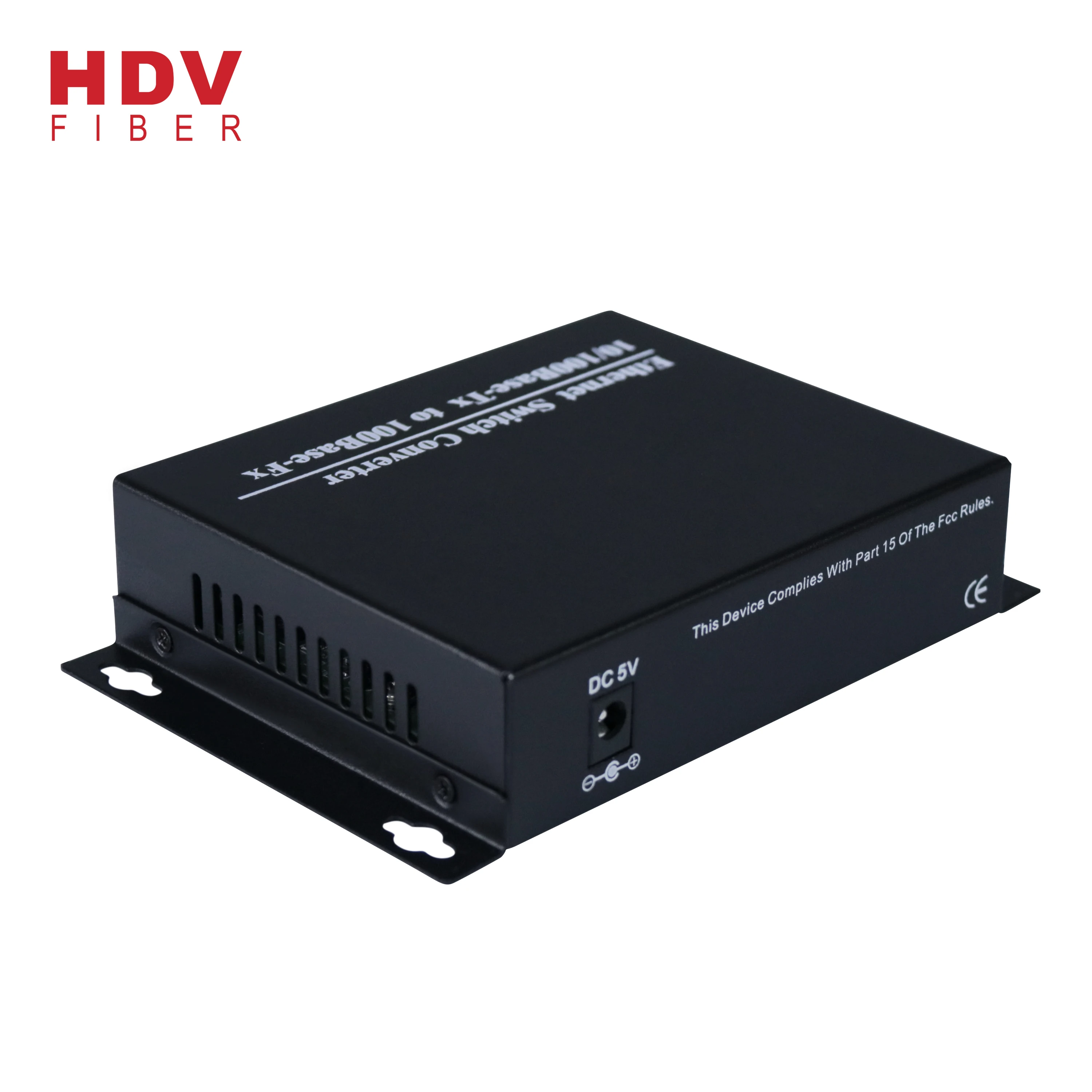

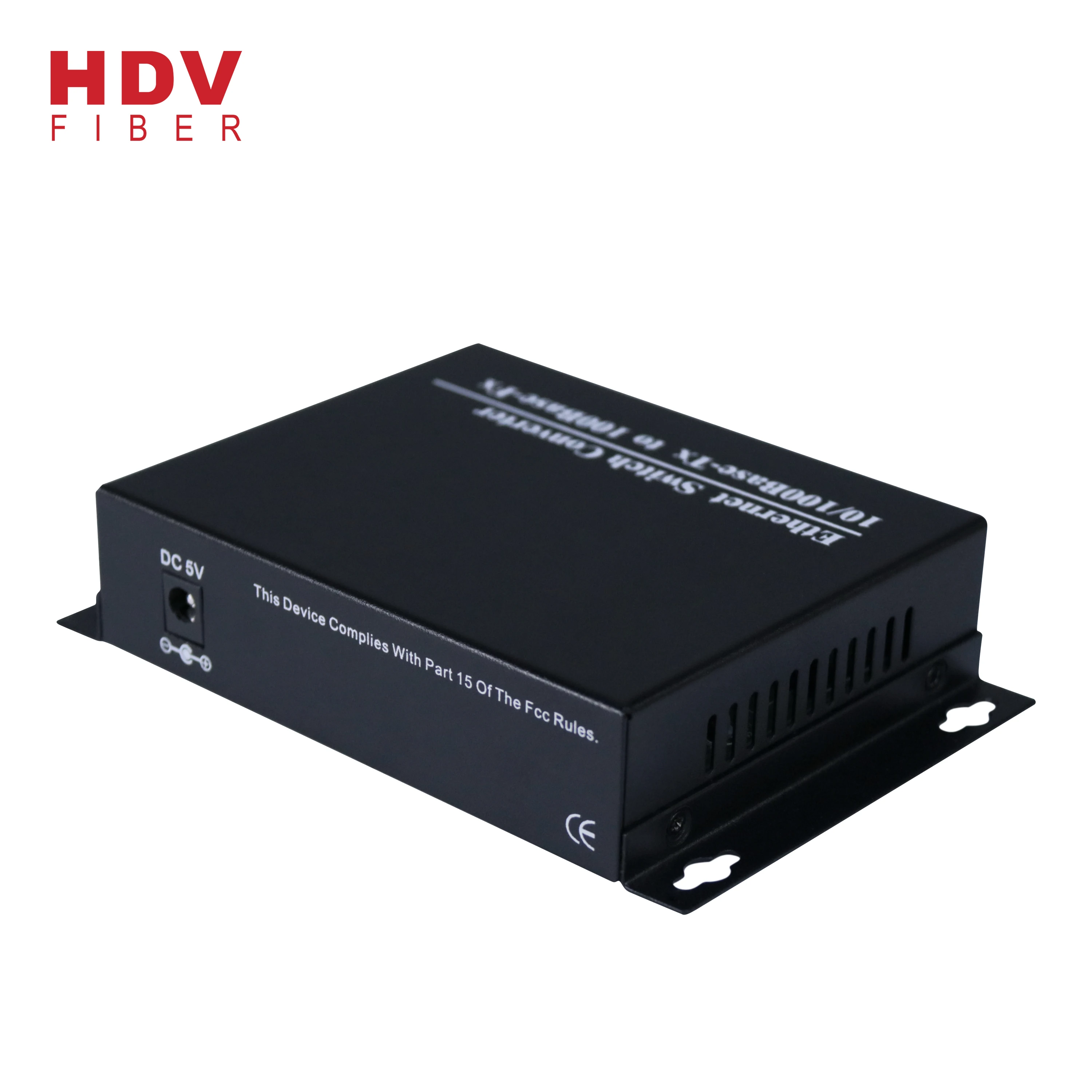

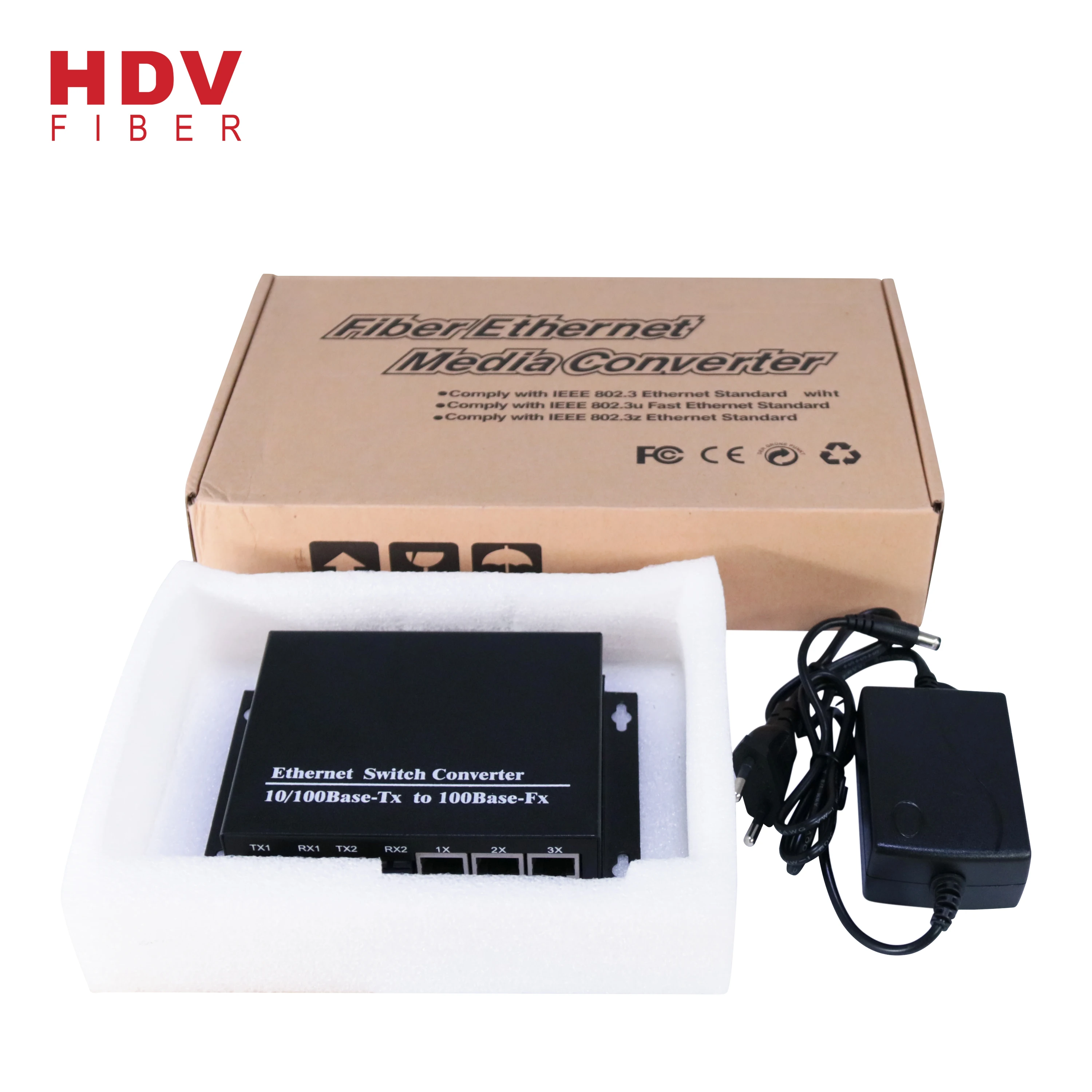

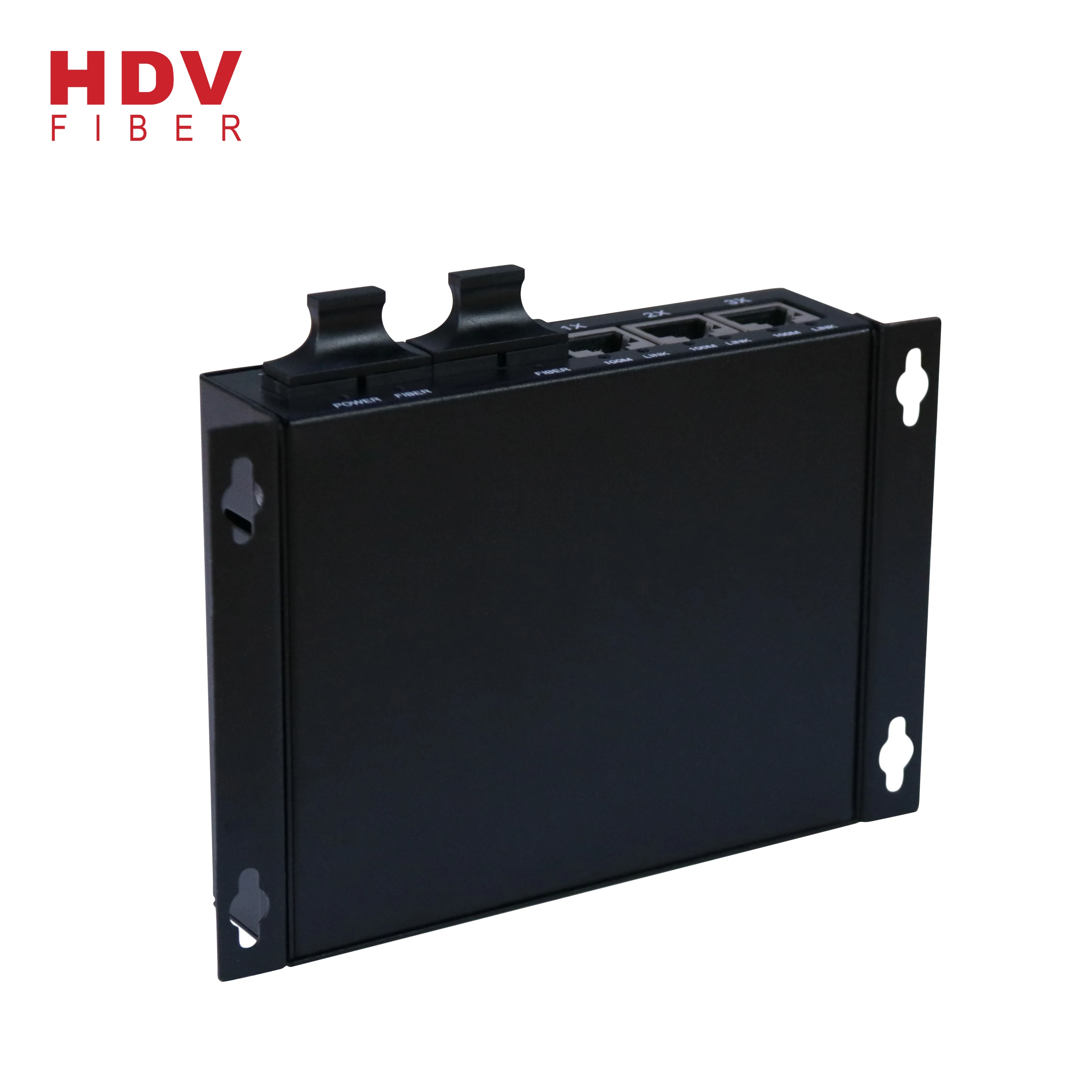

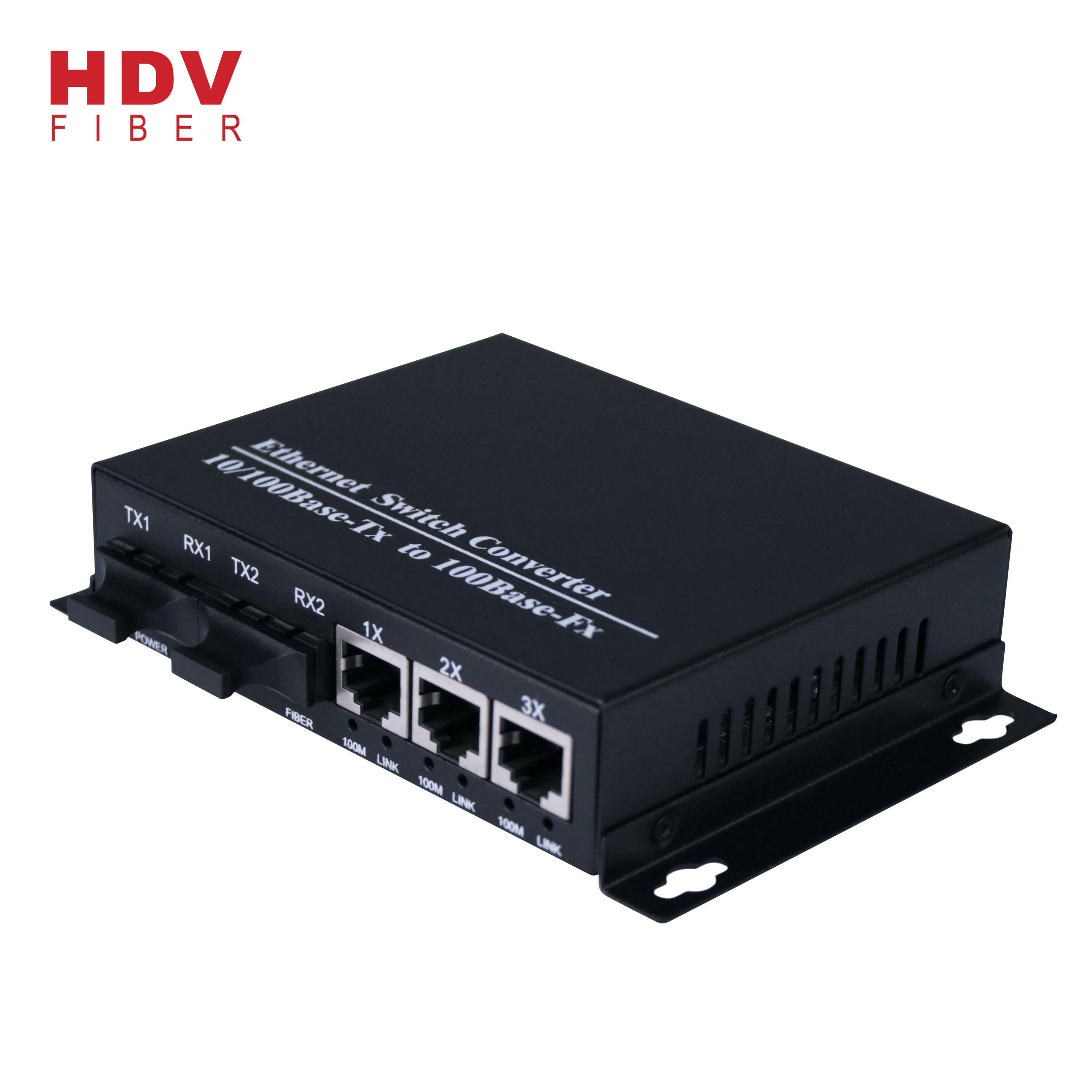

New Model Industrial Ethernet Switch Dual Fiber Compatible Huawei Industrial 3 Port Ethernet Switch

Model

ZX-2M3WS33-53OC

Product

Fast Ethernet 3+2 Switch

Fixed Port

3*10/100Base--TX RJ45 port (Data)

2*100M Optical Fiber Port(optional 1310/1550)

Network Protocol

IEEE802.3

IEEE802.3i 10BASE-T

IEEE802.3u100BASE-TX

IEEE802.3x

Port Specification

10/100BaseT(X) Auto

Transmission Mode

Store and Forward(full wirespeed)

Bandwidth

310Mbps

Packet Forwarding

7.2Mpps

MAC Address

2K

Buffer

2.5M

Transmission Distance

10BASE-T : Cat3,4,5 UTP(≤250 meter)

100BASE-TX : Cat5 or later UTP(150 meter)

Single mode single fiber(MAX 20KM)

Single mode double fiber (MAX 20KM)

Multiple mode double fiber(MAX 850M/2KM)

Optional 3-100KM Optical Fiber Module

Watt

≤10W;

LED Indicator

POWER:Power LED

FX1/FX2:(Optical fiber LED)

Port:(100M= Fast Ethernet LED+L/A=Link LED)

Power

External power DC 5V 2A

Operating Temperature/Humidity

-15~+65°C;5%~90% RH Non coagulation

Storage Temperature/Humidity

-40~+75°C;5%~95% RH  Non coagulation

Product size/Packing size(L*W*H)

113mm*92mm*28mm

230mm*125mm*55mm

N.W/G.W(kg)

0.32kg/0.46kg

Installation

Desktop (optional wall hanger+machine hanger parts)

Lightning Protection level

3KV 8/20us;

IP30

Certificate

CE mark, commercial;CE/LVD EN60950;
FCC Part 15 Class B;RoHS;CNAS;MA

Warranty

Whole device for 2 year
