24ch HD H.264 IPTV Encoder with IP and ASI output for Digital Headend or OTT IPTV System
- Category: >>>
- Supplier: Chengdu Ustarlink Technology Co. Ltd.
Share on (62339414748):
Product Overview
Description
Product
Product Overview

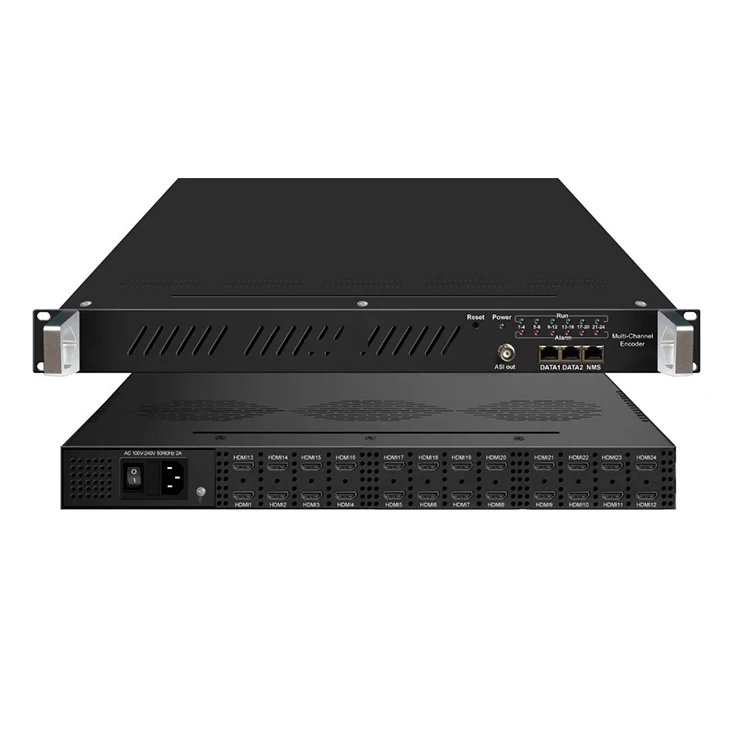

WS-9124 Multi-Channel encoder is a professional HD audio & video encoding and multiplexing device. It has 8/12/16/20/24 HD video input interfaces, and supports MPEG-4 AVC/H.264 video encoding and MPEG 1 Layer 2 audio encoding. This device can simultaneously encode 8/12/16/20/24 channels HD audio & video; moreover, the IP output can support 1MPTS and 8/12SPTS (8/12 HD inputs) IP output from Data1 or Data2, and support 1 MPTS or 16/20/24 SPTS (16/20/24 HD inputs). In conclusion, its high integrated and cost effective design makes the device widely used in varieties of digital distribution systems such as cable TV digital head-end, digital TV broadcasting etc.
Key features
* 8/12× HD inputs with 8/12 SPTS and 1 MPTS output through Data 1 or Data 2
* 16 /20/24× HD inputs with 16 /20/24 SPTS or 1 MPTS output through Data 1 or Data 2
* MPEG4 AVC/H.264 video encoding format
* MPEG1 Layer II audio encoding format, and audio gain adjustment
* 1 ASI output (optional) as copy of MPTS
* IP output over UDP and RTP protocol
* Support QR code, LOGO, caption insertion
* Support output resolution downscale conversion—For 8/12 HDMI input version
* Support “Null PKT Filter” function
* Support PID Remapping/ PCR accurate adjusting
* Control via web management, and easy updates via web

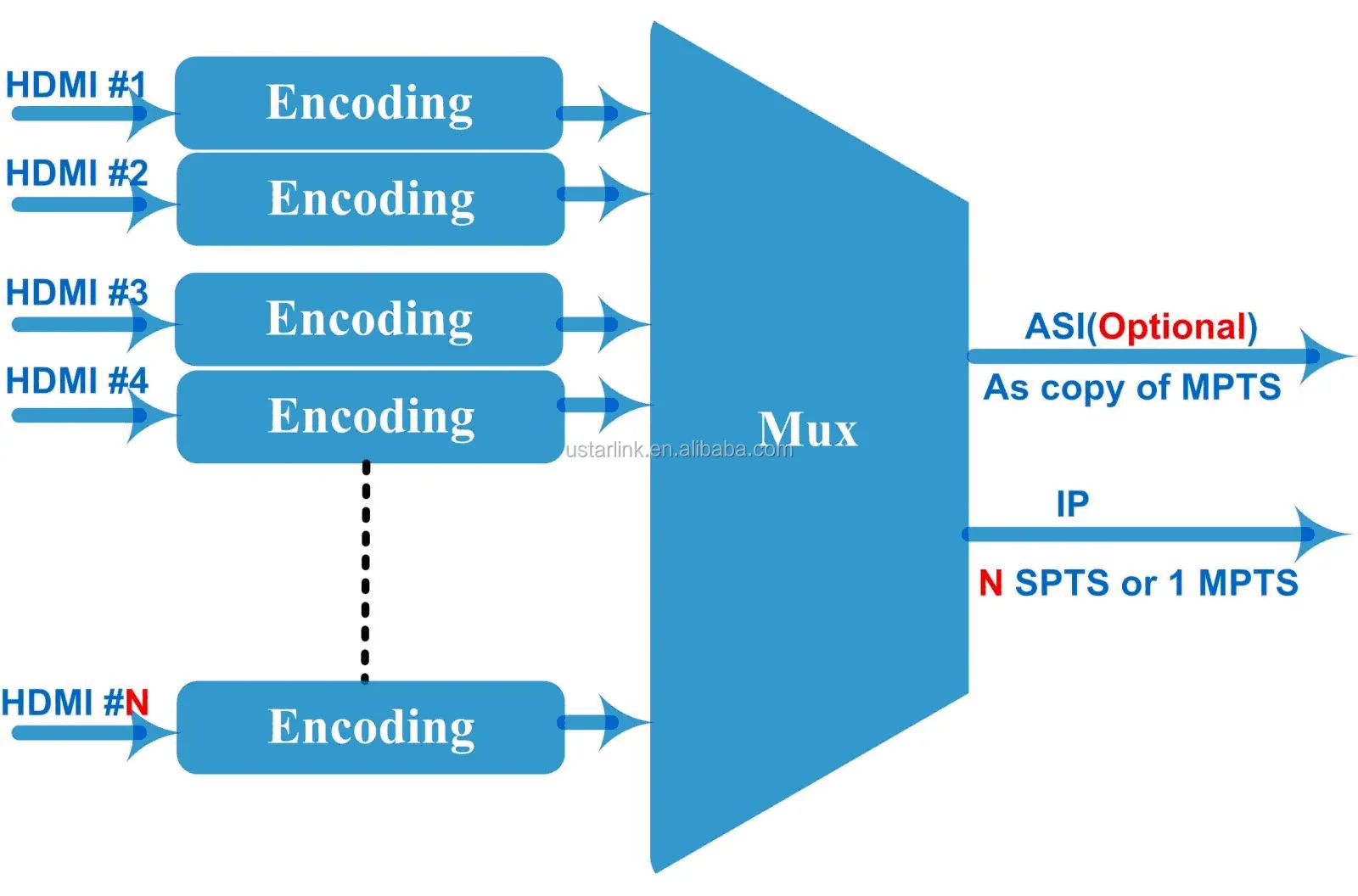

Principle Chart
Technical specification
Input | 8/12/16/20/24 HD inputs | |||
Video | Resolution | input | 1920×1080_60P, 1920×1080_60i, 1920×1080_50P, 1920×1080_50i, 1280×720_60P, 1280×720_50P, | |
Output | 1920×1080_30P, 1920×1080_25P, 1280×720_30P, 1280×720_25P, -- for 16/20/24 HD input version | |||
Output (New) | 160×124≤Output resolution≤input resolution halve frame rate --for 8/12 HD input version | |||
Encoding | MPEG-4 AVC/H.264 | |||
Bit-rate | 1~13Mbps each channel | |||
Rate Control | CBR/VBR | |||
GOP Structure | IP…P (P Frame adjustment, without B Frame ) | |||
Audio | Encoding | MPEG-1 Layer 2 | ||
Sampling rate | 48KHz | |||
Resolution | 24-bit | |||
Audio Gain | 0-255 Adjustable | |||
Bit-rate | 64/128/192/224/256/320/384Kbps | |||
Multiplexing | Maximum PID Remapping | 180 output pids per channel | ||
Function | PID remapping ( automatically or manually) | |||
Accurate PCR adjusting | ||||
Stream output | ASI output(optional) as copy of MPTS IP output thru Data1 (GE) or Data2(FE) over UDP and RTP protocol (8/12 HD inputs with 8/12 SPTS and 1MPTS output 16/20/24 HD inputs with 16/20/24 SPTS or 1MPTS output ) | |||
System function | Network management(WEB) | |||
Chinese and English language | ||||
Ethernet software upgrade | ||||
Miscellaneous | Dimension(W×L×H) | 482mm×410mm×44mm | ||
Environment | 0~45℃(work);-20~80℃(Storage) | |||
Power requirements | AC 110V± 10%, 50/60Hz, AC 220 ± 10%, 50/60Hz | |||
Technical Comparison
| WS-9124 |
Chipset | Hisilicon |
Video Channel | 8/12/16/20/24×HD optional |
Video Bit Rate | 1~13 Mbps each channel (Bit rate is with a high fluctuation, suitable for cable system, not suitable for satellite uplink) |
GOP | GOP Size=25 (P Frame is adjustable, without B Frame) |
Resolution | Up to 1080P-60 (1080i/p-60/50 to 1080p-30/25 auto downscale convertion) |
Audio Encode | MPEG-1 Layer II |
Audio Gain | 0-255 Adjustable |
ASI In & Mux | N/A |
ASI output | Option as required |
IP output | SPTS and 1MPTS (for 8/12 channel) SPTS or 1MPTS (for 16/20/24 channel) |
