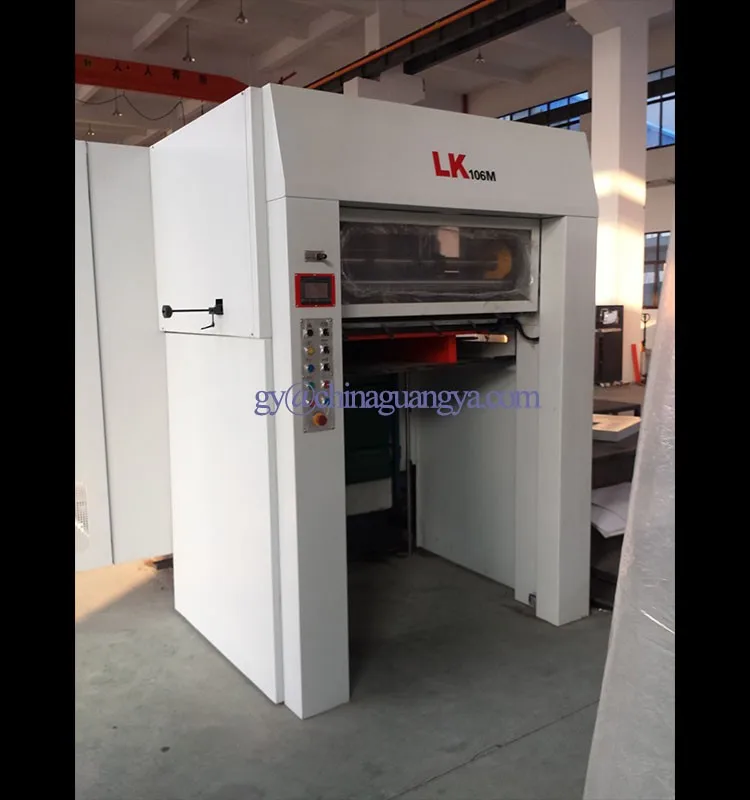

LK 800 Fully automatic die cutter machine
- Category: >>>
- Supplier: Zhejiang Guangya Machinery Co. Ltd.
Share on (62339446140):
Product Overview
Description
Product Description
LK 800 Fully automatic die cutter machine is specially designed for die cutting, embossing, creasing process. It with big advantage in machine safety, labor saving and products precision. it equipped over 20 safety sensors, once one of them being triggered, the whole machine would shut itself down immediately to keep the safe of the operators. With maximum sheet size 800*620 MM and high producing speed, it could satisfy bulk products producing. This machine equipped new “no nicks” technology, this machine quite suits for hanging tag die cutting process.
Max. sheet size | 800*620 MM |
Min. sheet size | 350*290 MM |
Max. die cutting size | 790*610 MM |
Gripper margin | 8 - 17 MM |
Paper range | 90 - 2000 GSM |
Max. working pressure | 200 T |
Max. working speed | 9000 S/H |
Max. delivery pile height | 1280 MM |
Max. feeding pile height | 1070 MM |
Gripper margin | 8 - 17 MM |

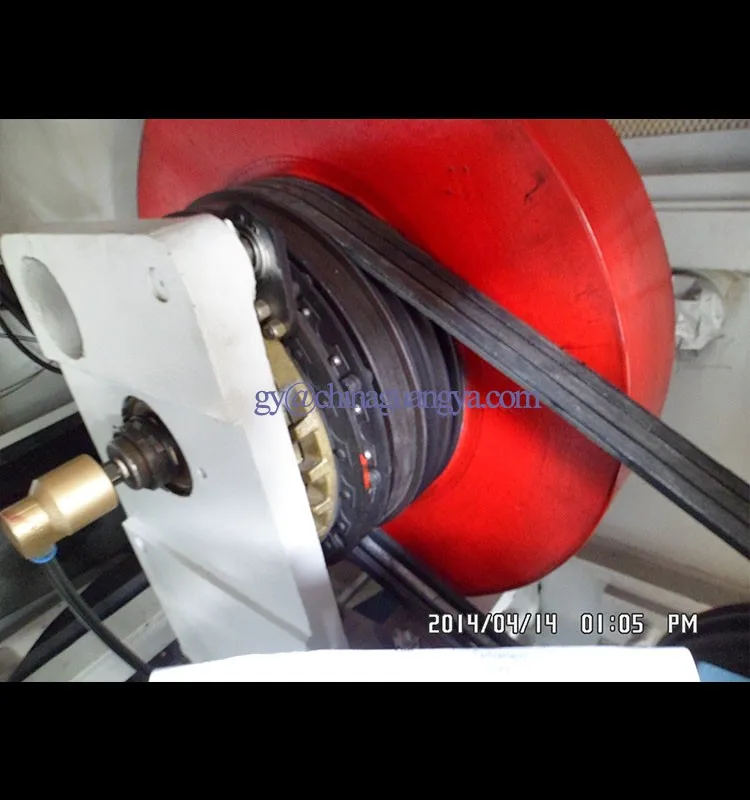

Main motor power | 7.5 KW |
Total machine power | 14 KW |
Air requirements | 0.6 Mpa, > 0.37M3/Min |
Machine weight | 12500 KG |
Overall machine dimensions | 4545*3685*2245 MM |
Applied materials
Not only paper, our die cutting machine suit for material like, cardboard, corrugated and multiple kinds of plastic sheet.
Function
Not only die cutting, we provide "no nicks" technology on this machine, but also creasing, , embossing functions are available on this machine. Suit for box, carton, paper bag, hanger tag producing.
Detailed Images

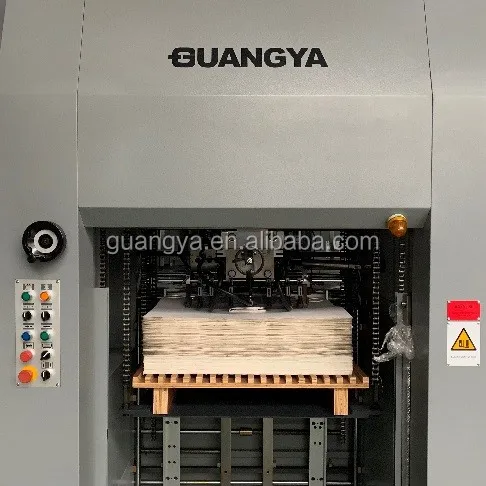

Feeder
* Pile tray with handle allowing manual lateral correction of the pile during production.
* Feeder protective device in case of crashing.
* Feeder is equipped with 4 lifting suction cups and 4 transport suction cups.
* The suction cups are adjustable according to the paper deformation in lateral way.
* Side blowers adjustable with Centerline marks. Blowers on both side of the feed system separate the product for a smooth
feeding process.
* Adjustable while in operation: to fine tune
* the feeder cycle to the platen.
* Safety system for lowering the pile tray.
* Feeder protective device in case of crashing.
* Feeder is equipped with 4 lifting suction cups and 4 transport suction cups.
* The suction cups are adjustable according to the paper deformation in lateral way.
* Side blowers adjustable with Centerline marks. Blowers on both side of the feed system separate the product for a smooth
feeding process.
* Adjustable while in operation: to fine tune
* the feeder cycle to the platen.
* Safety system for lowering the pile tray.

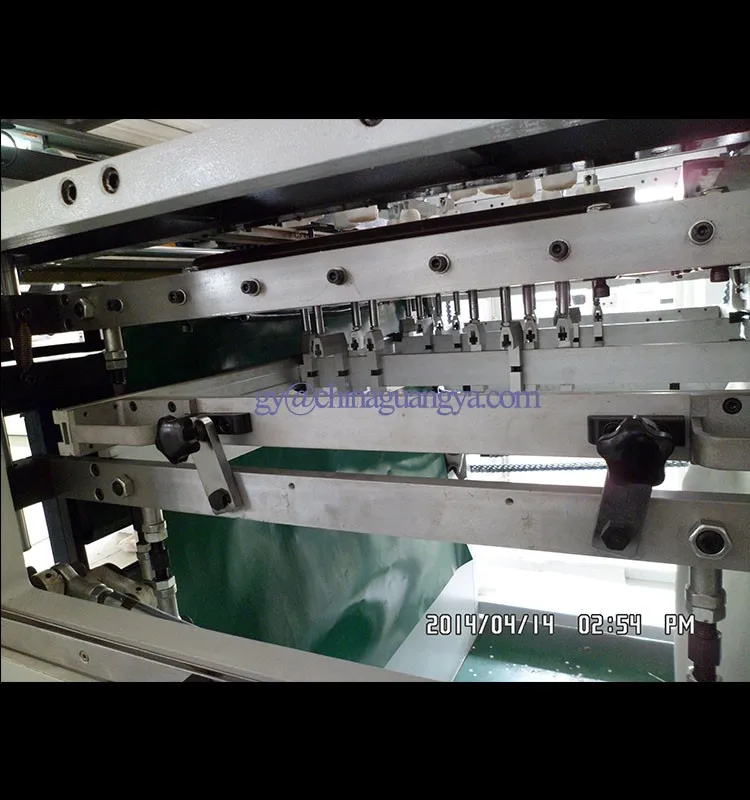

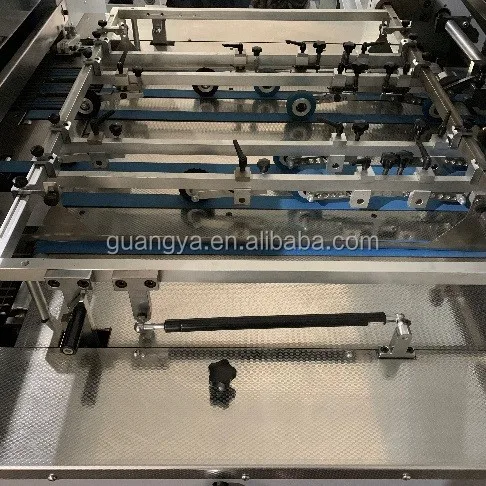

Feed table
* Covered with upgrade anti-static stainless-steel plate.
* Double sheet detector.
* Support plates at entry of platen station.
* Sheet hold-down device (guiding the sheets to the front lays).
* Upper frame with manual lifting device
* Wide conveyor belts ensure sheets accurately to the front and side lays units
* Double sheet detector.
* Support plates at entry of platen station.
* Sheet hold-down device (guiding the sheets to the front lays).
* Upper frame with manual lifting device
* Wide conveyor belts ensure sheets accurately to the front and side lays units

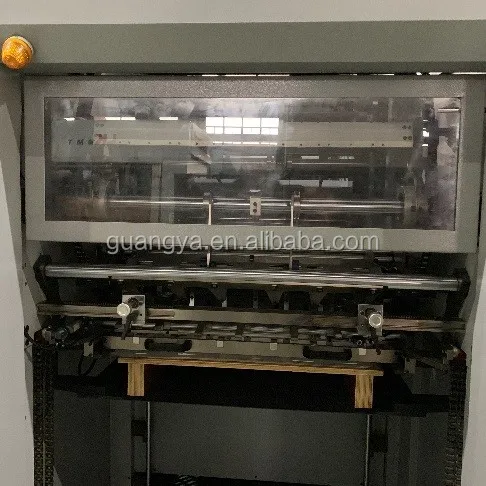

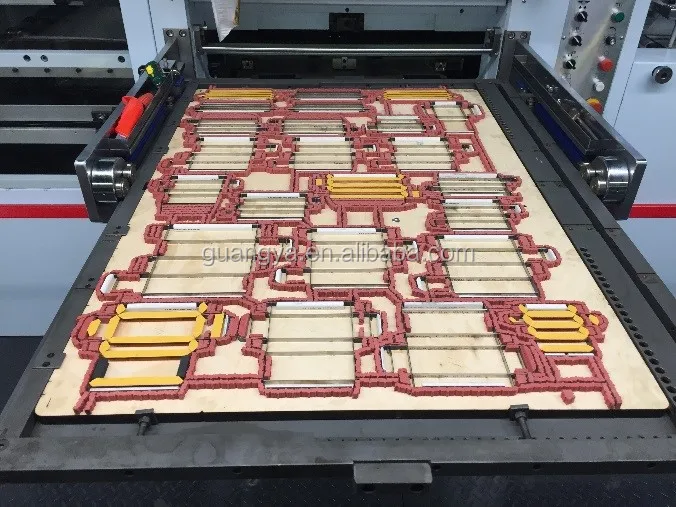

Die cutting
* Advanced host technology. Could finish die cutting, and creasing process.
* Heated upper head (as option)
* Gripper reopening device
* Gripper fine adjustment
* Automatic "on and off" pressure device of the platen.
* Equipment centering and locking.
* Automatic locking of the chase against the upper beam.
* Measurement of the cutting force with strain gauge automatically.
* Heated upper head (as option)
* Gripper reopening device
* Gripper fine adjustment
* Automatic "on and off" pressure device of the platen.
* Equipment centering and locking.
* Automatic locking of the chase against the upper beam.
* Measurement of the cutting force with strain gauge automatically.

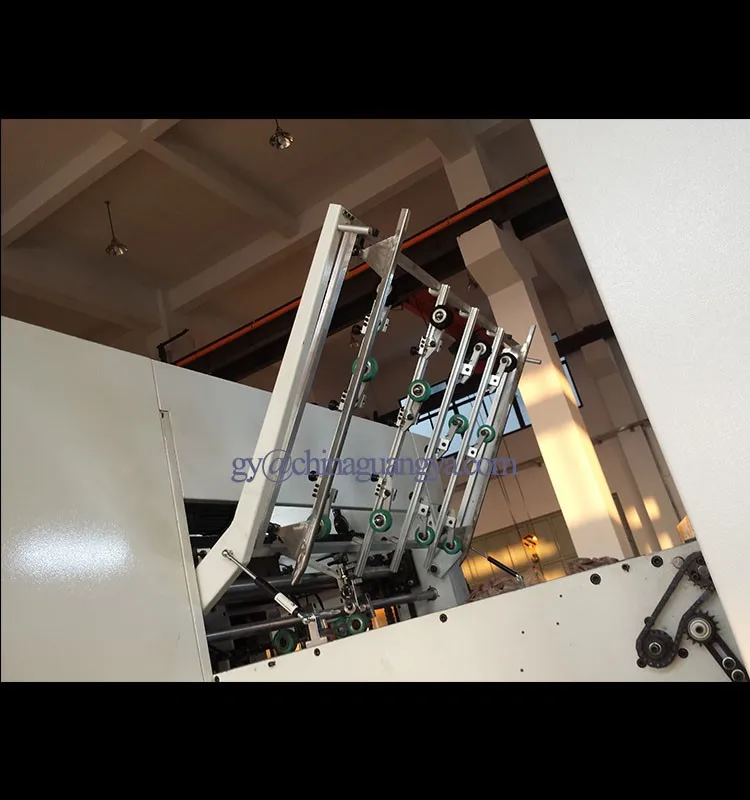

Delivery
* Pile tray.
* Pneumatically controlled pivoting front joggers.
* Adjustable rear and side joggers with Centerline marks.
* Braking Brush.
* Non-stop rack.
* Pneumatically controlled pivoting front joggers.
* Adjustable rear and side joggers with Centerline marks.
* Braking Brush.
* Non-stop rack.
Packing&Shipping
Deep clear
Vacuum Packing
Container loading
We clean the equipment before packaging, then use film packaging to prevent secondary contamination, and finally use a fumigation high-strength wooden box. In order to provide maximum protection for the equipment.
Company Introduction
Before “GUANGYA”, its founder Mr. Chen Shao Rong had been working in platen die cutting machine manufacturing for more than 10 years as engineer and designer. Then at 1996, together with his friends, the “GUANGYA MACHINERY CO., LTD.” was established in a very small plant. And they start producing ML series die cutting machine. At the second year, 1997. The TYMC series hot foil stamping machine start its manufacturing. The new century brings new challenges. In the next coming year, the TL series, the LK series and the TYM series automatic die cutting machine and hot foil stamping machine becoming very important product line of “GUANGYA”. “GUANGYA” also becoming one of the most famous manufacturers in China for post-press equipment.
The year 2015, the new plant of “GUANGYA” put into use, the developing of “GUANGYA” meeting a new stage. We “GUANGYA” people are ready for new challenge.
The year 2015, the new plant of “GUANGYA” put into use, the developing of “GUANGYA” meeting a new stage. We “GUANGYA” people are ready for new challenge.
