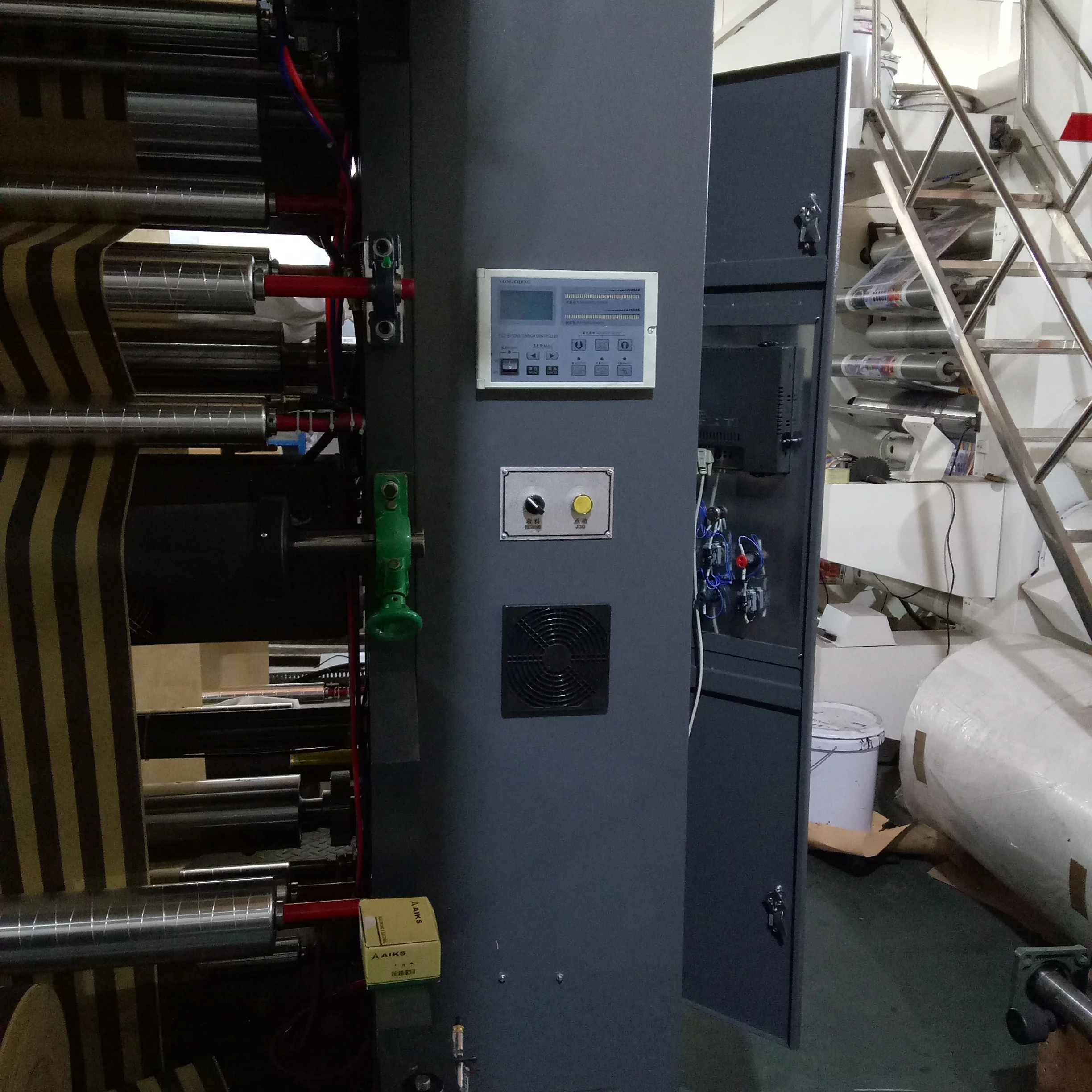

Flexo Printing Machine With Ceramic Laser Engraving Anilox Roller
- Category: >>>
- Supplier: Hangzhou Xianghuai Machinery Technology Co. Ltd.
Share on (62339678746):
Product Overview
Description
MASS_APP4_1619_BEGIN
MASS_APP4_1619_END

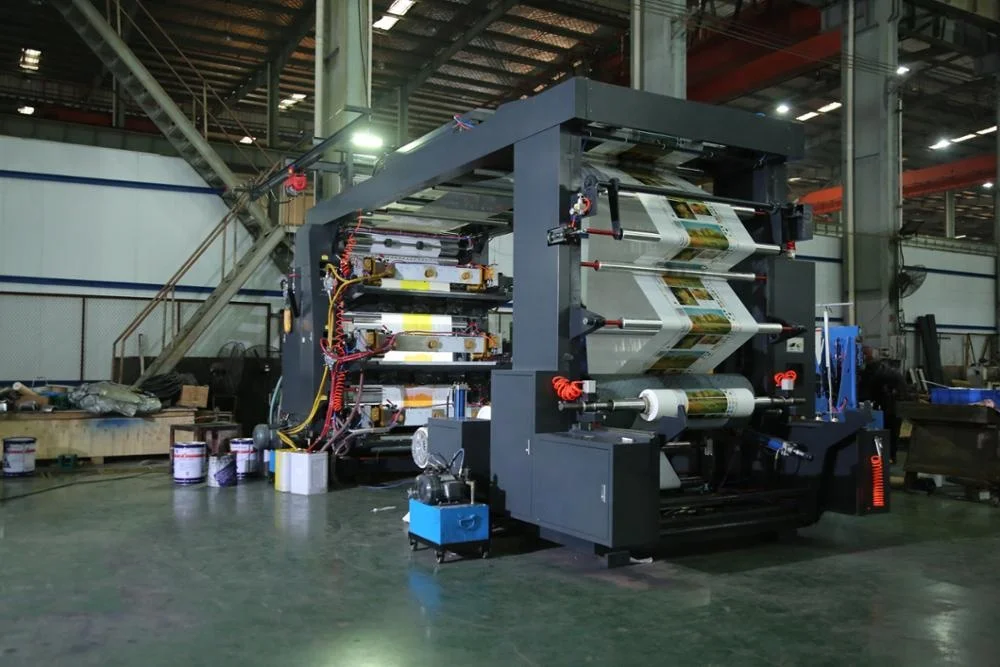

Flexographic Printing Machine With Ceramic Anilox Roller
I.Print Samples:
Product Description
II.Suitable material
Kraft paper: 40 ~ 350g/m2, single-sided coated paper: 30 ~ 350g/m2, copy paper: 15 ~ 350g/m2, firecrackers and paper: 40 ~ 350g/m2, paper money and incense: 25 ~ 350g/m2, silicone paper : 50 ~ 350g/m2, coated paper: 30 ~ 350g/m2, dust-free paper: 25 ~ 350g/m2, release paper: 40 ~ 350g/m2composite paper, 30 ~ 350g/m2;
Non-Woven :15-120 grams, woven :15-500 g, PVC: 10 ~ 120μm, OPP: 10 ~ 100μm, BOPP: 10 ~ 100μm, PE: 15 ~ 150μm, NY: 10 ~ 120μm, PET: 10 ~ 100μm, CPP: 10 ~ 100μm
III. Main technical specification
Print color | 6 colors(5+1,3+3,2+4) |
Web width | 600-2000mm |
Print width | 560-1960mm |
Print length | 200-1100mm |
Anilox roller | Ceramic anilox roller |
Register precision | ±0.25-0.2mm( by hand) |
Unwind diameter | 1000 mm |
Rewind diameter | 1000 mm |
Tension range | 3~30kg |
Tension precision | ±0.2Kg |
Rewind/unwind paper core dia | 76mm(inner diameter) |
Wind roller | air shaft |
Air resource | 0.6Mp |
Graining roller | φ133mm |
Doctor blade | 1. General type; 2. Enclosed doctor type |
Ink | 1. Water ink; 2. Water base ink; 3.alcohol ink; 4. UV ink. |
Ink transport | Automatic ink recycle system |
Dryer pattern | 1. Electrical heating; 2. UV dryer. |
Large fan | 1.5-1.75KW: 2pcs |
Small fan | 0.3KW: 6 pcs |
Main motor power | 3.7-5.5KW |
Total power | 26-40KW |
Error correct system | 1. Photocell corrector system; 2.hydraulic corrector system. |

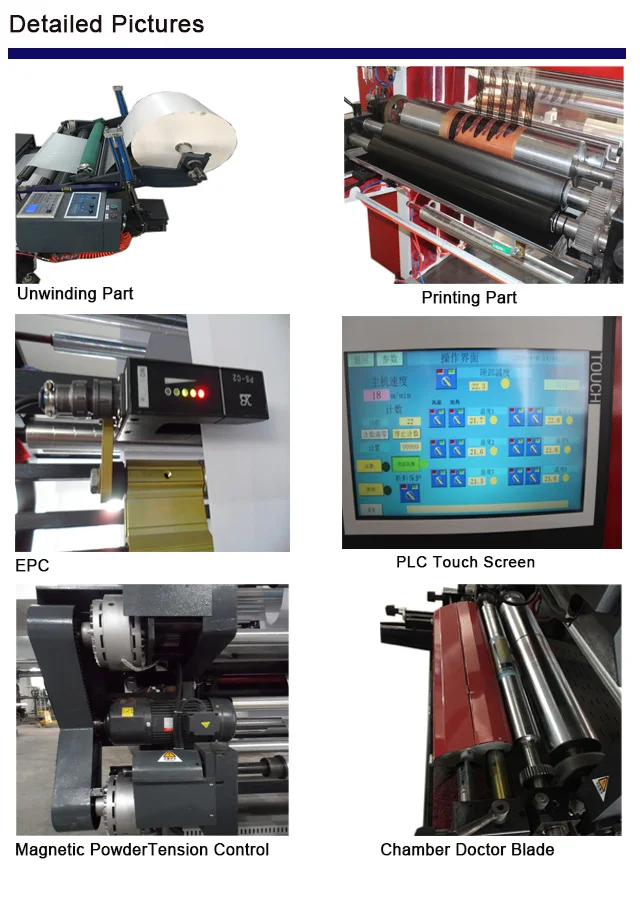

IV. Features:
1. Ink anilox roller: ceramic anilox ink roller, lines 100PLI ~ 1000PLI, high speed dot reproduction rate, screen printing, structured, three-dimensional sense of strong, registering accurately
2. Ink: adopt automated circulation system, transport ink adopt single small motor;
3. Speed control: adopt Japan frequency speed control, small fluctuations running;
4. Unwinding correcting: adopt high-grade automated sensitive-photocell correcting system;

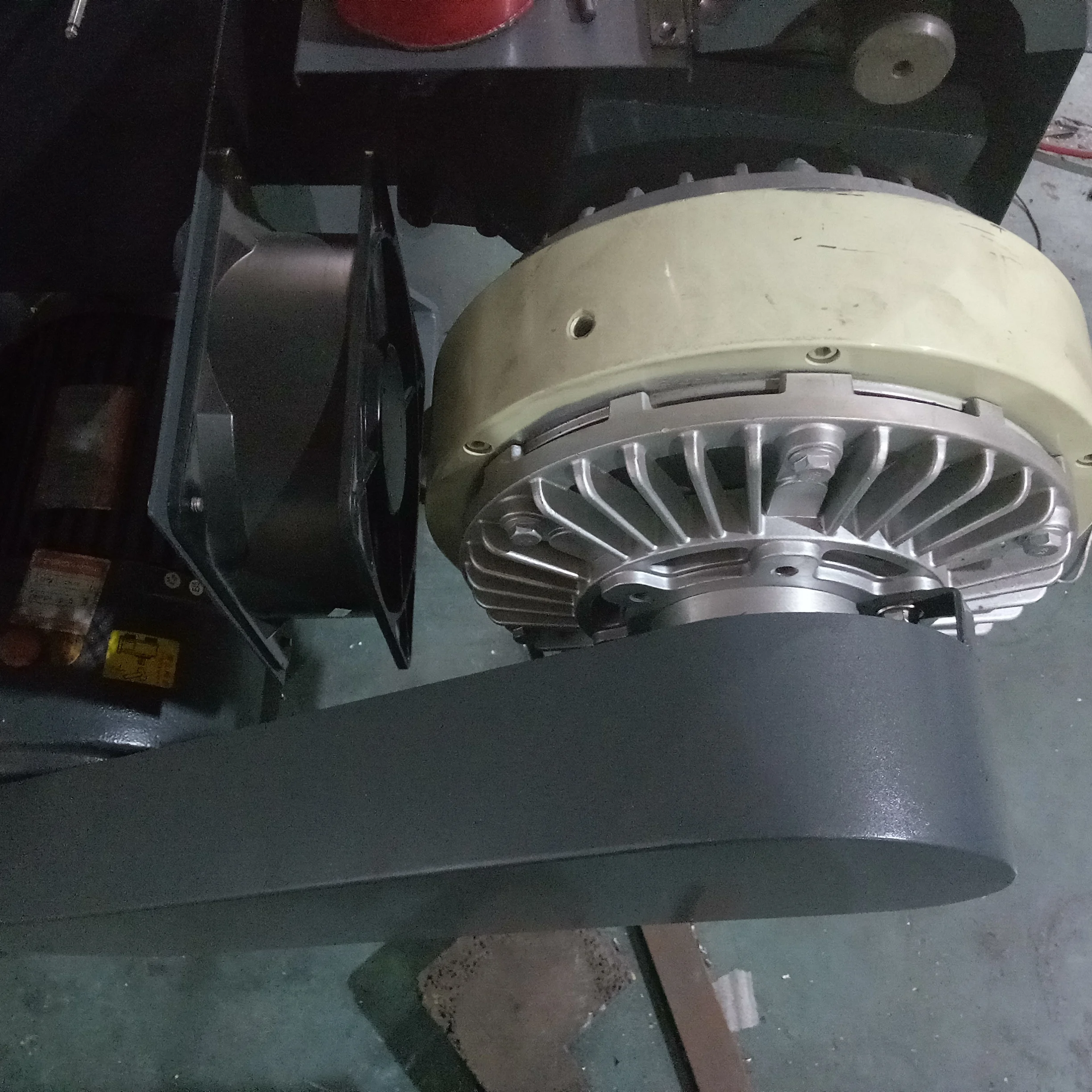

5. Unwinding and winding ways: adopt magnetic automatic tension control;
6. Ink input pattern : adopt unique doctor blade, and equipped with automatic ink pump unit;
7. Up and down version: adopt hydraulic automatic landing version;
8. Smooth roller: adopt special steel processing, and after special treatment, with10um plating hard chromium protective layer thick, beat within 0.02mm;
9. Led guid roller: adopt a small semi-sealed bearings produced in Japan, with static balance and dynamic balance treatment, hard oxidation treatment, small resistance, small beating;

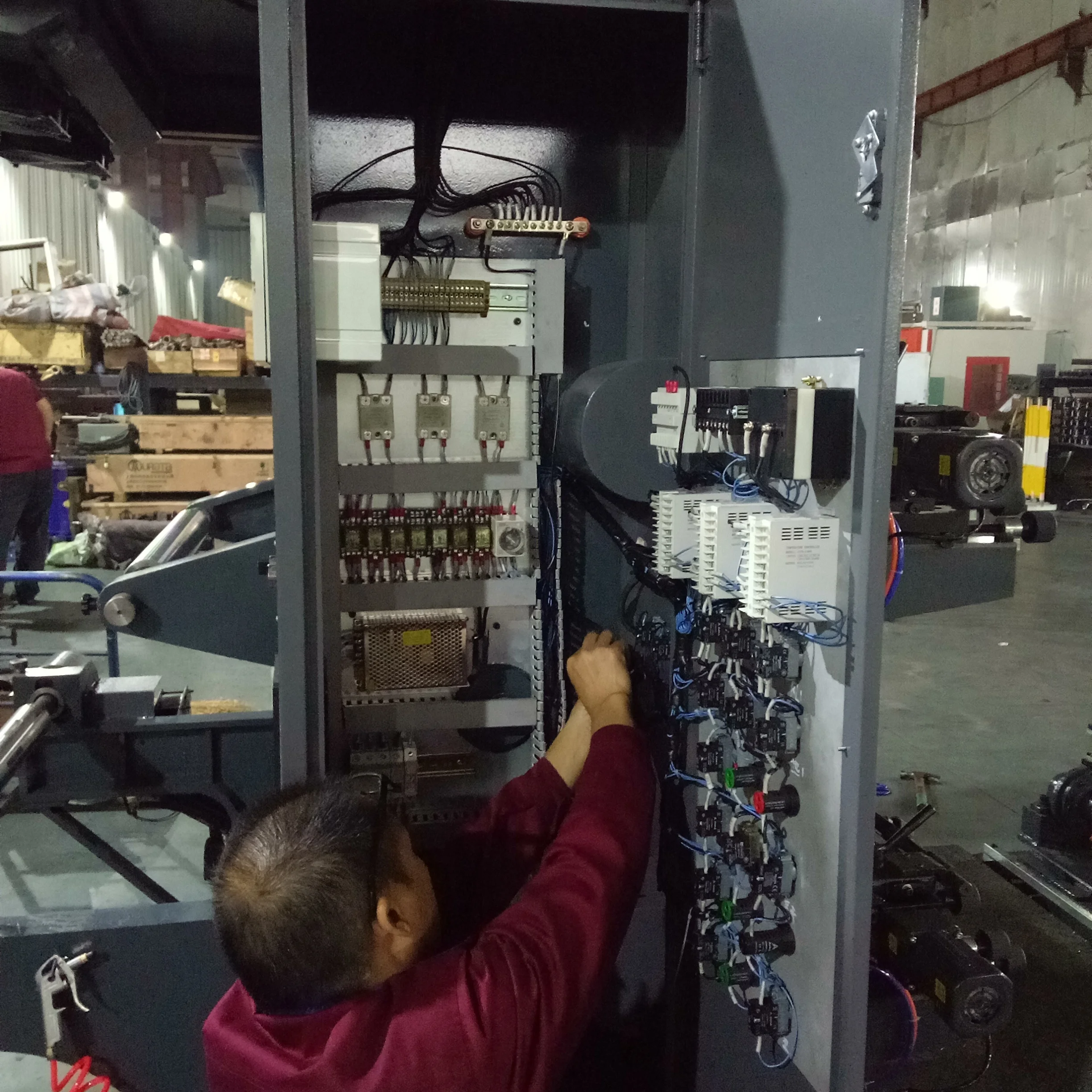

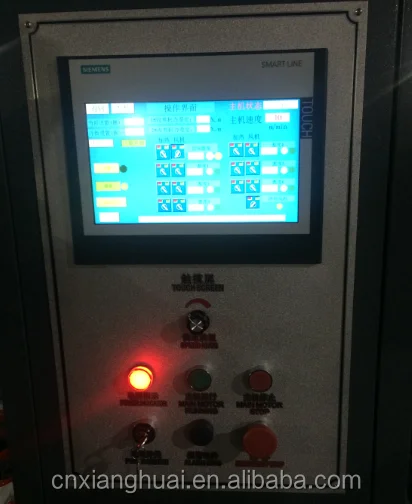

10.Machine control system: PLC devices, starting, stopping, running, line adopts PLC control, automation and better equipment and more humane. (can add voice prompts system)
V.Company show:
If you are interested in our flexo printing machine, please don't hesitate to contact us! we will always be here!
