liquid packaging aseptic dairy products paper board laminates controlled high speed slitter rewinder machine
- Category: >>>
- Supplier: Hangzhou Dahua Industry Control Technology Co. Ltd.
Share on (62339837389):
Product Overview
Description
Product Description
Product Brief Introduction
This slitter is for diary packaging such as Tetra Pak products.The individual rewinding design is good for uneven thickness material and also easy for finish roll unloading.
Machine Specification
The following parameter is only for reference. The exact specification can be designed according to buyer's request
BASIC PARAMETERS | ||
Slitting Material | Tetra Pak Material (Paper+Al+PE 350-550gsm) | |
Machanical Speed | Max. 600m/min | |
Slitting Way | Shear cut | |
Unwinding Way | Shaftless unwinding | |
Unwinding Width | 600-1350mm | |
Unwinding Diameter | Max.φ1600mm | |
Unwinding Core Size | 6″paper core, length 600-1350mm | |
Edge guide Way | Oscillation device | |
Rewinding Way | Central shaftless rewinding | |
Rewinding Width | Min. 174mm Max. 325mm | |
Rewinding Diameter | Max.φ1100mm | |
Rewinding Core Size | 6″paper core | |
Rewinding Station quantity | 7（Alternative） | |
Unloading Way | Unloading with trolleys | |
Edge Trim Way | Vacuum suction system with smash function | |
Equipment Power | 380V, 50Hz, 3 phase AC | |
Equipment Size | About 9000mm (length)×3100mm (width)×2300mm(height) | |
Control System | Germany siemens servo system | |
Heating splicing table | Include | |
Detail Images
Equipment Main Feature
1、High efficiency with reliable performance |
2、Large tension control for board laminates |
3、Center rewinding technology to ensure the good quality finish roll |
4、Cost effective machine |
Acceptance index
1、Machine speed 600m/min |
2、Material tension 2000N. |
3、Sides of finished roll are mirror (≦1mm), surface plain and average tightness of winding. |
Special instructions of Equipment

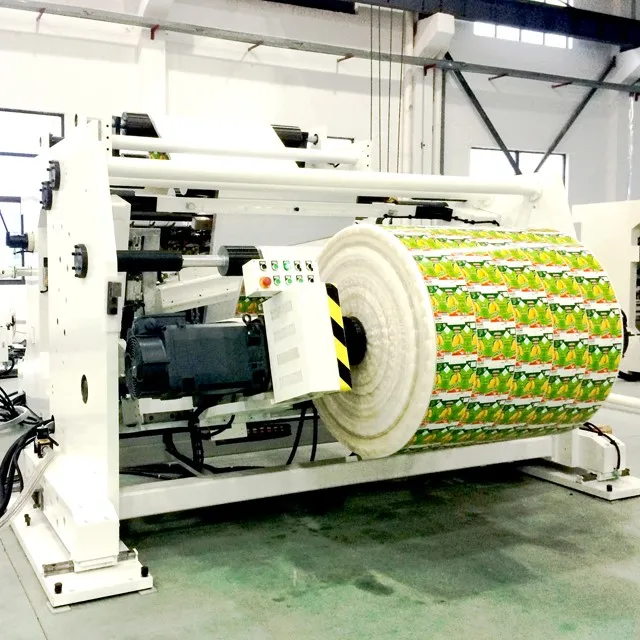

1、The hydraulic lift system to pick up the unwinding roll easily. |
2、Heating splicing table easy for material splciing |

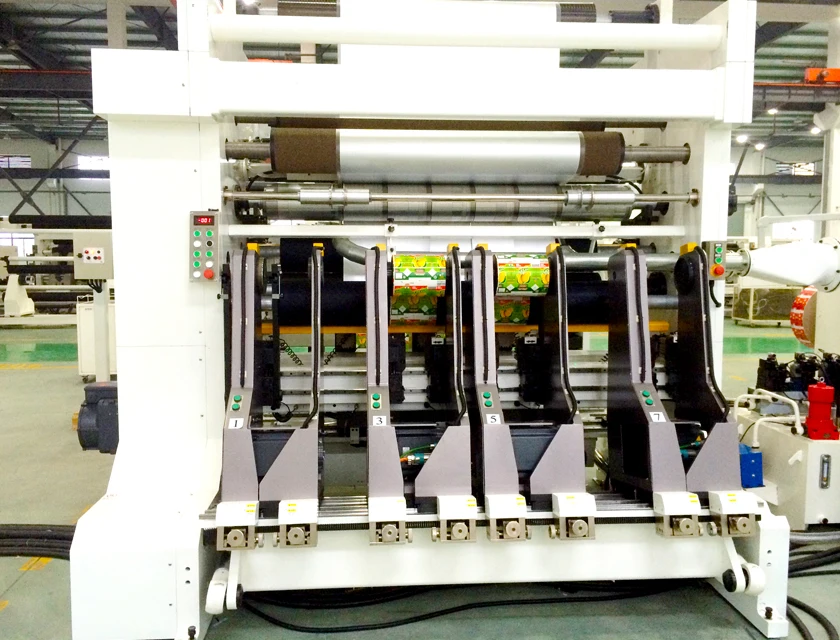

3、Individual rewinding station design instead of air expanding shaft, easy operation and save labor. |

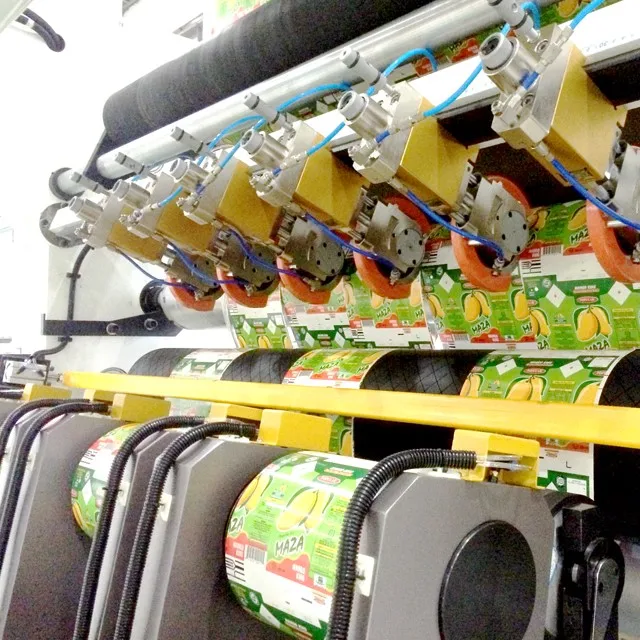

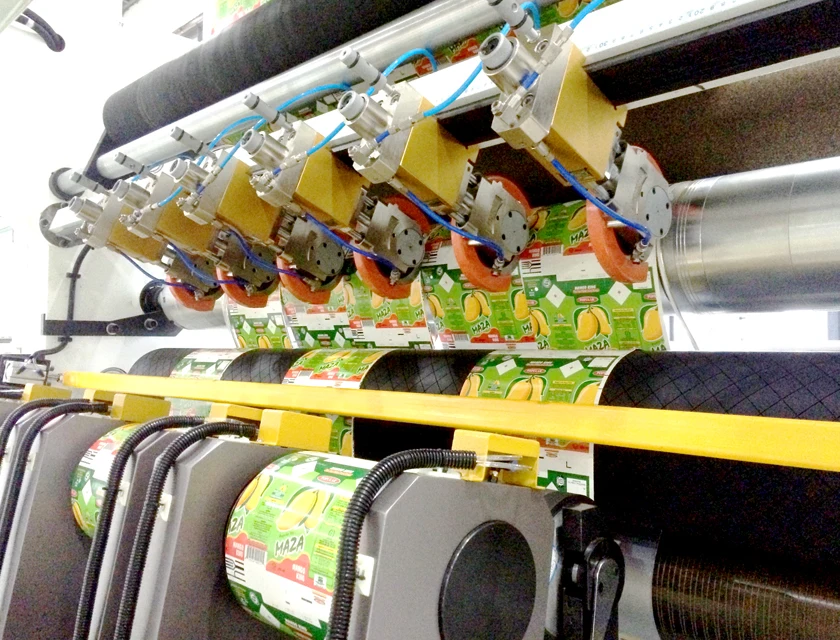

4、Pneumatic shear cut system to slit the material properly and easy for knife movement |
5. Dancing roll design to control the tension properly. |
