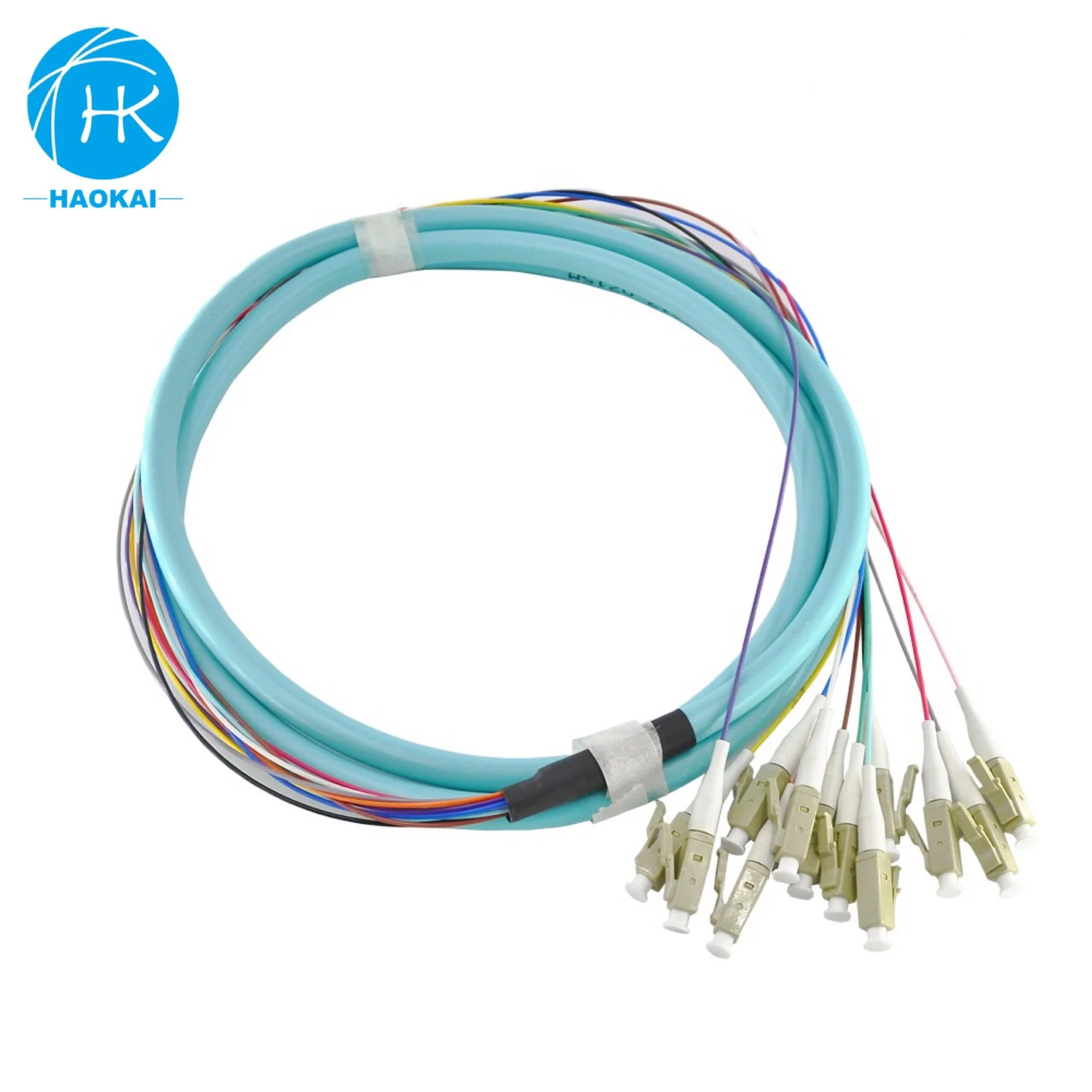

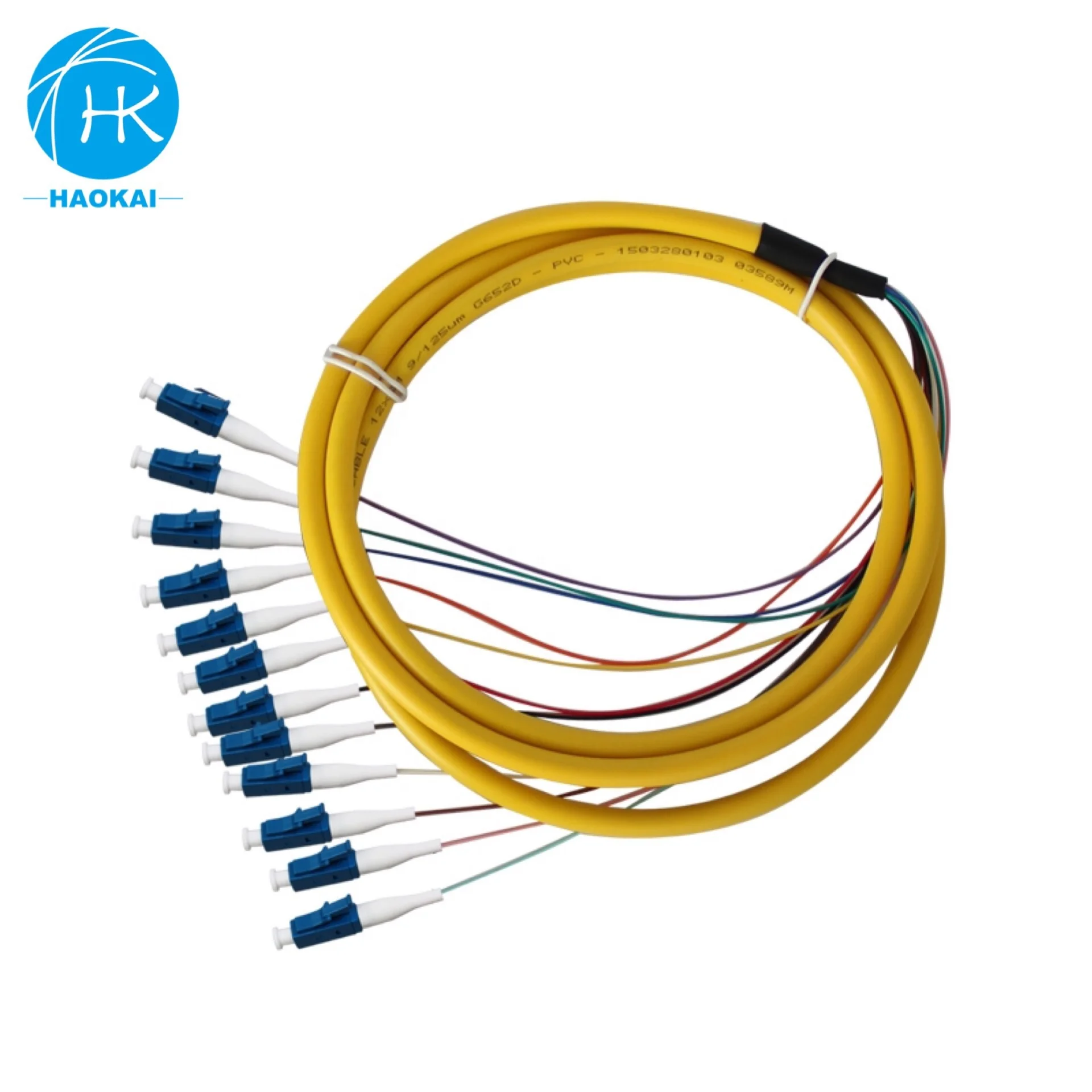

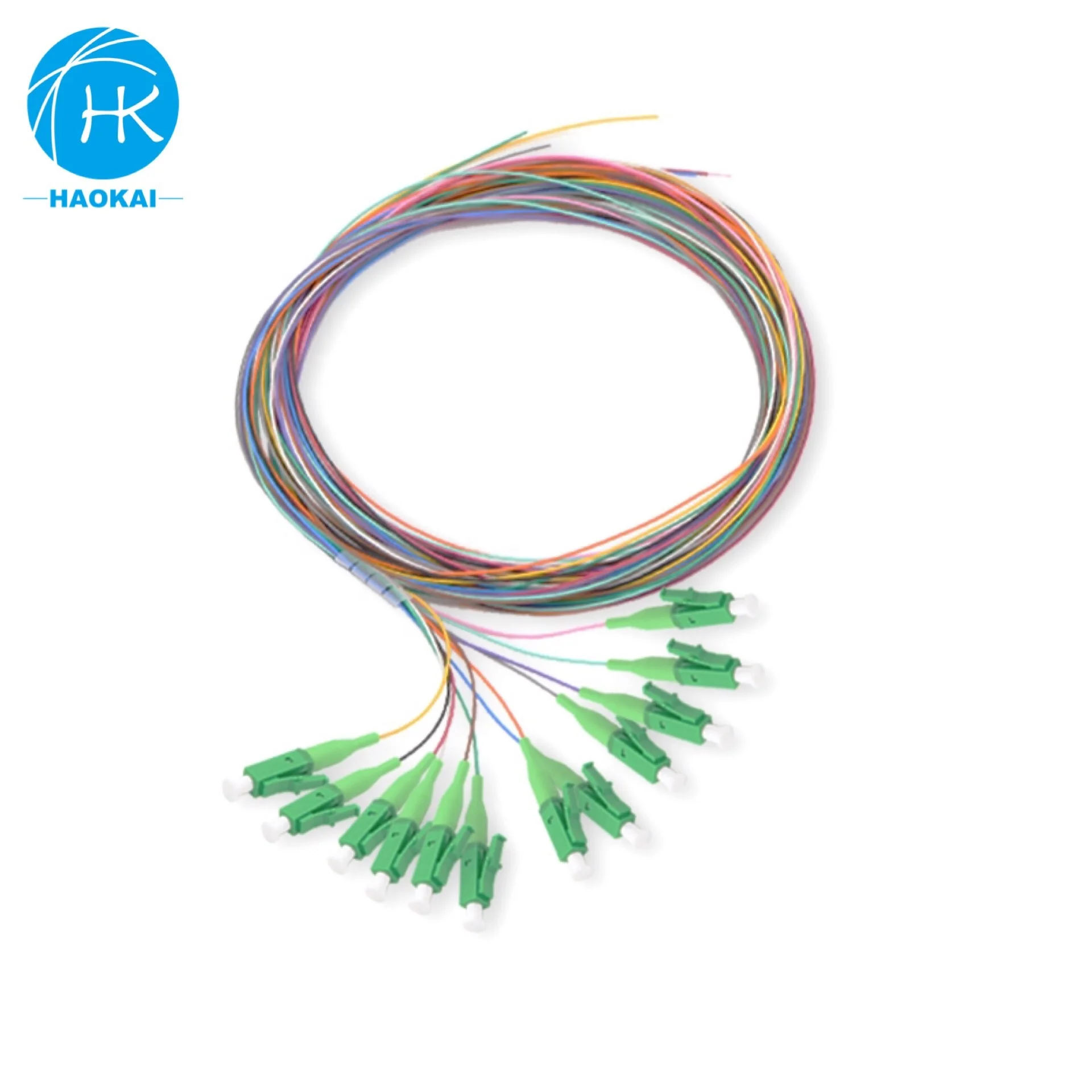

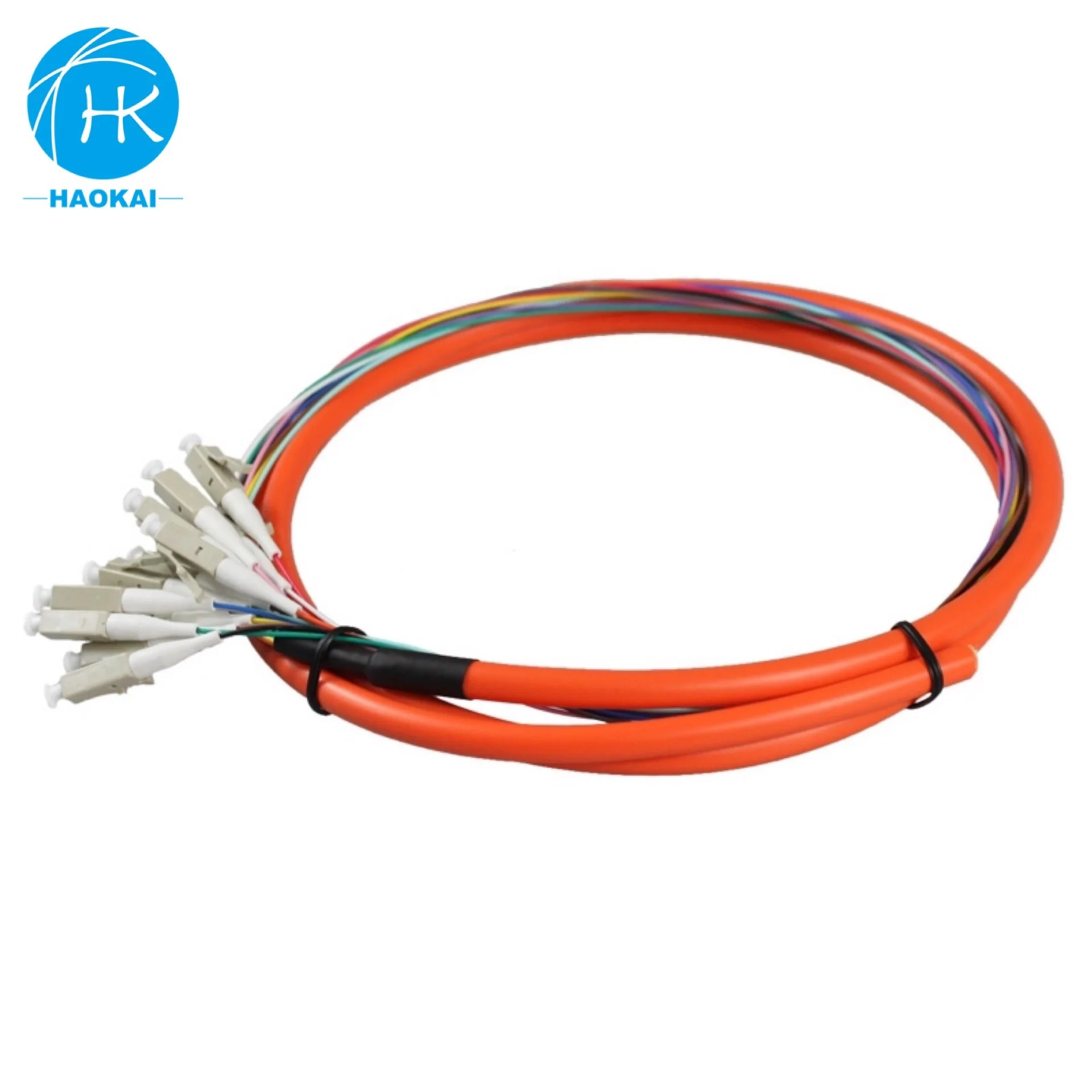

12 Core Waterproof Sc Apc Color Optical 0.9Mm 12Core Fiber Optic Pigtail
- Category: >>>
- Supplier: Dongguan Haokai Optoelectronics Technology Co. Ltd.
Share on (62339885207):
Product Overview
Description
12 Core Waterproof Sc Apc Color Optical 0.9Mm 12Core Fiber Optic Pigtail
| Model | SM | MM | |
| Connector A:MPO/MTP | |||
| Connector Fiber Count | 8,12,24,48 Core | ||
| Polish | PC,APC | PC | |
| Insertion Loss | Standard | ≤0.70dB | ≤0.50dB |
| Elite Low Loss | ≤0.35dB | ≤0.30dB | |
| Return Loss | PC≥50dB,APC≥60dB | ≥30dB | |
| Durability(500 Matings) | ≤0.2dB | ||
| Test Wavelength | 1310/1550nm | 850/1300nm | |
| Connector B:LC,LC Uniboot,SC,FC,ST | |||
| Polish | PC,APC | PC | |
| Insertion Loss | ≤0.2dB | ≤0.2dB | |
| Return Loss | PC≥50dB,APC≥60dB | ≥35dB | |
| Durability(500 Matings) | ≤0.2dB | ||
| Test Wavelength | 1310/1550nm | 850/1300nm | |
| MPO/MTP trunk multicore cable assemblies facilitate rapid deployment of high density backbone cabling in data centers and other high fiber environment, reducing network installation or reconfiguration time and cost, they are used to interconnect cassettes, plane or fan outs. It offered in fiber types in standard 8, 12, 24 or 48 cores versions using a compact and rugged microcables structure.The compact cable optimize cableway use and improve airflow.These MPO/MTP cable are built with highest quality components.Low loss elite versions are offered, featuring low insertion loss for demanding high speed networks where power budgets are critical. |
| Fiber type | SingleMode(G652) |
| MultiMode(OM1/OM2/OM3/OM4) | |
| Connector type | MPO or MTP |
| Fiber end face type | PC or APC |
| Insert loss | SingleMode: Typical value (average ) ≤ 0.55dB Maximum value ≤0.75dB |
| MultiMode: Typical value (average ) ≤ 0.65dB Maximum value ≤0.80dB | |
| Return loss | SingleMode: Typical value (average ) > 40dB(PC); >55dB(APC) |
| Minimum value >35dB(PC); >50dB (APC) | |
| Suitable type of optical cable | Ribbon or bundle cable |
| Operation temperature | -40℃~+ 85℃ |
