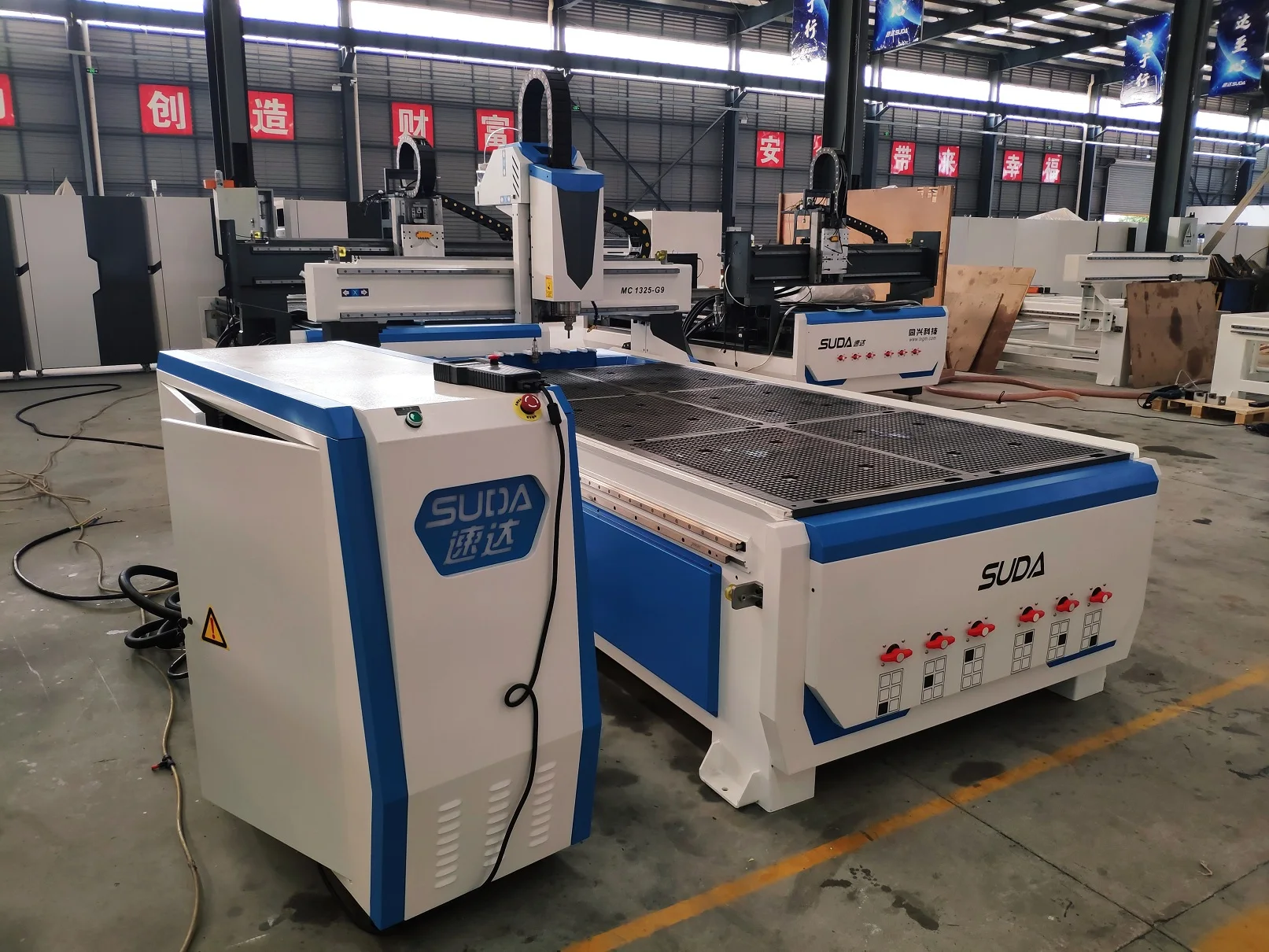

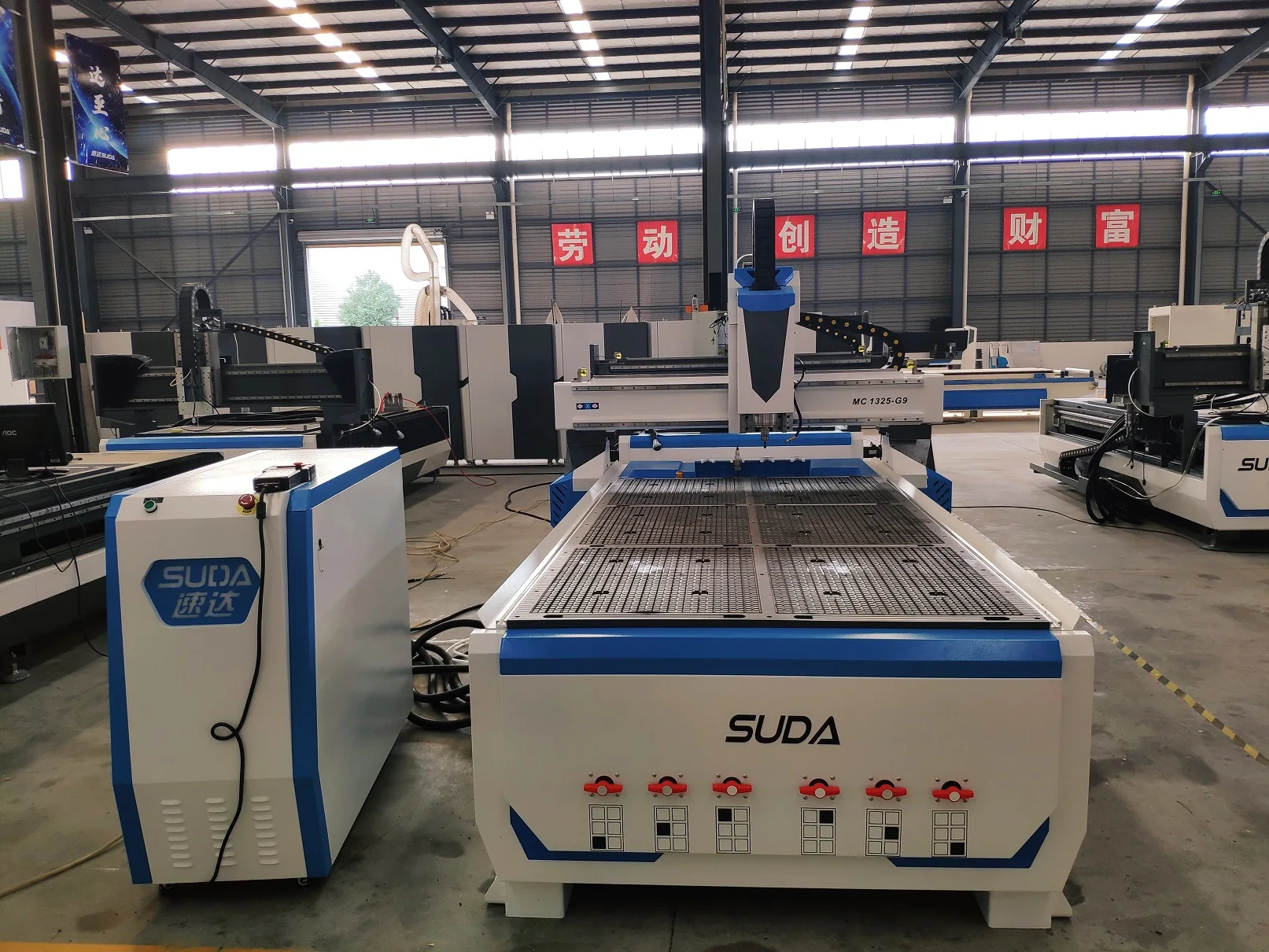

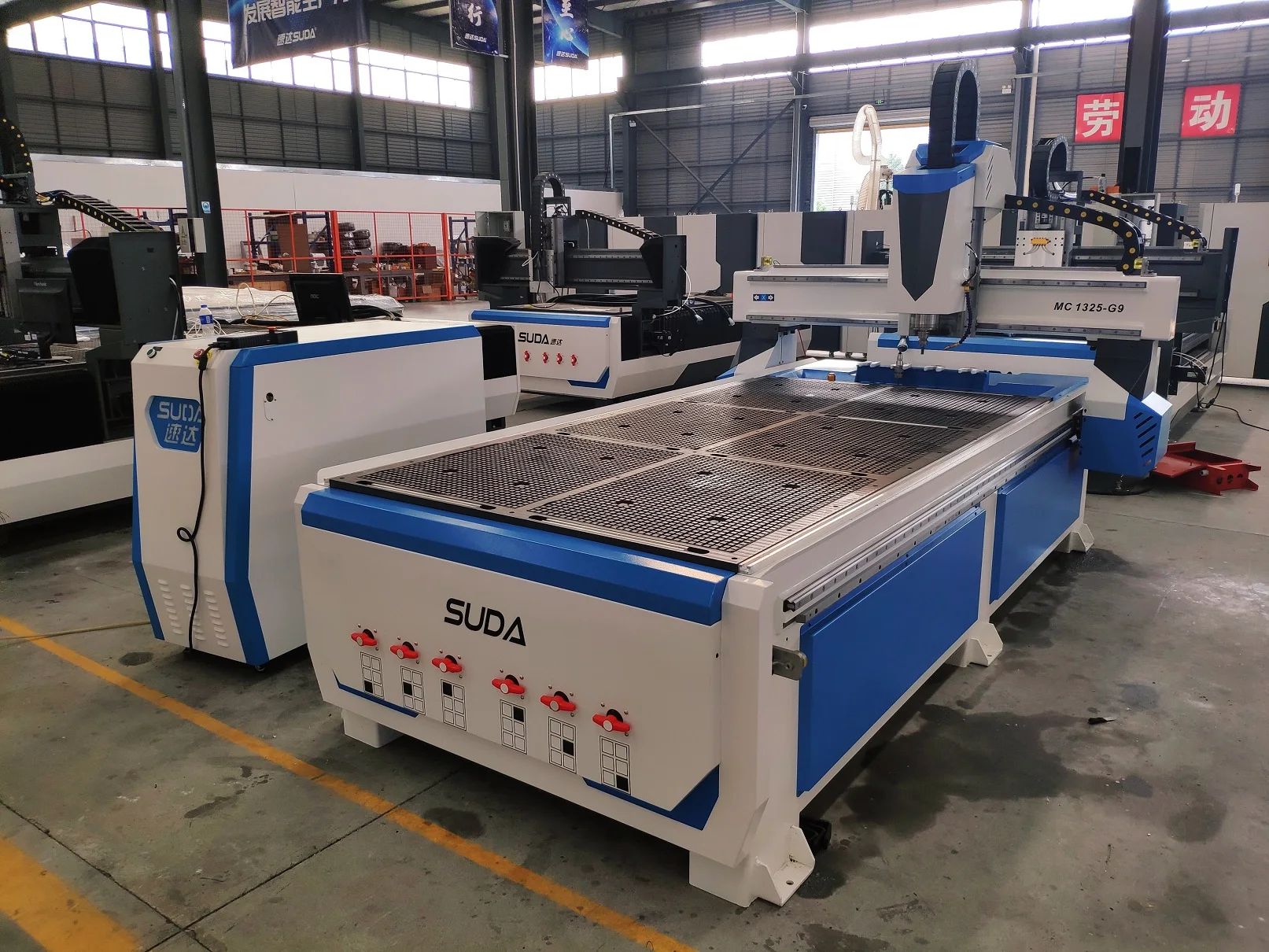

SUDA Brand G9 1530 Atc Wood CNC Router with Auto Tool Changer Machine
- Category: >>>
- Supplier: Hefei Siwei CNC Machinery Co. Ltd.
Share on (62339935456):
Product Overview
Description
Product Description
SUDA ATC CNC ROUTER FOR ADVERTISING INUDSTRY
Main Features:
1. Adopt industrial heavy duty structure design, combined with the finite element method calculation, annealing and destressing strictly according to process requirements, thus to ensure the strength and rigidity of the machine body.
2. Standard configured with independent 6 zone matrix vacuum table with high strength, optimized partition management, suitable for different size processing.
3. Adopt gantry transmission structure, to ensure fast speed and high effciency.
4. Adopt Taiwan Japan THK linear rail with lubrication system, more wearable.
5. Configured with Taiwan Delta servo system, to ensure the transmission stronger and noise lower.
6. Independent control cabinet, separation of strong electricity and weak electricity to make the maintenance more convenient.
7. Configure with high performance Taiwan TECO inverter, speed control uniform and cutting edge smooth.
2. Standard configured with independent 6 zone matrix vacuum table with high strength, optimized partition management, suitable for different size processing.
3. Adopt gantry transmission structure, to ensure fast speed and high effciency.
4. Adopt Taiwan Japan THK linear rail with lubrication system, more wearable.
5. Configured with Taiwan Delta servo system, to ensure the transmission stronger and noise lower.
6. Independent control cabinet, separation of strong electricity and weak electricity to make the maintenance more convenient.
7. Configure with high performance Taiwan TECO inverter, speed control uniform and cutting edge smooth.
Machine Application:
Advertising industry: MINI LED word, bevel edge word, acrylic lighting word, high-end advertising word and sign processing.
Other industry: building model, plastic and wood, instrument, 3D surface processing of masical instrument.
Also applies the carving on cooper, aluminum, iron plate and cutting processing.
Advertising industry: MINI LED word, bevel edge word, acrylic lighting word, high-end advertising word and sign processing.
Other industry: building model, plastic and wood, instrument, 3D surface processing of masical instrument.
Also applies the carving on cooper, aluminum, iron plate and cutting processing.
Model | MC1325-G9 |
Machine structure | Heavy-duty |
Table size | 1300*2500mm |
Z axis travel | 170mm |
More customized size | Since the machine structure undergoes heat treatment, with the strong and rigidity body, the machine can be customized to different big size, such as: 1500x3000mm, 1500x4000mm, 2000x3000mm, 2000x4000mm, 2000x6000mm, etc. |
Transmitting way | X, Y axis adopt high precision grinding gear rack transmission, Z axis configured with high precision grinding rolling ball screw. |
Linear rail | THK linear rail from Japan |
Max running speed | 25m/min |
Repeat precision | 0.025mm |
Spindle motor | 7.5KW water cooling spindle |
Auto feeding device | equipped with an auto surface detector |
Working table | Matrix Vacuum table |
Driver system | Taiwan Delta servo system |
Control system | NC control system, can optional DSP controller |
Reducer | Japan Shimpo |
Inverter | Taiwan TECO |
Software | Ucancam |
Optional | Servo motor, more ATC tools, CCD camera, etc. |
Detailed Images

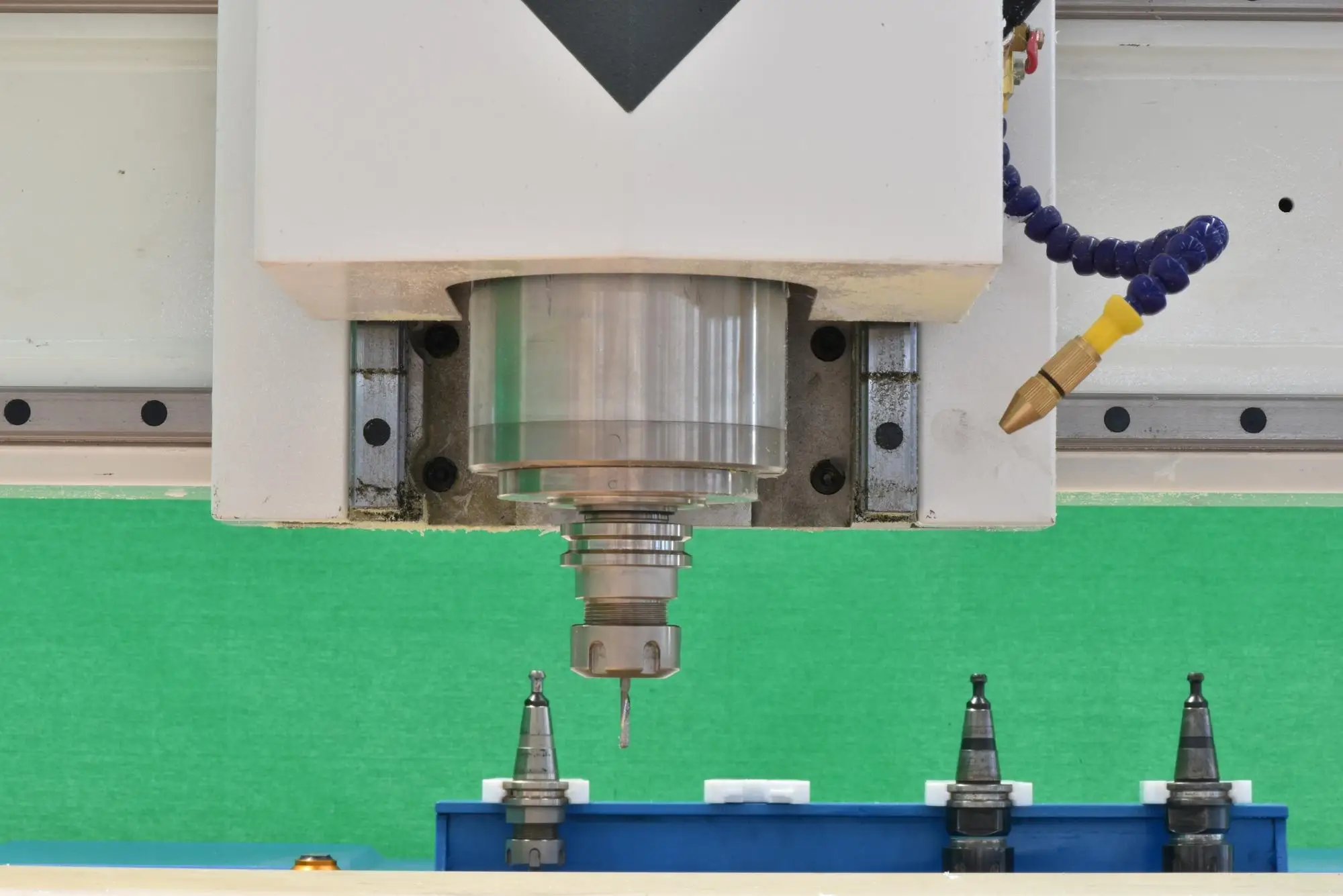

Name: ATC tools
Standard with 4pcs linear ATC tools.
Can customized more, like 6/8pcs, etc.
Name: Linear rail
Brand: THK
Original: Japan
High quality linear rail to make sure the processing more precisice.

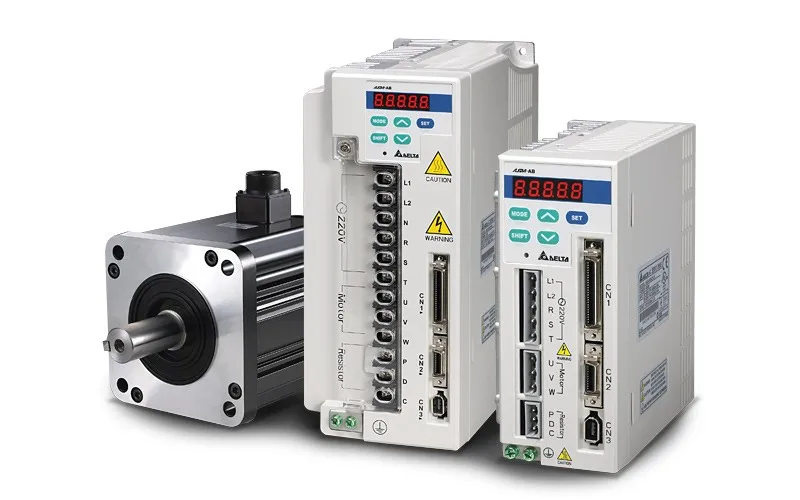

Name: Servo system
Brand: Delta
Original: Taiwan
to ensure the transmission stronger and noise lower.
Pratical servo system, with feedback when the machine stop working.
Name: 7.5KW Spindle motor
Brand: LINNAN
Original: China
24000rpm/min, high power, fast speed to make sure the high working effciency, more suitable for processing acrylic, aluminum, etc.
Name: Vacuum table
Brand: SIWEI
Original: China
can adsorb the material more tight, make sure the process higher precision.
6pcs matrix vacuum zone, suitable for difference size material process.
Samples
Wood engraving
Brass cutting
MDF cutting
ACP engraving
Acrylic cutting
Aluminum cutting
Certifications
Clients&Exhibitions
Our service
Pre-sale service
1) According to customers demands, provide relevant technical guidance.
2) Assist customers to design and make solutions considering technical feasibility.
3) Provide equipment demonstration for customers to investigate, make samples and do test etc.
After-sale service
1) 24 Hours online service.
2) 1 year warranty for the whole machine except for wearing parts.
3) Engineers available to service machinery overseas.
4) Offer help out of warranty.
5) Clients come to factory learning.
\t\t\t\t\t\t\t\t\tOur Company \t\t\t\t\t\t\t
Established in 1992, lies in HEFEI --One of Chinese scientific and technology cities. It has been working on researching and manufacturing CNC machinery in field of woodworking, stone engraving, metal processing, glass cutting and advertising etc over 20 years.
The main products: Heavy moving column CNC machining center, Heavy static column CNC machining center, High accuracy metal cutting machine, High precision fiber laser machine, Vanguard series CNC engraver, Multistage CNC machine center, high accuracy CNC engraver, laser cutting machine, plasma cutting machine, totally 23 series, more than 100 models.
Our sales net not only covers all Chinese provinces and municipalities, including HongKong, Taiwan&Macao, also the products are exported to more than 120 countries and regions such as Europe, America, Middle-east, South-east Asia etc.
\t\t\t\t\t\t\t\t\tCNC Packing \t\t\t\t\t\t\t
Packing size | 3.3*2.26*2.2m | ||||
Packing weight | 2500kg | ||||
Packing details | Standard with plywood case, for special packing, case by case. | ||||
FAQ
Q1.How do you get the best price?
As you may know,the different type of CNC machine apply to the different material,and the different model apply to the different material.
Please tell me what's material you want to cutting or engraving ?
And what's MAX size of carved material ?
Then I wil recommand the most suitable model and the best price for you.
Q2:How long is the delivery time?
For standard machines, it would be 15-20days; For non-standard machines and customized machines according to client s specific requirements, it would be 20 to 30 days.
Q3.In case of failure,how to do?
Call us----our enginners are online for 24-hours,and ready to serve you.
Replacement of damaged parts for free---For more information,please contact us
The CD and operation manual----It show the most common failure in working processing and how to solve this problems.
Q4:How is the packing?
1) For CNC engraving machine: Machine body covered with plastic film, control cabinet packed with plywood case and put on the machine body.
2) For fiber laser cutting machine:Machine body covered with plastic film, laser source, control cabinet packed with plywood case and put on the machine body, chiller packed with plywood alone.
IF YOU ARE INTERESTED IN THIS MACHINE, PLS CONTACT WITH US IN ANY TIME, THANK YOU!
