GreenTouch 32 inch IR touch screen overlay kits for ir multi closed frame touch monitors
- Category: >>>
- Supplier: Shenzhen Greentouch Technology Co. Ltd.
Share on (62339995439):
Product Overview
Description
| Basic Specification | |||
| Product Name: | 43 inch infrared touch frame | Bezel Material: | Aluminium alloy |
| Total Size: | 983.9x571.9mm | Display Size: | 942.5X530.5mm |
| Touch Resolution: | 32767x32767 | Type: | GT-IR-TB43 |
| Response Time: | Less than 10ms | Touch Accuracy: | +/-2mm(Over 95% area) |
| Touch Input Objects: | Fingers,opague objects | Touch Durability: | Unlimited |
| Size for touch input objects: | 7mm | Interface: | USB2.0 full speed |
| Electrical Specification | |||
| Scan Rate: | More than 100Hz/s | Communication: | USB2.0 |
| Transmission Rate: | 480Mbps | Power Supply Mode: | USB 5V DC |
| Supply Voltage: | From 4.75 to 5.25V | Operating Voltage: | Equal to or less than 200MA |
| Environmental Specification | |||
| Working /StockTemperature: | -15℃~55℃ ,-40℃~75℃ | Working Hudimity: | 10%~90%RH,no condense |
| Stock Humidity: | 10%~90%RH,no condense | Anti Light Ability: | <80000Lux |
| Static Electricity: | Equal to grade EN 6100-4-2 2008:3, touching type powerrelease 4KV,air type power release 8KV(Install to display to test) | ||
| Software Compatibility | |||
| Firmware Upgrade: | Available | OS Compatibility: | Win7/Win8/Win10,Android/Linux |
| API(software interface): | able to provide motive links datasheet,DIY API interface is available | ||
| Reliability And Durability Data Sheet | |||
| High Temperature Stock: | 100℃ for 20 hours,normal temperature for 2 hours | ||
| Low Temperature Stock: | -40℃ for 20 hours,normal temperature for 2 hours | ||
| USB Plug In And Out Test: | More than 2000 times | ||
| High/Low Circle Working: | 80℃ for 48 hours,-10℃ for 12 hours | ||
| High Humidity Working: | 80℃ for 20 hours with 85% | ||

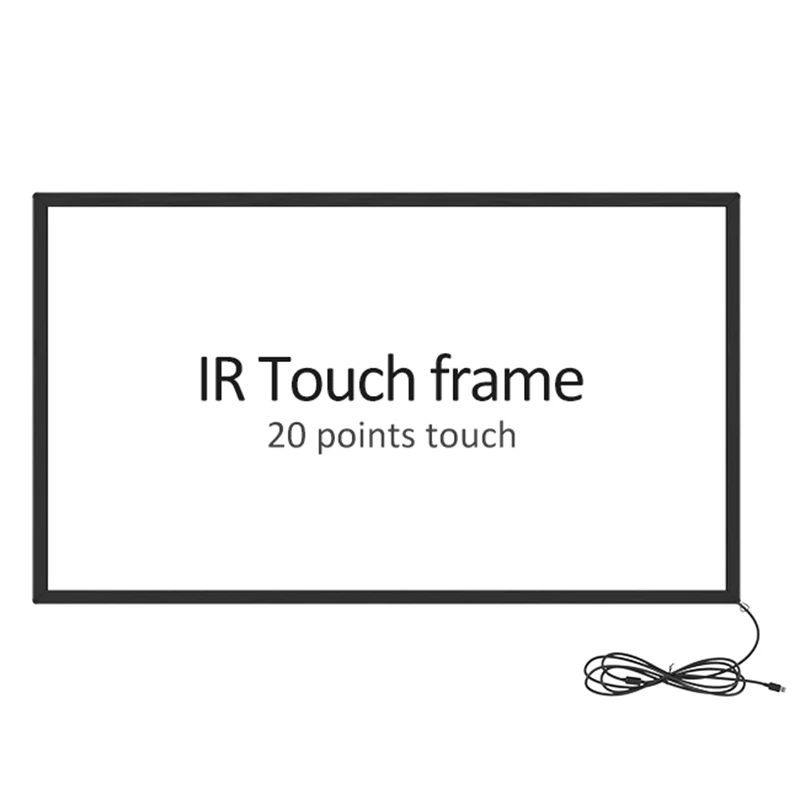

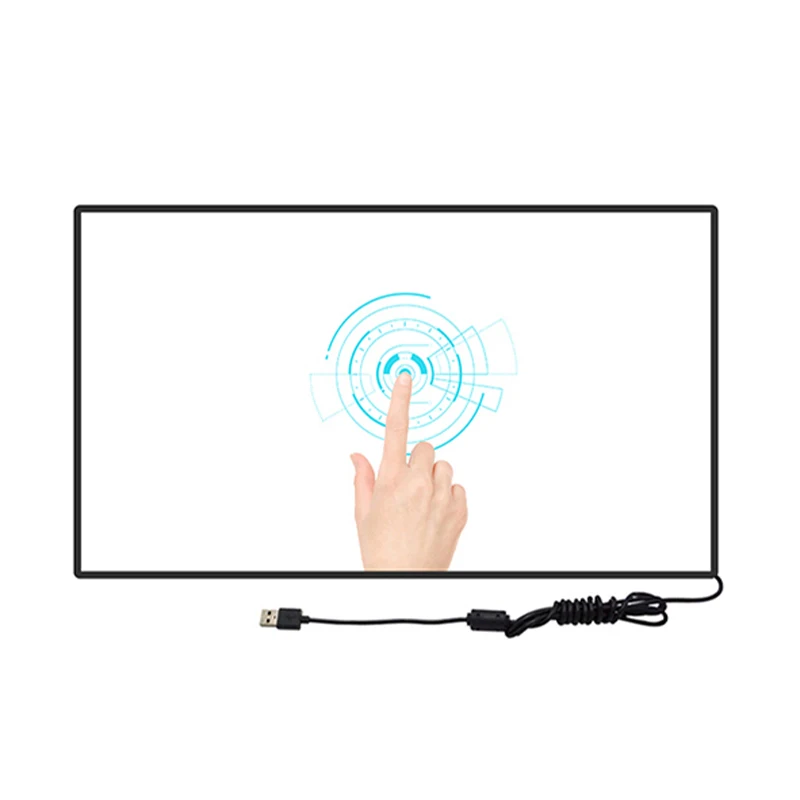

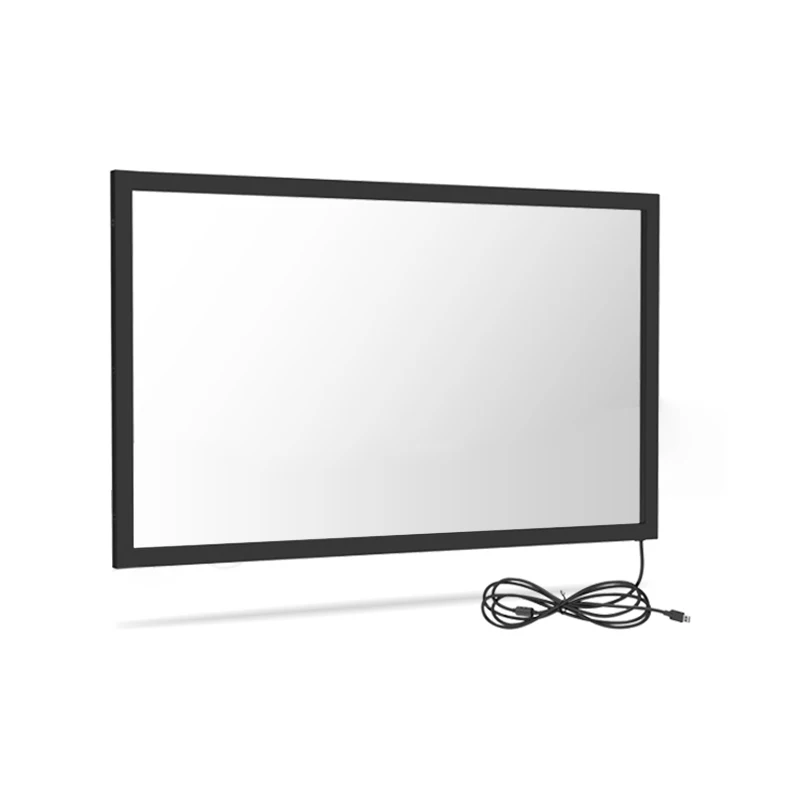

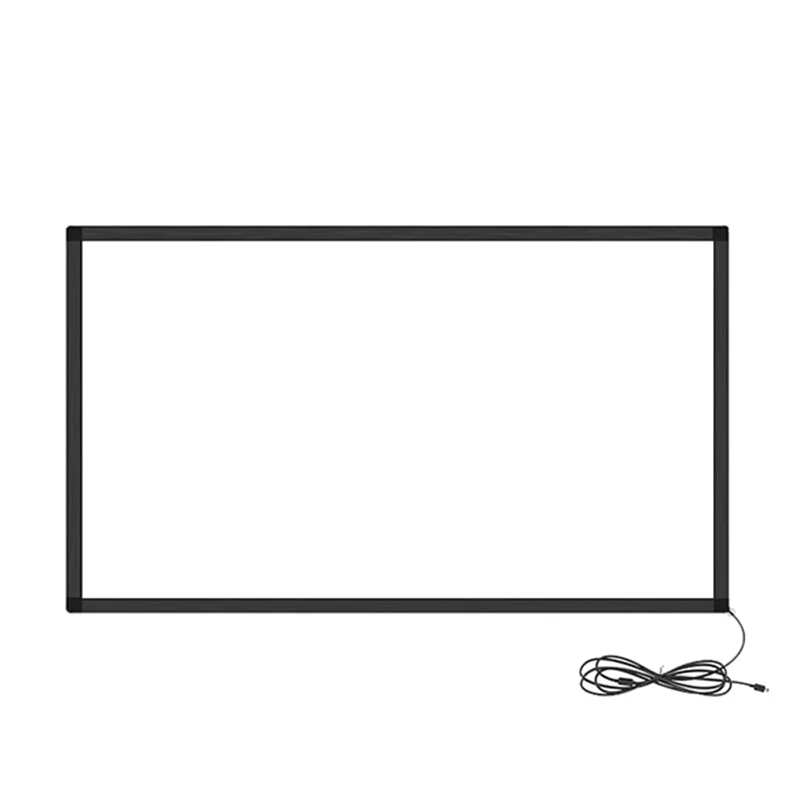

Product Show:GT-IR-TB43

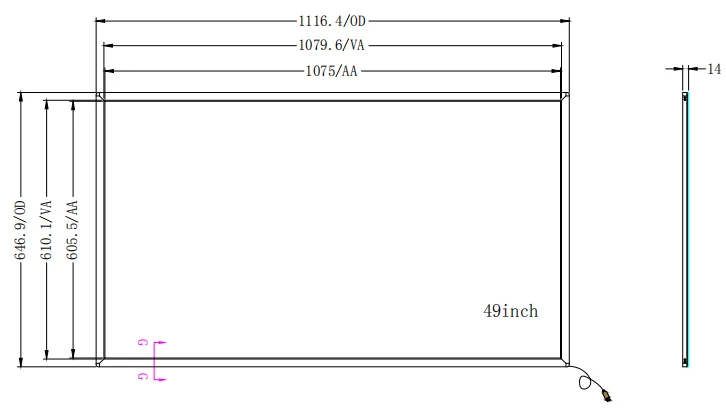

Engineering Drawing:
