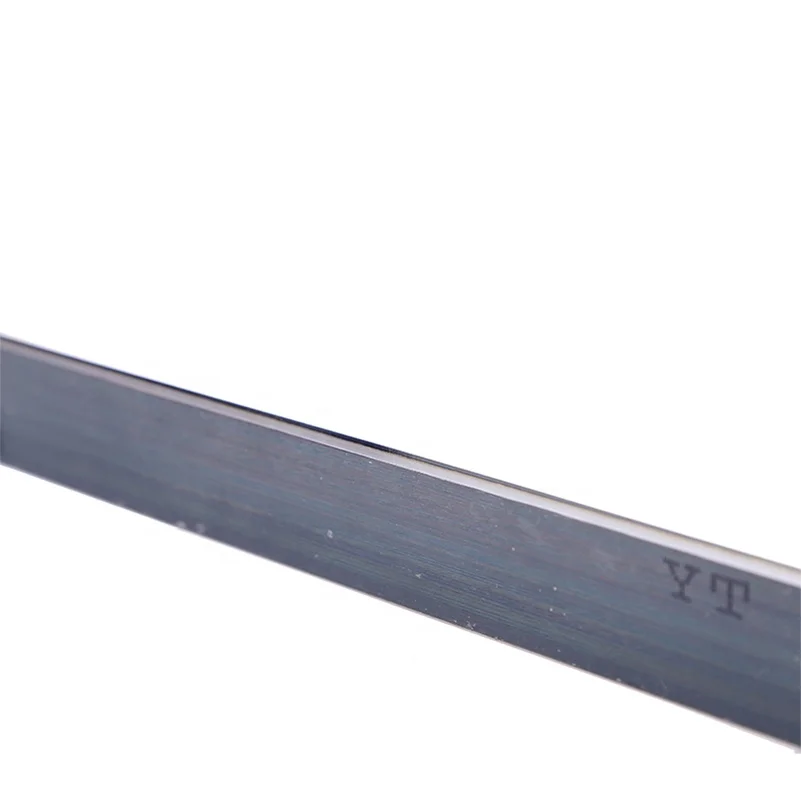

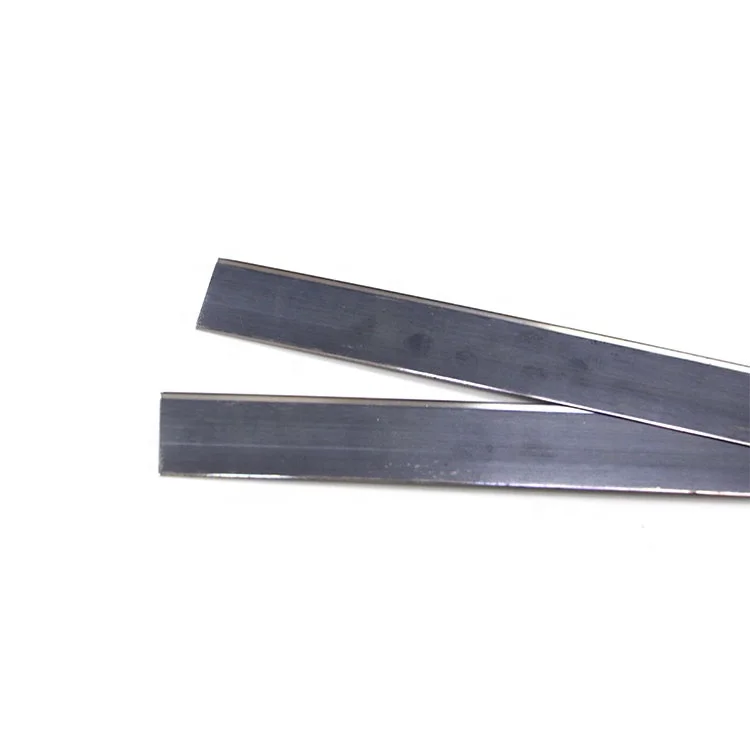

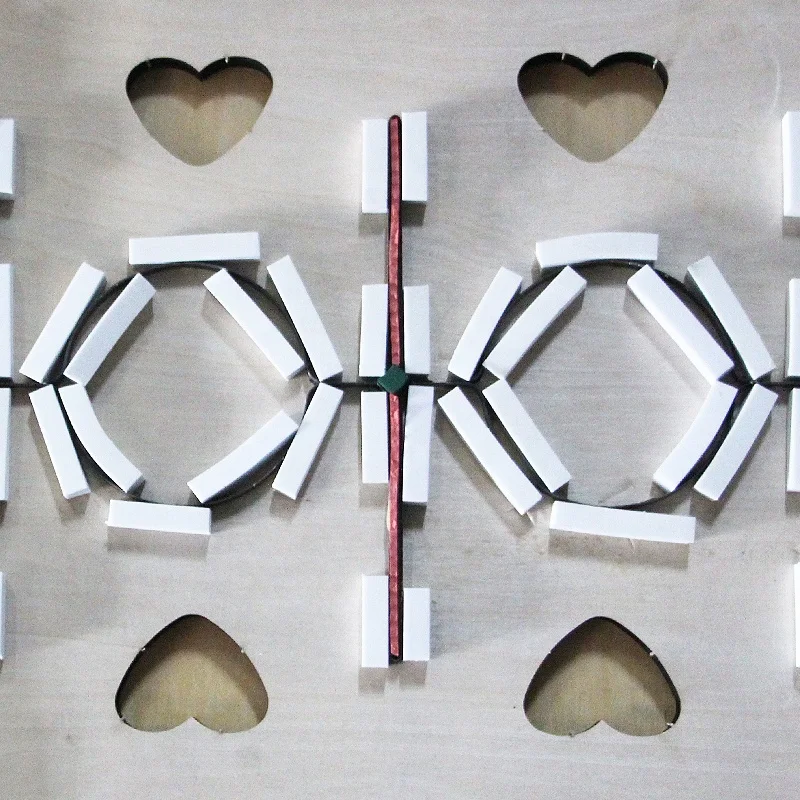

2Pt 3Pt 23.8Mm Hight Steel Perforating Rule Die Cutting For Molds Making
- Category: >>>
- Supplier: Grandcorp Precision Mould(Kunshan)co. Ltd.
Share on (62340110548):
Product Overview
Description
Product Description
Thicknesses-- (2PT)0.71mm, (3PT)1.07mm,(4PT)1.42mm,
Height----------22-23.8mm and 30mm,50mm,60mm,80mm
Hardness------Body(38-45HRC) Edge Angle(42/52)
Shape---------center bevel,long bevel,side bevel,long side bevel(CB,LCB,SB, LSB)

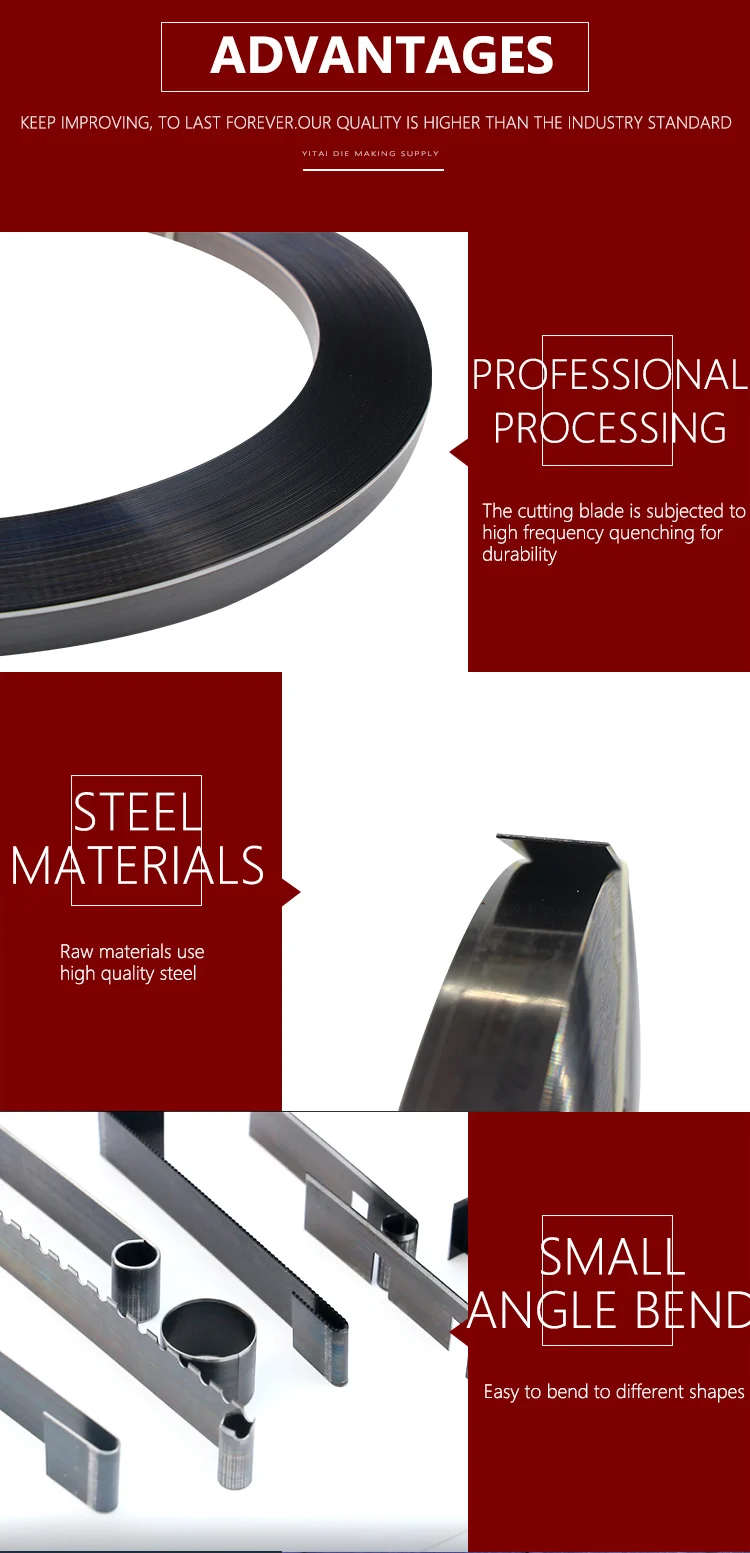

Our Advantages
Product Paramenters
cutting rule | 2PT/3pt*22-60mm CFDB/CF | ||
Blade hardness | 33-35HRC | ||
Blade/blade hardness | 600HV ( 56 HRC) | ||
Best bending degree (3PT shaved) | a=40°R~ 0.5mm | ||
specification | 3pt*23.8mm DB | ||
Knife processing | Pull mouth | ||
Blade angle | 42°/48°/52°/ | ||
tooth rule | 2pt*23.8 2*1 | ||
Blade hardness | 35° | ||
Blade/blade hardness | 35 | ||
specification | 2pt*23.8 2*1 | ||
Knife processing | Pull mouth | ||
Tooth profile | customizable | ||
creasing rule | 2PT/3PT | ||
hardness | 35-40 hrc | ||
height | 22.00-23.80 | ||
Detailed Images

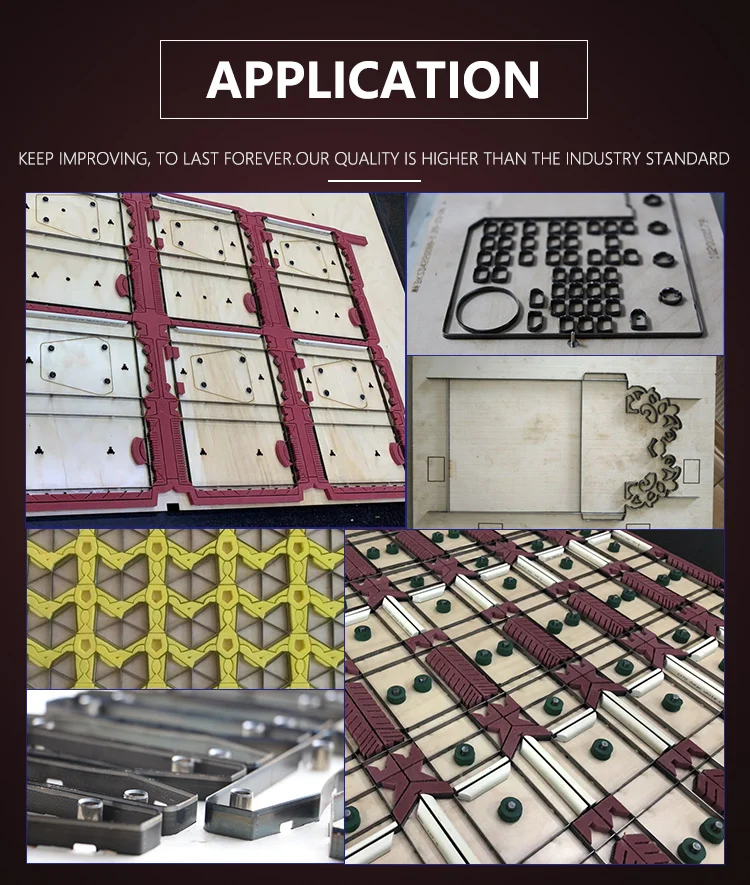

Application

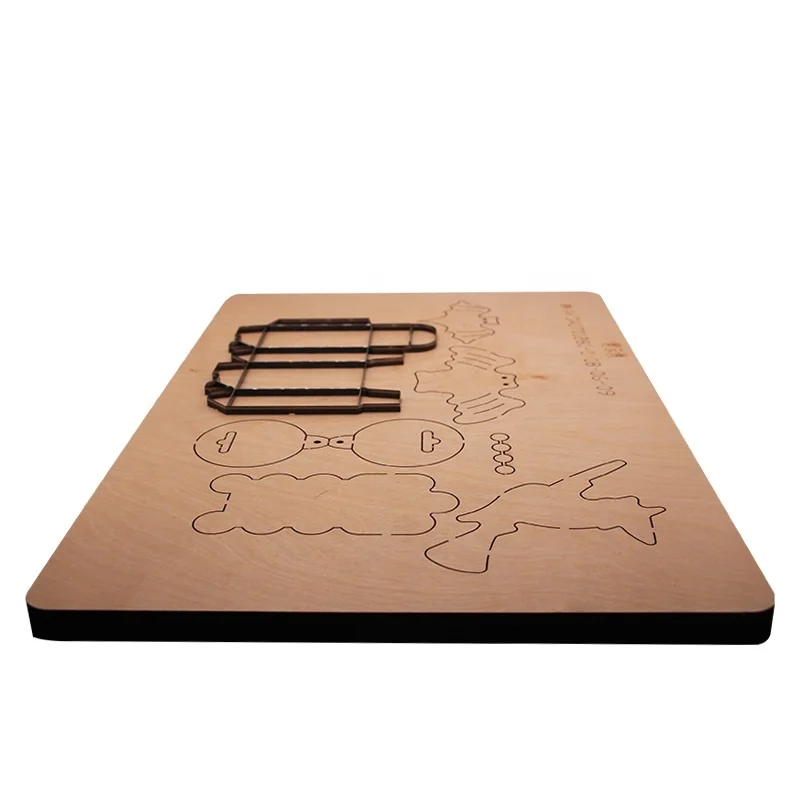

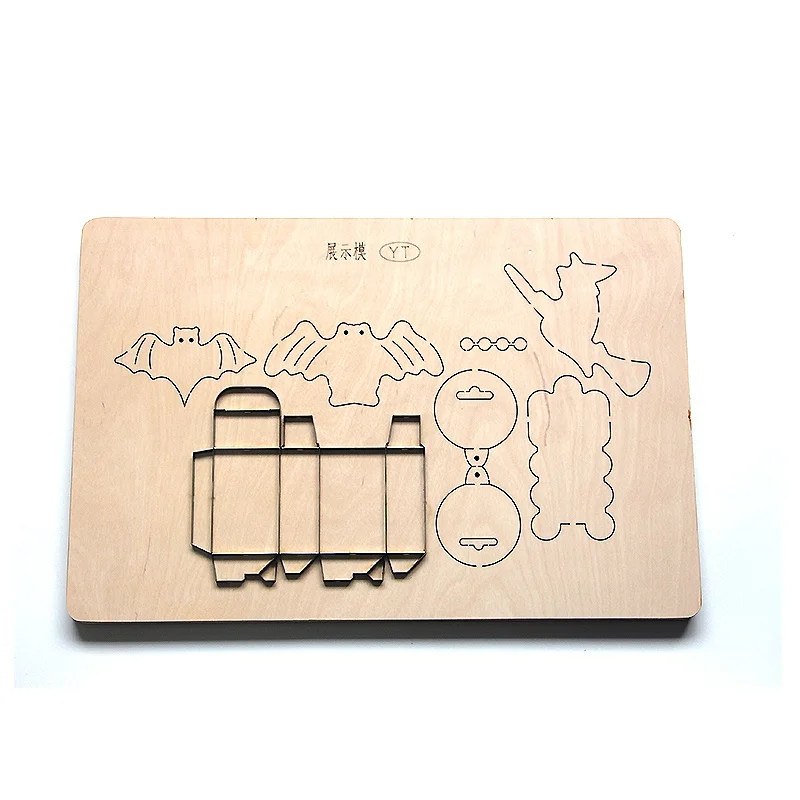

cutting rule for die making
1. It is for flat wooden laser die making
2. It is easy to be processed by auto bender and manual bender.

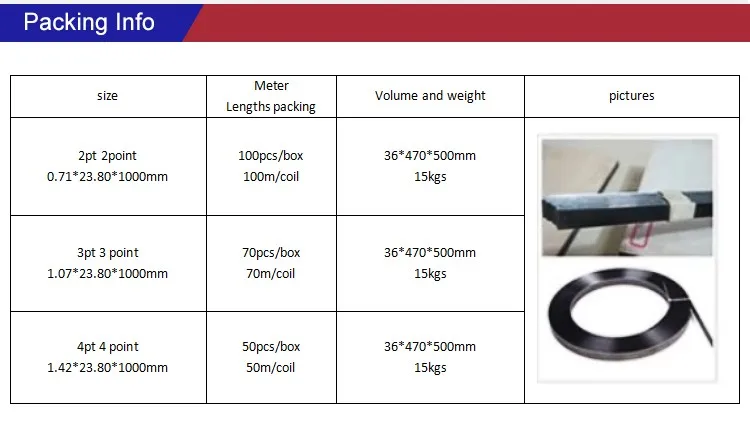

package&delivery
