Машина для нанесения базового покрытия Высокоскоростной Алюминиевой складной трубки, производственная линия
- Category: >>>
- Supplier: Wuxi Yingrun Machinery Technology Co. Ltd.
Share on (62340185572):
Product Overview
Description
Product Description
Main features

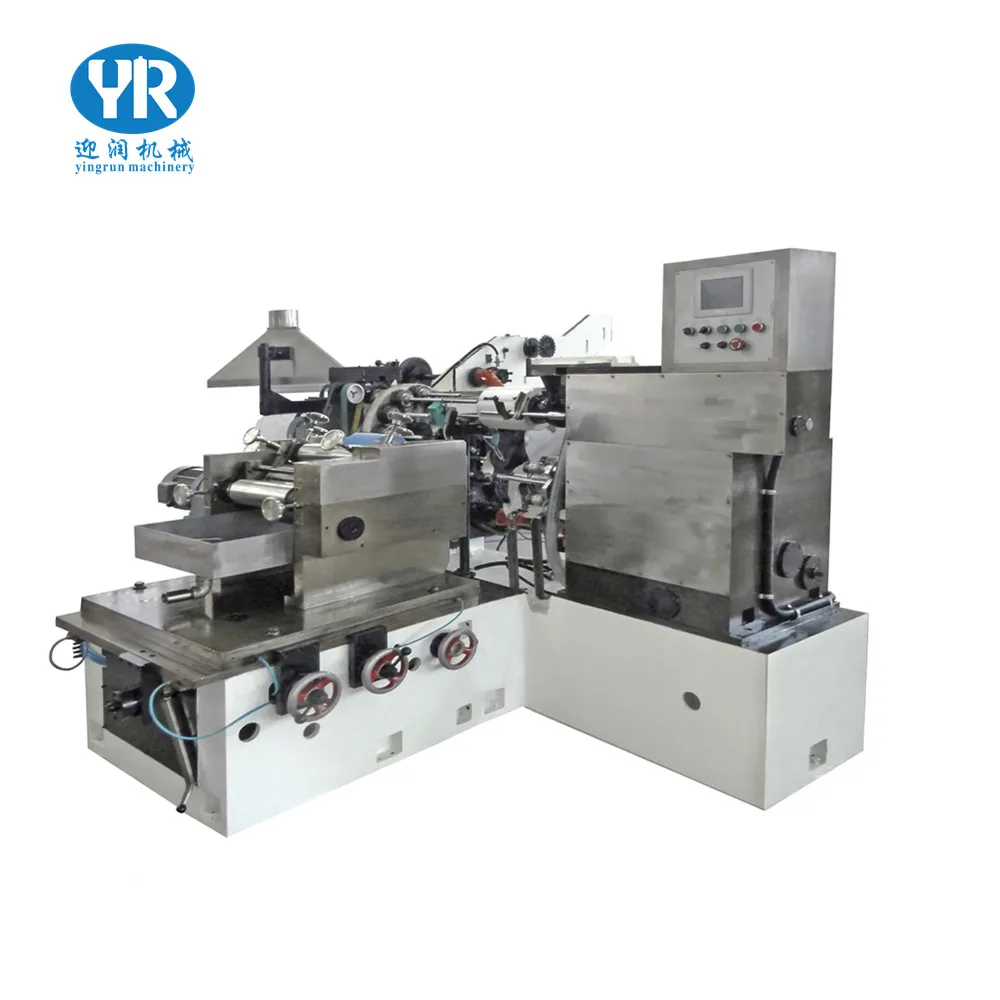

DYC01 base-coating machine is suitable for coating the outer surface of tubes or any round surface.

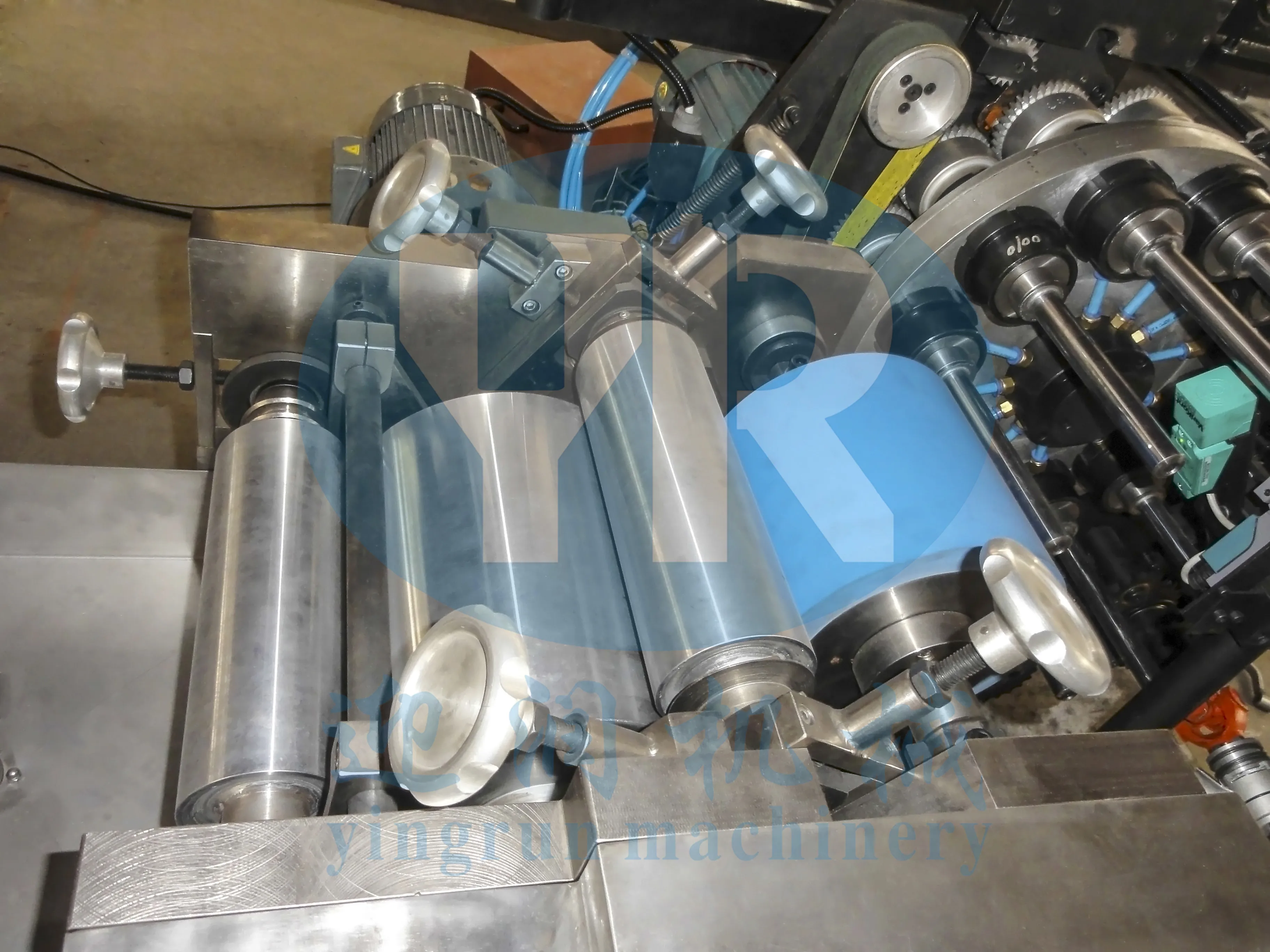

The coating machine applies a base for receiving prints. , Germ tubes drop into “V” slot and then are pushed over with printing mandrel by the movement of push rod. The mandrel with tube is rotated with the help of flat belts over the mandrel pulley, the turn table turns to the application stage, where the specified base is applied with the help of spinning rubber roller. Then the base-coating turntable takes the mandrel and tubes to the unloading manipulator. The manipulator takes tubes away from the mandrel and sends them to the transmitting chain and subsequently into the drying oven.
A. It adopts SIEMENS PLC and Pro-face color touch screen to realize intelligent operations.

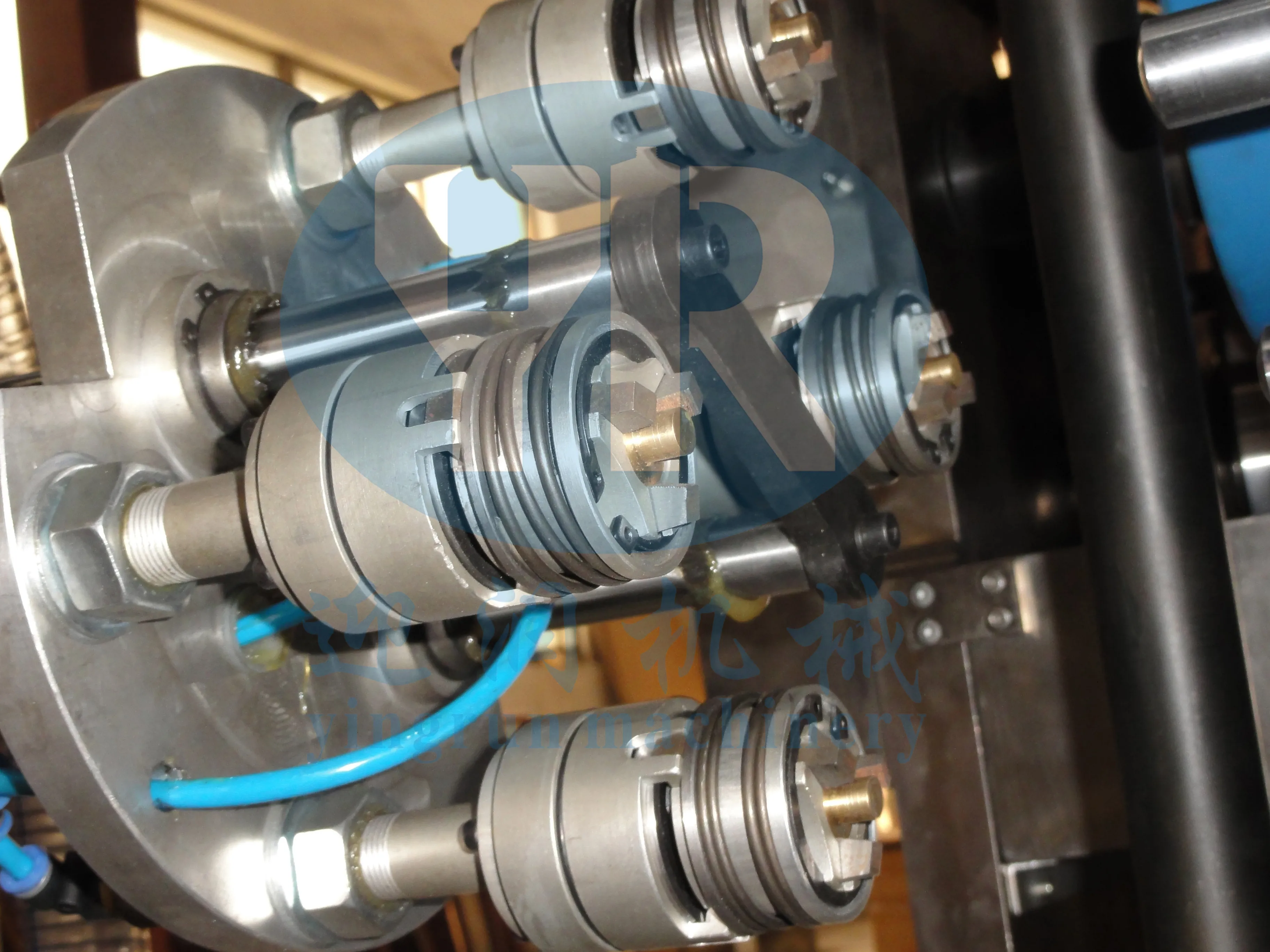

B. Main units like mandrel plate and cam are processed by CNC equipment, which ensures operation and rotation accuracy of the mandrel.
C. Manipulator takes tubes up and down automatically. The machine has self-inspection system. If tubes are not well inserted into mandrels, the machine will stop working. No tubes no printing prevents the empty mandrel from getting coated.
D. Pneumatically operated automatic mandrel change system reduces change over time drastically

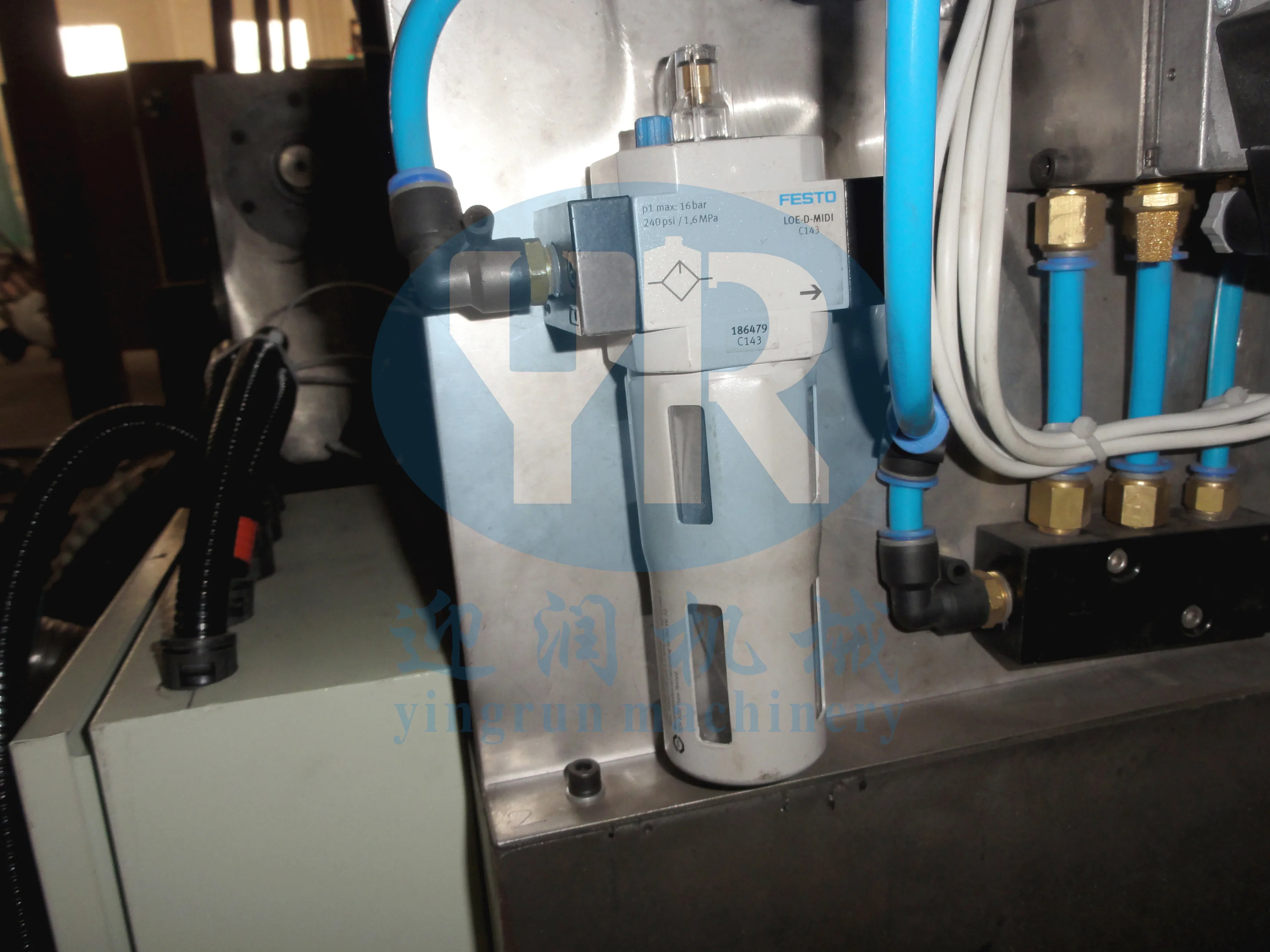

E. Most pneumatics are FESTO units, and bearings are of NTN or NSK.
The coating machine applies a base for receiving prints. , Germ tubes drop into “V” slot and then are pushed over with printing mandrel by the movement of push rod. The mandrel with tube is rotated with the help of flat belts over the mandrel pulley, the turn table turns to the application stage, where the specified base is applied with the help of spinning rubber roller. Then the base-coating turntable takes the mandrel and tubes to the unloading manipulator. The manipulator takes tubes away from the mandrel and sends them to the transmitting chain and subsequently into the drying oven.
A. It adopts SIEMENS PLC and Pro-face color touch screen to realize intelligent operations.
B. Main units like mandrel plate and cam are processed by CNC equipment, which ensures operation and rotation accuracy of the mandrel.
C. Manipulator takes tubes up and down automatically. The machine has self-inspection system. If tubes are not well inserted into mandrels, the machine will stop working. No tubes no printing prevents the empty mandrel from getting coated.
D. Pneumatically operated automatic mandrel change system reduces change over time drastically
E. Most pneumatics are FESTO units, and bearings are of NTN or NSK.
Would like to know more about our equipments? Feel free to send us an inquiry!
SPECIFICATIONS FOR 25 TON CRAWLER EXCAVATOR | ||||||
Production speed | ≤60pieces/min | |||||
Diameter | φ11㎜- φ22㎜or φ25㎜-φ35㎜ | |||||
Motor power | 108KW or 135KW | |||||
Dimensions | 24000×3500×4200(㎜) | |||||
Intake pressure | 0.55MPA | |||||
Packing&Shipping
After Sales Service
ENGINEERS ONSITE GUIDANCE
Experienced Engineers Team To The Site To Provide Instructions.
Would like to know more about our equipments? Feel free to send us an inquiry!
Company Introduction
Wuxi Yingrun Machinery Technology Co., Ltd. Is located in beautiful Wuxi, China, only 150 kilometers away from Shanghai.

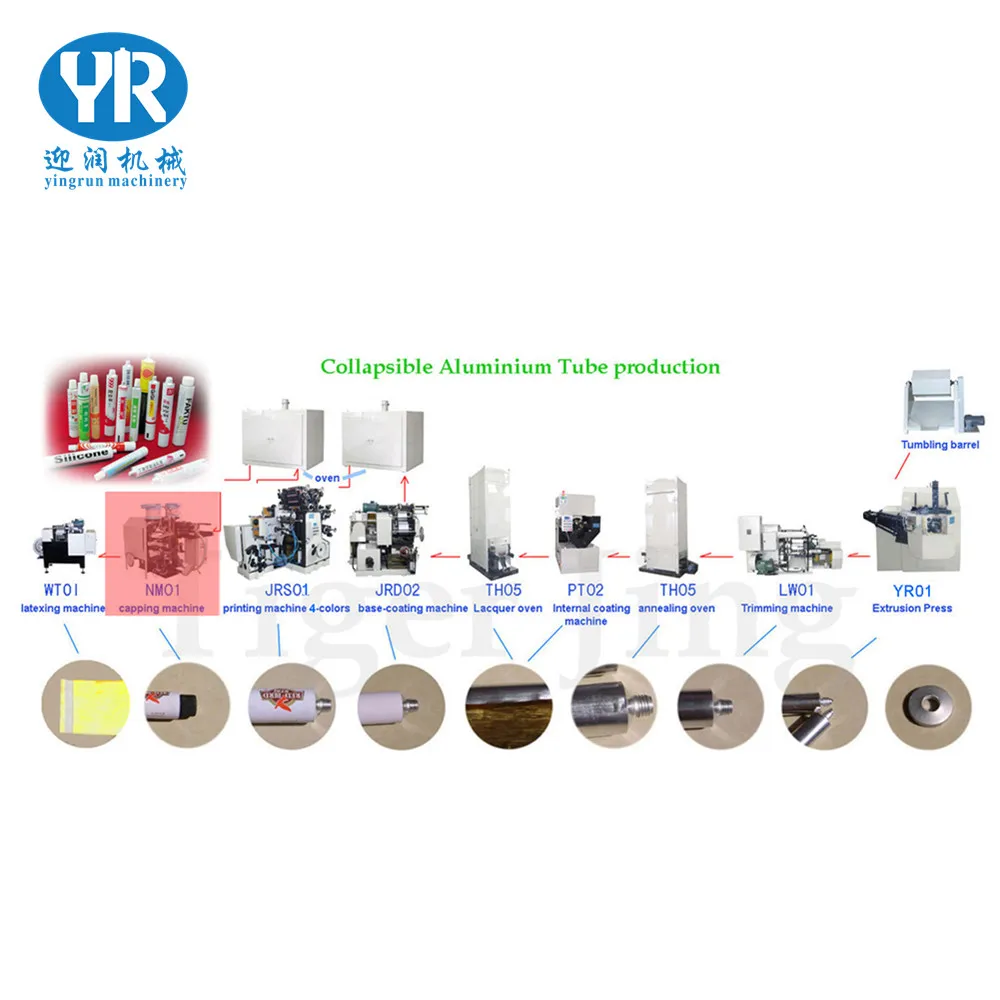

The company is mainly engaged in the production, sales, consulting and service of aluminum tube production line, aerosol can production line and toothpaste production line. We have more than 20 years of experience. Our products have passed the EU CE certification. Providing customers with better products and services is always our code of conduct. We also provide professional consulting and technical support to our clients.
The company is mainly engaged in the production, sales, consulting and service of aluminum tube production line, aerosol can production line and toothpaste production line. We have more than 20 years of experience. Our products have passed the EU CE certification. Providing customers with better products and services is always our code of conduct. We also provide professional consulting and technical support to our clients.
Would like to know more about our equipments? Feel free to send us an inquiry!
FAQ
Q: What's the MOQ?
A: 1 set.
Q: Are you trading company or manufacturer?
A: Both. We have our own factory to produce machines and also as the agents of some materials, such as parts, slug, latex...
Q: How long is your delivery time?
A: 1-10 months by negotiation.
Q: What's the warranty time?
A: One year start from installed.
A: 1 set.
Q: Are you trading company or manufacturer?
A: Both. We have our own factory to produce machines and also as the agents of some materials, such as parts, slug, latex...
Q: How long is your delivery time?
A: 1-10 months by negotiation.
Q: What's the warranty time?
A: One year start from installed.
