High voltage static var generator 27.5KV SVG STATCOM for power station
- Category: >>>
- Supplier: Anhui Zhongdian Electric Co. Ltd.
Share on (62340202204):
Product Overview
Description
Product Description
Static Var Generator SVG for High Tension reactive power compensation: ZD-FGSVG
FGSVG series static var generator using IGBT as the core power modules which can quickly and continuously provide capacitive or inductive reactive power, achieve constant reactive power, constant voltage and constant power factor control through the assessment point, and ensure the power grid is running stable, high efficiency and high quality. In the power distribution network, the small capacity FGSVG can significantly improve the power quality (improve the powerfactor, overcome phase imbalance, eliminate voltage flicker and fluctuation, restraining harmonic), if it is installed in some special loads (such as electric arc furnace).

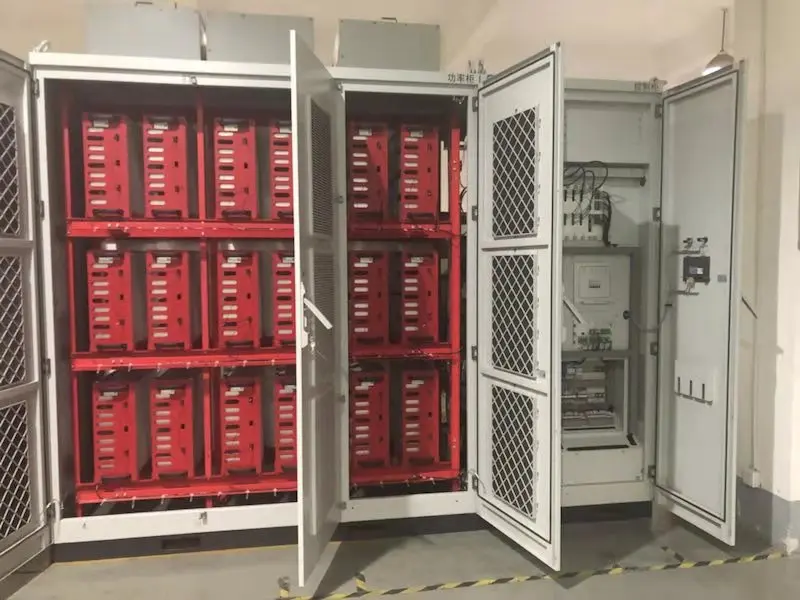

Indoor installation STATCOM Panel
Naming Rules
Remark capacity (Mvar) means the rated maximum adjustment capacity range from inductive
reactive power to capacitive reactive power. For example C2.0/10 means the device is connect to
the 10kV power grid directly and its capacity is ±2Mvar. It can change from +2000kvar (inductive)
to -2000kvar (capacitive) continuously and smoothly.
Specification
Rated voltage | 6KV-35KV | |
Operating frequency | 50Hz/60Hz | |
Electrical connection | Three-phase four-wire/ three-phase three-wire | |
Compensation Capacity | 1Mvar~100Mvar | |
Compensation mode | Either three-phase compensation | |
SVG module response time | <5ms | |
MTBT | >100,000 hours | |
Controller | IGBT+DSP+FPGA | |
Switching frequency | 12.8K | |
Control connection | Fiber or electrical connection | |
Communication mode | Adopt Modbus remote communication protocol; communication interface adopts RS485 and CAN bus, supporting USB data download. | |
Weight | Refer to the model selection table. | |
Level of protection | IP40(Indoor) / IP44(Outdoor) | |
Cooling method | Air cooling/Water Cooling | |
Noise | <50db | |

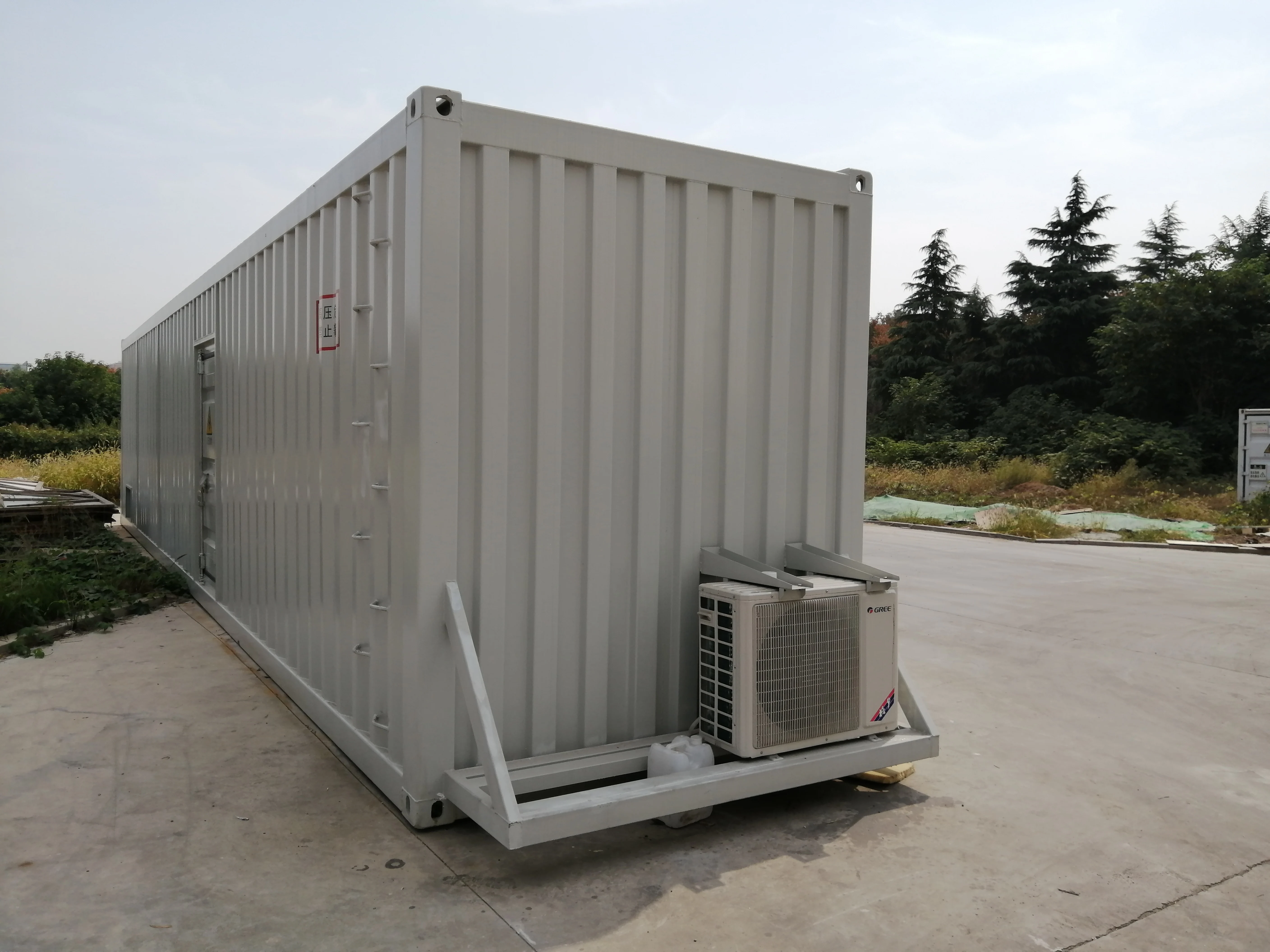

Installation method | Cabinet mounting./Containerized | |
Ambient temperature | -20~55℃ | |
Relative humidity | Maximum 95%, without condensation | |
Altitude above sea level | ≤1,000m at rated capacity |
Function
Main Function
1.Diversely compensate reactive power, improve power factor
2.Enhance system voltage stability
3.suppress voltage fluctuation and flicker
4.filter harmonics
5.suppress 3-phase unbalance
6.faster response speed SVG response time:≤5ms
7.low switch ripple output characteristic
Certifications
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Why choose us
1. One-stop supplier globally.
2. Nearly 20 years professional experiences in electrical appliance industry.
3. Professional online technology support for perfecting your power energy solution free.
4. Experienced sales service,oompetive price.
5. Reliable quality and warranty assurance: 12 month or more
5. Whatever big or small order, we can provide you one-to-one service.
6. Based on mutural benefit,creat win-win business and long relationship .
FAQ
◆How to order?
1.Please feel free to contact us by email or messenger,we'll be glad to be at your service
2.Contracts will be made through trade assurance, and payment be protected.
3.Product will produce ASAP on receipt of the payment.
◆How to pay?
1.T/T
2.T/T and L/C
◆How to receive goods?
1.By sea. low shipping cost and all the documents will be ready.
2.Track full process until goods arrival.
◆How to guarantee the safety of payment and goods?
The payment will be 100% protected. On-time shipment and quality are guaranteed.
◆What after-sale service ?
1. We provide 12-24 months warranty.
2. Overseas servie is availabe.

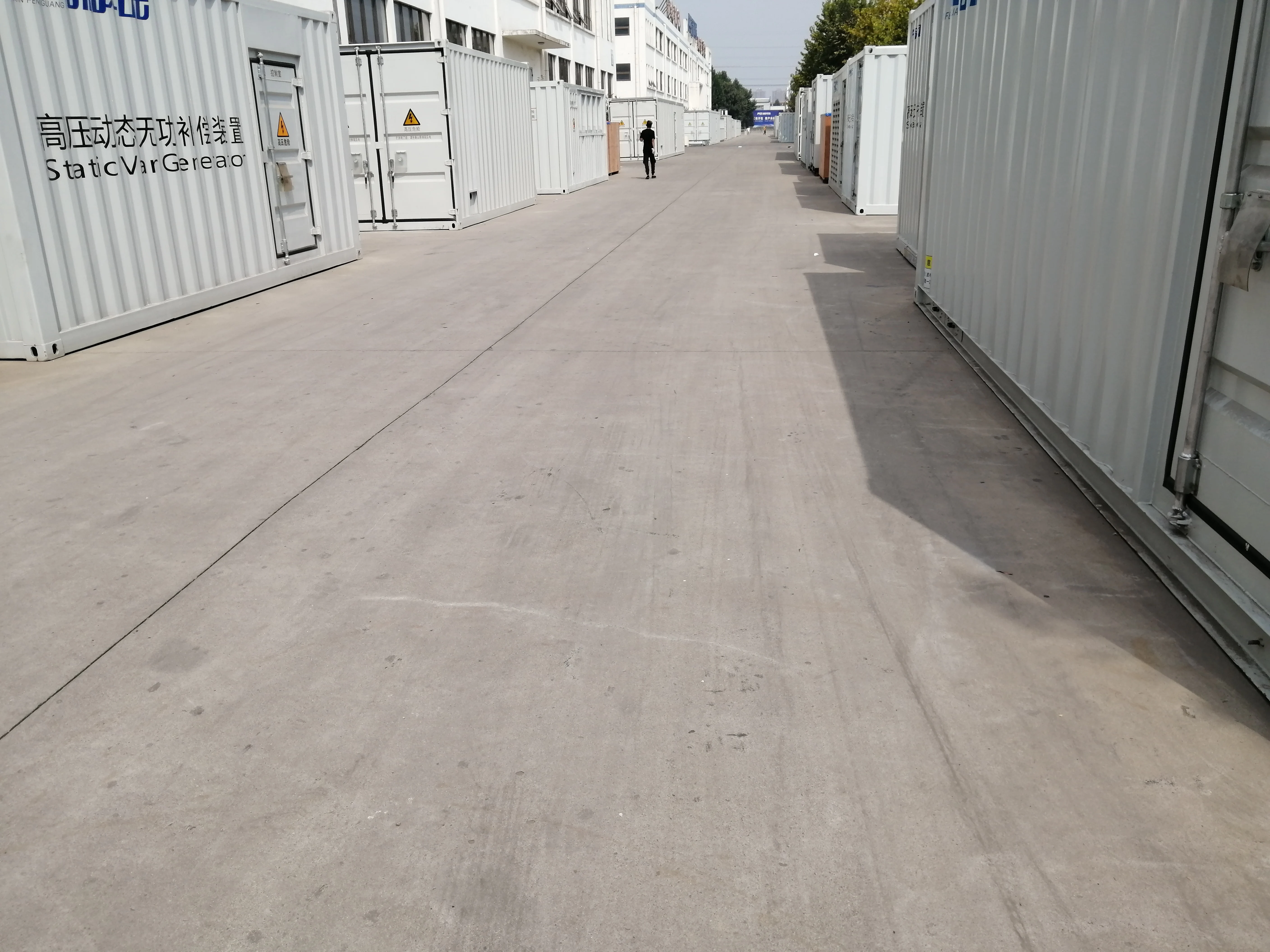

Factory
