H.265 H.264 3G HD SD SDI To IP Video Streaming Encoder H265 To Wowza, Xtream Codes IPTV Media Server, Live Stream Broadcast
- Category: >>>
- Supplier: Wanying Kaifeng Electronic Co. Ltd.
Share on (62340247655):
Product Overview
Description
H.265 H.264 3G HD SD SDI To IP Video Streaming Encoder H265 To Wowza, Xtream Codes IPTV Media Server, Live Stream Broadcast
Product Description
1. Introduction

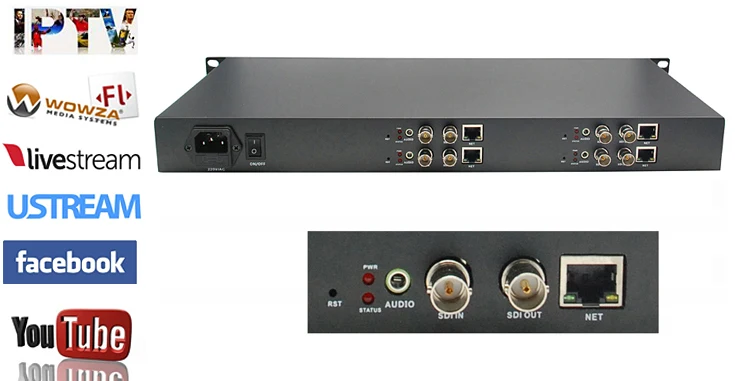

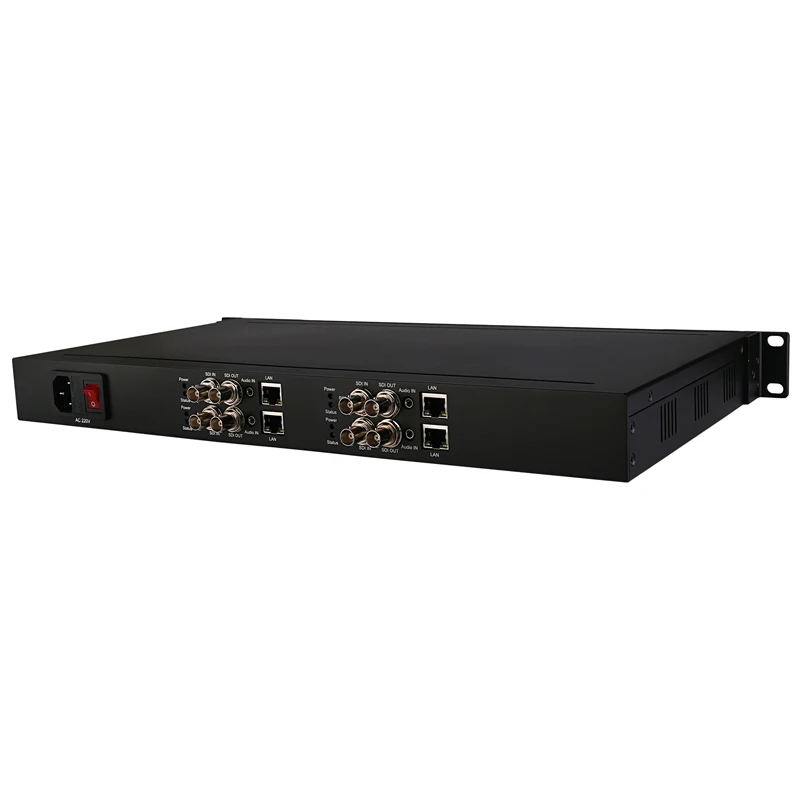

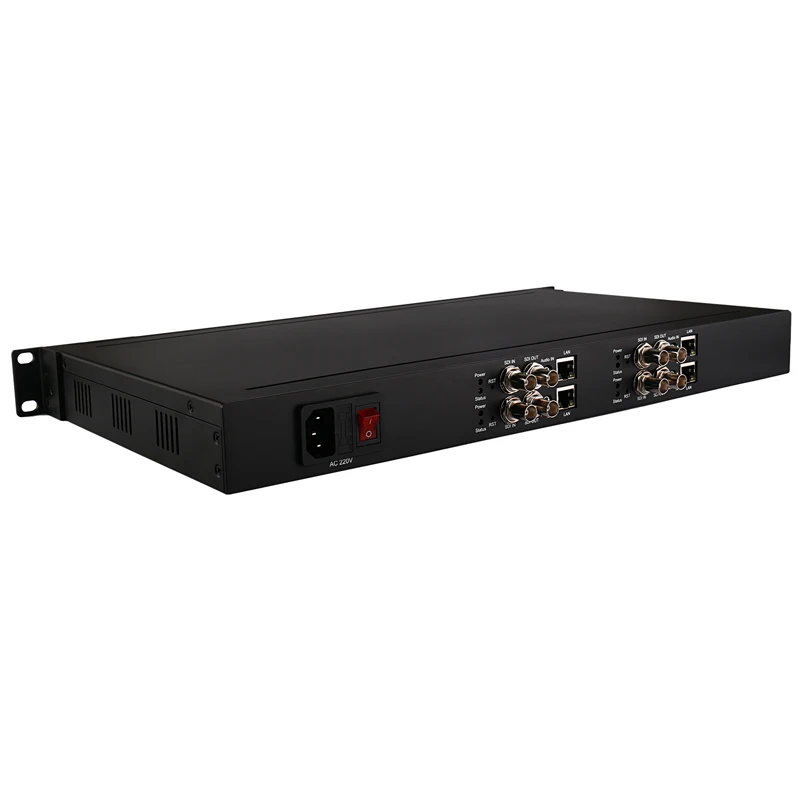

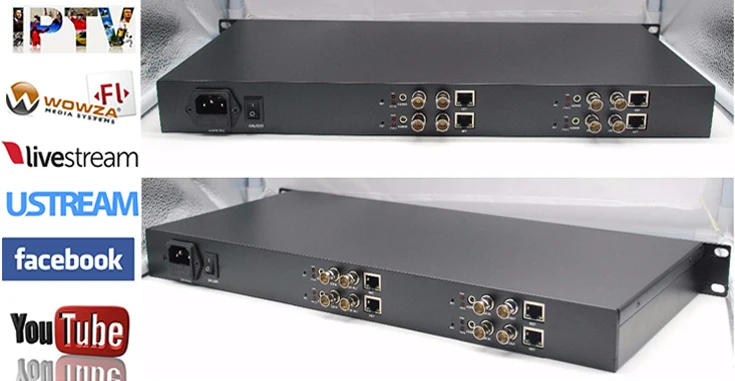

1U Rack-mounted H.265 HDMI Video Encoder - It is a HD audio & video encoding device with powerful functionality, which supports 1-4 channels HDMI input, max resolution at 1920×1080@60fps, output stream resolution to 1080P@60fps. This Encoder works with HTTP / HLS / FLV / RTSP / RTMP(S) / UDP/RTP (Unicast/Multicast) Stream Protocols and ONVIF. Also the Encoder works with online live broadcast platform, such as YouTube, Facebook, Ustream, Twitter, etc.
2. Features
1. Adopts professional encoding chip, embedded HiLinux System, high stability and efficiency.
2. Friendly Web Control UI, default IP is 192.168.1.168.
3. Support HTTP / HLS / FLV / RTSP / RTMP(S) / UDP/RTP (Unicast/Multicast) Stream Protocols and ONVIF.
4. Support output Multi RTMP(S) (Main stream & Sub stream) to different Media Streaming Server.
5. Provide custom resolutions, Main Stream Preset Resolutions – 1920x1080, 1680x1200, 1600x900, 1440x1050, 1440x900, 1360x768, 1280x720, 1280x800, 1280x768, 1024x768, 1024x576, 960x540, 850x480, 800x600, 720x576, 720x540, 720x480, 720x404, 704x576, 640x480, 640x360, 480x270, etc.
6. Support Text and image insert as Stream Logo for Main stream & Sub stream.
7. Automatic detect the input video signals, output stream will show no signals when input signals interrupted.
8. Output Stream bitrate adjustable.
9. Support External Analog audio input.
10. Support Audio digital gain.
11. Support firmware upgrade.
12. Support remote control via router port forward.
13. WiFi version for option.
14. 3U chassis available, max supports 16Pcs single Encoder installed.
3. Application
1. IPTV (Wowza, Xtream Codes Media Server, etc.)
2. Online Live Broadcast ( YouTube, Facebook, Ustream, Twitter, etc.)
3. NVR (Network Video Recorder)
4. Recording System / Software
5. Digital Signage
6. Teaching / Campus Broadcast
7. Hotel TV system
8. Video Conference
4. Specifications
Interfaces | |
Video Input | 1-4 *SDI input, Max support 1920x1080P@60Hz |
Audio Input | 1-4 * SDI embed audio & External Analog audio input |
Ethernet | 1000Mbps, RJ-45 |
WiFi | Option – 2.4G |
Video Encoding |
|
Video Format | H.264/AVC High/Main/Baseline Profile H.265/HEVC main profile MJPEG/JPEG baseline |
Video Resolution | Max support 1920x1080P@60FPS |
Video Bitrate | 0.1~32Mbps |
Video FPS | 5-60FPS |
Bitrate Control | VBR/CBR |
Streaming Protocols | HTTP / HLS / FLV / RTSP / RTMP(S) / UDP/RTP (Unicast/Multicast) ONVIF |
Audio Encoding |
|
Audio Format | AAC/AAC+/AAC++/MP3/MP2/AC3 G711 |
Sample Rates | 44.1kHz/48kHz |
Bitrate | 12~640kbps |
System |
|
Control Method | Web based management – IP 192.168.1.168 |
Language | Chinese-English control interface |
Firmware | Ethernet software upgrade |
Working environment |
|
Operating temperature | -10 to 70 deg C |
Storage temperature | –20 to 80 deg C |
Relative Humidity | 5% to 90% non-condensing |
Miscellaneous |
|

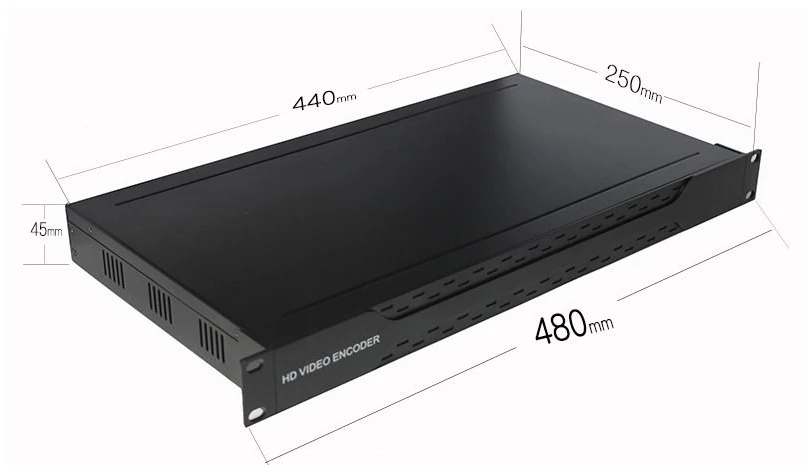

Dimension (L× W× H) | 1U 483 (L) *250 (W) *44.5 (H) mm |
Approx weight | 4.5kgs |
Power adapter | AC input 100-240V 50/60Hz DC output 12V 25A |

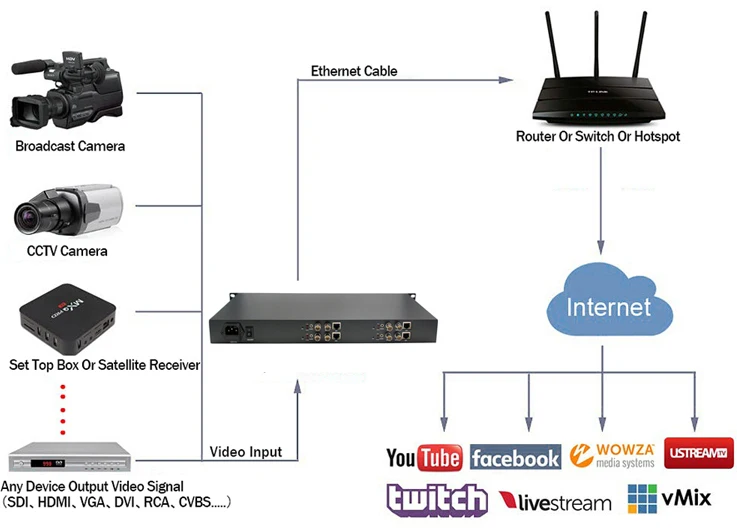

5. Connection Diagram
Detailed Images
Packaging & Shipping
Company Information
FAQ
1. Q: How can I get your quotation?
A: Please provide us informations as follows:
1. Item Number & Quantity.
2. Special Specification requirement.
3. Company Profile (Name, Tel, Fax, Address, and Webpage)
4. Any Other Relevant Details.
2. Q: How can I get a sample to check your quality?
A: After price confirmation, you can require for samples to check our quality.
3. Q: Terms of payment?
A: We accept payment as follows:
1).100% TT in advance.
2). 30% T/T deposit, 70% balance before delivery.
4. Q: Can you do OEM?
A: Yes we can.
5. Q: What about delivery time?
A: 1) Samples: within 3 days.
2) Goods: 3-7days usually.
6. Q: Factory Inspection?
A: Any time .
7. Welcome to our factory for inspection.
