Magnet drive pump is used to transport toxic and permeable medium
- Category: >>>
- Supplier: Hebei Qiangheng Machinery Equipment Manufacturing Co. Ltd.
Share on (62340252679):
Product Overview
Description
Product Description
The magnetic gear pump is a kind of volumetric gear pump, which can realize the non-contact moment transmission through the magnetic drive and replace the dynamic seal with the static seal, so as to make the pump completely leak-free. Magnetic gear pump is suitable for petroleum, chemical, pharmaceutical, smelting, electroplating, environmental protection, food, national defense and other industries. It is an ideal equipment for conveying inflammable, explosive, volatile, toxic, rare and precious liquids and various corrosive liquids.
type | MCB gear pump |
material | 304 or 306 Stainless steel or Customize to your needs |
connect | Clamp, thread, welding, flange |
The motor power | 1.5-11kW |
The motor type | Constant speed or frequency conversion |
Delivery details | Usually within 7 days after payment |

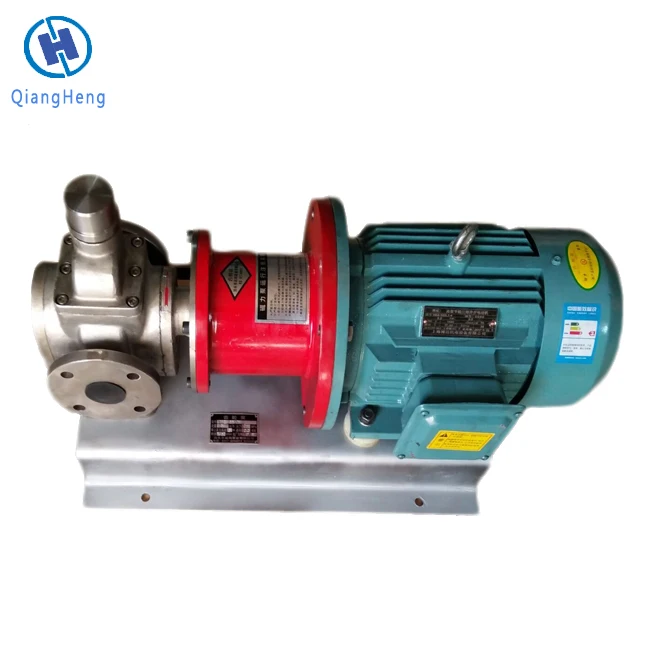

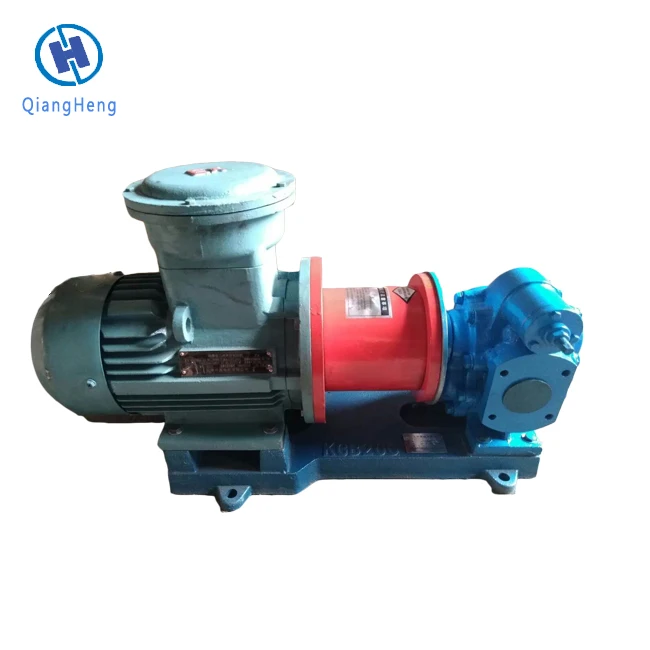

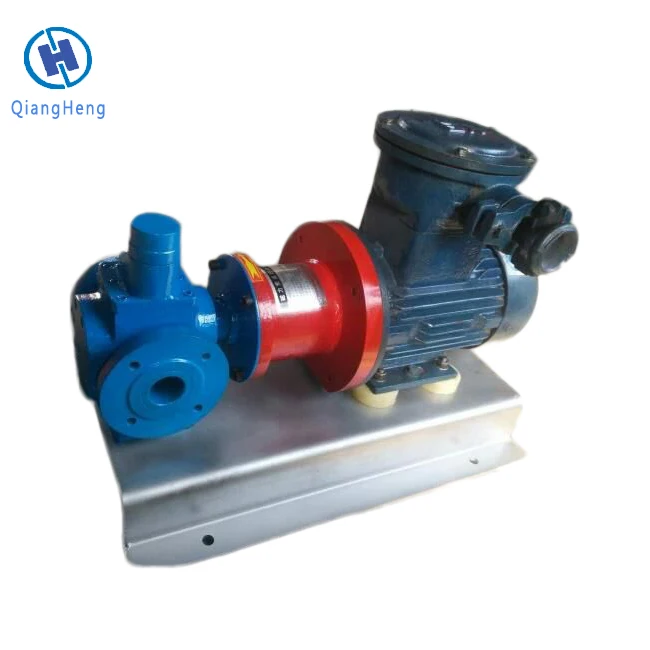

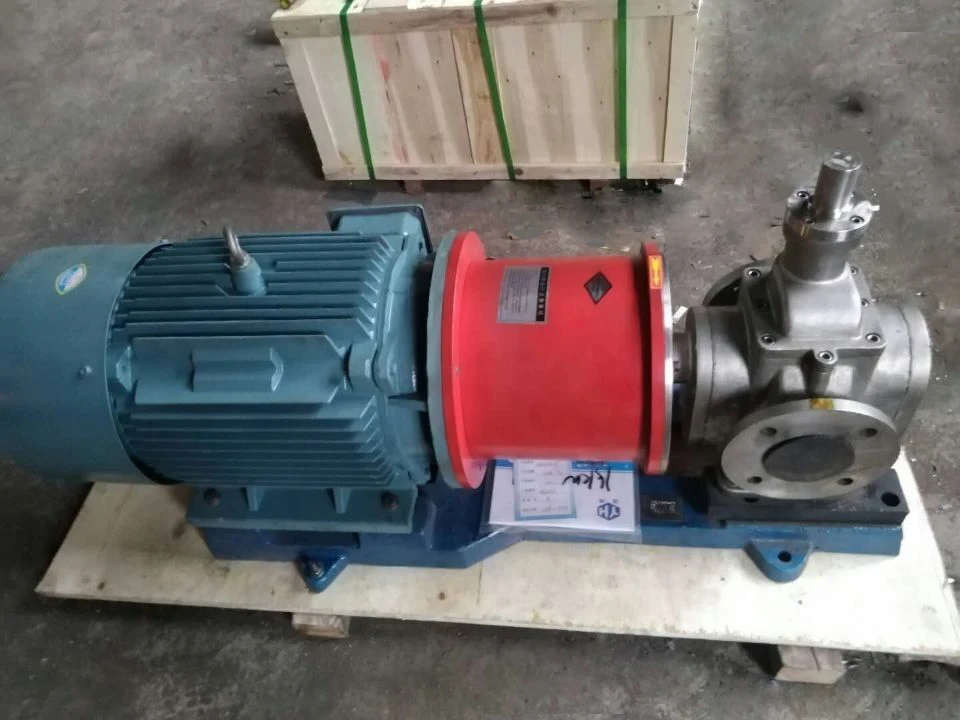

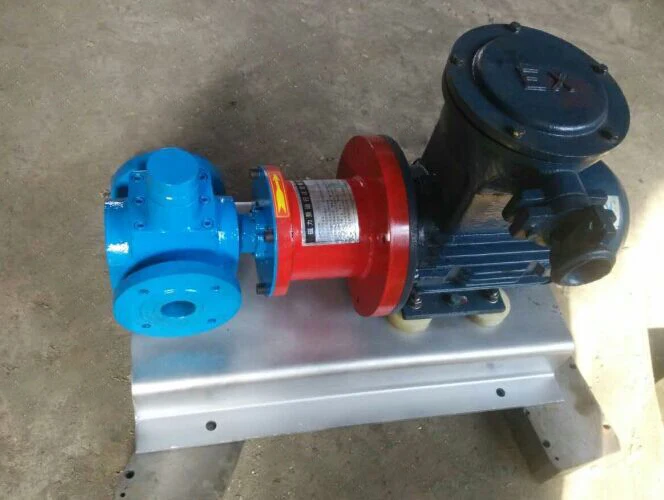

The magnetic gear pump is mainly composed of gear pump head, magnetic drive, motor, connecting bottom plate and other parts. The magnetic drive consists of an external magnetic rotor, an internal magnetic rotor and a non-magnetic isolation sleeve. When the motor drives the external magnetic rotor to rotate, the magnetic field can penetrate the air gap and non-magnetic material, and drive the internal magnetic rotor connected with the driving gear to rotate synchronously, thus transforming the leaky dynamic seal structure into a zero-leakage static seal structure.
1. Pump shaft is changed from dynamic seal to closed static seal, which completely avoids medium leakage.
2. No independent lubrication and cooling water are needed to reduce energy consumption.
3. From coupling drive to synchronous drive, there is no contact and friction. It has low power consumption, high efficiency and damping effect, which reduces the impact of motor vibration on the pump and the impact of pump cavitation vibration on the motor.
4. When overload occurs, the internal and external magnetic rotors slip off relatively, which can protect the motor and pump.

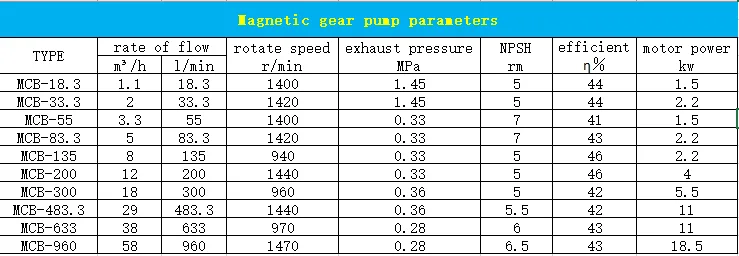

Other sizes are available for you reference.if you would like more details click on the link below to contact us.
Scope of application
Related Products
Company Introduction
Hebei Qiangheng Machinery and Equipment Manufacturing Co., Ltd. is located in Botou City, Hebei Province, which is a famous foundry town in China. It is located in Beijing and Tianjin in the north, Bohai Sea in the east, Qilu in the South and Taihang in the west. Beijing-Shanghai Railway, Beijing-Shanghai and Shihuang Expressway, 104 and 106 National Highways run through the whole territory, with superior geographical location, convenient transportation and accessible roads. Our company produces high-viscosity pump series, cam rotor pump series, stainless steel rotor pump series, high-viscosity rotor pump series, high-viscosity gear pump series, stainless steel magnetic gear pump series, explosion-proof arc gear pump series, single-screw pump series, three-screw pump series and so on. The product specifications are complete, the performance is reliable and the quality is excellent. Low price, won the trust of our customers. Products are sold all over the country and widely used in petroleum, chemical, shipping, power, grain and oil, food, medicine, building materials, metallurgy and national defense scientific research and other industries.
FAQ
一、how do find the most suitable pump?
please inform us details of the product inquire
1 medium medium temperature viscosity corrosivity
2 pump capasity
3 pump presure (head)
4 outlet and inlet diameter
if possible,please also provide the model you are using now,if not,we will recommend revelant product for reference
二、Are you a manufacture or a trading company?
We have our factory and also we cooperate with other companies.
三、Can you accept OEM make?
OK. We can print your brand or logo on the products, and also can make the packing as per your request.
四、Does your company provide customized service?
Yes, We could produce according to cusotmer's drawing and requirement
五、How about your quality?
We have a dedicated quality department, responsible for overseeing all the production process to ensure that the product percent
of pass, we also have the international advanced equipment to ensure the quality of the products, we offer one year warranty, have
professional technical engineers to provide technical support for life, our products are passed the CE certification, the company
had been passed ISO multiple environmental certification.
六、How do insure your after-sale services?
produce refund and replacements are guaranteed for all the produts within 3000 hours
after purchase.(under normal use,except special medium and environment)
How long would it take to receive your orders?
we will arrange the shipment within a week after receive payment.(according to order QTY)
How do we deal with clients' quality complaints?
All complaints about quality will be recorded into documents immediately. Our service engineer will contact you once we find out
the problems and help you out
七、Do you test all your goods before delivery?
Yes, we have 100% test before delivery.
八、What is your MOQ?
We do not have MOQ requirement for most of our products.
九、How does your company do the quality control and what is your warranty period?
We are ISO certified factory, and also have CE&ISO certificate.Our warranty is 1 year (Except the wearing parts)
十、Can you provide price list or quotation?
Usually we have a price list,but it's just prices for original types,it's may not fit to your requests,so we suggest you to tell
us the details of the model that you need,such as flowrate,motor power,pressure etc..Then we offer you a precise quotation
十一、What is your trade terms, payment terms and delivery time
FOB/CFR/CIF etc.30% before production and 70% before shipping.We'd like to 100%T/T if you can accept,also we can accept L/C.We can
arrange the shipping in 10-15days if we have the model that you need in stock,otherwise 25-30days we will arrange the shipping.
十二、Logistics mode
Shipping by Sea, By air, By Courier (DHL/UPS/FEDEX/TNT)
十三、Payment
T/T, L/C, PAYPAL, ALIBABA ONLINE ORDER, CREDIT CARD, WESTERN UNION
please inform us details of the product inquire
1 medium medium temperature viscosity corrosivity
2 pump capasity
3 pump presure (head)
4 outlet and inlet diameter
if possible,please also provide the model you are using now,if not,we will recommend revelant product for reference
二、Are you a manufacture or a trading company?
We have our factory and also we cooperate with other companies.
三、Can you accept OEM make?
OK. We can print your brand or logo on the products, and also can make the packing as per your request.
四、Does your company provide customized service?
Yes, We could produce according to cusotmer's drawing and requirement
五、How about your quality?
We have a dedicated quality department, responsible for overseeing all the production process to ensure that the product percent
of pass, we also have the international advanced equipment to ensure the quality of the products, we offer one year warranty, have
professional technical engineers to provide technical support for life, our products are passed the CE certification, the company
had been passed ISO multiple environmental certification.
六、How do insure your after-sale services?
produce refund and replacements are guaranteed for all the produts within 3000 hours
after purchase.(under normal use,except special medium and environment)
How long would it take to receive your orders?
we will arrange the shipment within a week after receive payment.(according to order QTY)
How do we deal with clients' quality complaints?
All complaints about quality will be recorded into documents immediately. Our service engineer will contact you once we find out
the problems and help you out
七、Do you test all your goods before delivery?
Yes, we have 100% test before delivery.
八、What is your MOQ?
We do not have MOQ requirement for most of our products.
九、How does your company do the quality control and what is your warranty period?
We are ISO certified factory, and also have CE&ISO certificate.Our warranty is 1 year (Except the wearing parts)
十、Can you provide price list or quotation?
Usually we have a price list,but it's just prices for original types,it's may not fit to your requests,so we suggest you to tell
us the details of the model that you need,such as flowrate,motor power,pressure etc..Then we offer you a precise quotation
十一、What is your trade terms, payment terms and delivery time
FOB/CFR/CIF etc.30% before production and 70% before shipping.We'd like to 100%T/T if you can accept,also we can accept L/C.We can
arrange the shipping in 10-15days if we have the model that you need in stock,otherwise 25-30days we will arrange the shipping.
十二、Logistics mode
Shipping by Sea, By air, By Courier (DHL/UPS/FEDEX/TNT)
十三、Payment
T/T, L/C, PAYPAL, ALIBABA ONLINE ORDER, CREDIT CARD, WESTERN UNION
