4HP XMK FNF 8.8/28 Evaporators Cooled Air Cooling Condenser
- Category: >>>
- Supplier: Xi Maike (guangdong) Refrigeration Technology Co. Ltd.
Share on (62340292974):
Product Overview
Description
Product Description

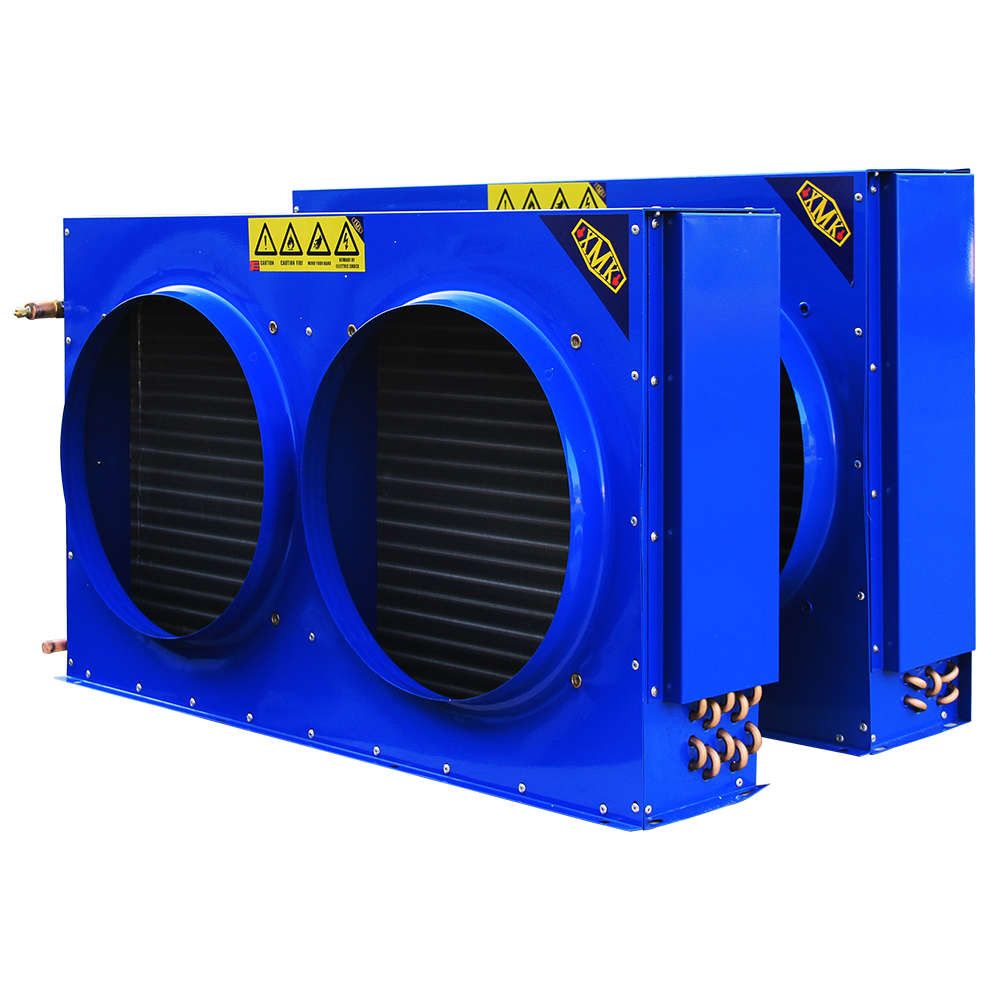

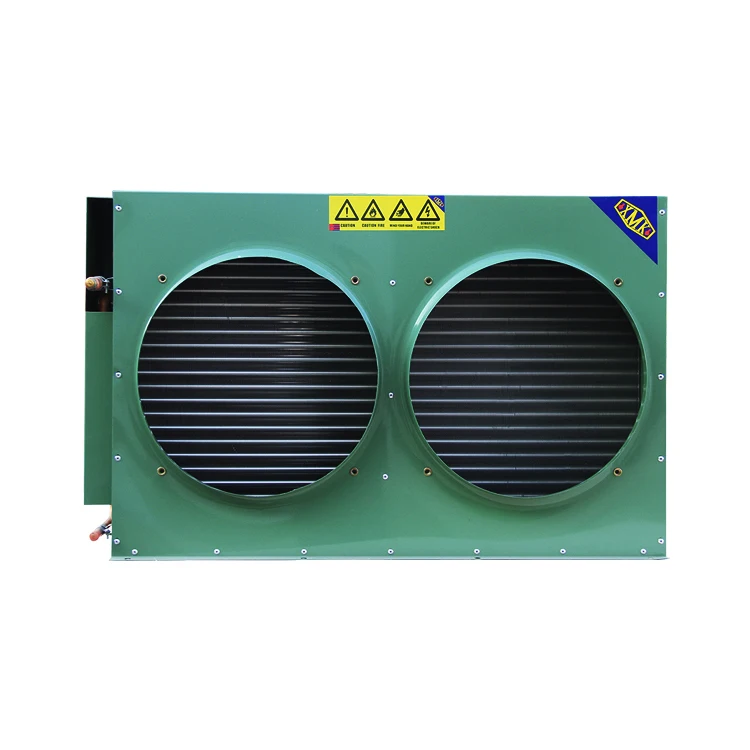

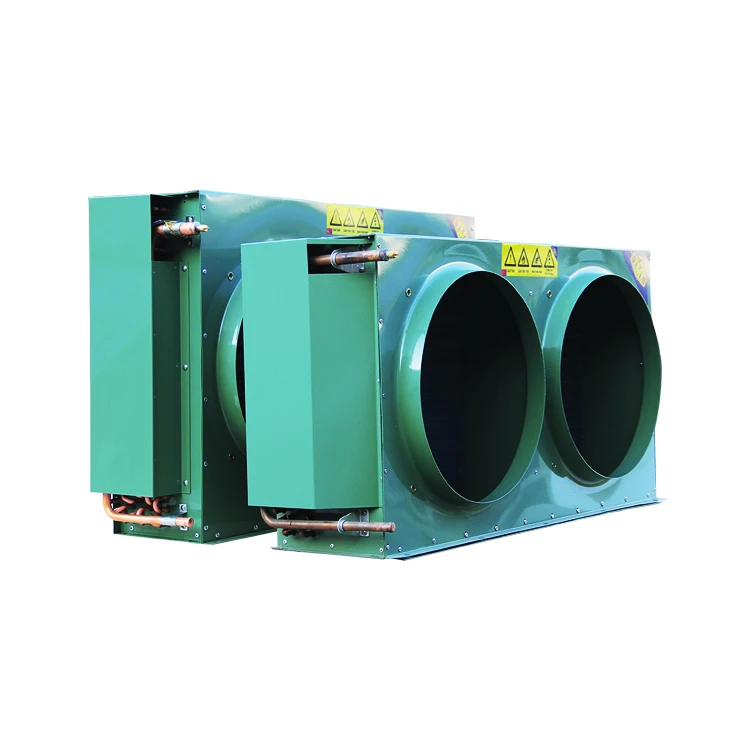

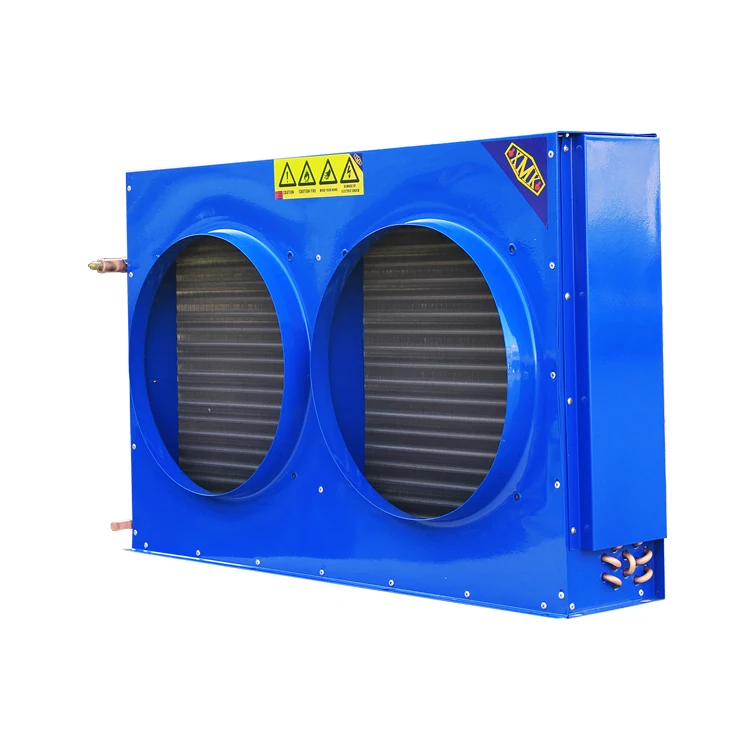

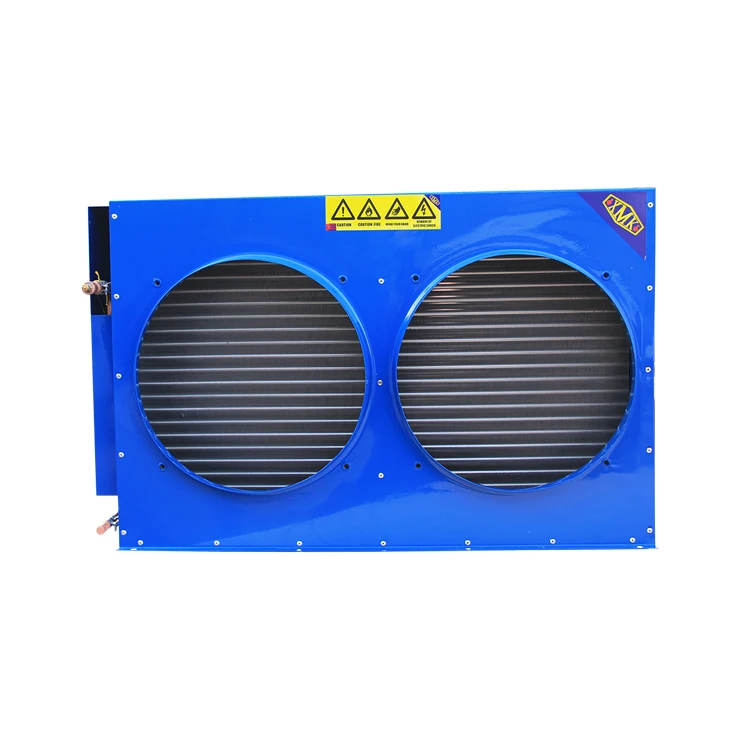

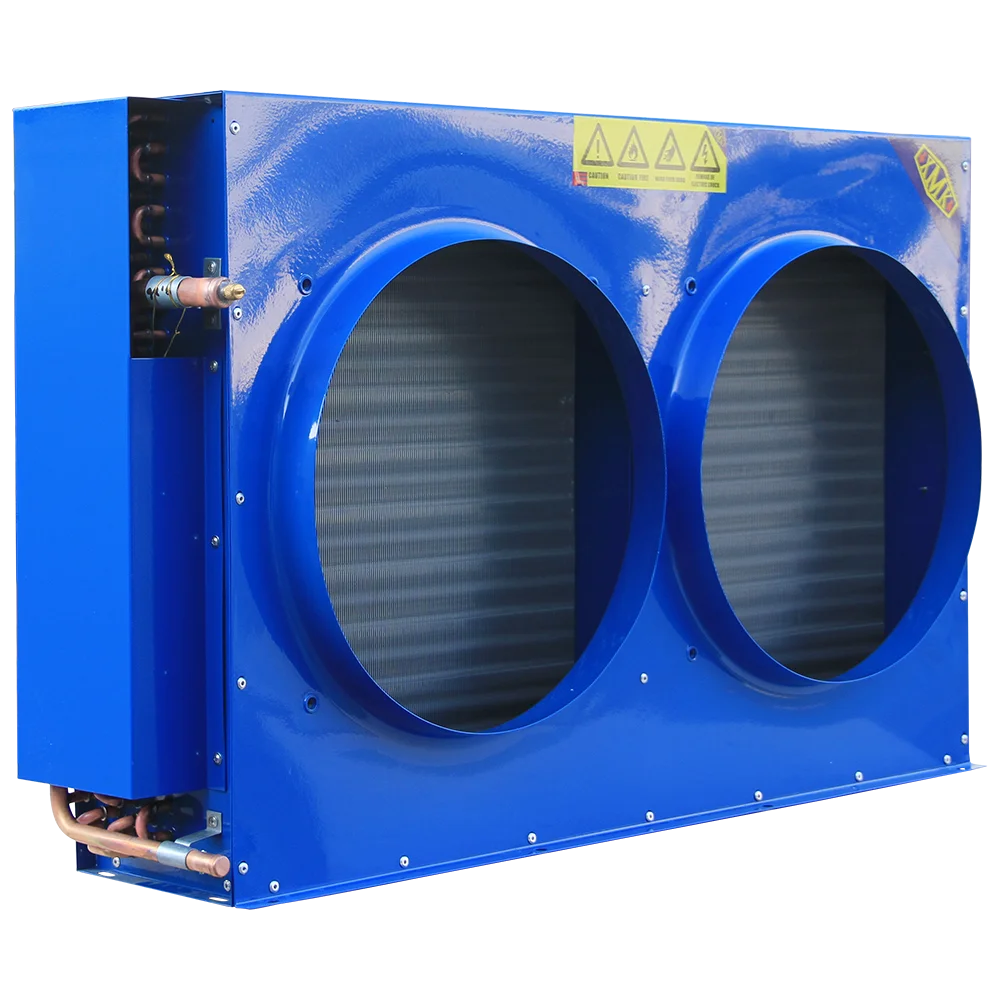

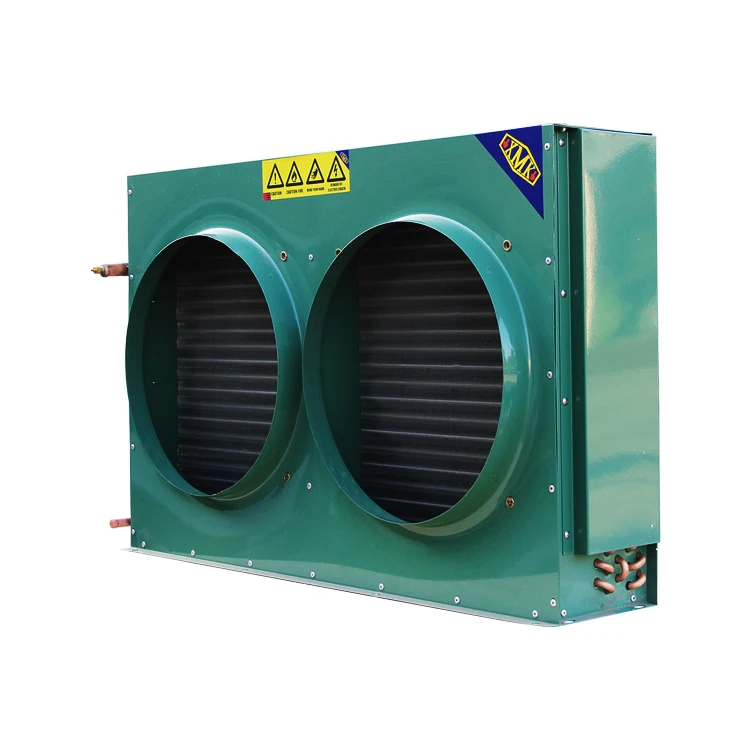

4HP XMK FNF-8.8/28 Evaporators Cooled Air Cooling Condenser
1. Cabinet is steel plate with plastic spray, corrosion-proof and pleasant looking.
2. Mechanically expanded pipes with AL fins good heat transfer performance.
3. Air Cooled condenser have done 2.8 Mpa gas pressure and pollution clear before leave factory.
4. R22, R134A, R404A, R407C etc are optional.
5. Large air flow and low speed Built-in motor with low noise and nice looking.
6. It is widely use in big capacity condensing unit, large windward acreage and high heat exchange efficiency, with external motor.
| XMK Condenser Data | ||||||||
| Model | Power (HP) | Nominal Capacity (W) | Heat exchange area | Axial Fan | ||||
| Quantity (set) | Diameter (mm) | Air Volume (m³/h) | Power (W) | Voltage (V) | ||||
| FNF-1.8/9.8 | 1.5HP(S) | 1800 | 9.8 | 1 | 300 | 1460 | 115 | 220 |
| FNF-2.5/11.3 | 1.5HP(L) | 2500 | 11.3 | 1 | 350 | 2860 | 170 | 220 |
| FNF-2.8/13 | 2HP | 2800 | 13 | 1 | 350 | 2860 | 170 | 380 |
| FNF-4.4/15 | 2.5HP | 4400 | 15 | 1 | 350 | 2860 | 170 | 380 |
| FNF-5.5/18 | 3HP(S) | 5500 | 18 | 1 | 400 | 4150 | 270 | 380 |
| FNF-6.0/22 | 3HP(L) | 6000 | 22 | 1 | 400 | 4150 | 270 | 380 |
| FNF-8.8/28 | 4HP | 8800 | 28 | 1 | 400 | 4150 | 270 | 380 |
| FNF-10/42 | 5HP | 10000 | 42 | 1 | 500 | 6800 | 500 | 380 |
| FNF-12.9/49 | 6HP | 12900 | 49 | 1 | 500 | 6800 | 500 | 380 |
| FNF-7.2/24 | 3HP | 7200 | 24 | 2 | 350 | 2*2900 | 2*170 | 380 |
| FNF-8.8/28 | 4HP | 8800 | 28 | 2 | 400 | 2*4200 | 2*245 | 380 |
| FNF-9.0/35 | 5HP(S) | 9000 | 35 | 2 | 400 | 2*4200 | 2*245 | 380 |
| FNF-10.2/42 | 5HP(L) | 10200 | 42 | 2 | 400 | 2*4200 | 2*245 | 380 |
| FNF-15.2/50 | 6.5HP | 15200 | 50 | 2 | 400 | 2*4200 | 2*245 | 380 |
| FNF-19.2/60 | 7.5HP | 19200 | 60 | 2 | 400 | 2*4200 | 2*245 | 380 |
| FNF-21.5/66 | 8.5HP | 21500 | 66 | 2 | 400 | 2*4200 | 2*245 | 380 |
| FNF-24.2/88 | 10HP | 24200 | 88 | 2 | 500 | 2*6800 | 2*500 | 380 |
| FNF-36/120 | 15HP | 36000 | 120 | 2 | 500 | 2*6800 | 2*500 | 380 |
| FNF-24.2/88 | 10HP | 24200 | 88 | 4 | 400 | 4*4200 | 4*245 | 380 |
| FNF-36/130 | 15HP | 36000 | 120 | 4 | 400 | 4*4200 | 4*245 | 380 |
| FNF-38/140 | 15HP | 38000 | 140 | 4 | 400 | 4*4200 | 4*245 | 380 |
| FNF-42/150 | 20HP | 42000 | 150 | 4 | 400 | 4*4200 | 4*245 | 380 |
| FNF-50/180 | 25HP | 50000 | 180 | 4 | 500 | 4*6800 | 4*500 | 380 |
| FNF-60/210 | 30HP | 60000 | 210 | 4 | 500 | 4*6800 | 4*500 | 380 |
products of picture
We have different color can choose:
Company Information
Contact us
Packaging & Shipping
Exhibition
FAQ
Q1: Are you a factory or a trading company?
A1: We have a factory
Q2: Where is your factory located?
A2: Our factory is located in Guangzhou, Guangdong province.
Q3: Is a sample available?
A3: Yes, but the sample will be at your charge.
Q4: What is the main market for your products?
A4: Our main market is in Middle East, Palestine, Turk, Africa and so on.
A1: We have a factory
Q2: Where is your factory located?
A2: Our factory is located in Guangzhou, Guangdong province.
Q3: Is a sample available?
A3: Yes, but the sample will be at your charge.
Q4: What is the main market for your products?
A4: Our main market is in Middle East, Palestine, Turk, Africa and so on.
Welcome to contact us for more details!
