100mm lens long range infrared thermal imaging scope
- Category: Scopes & Accessories >>>
- Supplier: Shandong Gloryvision Intelligence Equipment Co. Ltd.
Share on (62340377332):
Product Overview
Description
100 mm Infrared thermal imaging military night vision scope
Features
- 3 years warranty
- Multiple Color Modes
- 5 type reticles with choice of reticle color
- 6x magnification
- Light weight and compact design
- Waterproof and shockproof
- Made in China
- MIL-STD 1913 Picatinny (Quick)

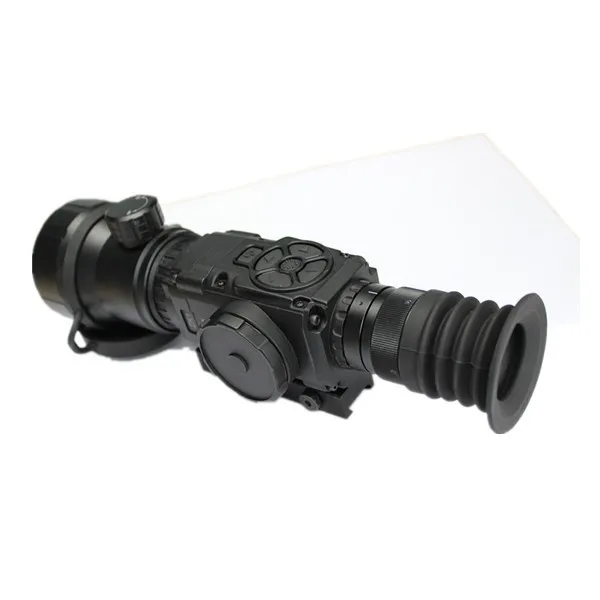

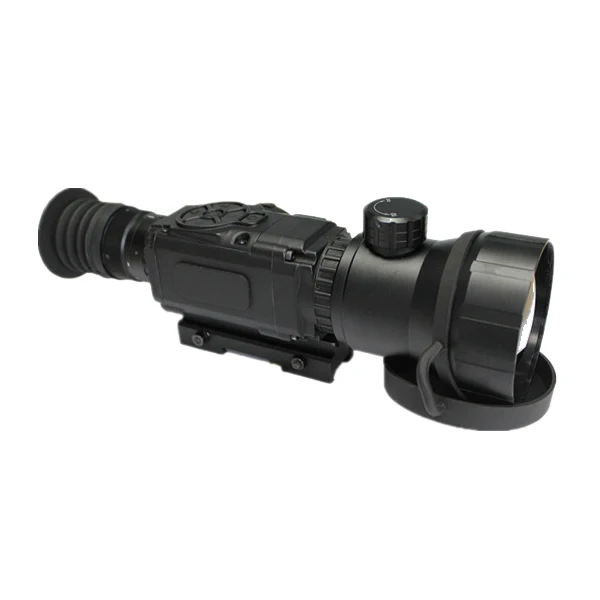

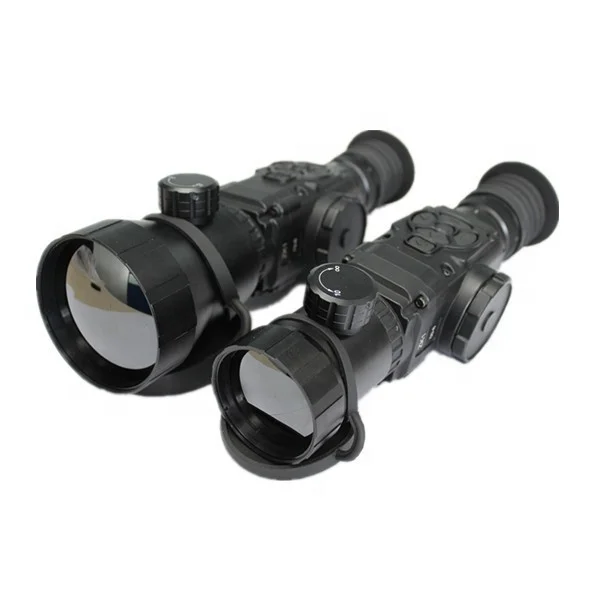

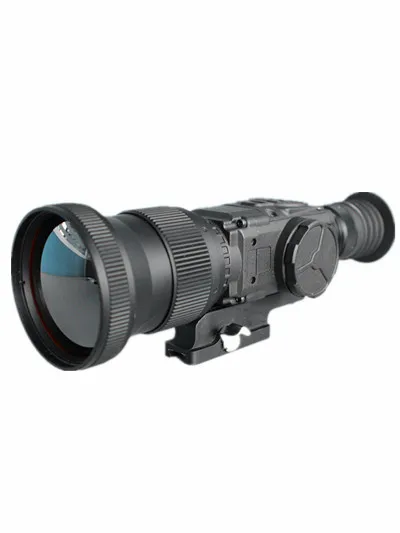

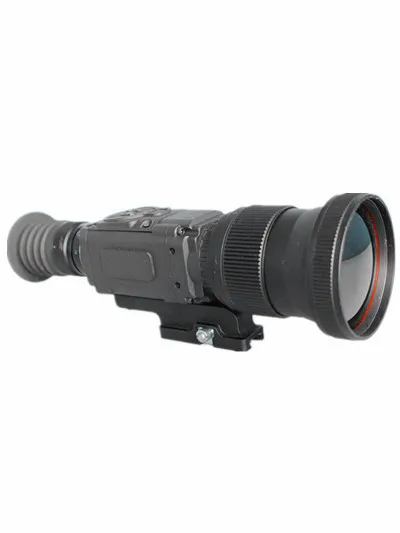

Product Photos
Technical Details
Sensor (microbolometer) | 384x288/640x512 px |
Type | Uncooled FPA detector (Ulis) |
Material | Polycrystalline silicon |
Image Size (output resolution) | 800x600 px |
Frame rate | 50Hz |
Display | Color OLED matrix, SVGA< 800x600 Color background + color reticules |
Thermal Sensitivity | <50 mK |
Spectrum | 7~14 μm |
Lens System | 100 mm |
Field of View (H x V) | 3.7x2.8 |
Eye Relief | 65 mm |
Optical Magnification | 9.2x |
E-zoom | 18.4x/36.8x |
Diopter Adjustment: | -5 to +5 |
Objective lens Diameter | 100mm |
Distance of human detection | 2550 m/3180m |
Distance of human recognition | 1100 m/1400m |
Distance of human identification | 610 m/760m |
Reticle Color | White & Black |
Brightness adjustment | Manual |
Sharpness adjustment | Automatic |
Start up time | <5 sec |
Polarity control | White hot / Black hot / Multiple Color Modes |
Environmental Rating | Waterproof / Dustproof |
Battery type | 4 x CR123A battery type |
Battery Life | 8 hrs |
Mounting bracket | MIL-STD 1913 Picatinny (Quick) |
Low Battery Indicator | Yes |
Iconology | Quick access, Icon driven feature controls |
Dimension | 33.1x11.2x11.6(cm) |
Net Weight | 1.5kg |
Warranty | 3 years |
Our service
1. We offer 3 years warranty to the devices.
2. No MOQ required, sample order welcomed to see our device effect.
3. OEM/ODM available from us.
4. In time pre-sale & after-sale serivce, any of your inquiry/RFQ will be highly attentioned.
