KDS300 KDS50 KONE elevator push button
US $373.00-$890.00
Lift Spare Parts Brake Instantaneous Progressive Elevator Safety Gear
- Category: >>>
- Supplier: Suzhou Dazen Electromechanical Technology Co. Ltd.
Share on (62340391346):
Product Overview
Description
Product Description

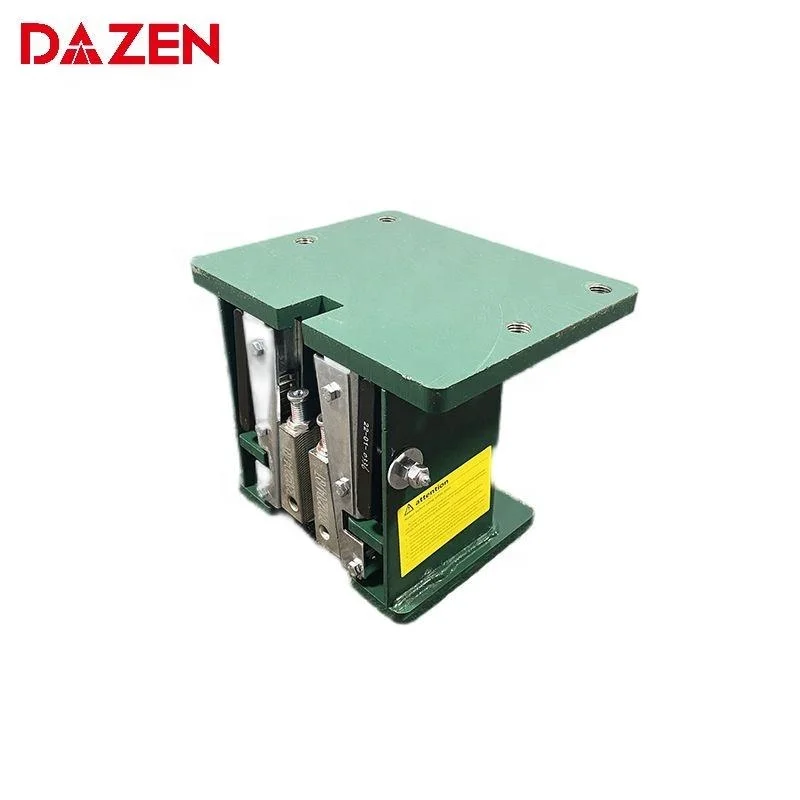

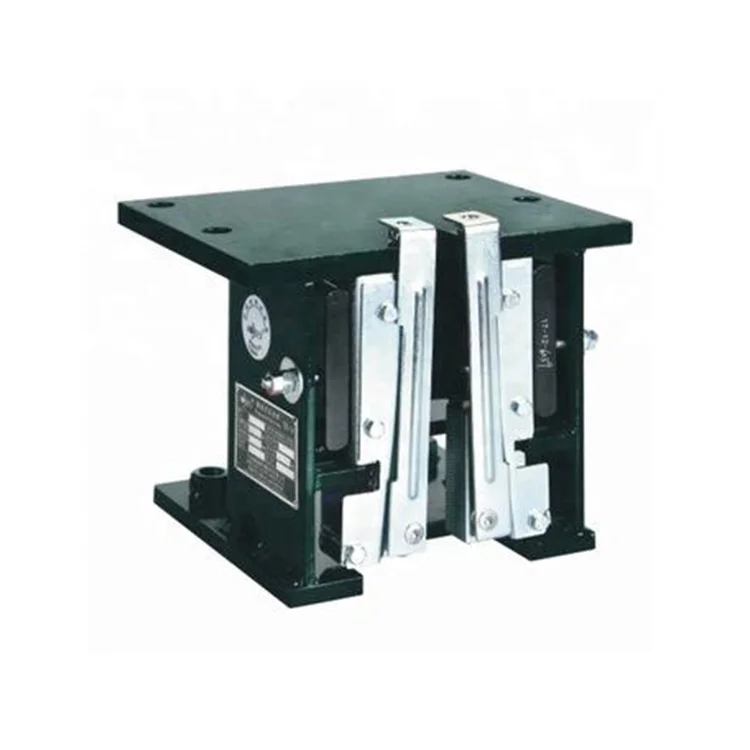

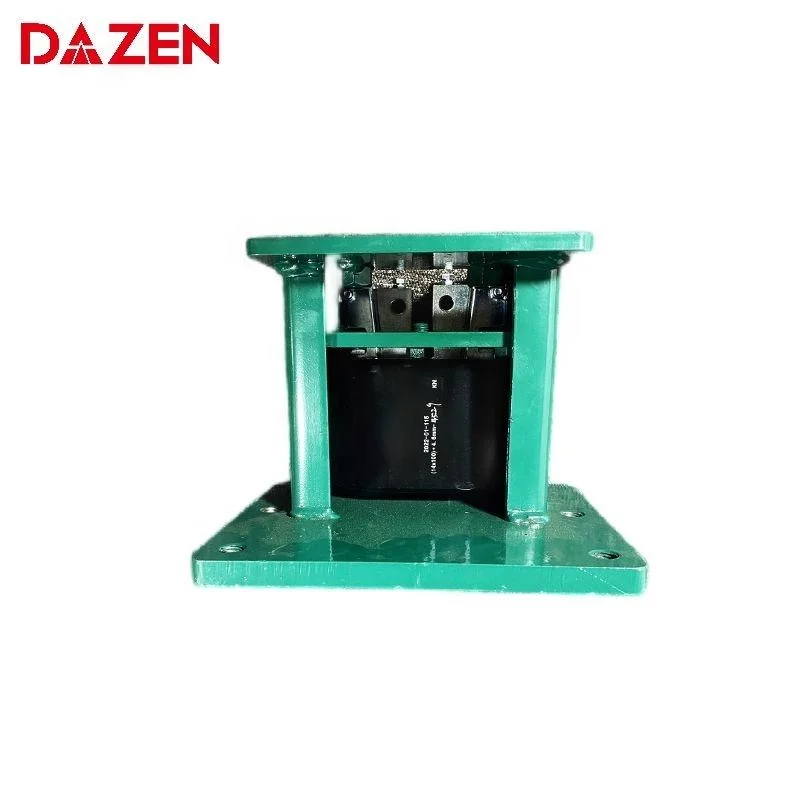

Product name | Lift safety gear |
Rated speed | less than 2.5m/s |
Tripping speed | less than 3.23m/s |
Total mass | 500-3600kg for Standard model |
Width of guide rail | 9mm/10mm/15.88mm/16mm |
Safety gear is the safety protection device of the elevator
The elevator safety gear device is under the control of the speed limiter. When the elevator speed exceeds the limit speed set by the elevator speed limiter, or when the suspension rope breaks and relaxes, it will stop the car in an emergency and clamp it on the guide rail. A safety device on the It provides effective protection for the safe operation of the elevator, and is generally installed on the car frame or counterweight frame. Safety gear is divided into one-way safety gear and two-way safety gear, but due to the complicated manufacturing process, two-way safety gear has not yet been popularized in China.
The safety gear device is composed of two parts: the safety gear operating mechanism and the safety gear body. That is, when the safety gear mechanism operates, it first touches the electrical mechanism to disconnect the elevator safety circuit and stop the elevator. If the brake cannot be stopped, the safety gear will move further to make the elevator stop on the guide rail.
The safety gear device is composed of two parts: the safety gear operating mechanism and the safety gear body. That is, when the safety gear mechanism operates, it first touches the electrical mechanism to disconnect the elevator safety circuit and stop the elevator. If the brake cannot be stopped, the safety gear will move further to make the elevator stop on the guide rail.
Company Profile
Exhibition
Project cases
Packing & Delivery
Certifications
FAQ
1.Which Motor you Use?
We use Italian Brand motor with best quality and 3 years free guarantee.
2. Is The Elevator/Escalator Stable and Safe?
We have been produce elevator and escalator many years. Currently we are working with Otis,Kone,Thyssenkrupp,and customers from than 50countries customers.Our Product are Qualified with ISO9001,CE/EN81,EAC,KC.All the main parts which we use is international famous brand,make our elevator comes premium level.
3.How To Install and Maintain After U Get The Elevator//Escalator?
We have been cooperate with elevator//Escalator installation company more than 20countries,we never stop finding installation partner in other country everyday.To ensure our customer can enjoy both good quality and after service.
4. Will The Elevator Drop Down or Clamp People Suddenly?
Our elevator got 6 line protection ,In Machineroom,Elevator Door,Bottom of shaft. It will be enter into the protection system
automaticly if there is any issue .The elevator will not have such kind of accident if the after service is going on well.This is
why we have so many parters all over the world.
5. Do You Have Any Cerifications ?
We are qualified with CE/EN81,EAC/CU-TR,KC,TUV Certificates.quality is full protected.
2. Is The Elevator/Escalator Stable and Safe?
We have been produce elevator and escalator many years. Currently we are working with Otis,Kone,Thyssenkrupp,and customers from than 50countries customers.Our Product are Qualified with ISO9001,CE/EN81,EAC,KC.All the main parts which we use is international famous brand,make our elevator comes premium level.
3.How To Install and Maintain After U Get The Elevator//Escalator?
We have been cooperate with elevator//Escalator installation company more than 20countries,we never stop finding installation partner in other country everyday.To ensure our customer can enjoy both good quality and after service.
4. Will The Elevator Drop Down or Clamp People Suddenly?
Our elevator got 6 line protection ,In Machineroom,Elevator Door,Bottom of shaft. It will be enter into the protection system
automaticly if there is any issue .The elevator will not have such kind of accident if the after service is going on well.This is
why we have so many parters all over the world.
5. Do You Have Any Cerifications ?
We are qualified with CE/EN81,EAC/CU-TR,KC,TUV Certificates.quality is full protected.
