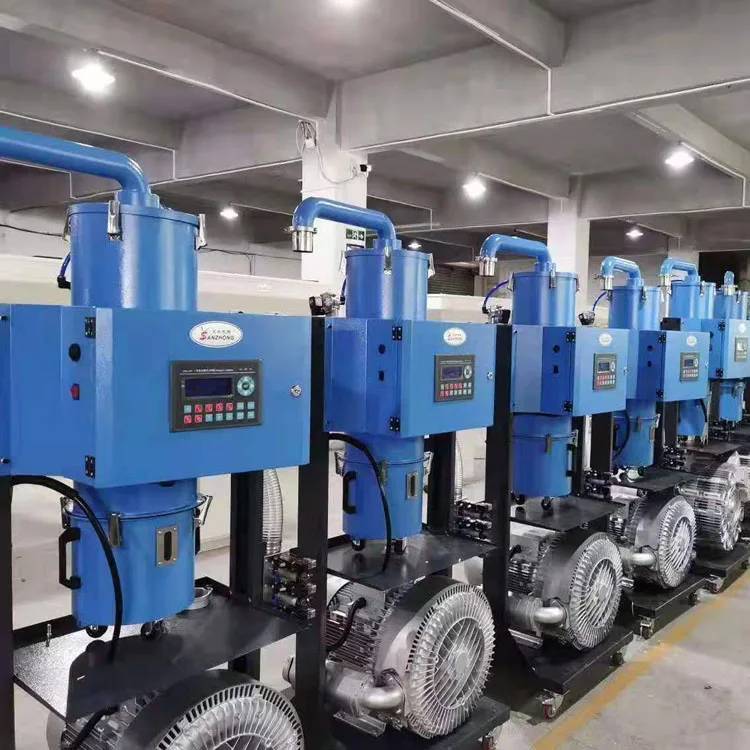

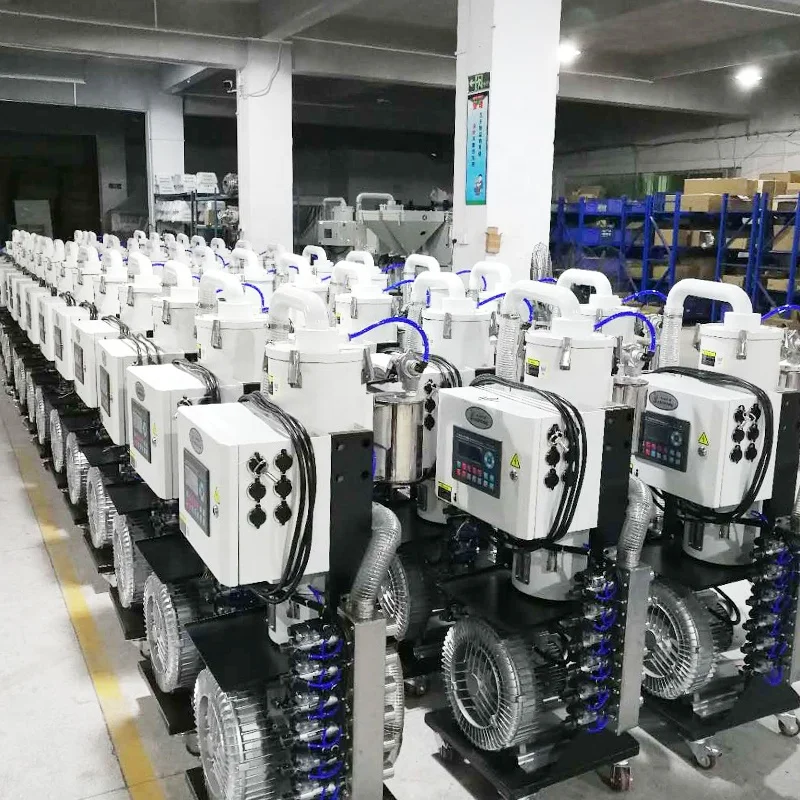

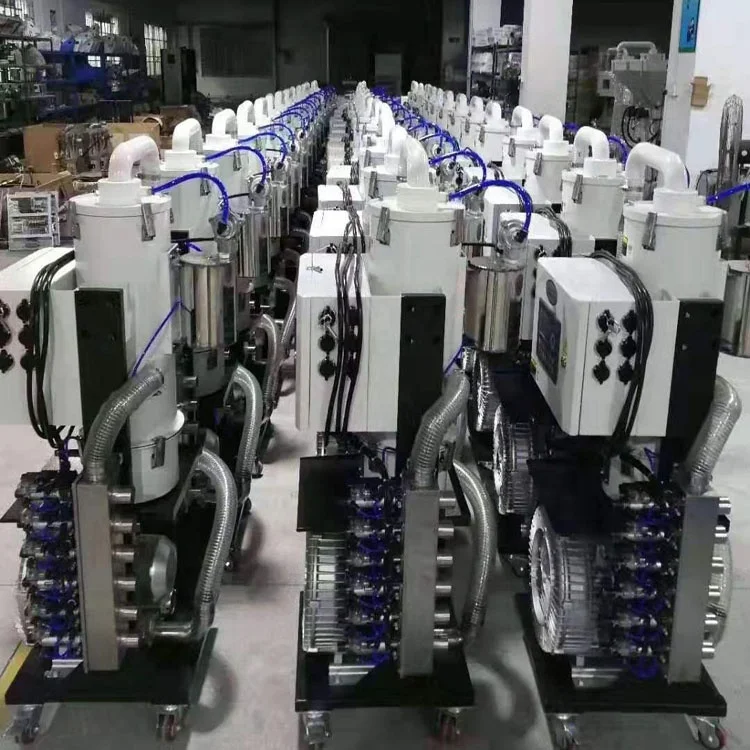

China loaders plastics automatic seperate vacuum hopper loader for plastic granule
- Category: Plastic Loader >>>
- Supplier: Dongguan Sanzhong Machinery Co. Ltd.
Share on (62340405771):
Product Overview
Description

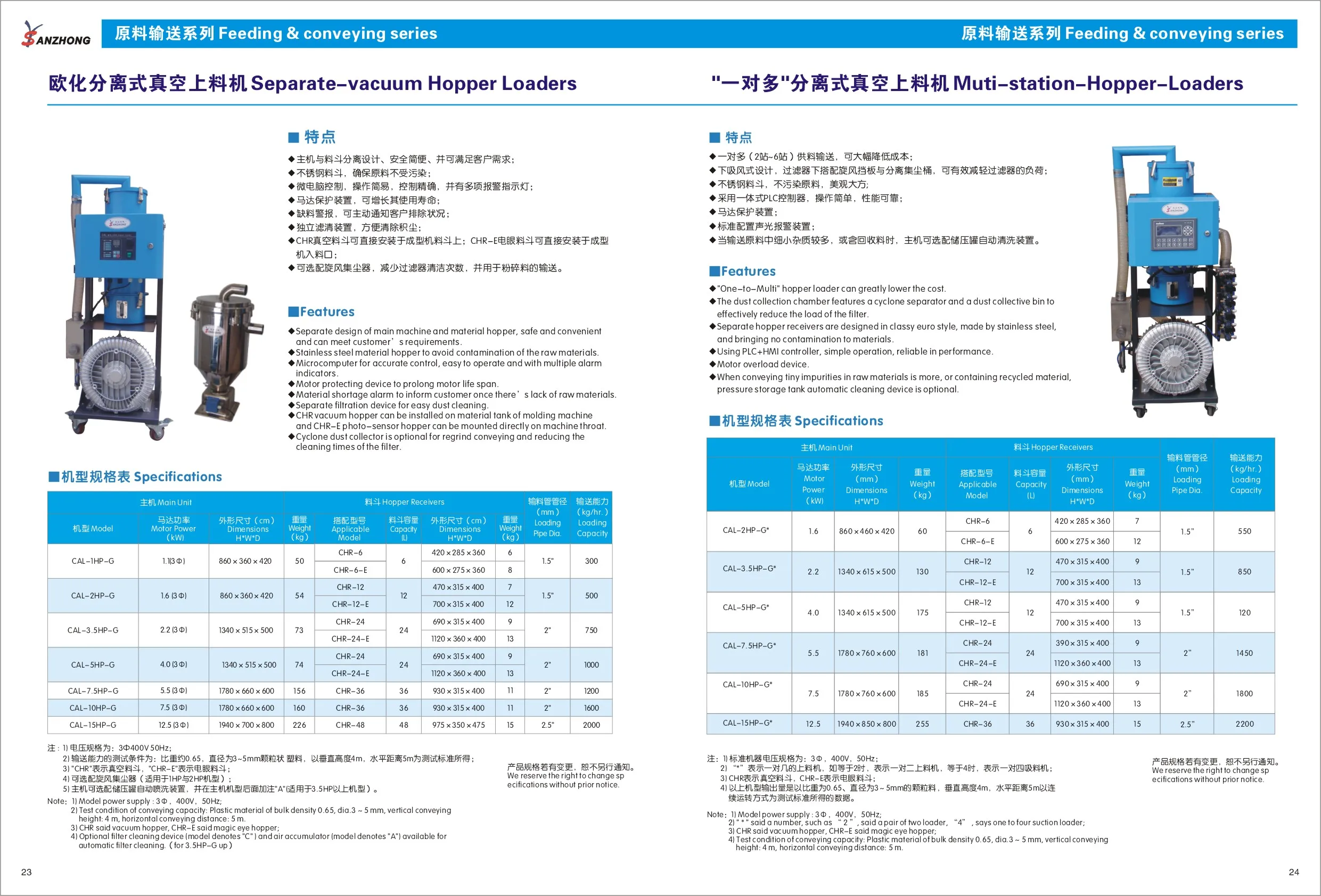

1.General Description

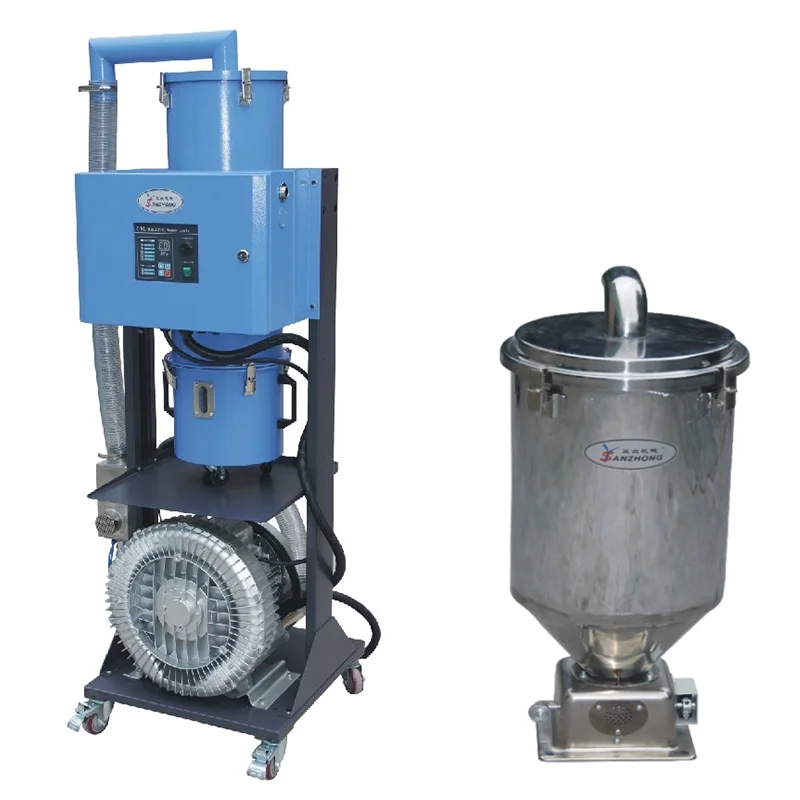

"One-to-More" Separate hopper loaders are designed and developed on the basis of original separate-vacuum Hopper Loaders. They feature more functions, easy to operate, and convenient to install. This model, equipped with a high pressure blower and more hoppers, is applicable to more dehumidifying and drying machines (dehumidifying dryer "CDD" or one gravimetric blenders "CGB" to process plastic materials. Besides that , it can also realize the one-to-more way of conveying materials to different moulding machines or hoppers to greatly lower the cost.
1.1 Features
l "One-to-More" hopper loader can greatly lower the cost.
l The dust collection chamber features a cyclone separator and a dust collective bin to effectively reduce the load of the filter.

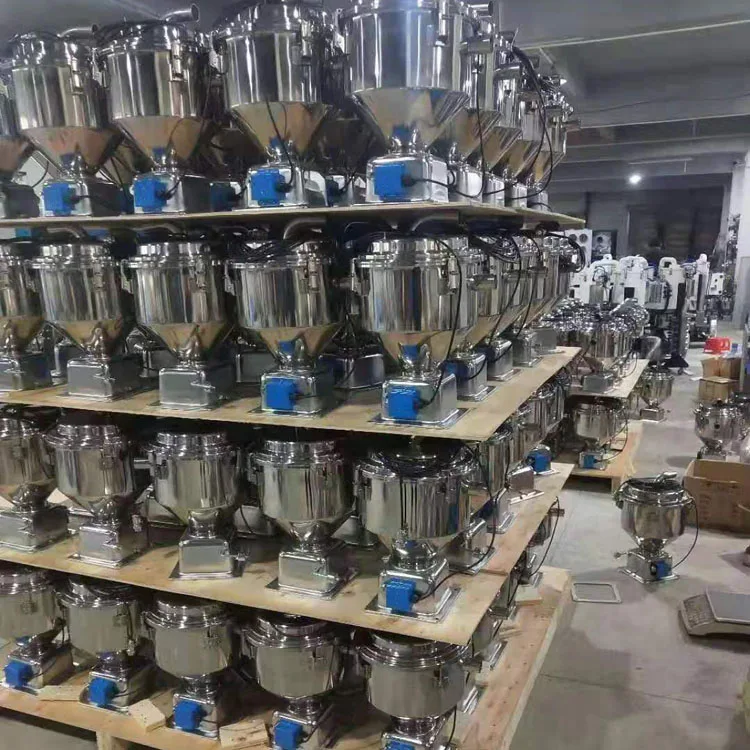

l Separate hopper receivers are designed in classy standard style, made by stainless steel, and bringing no contamination to materials.
l One-piece PLC controller, the operation is simple, reliable performance.
l Motor protection device.
l Standard audible and visual alarm device configuration.
l When conveying materials of tiny impurity is more, or contain recycling materials, host optional store pressure tank automatic cleaning device.

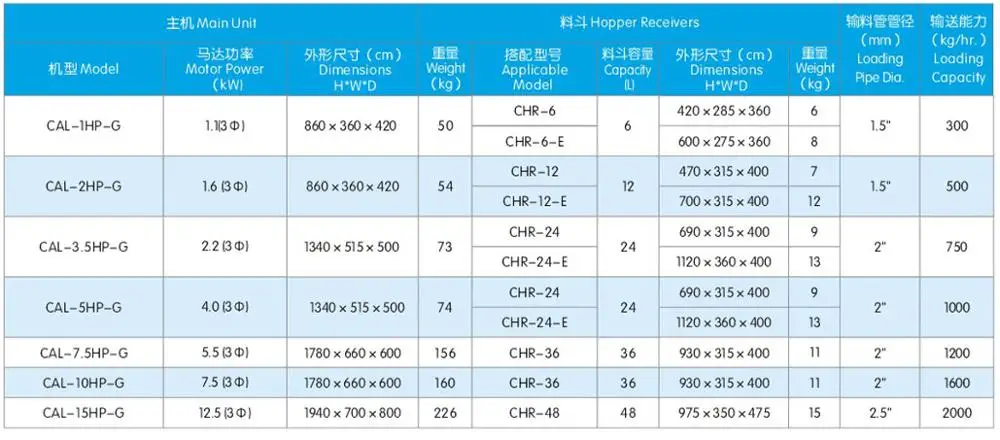

1.2 Specifications
1.2.1 Dimensions of CAL-GX
Table 11: Specification List
Main unit | Hopper | Loading Pipe Dia. (Inch) | Loading Capacity(kg/hr.) | ||||||
Model | Power (Kw) | Dimensions(cm) H*W*D | Weight(kg) | Applicable Model | Capacity(L) | Dimensions(cm) H*W*D | Weight(kg) | ||
CAL-2HP-G* | 1.6 | 105*43*55 | 60 | CHR-6 | 6 | 47*32*40 | 7 | 1.5” | 550 |
CHR-6-E | 70*32*40 | 12 | |||||||
CAL-3.5HP-G* | 2.2 | 138*56*61 | 130 | CHR-12 | 12 | 69*32*40 | 9 | 1.5” | 850 |
CHR-12-E | 112*36*40 | 13 | |||||||
CAL-5HP-G* | 4.0 | 138*56*61 | 175 | CHR-12 | 12 | 69*32*40 | 9 | 1.5” | 120 |
CHR-12-E | 112*36*40 | 13 | |||||||
CAL-7.5HP-G* | 4.0 | 183*72*72 | 181 | CHR-24 | 24 | 69*32*40 | 9 | 2” | 1450 |
CHR-24-E | 112*36*40 | 13 | |||||||
CAL-10HP-G* | 7.5 | 183*72*72 | 185 | CHR-24 | 24 | 69*32*40 | 9 | 2” | 1800 |
CHR-24-E | 112*36*40 | 13 | |||||||
CAL-15HP-G* | 12.5 | 220*78*85 | 255 | CHR-36 | 36 | 97*35*48 | 15 | 2.5” | 2200 |
We reserve the right to change specifications without prior notice.
Note:1) Model power supply : 3Φ,400V,50Hz;
2) " * " said a number, such as “ 2 ”, said a pair of two loader, “4” , says one to four suction loader;
3) CHR said vacuum hopper, CHR-E said magic eye hopper;
4) Test condition of conveying capacity: Plastic material of bulk density 0.65, dia.3 ~ 5 mm, vertical conveying height: 4 m, horizontal conveying distance: 5 m.
.2. Structure Characteristics and Working Principle
2.1 Working Principle
CAL-G separate-vacuum hopper loaders are applicable to convey plastic granule. Its principe is to make use of motor generated vacuum to form a pressure gap and to convey plastic material by this way.
