Aluminum can line are a set of machines to produce mono block aerosol cans and bottles.

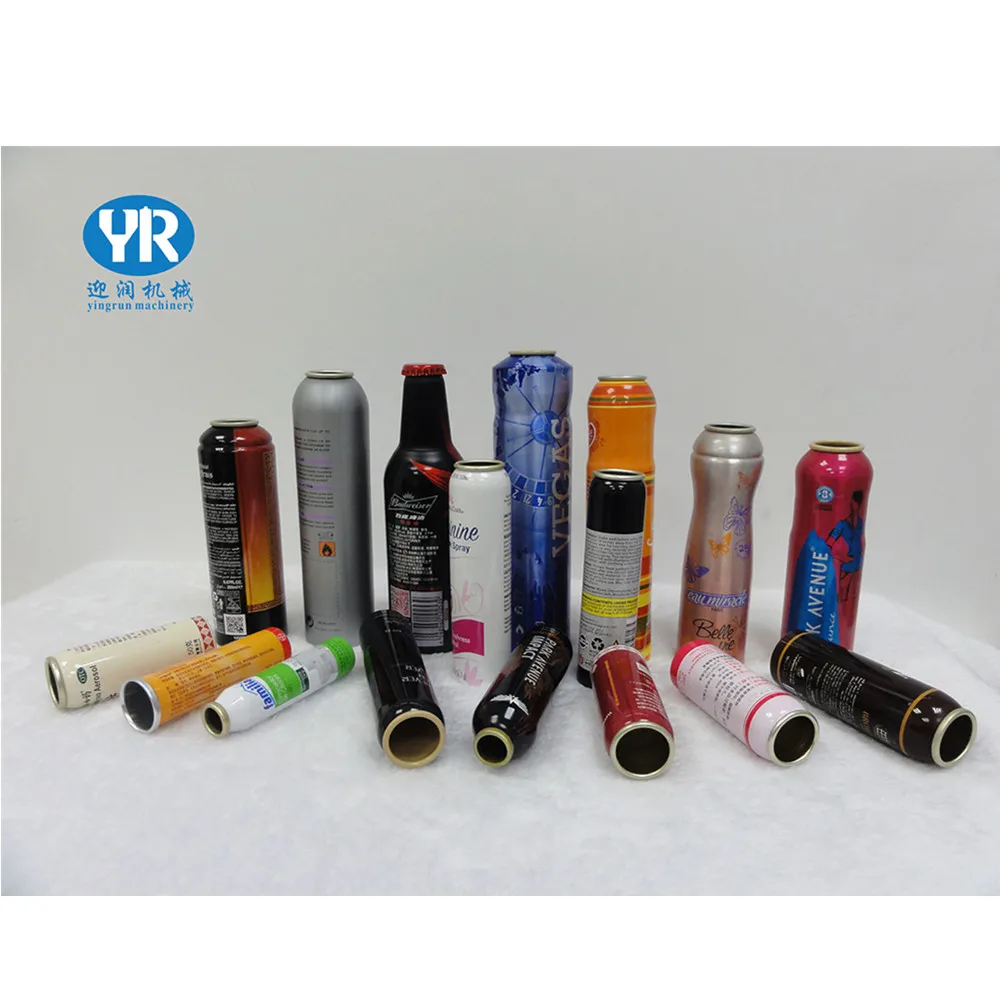

Monoblock cans and bottles are used for perfume, deodorant, hair sprays, shaving creams, pesticide bottles, aluminum tubes, hair sprays, conditioners, medicines, fire extinguishers, oil and paints.

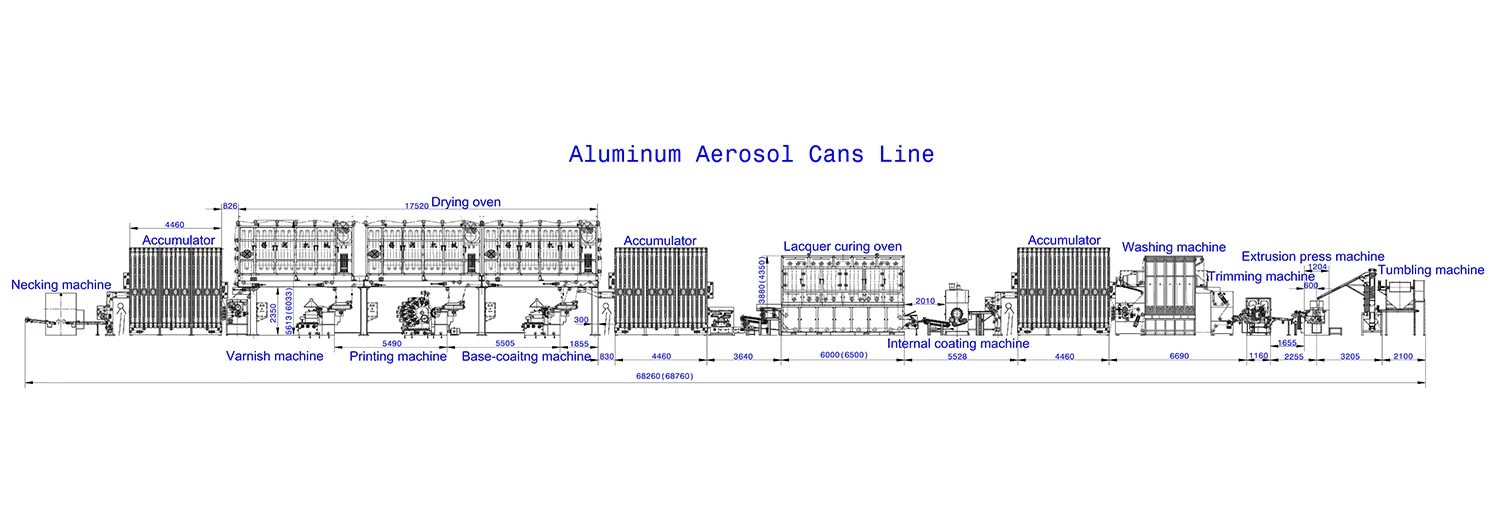

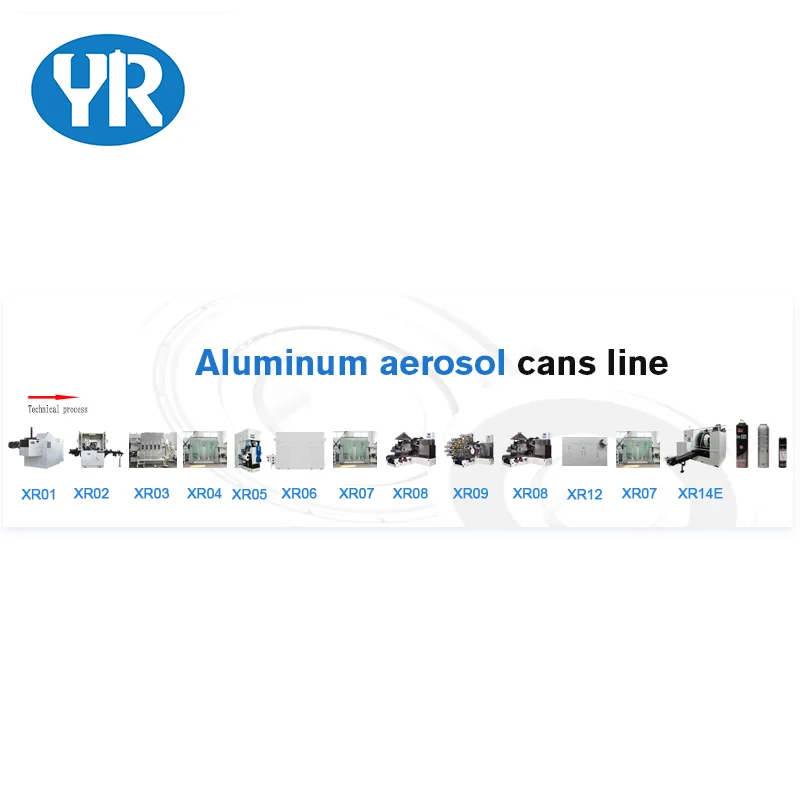

The XR series aluminum can lines produced by us are fully automatic. Each equipment of this series can work alone or form partial production lines according to client’s needs. The main machines include Extrusion press, Trimmer cum brushing, can washer or degreasing Spray washing machine, Accumulator, Internal lacquering machine, Lacquer curing oven, Base-coating machine, 6-color or 8-color printing machine, Drying oven, Necking machine, etc.
Domestic customers
In GuangDong Province
In Jiangsu Province
In Zhejiang Province
Main Machines
Extrusion Press Machine
Main technical parameters
1. Can diameter range: φ35mm-φ59mm
2. Can length range: 80-250mm
3. Production speed: ≤120cans/min
4. Main motor power: 37KW, Total power：28KW
5. Intake pressure: ≥4Mpa
6. Slide stroke：350mm
7. Net weight: 11000 KG
8. Dimensions: 3195*1558*1585mm（conveyer belt and vibration hopper not included）
Trimming cum brushing Machine
Main technical parameters
1. Can diameter range: φ35mm-φ53mm
2. Can length range: ≤250mm
3. Production speed: ≤120cans/min
4. Main motor power: 4KW, total power：85KW
5. Intake pressure: P=0.6MPa
6. Dimensions: 2940*2600*1820mm
7. Weight: about 2800KG
8-color Printing Machine
Main technical parameters
1. Can diameter range: φ35mm-φ66mm
2. Can length range: ≤230mm
3. Production speed: ≤100-120cans/min
4. Motor power: 17KW
5. Dimensions: 3445×2318×2168mm
6. Net weight: 9600KG
7. Intake Pressure: 0.6MPa
Necking Machine
Main technical parameters
1. Can range: φ35-φ53mm
2. Can length: ≤230mm
3. Production speed: ≤120cans/min
4. Main motor power: 7.5KW
5. Necking range：≤100mm
6. Intake pressure：≥0.4MPa
7. Dimensions: 4210*2880*2160mm
8. Net weight: 9200KG
9. Station quantity：30
Main configuration
PLC
SIEMENS
Touch screen
Pro-face
Pneumatic element
FESTO
Terminal display
SIEMENS
Bearing
NSK or NTN
Approach switch
BANNER
Photo switch
TURCK
Divider
TANTZU
Electrical component
SCHNEIDER or OMRON
Certificate
Company Introduction
Wuxi PackagingTechnology Co.,Ltd is located in Wuxi city, which is 150km away from Shanghai.
The company is mainly focus on producing and selling machines for aluminum collapsible tubes line, aluminum aerosol cans line and toothpaste line, has taken part in this field for 20 years. Our machines have passed the European CE certification. We also provide professional consultation and service for clients.
Our machines are widely used to produce aluminum collapsible tubes, aluminum aerosol cans and bottles, fill toothpaste and other paste products.
“Create value for clients by professional service” is our forever company tenet. We are looking forward to cooperating with friends from different countries and creating the brilliancy together.
Customer Photos
FAQ
Q: What’s the MOQ?
A: 1 set.
Q: Are you trading company or manufacturer?
A: Both. We have our own factory to produce machines and also as the agents of some materials, such as parts, slug, latex...
Q: How long is your delivery time?
A: 1-10 months by negotiation.
Q: What’s the warranty time?
A: One year start from installed.
Q: How to use?
A: We offer paid installation, commissioning and training.
