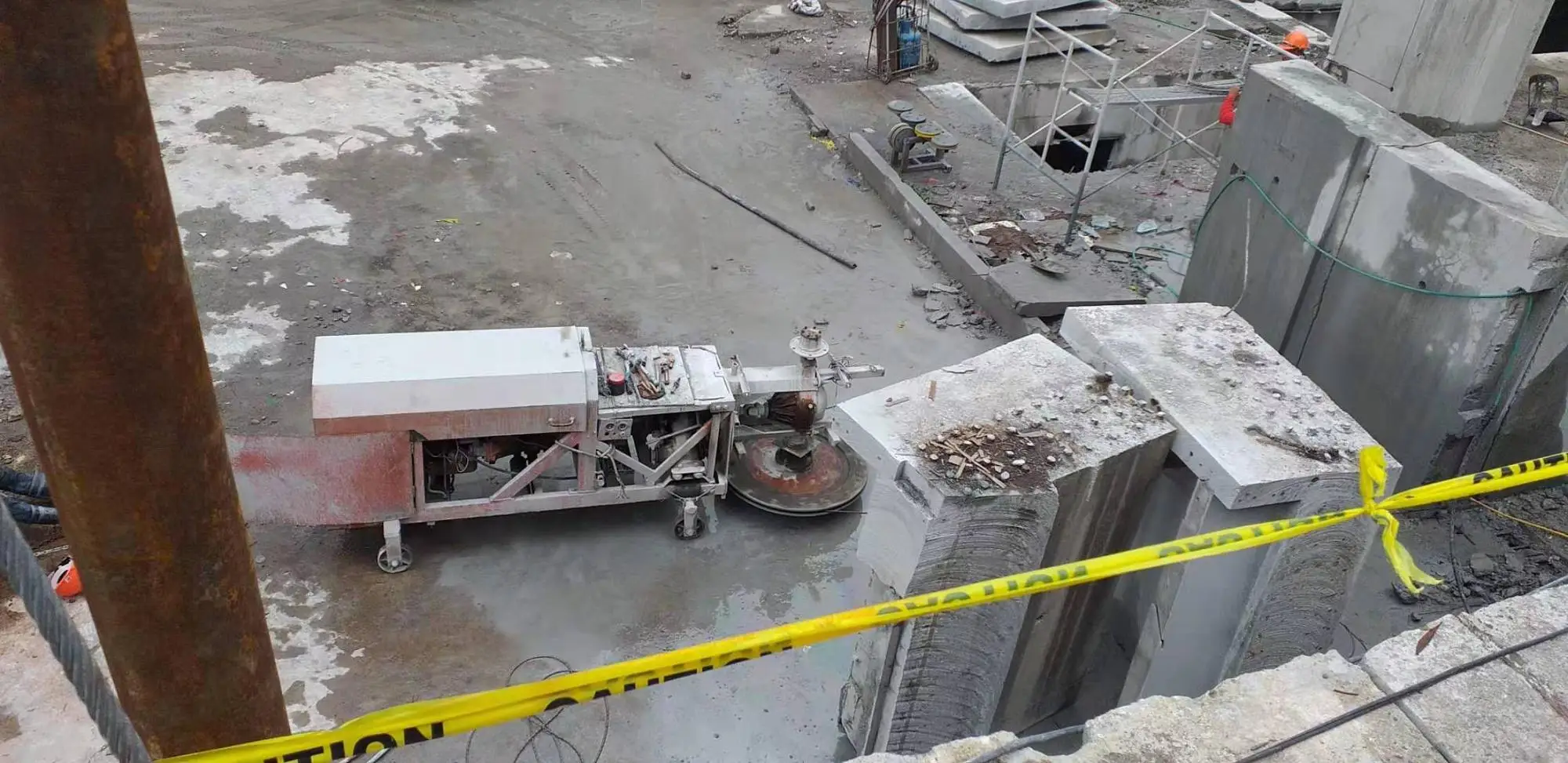

Diamond wire saw block dressing machine 18.5KW 22KW for concrete cutting building structure removing

Product Overview

Description

Diamond wire saw block dressing machine 18.5KW 22KW for concrete cutting building structure removing





Product descriptions

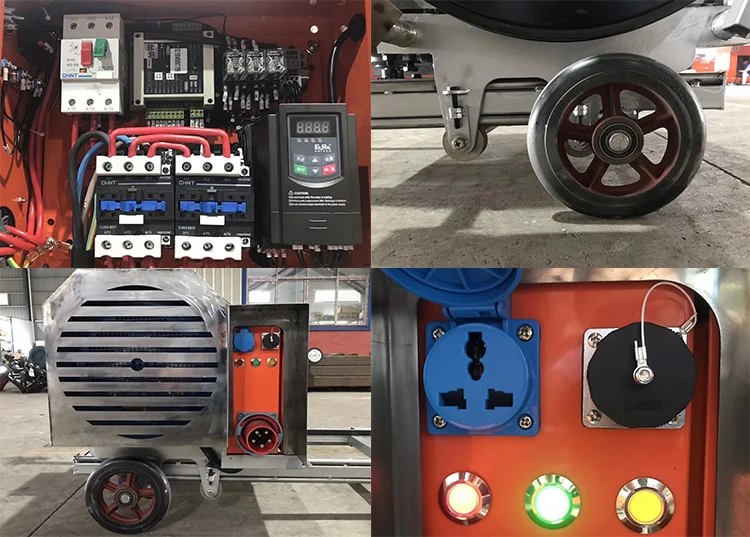

- Using dual inverters + PLC control
- According to the changes of the load, to automatically adjust the walking speed, making the bead rope is always in the best working condition.
- it can keep the wire tension constant during stone or concrete block cutting.
- Extension of the front column, to improve the straightness of the block squaring.
- Unique pulley guiding device, to maximize the utilization of the wire
- Protection function: wire broken, overload and open phase protection
- Easy to operate, there is no requirement for the power phase
- Easy to move

Advantage:
 · Stable quality with reasonable price
 · Low energy consumption and long life
 · SGS/ISO certificate
 · OEM/ODM
 · Strictly raw material source and production quality control ensure stable quality.

Product specifications

Model	ZL-22FATS	ZL-18FATS
Driving wheel Dia.	500/550mm	500/550mm
Motor power	22KW	18.5KW
Length of wire	20-50	20-50
Wire speed	0-40m/s	0-40m/s
Walking speed	0-144m/h
Waking motor power	0.2KW	0.2KW
Rail length	1550mm	1550mm
Rail width	470mm	470mm
RPM	0-980r/min	0-980r/min
Voltage	AC380±10% 50Hz 3phase	AC380±10% 50Hz 3phase
Working environment temperature	(-15ºC- +40ºC)	(-15ºC- +40ºC)
Total weight	450kg	420kg
Size	2400*900*900mm	2400*900*900mm

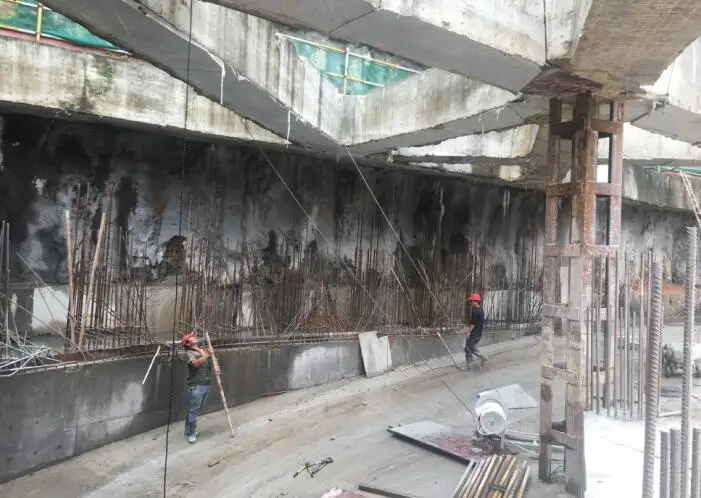

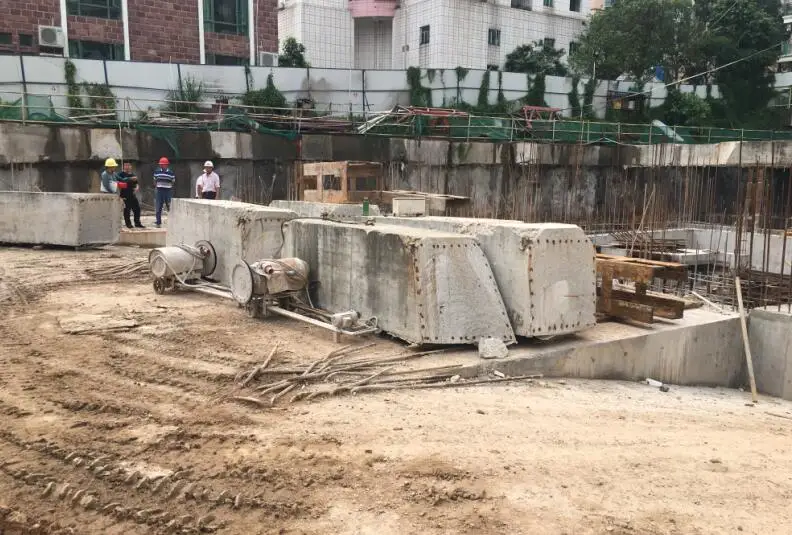

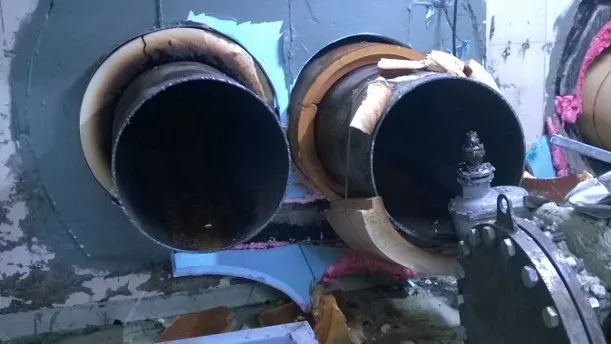

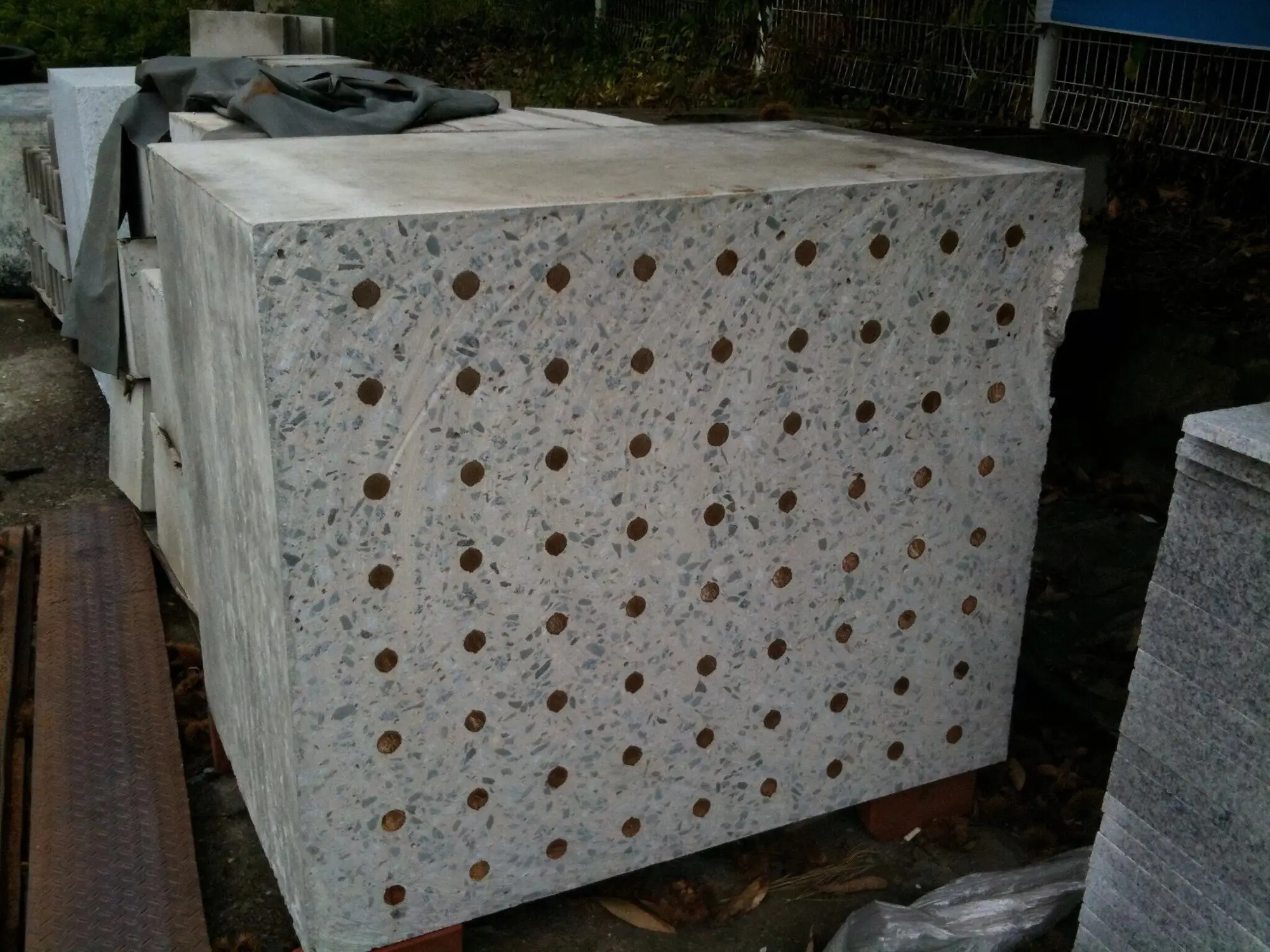

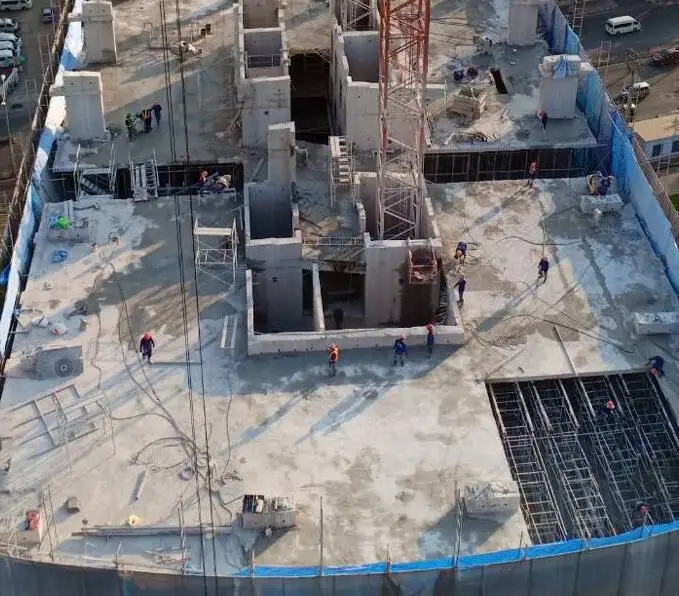

Product Applications







Product Categories

About Us

Established in 1991, Jiangxi Zhongli Superhard Material Tools Cofl, Ltd which has more than 20 years experience of Diamond Tools manufacturing. Our company is one of the biggest diamond tool production scale enterprise among all the diamond tool manufacturers in the world with an annual production capacity of 100 million pcs diamond segments. Zhongli owns an international technical team, its technical talent force, hardware and software conditions, research and development ability are all in a leading position of the same industry all over China.
     Zhongli dedicated its enterprise spirit of being "Unity, Integrity, Creative, Development" in order to keep moving towards its initial goal of focusing on products. Located in Poyang lakeside, Zhonglis factory covers an area of nearly 700 acres. Chairman, Mr. Li Shuidi, led more than 500 employees to provide high-tech, series tool solutions in the industry of stone, construction, ceramic, glass, hard alloy etc. We have established scientific research cooperation with many domestic famous universities to ensure the product can match the latest technological innovation.
     We have fast market resilience for both domestic and overseas markets. Our company has cooperated with more than 30 countries such as India, Brazil, Italy, United States, South Korea, South Africa, Turkey, Egypt,Thailand, etc.



Our services

- Pre sale operation instruction
- After sale service
- Machine accessories supply ability
