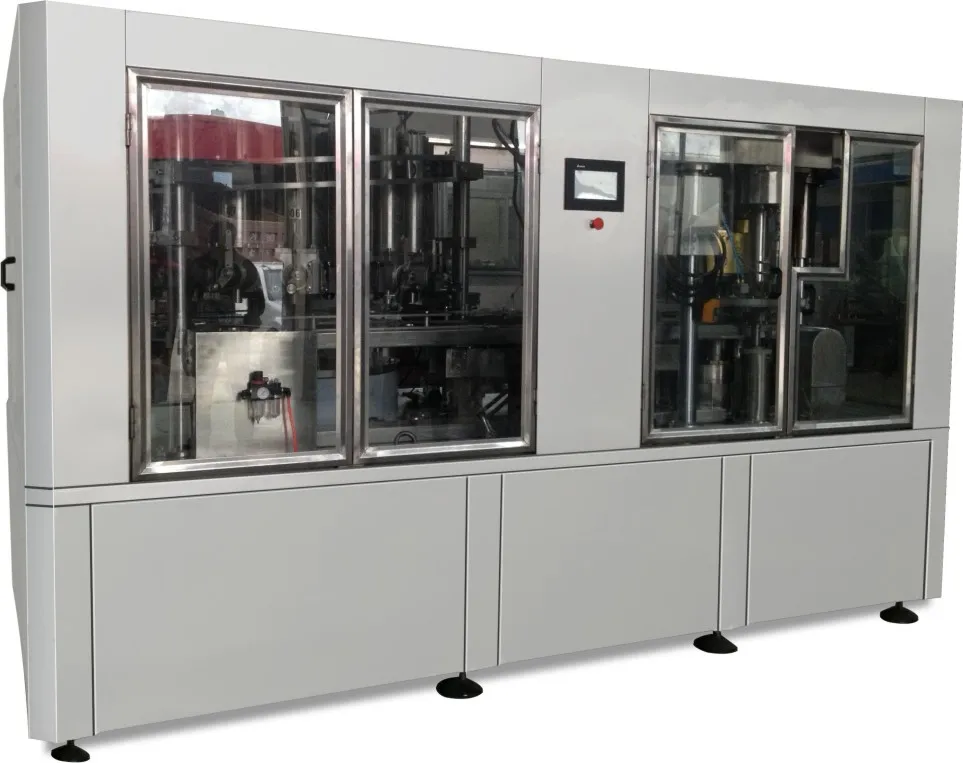

tomato paste sauce can filling and sealing packing machine
- Category: >>>
- Supplier: ZHEJIANG NEWWAY FOOD MACHINERY CO. LTD
Share on (62340547418):
Product Overview
Description
Product Description

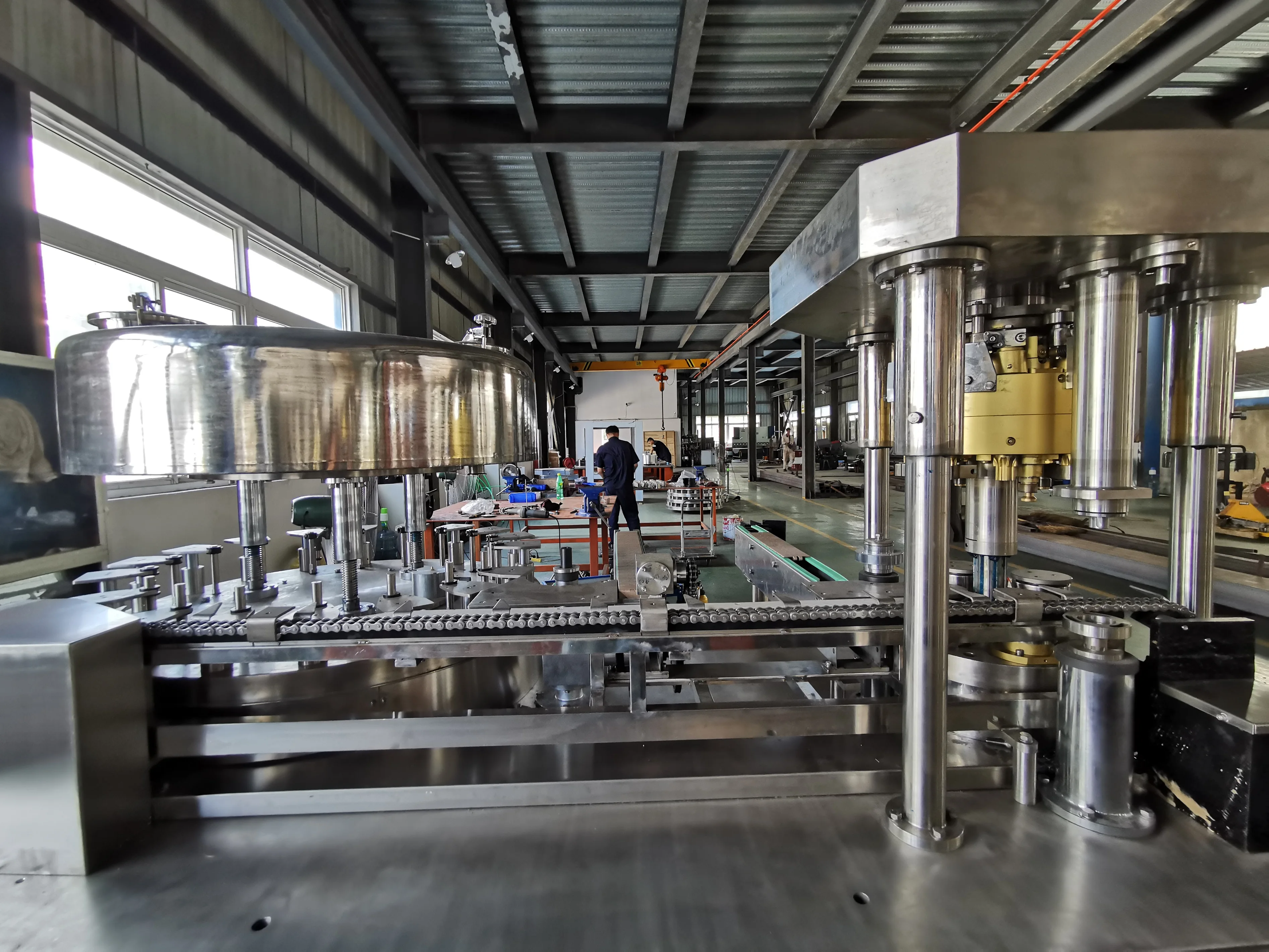

The machine adopts the principle of piston filling. After the empty can is transported to the filling position, the compressed air enters the cylinder through pneumatic triplex parts to turn on the filling valve. Under the action of the cam, the piston moves downwards in the piston cylinder to carry out filling. After filling, the filling valve is automatically closed under the action of cylinder and the piston cylinder sucks material.
After discharged, the filled can will be sent to the sealing machine for sealing head by the hook chain that runs synchronously. After the can supporting mechanism of the sealing machine raise the tray, the pressure head is pressed against the lid. The two rollers will respectively carry out pre sealing and solid sealing of the can under the action of the cam. The sealed can is sent to the can discharging conveyor belt under the action of the can discharging pulley.
After discharged, the filled can will be sent to the sealing machine for sealing head by the hook chain that runs synchronously. After the can supporting mechanism of the sealing machine raise the tray, the pressure head is pressed against the lid. The two rollers will respectively carry out pre sealing and solid sealing of the can under the action of the cam. The sealed can is sent to the can discharging conveyor belt under the action of the can discharging pulley.
Functional characteristics
The machine adopts PLC, frequency converter and man-machine interface control system. It has advanced control technology such as frequency conversion speed regulation, automatic filling with cans, no cans and no filling. Through various sensors on the device, the accurate production speed and quantity can be displayed on the touch screen. The overall production speed can be set freely on the touch screen according to requirements. The whole machine has various protections of main motor and other electrical appliances, such as overload, overvoltage, etc.. At the same time, the corresponding faults will be automatically displayed on the touch screen to facilitate users to find out the causes of the faults. The main electrical components of this machine adopt internationally renowned brands, and can also be formulated according to customers’ requirements.
It is suitable for filling various kinds of sauces (such as ketchup, pepper sauce, fruit jam) and other viscous materials, beverages of high concentration and containing pulps or granules, and even pure liquid quantitative filling.
It is suitable for filling various kinds of sauces (such as ketchup, pepper sauce, fruit jam) and other viscous materials, beverages of high concentration and containing pulps or granules, and even pure liquid quantitative filling.
Size Information
Main technical parameters
Model | XW12-4N |
The number of sealing head | 4 |
The number of filling head | 12 |
Filling capacity | 70-850g |
Production capacity | 80-200cans/min |
Can diameter | Φ52-99mm |
Can height | 50-160mm |
Power | 5.5kw |
Weight | 4000kg |
Dimension | 2800*1600*1900mm |
Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
* Sample testing support.
* View our Factory.
After-Sales Service
* Engineers available to service machinery overseas.
* Field installation, commissioning and training.
* Field maintenance and repair service.
* Field installation, commissioning and training.
* Field maintenance and repair service.
Company Introduction
Zhejiang NewWay Food Machinery Co., Ltd. is located in Zhoushan, the Oriental Pearl City Thousand Island City. It is 16 kilometers away from Mount Putuo airport. There are multiple flights to and fro Shanghai international airport everyday, 98 kilometers away from Ningbo Lishe airport, the traffic is very convenient.
The company is mainly engaged in the design and manufacture of beverages, canning machine and sealing machine packed with tinplate, aluminum, plastic and paper materials, as well as related products. Undertake the whole production line of easy-to-open beverage (including steam, non steam), sauce filling and sealing production line, Babao porridge canning, food, fruit and vegetable canning production line, etc.
The company fully uses CAD and CAM to design products. It is in a leading position in the field of filling and sealing equipment for canned food and beverage in China. The company specializes in the production of high-speed canning filling and sealing units and production lines, which make due contributions to the localization of similar imported equipment, reduce investment costs in the food and beverage industry, improve labor productivity of enterprises, and promote the rapid development and growth of the industry.
The company relies on strong technical force and effective technical guarantee, flexible business philosophy and quality service, advanced manufacturing technology, excellence in product quality and good reputation, to serve the vast number of new and old customers and welcome friends from all walks of life to visit and patronize.
The company is mainly engaged in the design and manufacture of beverages, canning machine and sealing machine packed with tinplate, aluminum, plastic and paper materials, as well as related products. Undertake the whole production line of easy-to-open beverage (including steam, non steam), sauce filling and sealing production line, Babao porridge canning, food, fruit and vegetable canning production line, etc.
The company fully uses CAD and CAM to design products. It is in a leading position in the field of filling and sealing equipment for canned food and beverage in China. The company specializes in the production of high-speed canning filling and sealing units and production lines, which make due contributions to the localization of similar imported equipment, reduce investment costs in the food and beverage industry, improve labor productivity of enterprises, and promote the rapid development and growth of the industry.
The company relies on strong technical force and effective technical guarantee, flexible business philosophy and quality service, advanced manufacturing technology, excellence in product quality and good reputation, to serve the vast number of new and old customers and welcome friends from all walks of life to visit and patronize.
