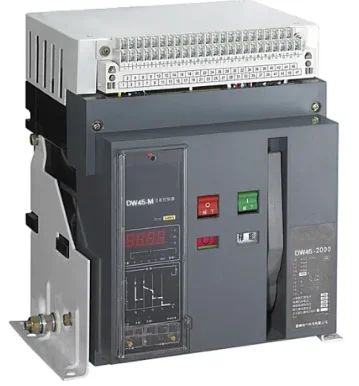

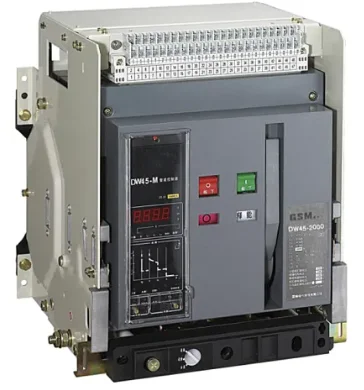

Air Circuit Breaker Dw45 6300
- Category: >>>
- Supplier: Yueqing Topsun Electronic Technology Co. Ltd.
Share on (62340631679):
Product Overview
Description
Specification
| Type | DW45-2000A | DW45-3200A | DW45-4000A | DW45-6300A | |
| Frame rated current Inm(A) | 2000 | 3200 | 4000 | 6300 | |
| Number pole | 3.4 | ||||
| Rated current In(A) | 630,800,1000,1250,1600,2000A | 2000,2500,3200 | 2000,2500,3200,4000 | 4000,5000,6300 | |
| Icu(KA) | 400V | 80 | 100 | 100 | 120 |
| 690V | 50 | 65 | 65 | 80 | |
| Ics=Icw(KA) | 400V | 50 | 80 | 80 | 100 |
| 690V | 40 | 50 | 50 | 65 | |
| Rated current at N-pole In(A) | 50%In ,100%In | ||||
| Inhere making &breaking time | 23-32ms | ||||
| Operational performance | Electric life | 500 | |||
| Machanical life | Maintenance free 2500 Maintenance 10000 | ||||
| Mounting mode | Fixed /draw out | ||||
| Intelligent controller | Standard type M, telecommunication type H | ||||
