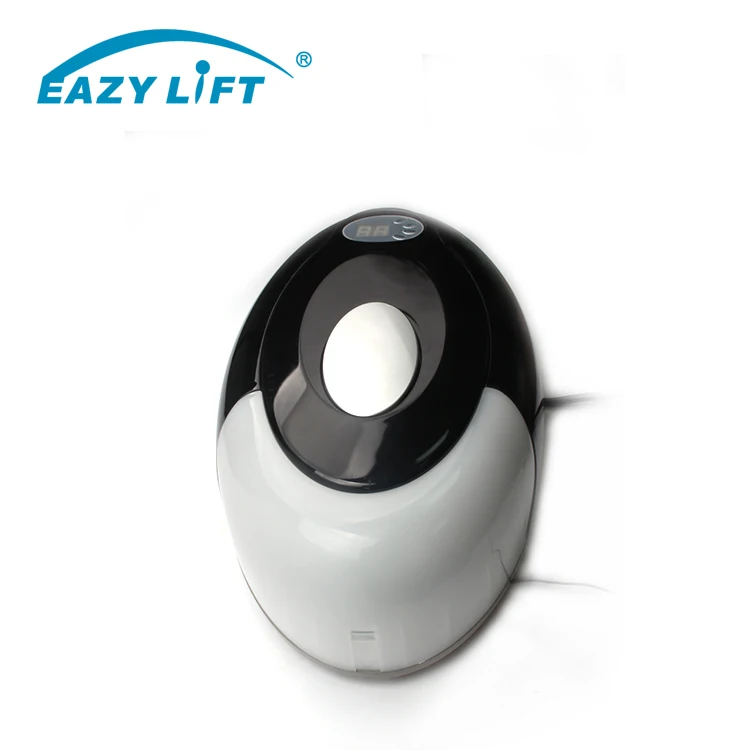

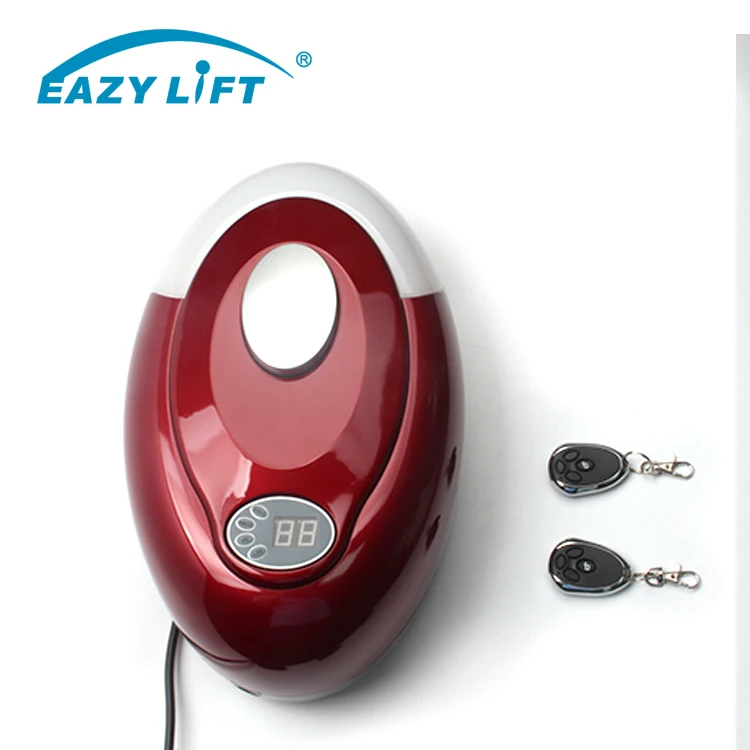

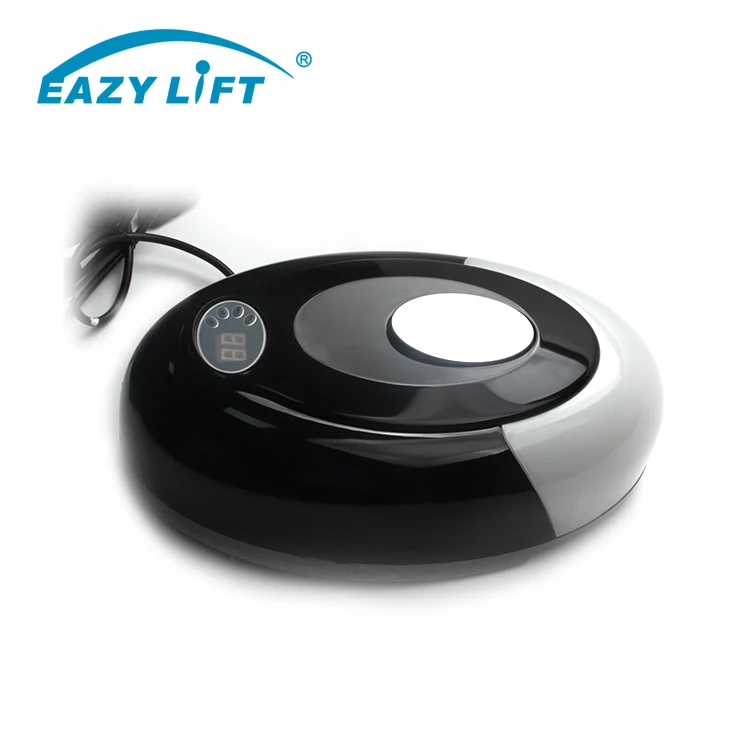

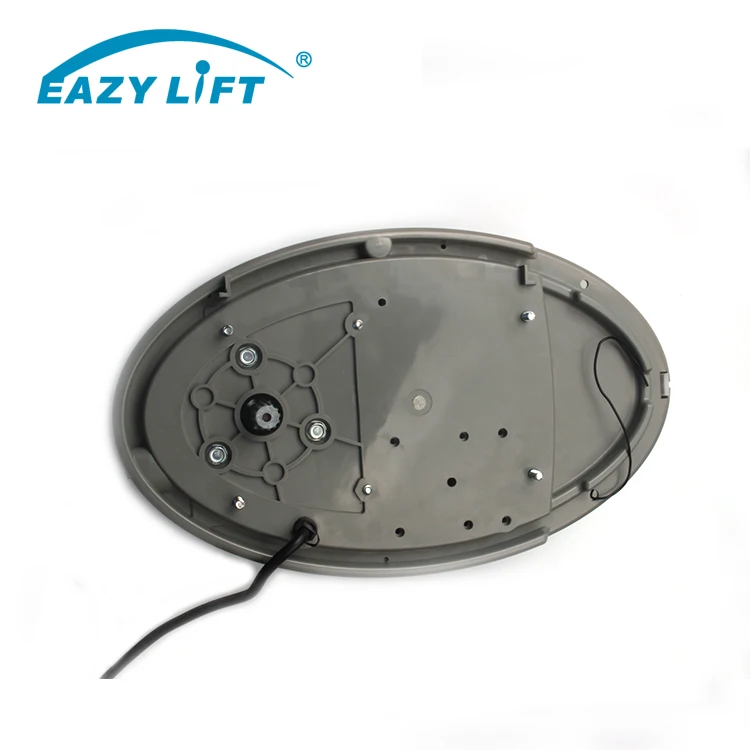

Automatic Garage Panel Door Operator Garage Door Opener

Product Overview

Description

Automatic Garage Panel Door Operator Garage Door Opener





Technical Specification:



Input voltage	AC220V±10% ; 50Hz~60Hz.
Lifting force	600N,800N,1000N,1200N,1500N.
Motor	DC 24V.
Max. door area	12-20m²
Running speed	120~140mm/s.
Rail length	3.0m,3.3m,3.6m,3.9m, 4.2m etc; with chain/belt
Rail material	Iron and steel/aluminum  (optional)
Auto close time	0-3 mins(optional).

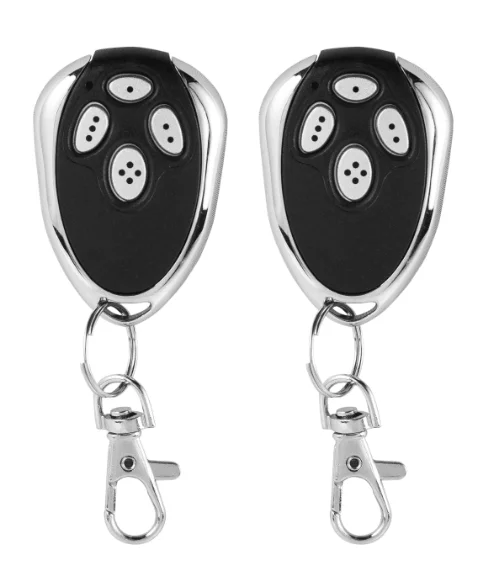

Remote frequency	433.92, 315,868MHz or customized.
Startup	Soft start and soft stop
Security protection	Auto-reverse function on obstacles
Opener noise	≤50db.
Certification	CE certificate
Temperature range	-40℃ ~ +70 ℃.
Battery backup	24V 2.4Ah
Remote control battery	12V 27A
Manual released cable	available
New functions	Bluetooth control; WIFI control with smartphones app



Features:



1. Easy operation
to operate the door simply press the hand held transmitter or the wall mounted switch for two seconds and the door will automatically open or close.

2. Safety obstruction reverse
while the door is doing a closing cycle and it should hit an obstacle or be restricted in some manner, it will automatically reverse.

3. Automatic courtesy light
The courtesy light on the opener comes on automatically whenever the door is activated to do an opening or closing cycle. and the light will stay on for 3 minutes then turns off.

4. Security code store
the opener uses state of the Microchip technology in storing code, the remote control security code, up to 20 different transmitters can be stored in the non-volatile memory device.

5. Auto close mode
the opener can be programmed to automatically close about 30 seconds after the door has opened. A photoelectric beam must be installed if this mode is selected.

6. Photoelectric beam
the opener has an input for a photo electric beam to be connected for an extra safety protection.



Garage door opener models:





Optional Accessories:
