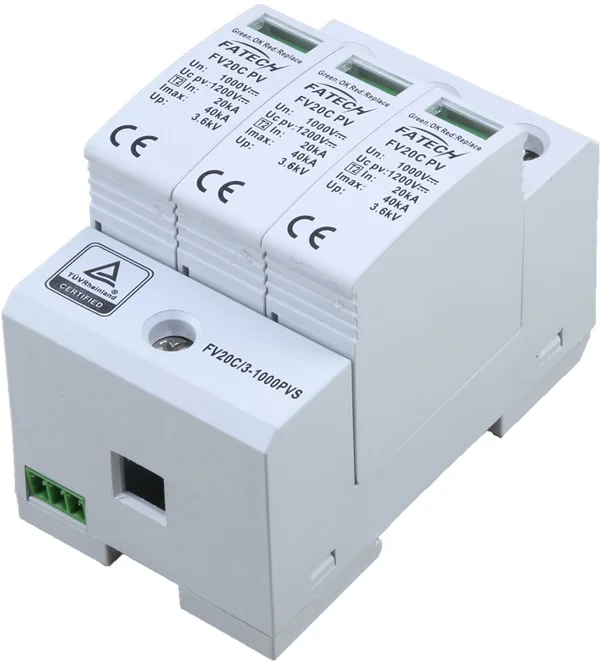

TUV certified PV system remote signaling contact Surge Arrester
- Category: >>>
- Supplier: Fatech Electronic (Foshan) Co. Ltd.
Share on (62340734988):
Product Overview
Description
\\
1.TUV certified PV system remote signaling contact Surge Arrester Characteristic
- DC surge Protective device specially used for photovoltaic system less than 1000Vdc.
- The core parts are metal oxide vristor components with hig discharge capacity.
- With reliable control thanks to Thermo Dynamic Control disconnector.
- With remote signaling contact for control device.
- Fault indication via red mark in the inspection window.

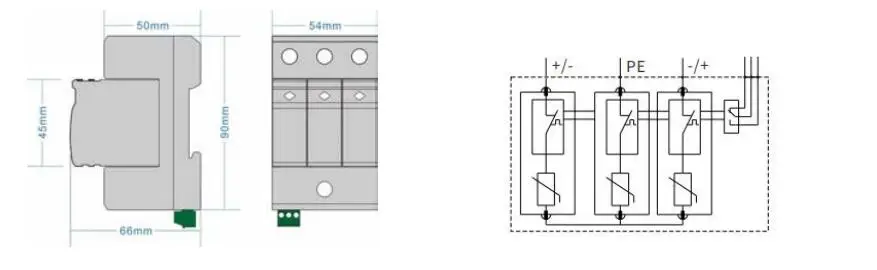

2. TUV certified PV system remote signaling contact Surge Arrester Dimension and Circuit
3. TUV certified PV system remote signaling contact Surge Arrester Electrical parameters
| Model No. | FV20C/3-1000PV(S) | ||
| Test class according to EN50539:11 | II | ||
| Nominal Voltage | UN | VDC | 1000V DC |
| Max.continuous d.c. voltage[(+/-)->PE]/ [+->-] | Uc | pv | 1200V DC |
| Maximum discharge current (8/20 μ s) | Imax | kA | 40kA |
| Nominal discharge current(8/20μs) | In | kA | 20kA |
| Voltage protection level (at In) | Up | kV | 3.6kV |
| Response time | tA | ns | ≤25ns |
| Isolation resistance | >10 2 MΩ | ||
| Recommended back-up fuse | 125AgL/Gg | ||
| I/O Connections | By screw terminal:10-35mm 2 By connection bus | ||
| Mounting | Symmetrical rail (EN50022/DIN46277-3) | ||
| Disconnection indicator | Mechanical indicator(Red: Replace) | ||
| Remote control contact | For your option | ||
| Operation temperature range | -40℃~+85℃ | ||
| Degree of protection | IP20 | ||
 |  |  |  |
protection photovoltaic system | protection power supply system | Lightning Rods & Surge Counters |
Workshop
→
→
Module assembling Base part producing Finished products tests
↓
←
←
Go to warehouse Packing Impulse current test
Certifications
FATECH Electronic (FOSHAN) CO., LTD. supplies five-years warranty on surge protective devices, and supply maintenance services in lifetime.Products are certified with TUV, CE; UL pending, 90% material are UL approved.
FAQ:
1. Q: Could l know which advantages do you have please?
A: Independent test center, TUV, Patent certifications; 15 years export experience in the overseas market; good technical service and support.
2. Q: Are you a lightning surge protectors factory or trading company?
A: We area manufacturer which is ISO 9001-2008 quality system on R&D, production and sales of surge arrester.
3. Q: Warranty and return?
A: We supply five-years warranty on surge protective devices and own the best after-sale service team, if any
problem happens, our team will do our best to solve it for you.
4. Q: What's the delievery time?
A: It is usually about 15 days after receiving the payment and confirmed the order, but specific time should
be based on the order quantity.
