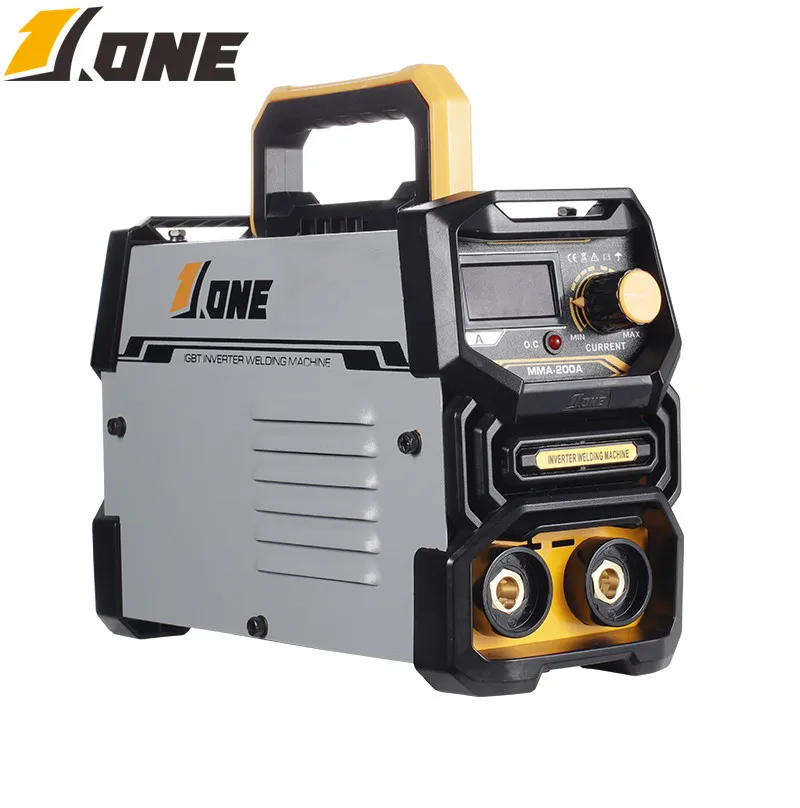

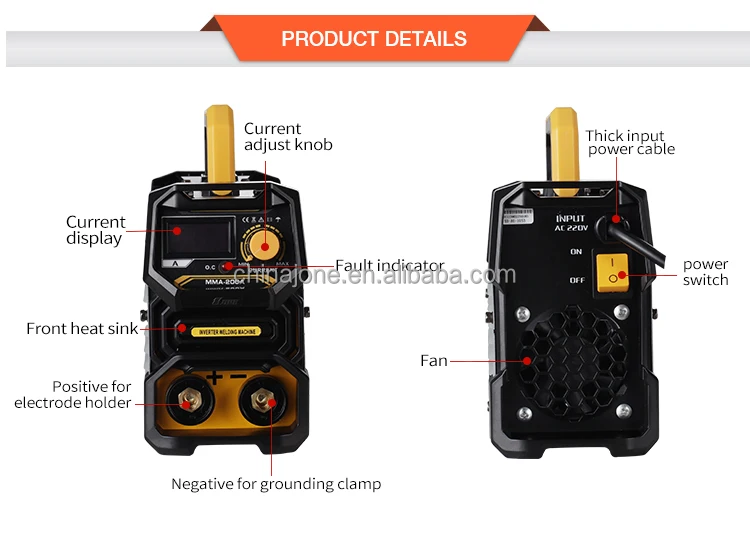

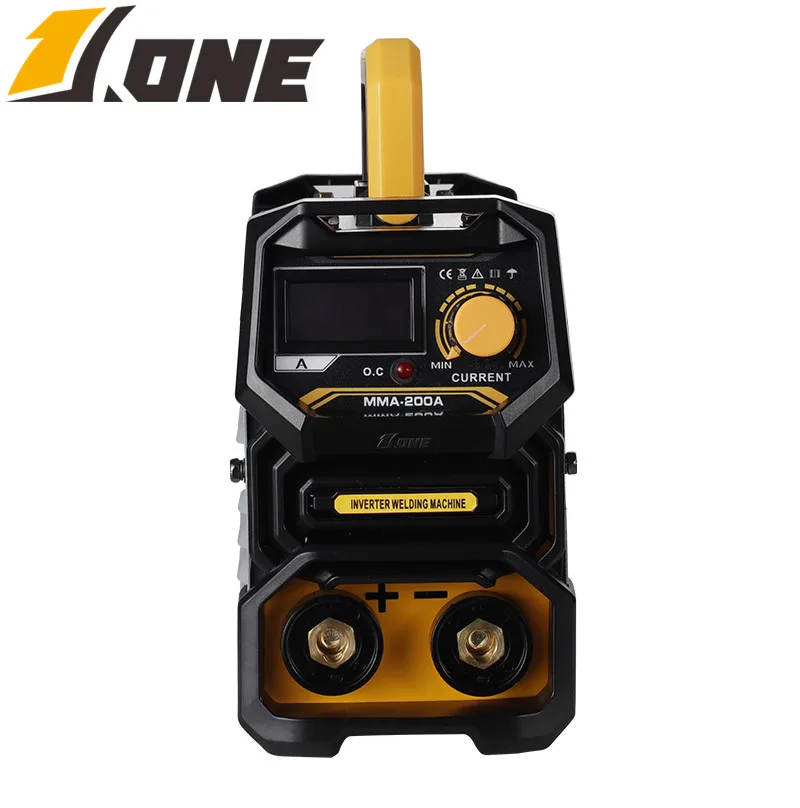

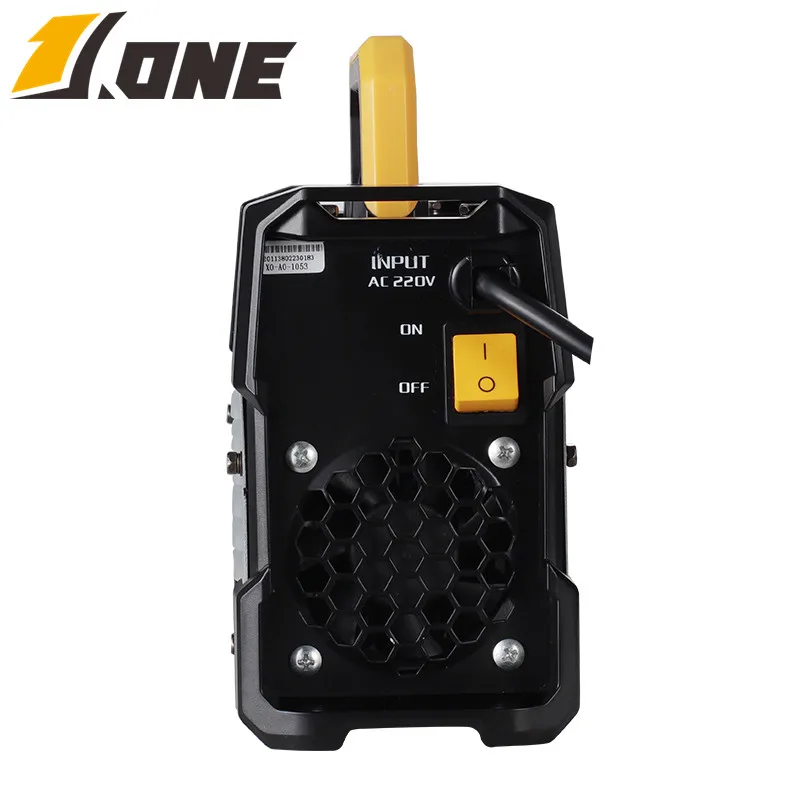

JONE микро сварочный аппарат

Model

MMA-200A

Type

IGBT 1 PCB

AC Input Voltage(V)

220V(110V/220V can do)

Rated Input Power Capacity(KVA)

5

Input Frequency(Hz)

50/60

Non-load Voltage(V)

60

Output current range(A)

20-200

Rated Duty Cycle(%)

60%

Efficiency(%)

85%

Class of Insulation

F

Protection class of case

IP21

Electrode diameter(mm)

1.6-2.5

Quick joint Size(mm)

10-25

Input power cable(m)

1.8

N.W./G.W.(kg)

1.9/3.2

Machine Size(LxWxH mm)

250*105*170

Package(LxWxH mm)/ 8 in 1

520*305*530  kraft paper box

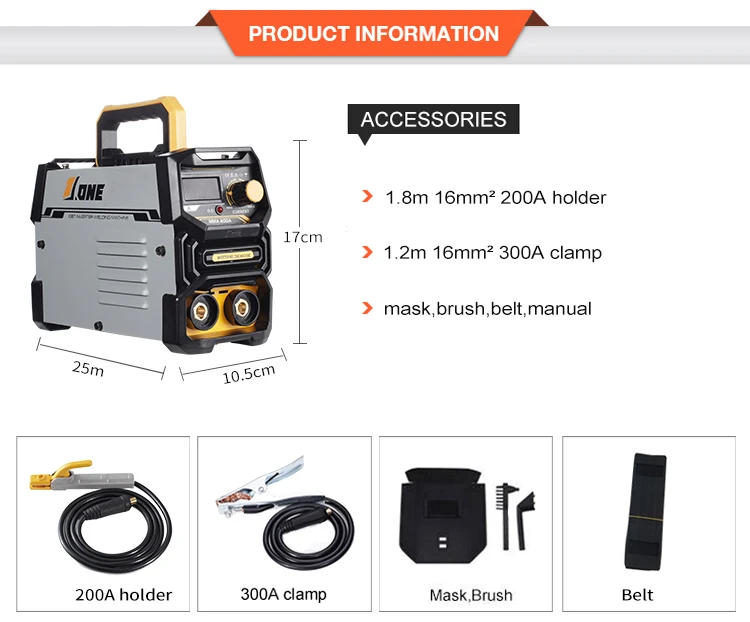

Accessories

1.8m 16mm² 200A holder

1.2m 16mm² 300A clamp

mask,brush,belt,manual
