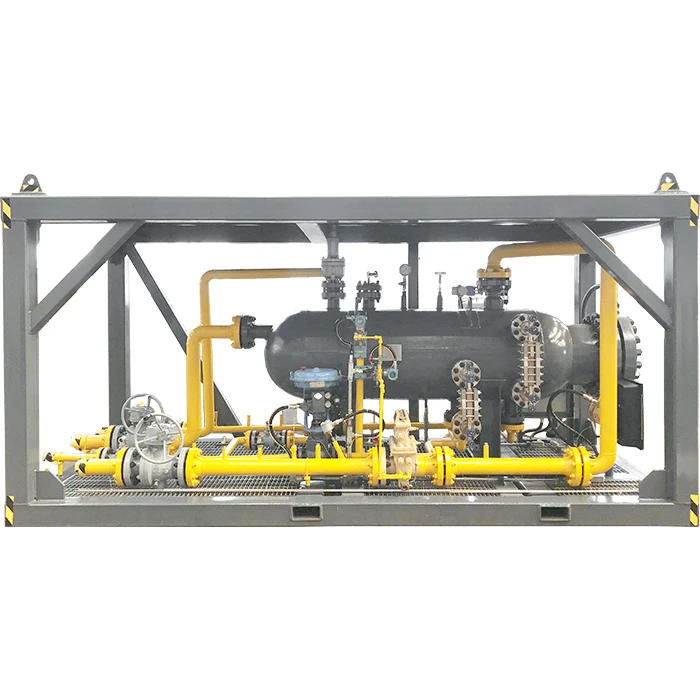

1440psi ASME well test skid mounted three phase separator
- Category: >>>
- Supplier: Luoyang Runcheng Petrochemical Equipment Co. Ltd.
Share on (62340790144):
Product Overview
Description
Product Paramenters

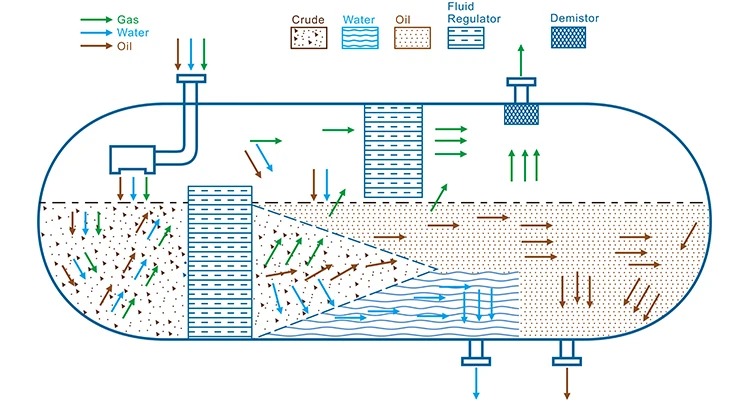

The Three Phase Test separators (3P Test Separator) are used in well testing, well clean-ups and other flow operations for efficient and safe separation and efficient measurement of oil, gas and water. 3P Test Separators usually supplied with high-accuracy instruments, control and shut-off valves, piping and skid, and referred as Test Separator Package / Module / Skid. Separator vessel is equipped with internal components, such as inlet deflector, vane pack, coalescer, wave breaker, weir plates, and mist extractor. Separator modular unit can be used both in offshore or onshore, either in standalone item or part of the package, and designed to fit the trailer for ensure fast and effective mobility during operation.
From one well to another, your three phase separation parameters may vary. But one thing remains constant ---- RUNCHENG PETROLEUM EQUIPMENT has the right equipment to fit your diverse needs. We offer top-quality two and three-phase separators in horizontal and vertical designs that can be configured for both low and high-pressure applications.
Parameters of our three phase separator as below, if you need more detail parameters about test 3 phase separator, please feel free to contact us, we are 24h online.
Design pressure | Vessel size | Liquid Capacity | Dimensions (L x W x H) | Dimensions (L x W x H) | ||||||
psi | bar | MPa | inch x foot | cm | BOPD | ft | m | |||
800 | 55 | 5.5 | 34 x 8 | 86x244 | 3500 | 13*7*8.5 | 4.0*2.1*2.6 | |||
1440 | 99 | 10(9.93) | 30 x 10 | 76x305 | 3500 | 15*6.5*8 | 4.6*2.0*2.5 | |||
42 x 10 | 107x305 | 10000 | 15*7.5*9 | 4.6*2.3*2.7 | ||||||
42 x 15 | 107x457 | 12000 | 20*7.5*9 | 6.1*2.3*2.7 | ||||||
48 x 10 | 122x305 | 13000 | 15*8*9.5 | 4.6*2.5*2.9 | ||||||
48 x 12 | 122x366 | 19000 | 17*8*9.5 | 5.2*2.5*2.9 | ||||||
48 x 15 | 122x457 | 19000 | 20*8*9.5 | 6.1*2.5*2.9 | ||||||
2160 | 149 | 15(14.9) | 24 x 10 | 61x305 | 1000 | 15*4*7.5 | 4.6*1.2*2.3 | |||
42 x 15 | 107x457 | 12000 | 20*7.5*9 | 6.1*2.3*2.7 | ||||||
48 x 15 | 122x457 | 15000 | 20*8*9.5 | 6.1*2.5*2.9 | ||||||
Features of our three phase separator as below:
1.Special design and certification for offshore operations
2.Modular skid for onshore operation
3. Durable internals
4. Certified and reliable flow control valve and instruments
5.Instrument gas scrubber
6.Sample points for oil, gas, water and inlet medium
7.High / Low alarm points and pressure relief valves
3. Durable internals
4. Certified and reliable flow control valve and instruments
5.Instrument gas scrubber
6.Sample points for oil, gas, water and inlet medium
7.High / Low alarm points and pressure relief valves

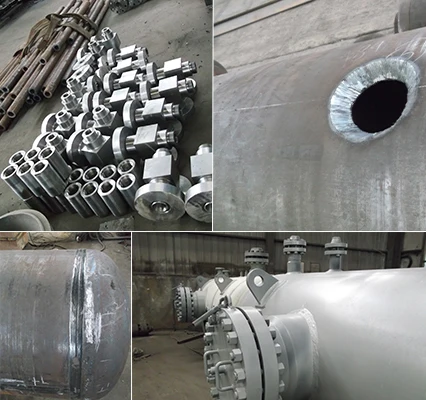

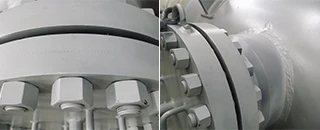

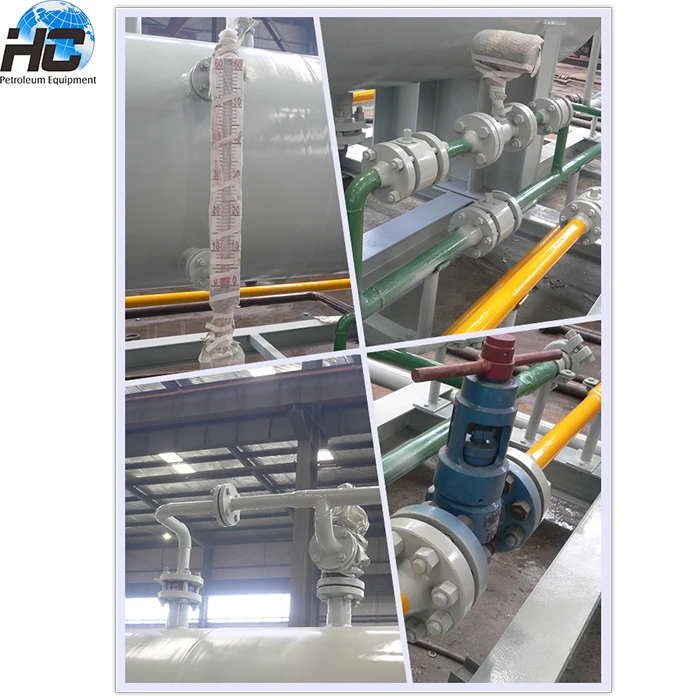

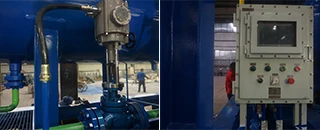

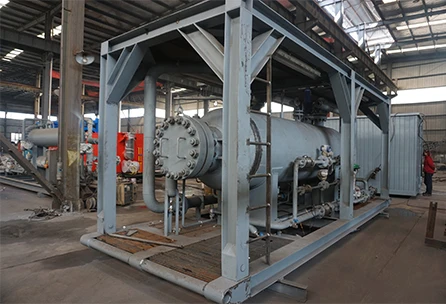

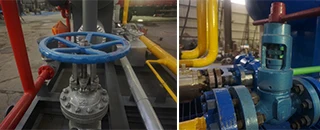

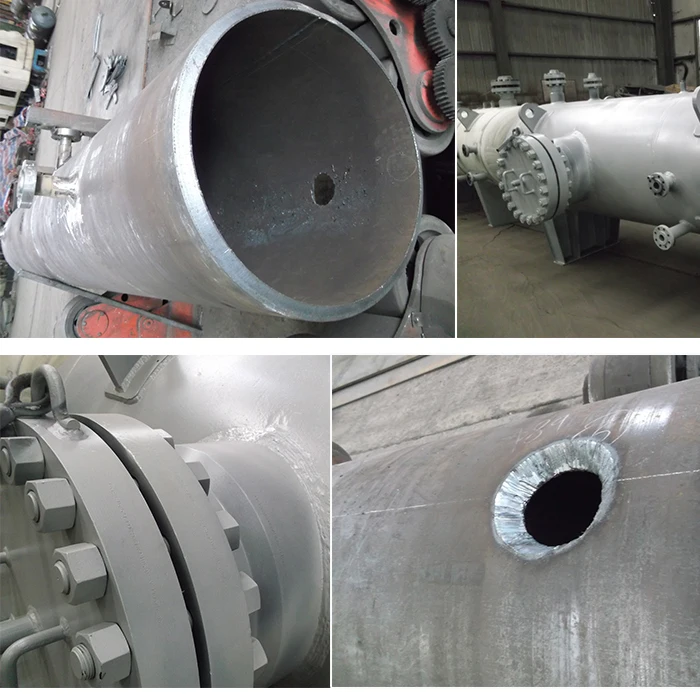

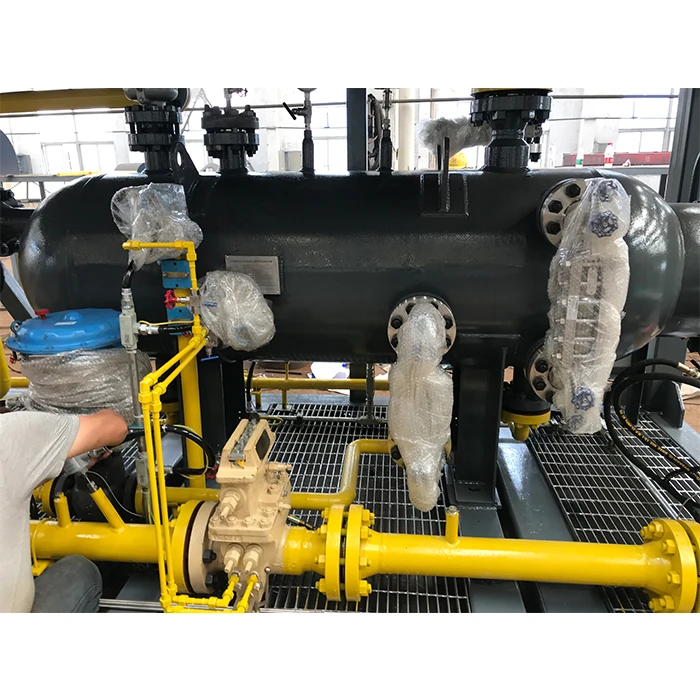

Detail production photos of our 3 phase separator as below, welcome to visit our factory at Luoyang city, Henan province, China at any time.
Company Profile
We have profesional design team , and we could do design and manufacturer for you. ODM is welcomed.
Reated products about our three phase separator is as below,more products please review our homepage or contact us.
Production Process
Product packaging
Exhibition
FAQ
Contact us
If you are interested in our three phase separator, welcome to send inquiry to us, we have our own technical team and factory.And we will try our best to support your business and win-win. Just click here and text in the blank, we will reply your inquiry within 12hours.
