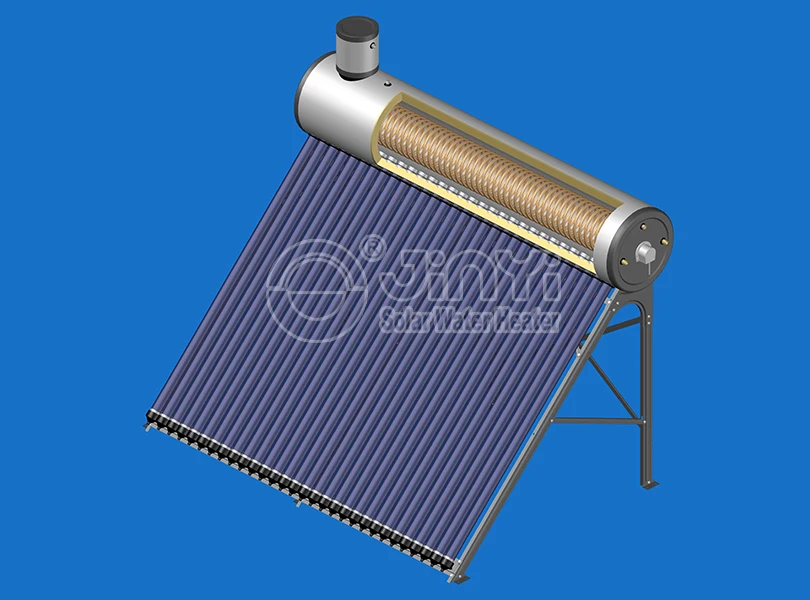

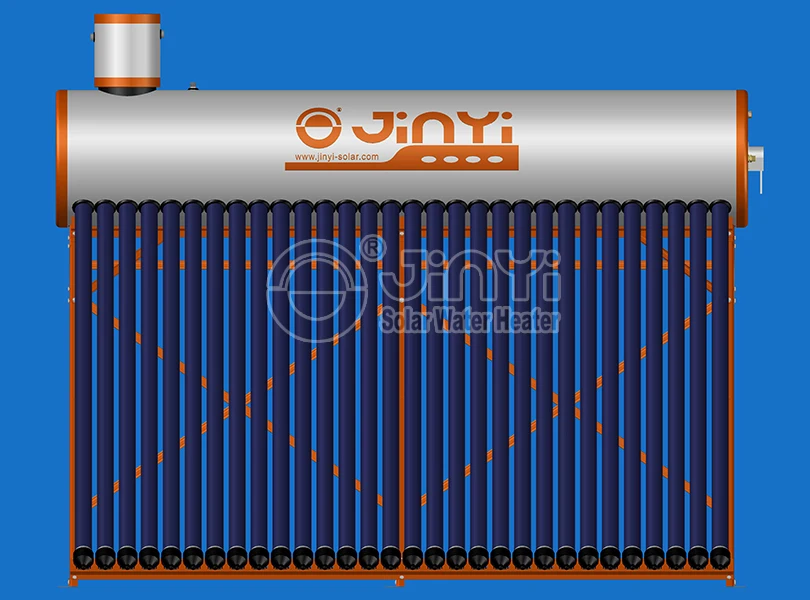

250L Jinyi Hot Sale Pre heating Solar Water Heater

Product Overview

Description



Jinyi Hot Sale Pre-heating Solar Water Heater







Advantages:

1) Reliable and efficient twin-glass solar tubes;
2) Copper heat pipes for rapid heat transfer;
3) Easy plug-in installation;
4) Free maintenance;
5) Suitable for mains pressure water (up to 1.0 bar);
6) Corrosion resistant silver brazed copper header;
7) Aluminum frame;
8) Stable solar conversion during the day;

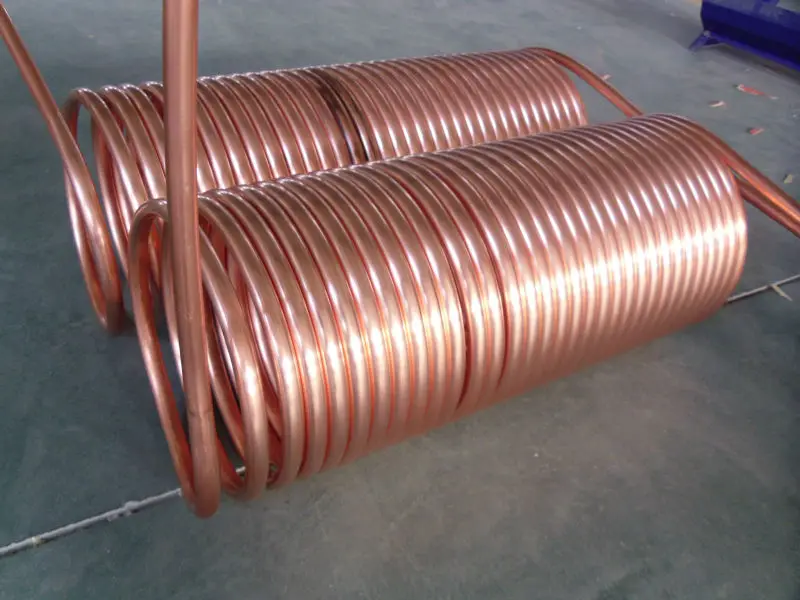

9) High purity copper for the heat exchanger coil

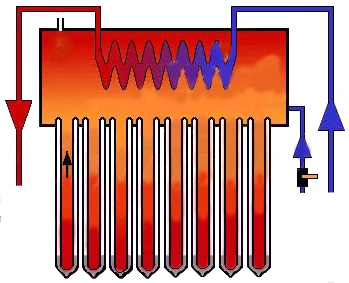

Working principle:

1) The operation of the solar collector is very simple.
2) Solar absorption: absorbed by the solar tubes and converted into heat.

3) Solar heat transfer: heat pipes conduct the heat from within the solar tube up to the header pipe
4) Solar energy storage: water is circulated through the header, via intermittent pump cycling.

Each time the water circulates through the header, the temperatures is raised by 5-10C.

Throughout the day, the water in the tank is gradually heated.



Material:

1) Inner water tank: imported food grade stainless steel 304-2B

2) Outer water tank: imported color plate, stainless steel, galvanized steel
3) Bracket: stainless steel, aluminum alloy or galvanized steel

4)Vacuum tube: common tube, three highs tube and multi-cavity tube

5) End cover: galvanized steel and stainless steel

6) Fastness part: stainless steel screws

7) Manifold Pipe Material: Copper

8)Tube Material: Borosilicate Glass

9) Coating of Glass Absorber: AI-N-AI, Copper, Stainless Steel



Solar vacuum tube:

1) Size: 47*1500mm   58*1800mm

2) Quantity: 10/15/18/20/24/30/34/36

3) Hail resistance: diameter less than 25mm

4) Outer tube diameter: 47mm more or less 0.7mm

5)Outer tube thickness: 1.6mm more or less 0.1mm

6)Inner tube diameter: 37mm more or less 0.7mm

7)Inner tube thickness: 1.6mm more or less0.1mm



Model	JPC-24
Number of tubes	24
Tube dimension	Ø58 x 1800mm
System (tank & tube) capacity	250L
Heat exchanger	Stainless steel coil 30m
Assistant tank	8L
Material of tank	stainless steel SUS304-2B/ SUS316L
Number of users	up to 6 people



Temperature insulation layer:

50-60mm imported polyurethane foaming with high pressure and density (45kg/m3)

Heat preservation: 72 hours

Tank diameter:

Inner water tank: diameter 320mm /360mm

Outer water tank: diameter 420mm /460mm

Max. pressure bearing: 0.6bars



Installation:

















JinYi Solar Factory





Quality Certifications

CCC,ISO9001:2008,CE,SRCC,Solarkeymark
