Product Overview

Description



Product Description

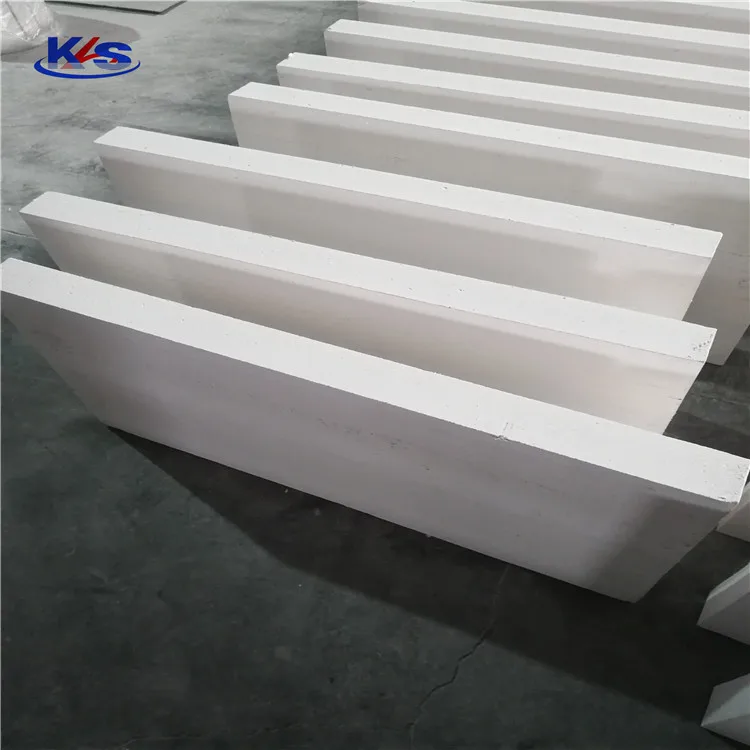

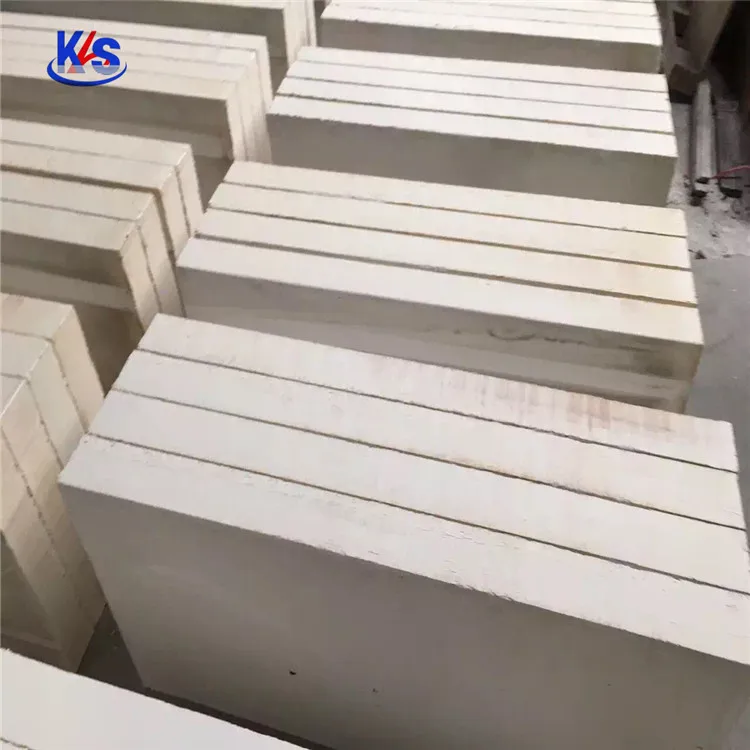

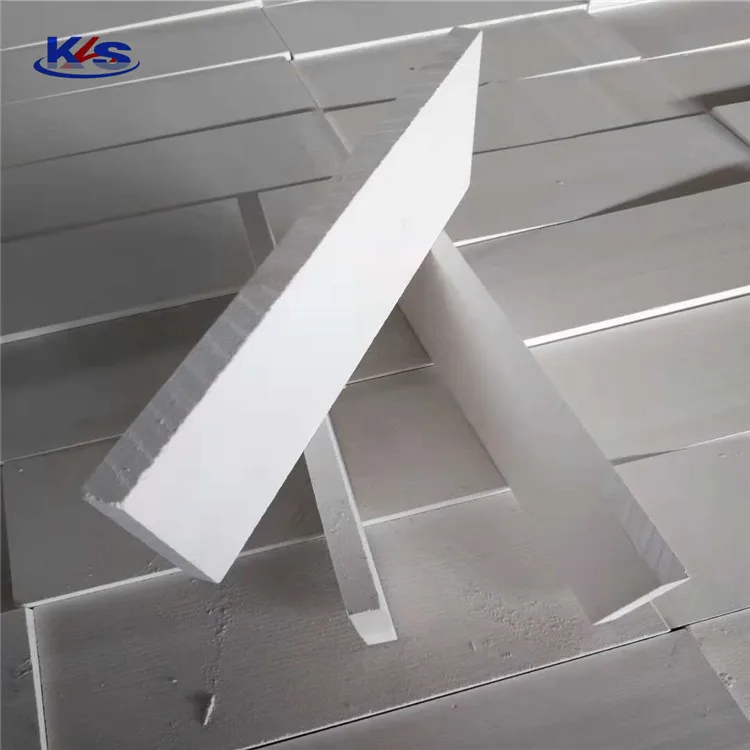

calcium silicate insulation board
Calcium silicate board is made of SIO2 and CAO through high temperature and high pressure reaction, adding environmental
protection fiber, new energy-saving insulation material without asbestos, the product can be long-term use in 650°-1050° high temperature environment, extend the service life of equipment.




Calcium silicate board spec.
Items
Unit
KRS-A
KRS-B
KRS-C
KRS-D
Density
Kg/m3
220±10%
220±10%
250±10%
850±10%
Pressure Strength
Mpa
≥0.6
≥0.62
≥0.72
≥17
Flexural Strength
Mpa
≥0.35
≥0.38
≥0.41
≥8
Thermal Conductivity
100℃
W/(M.K)
≤0.055
≤0.053
≤0.059
≤0.095
200℃
≤0.067
≤0.064
≤0.068
≤0.12
400℃
≤0.078
≤0.072
≤0.079
≤0.14
800℃
//
≤0.171
≤0.193
≤0.25
Temp.Limit
℃
650
1050
1050
1000
Linear Shrinkage
%
≤2
≤2
≤2
≤2
Water repellent products can be customized


Advantages:
1.Good durability, can bear high temperature within the limit of continuous heat load.
2.Non-deformation within the temperature range.
3.Low thermal conductivity, in the whole range are used with unmatched adiabatic performance.
4.Light weight, high strength. It is the highest in these hard thermal insulation products.
5.Better durability, use for a long time without powder.
6.Construction with ordinary carpenter applicability, tools can be optional cut products.
7.Used safety, hygiene. Excluding asbestos, sulfur, chlorine such poisonous substances.
8.Fear water, but after drying also can be used.




used in cave dwelling inside for insulation, inner of brick , cave dwelling wall outside. for heat insulation and fire resistant.
used for different fireplace， oven,  cave dwelling, outside for heat insulation and fire resistant.
used in different boiler, furnace, and oven's outside for heat insulation in glass, brick, ceramic, cement factory area.

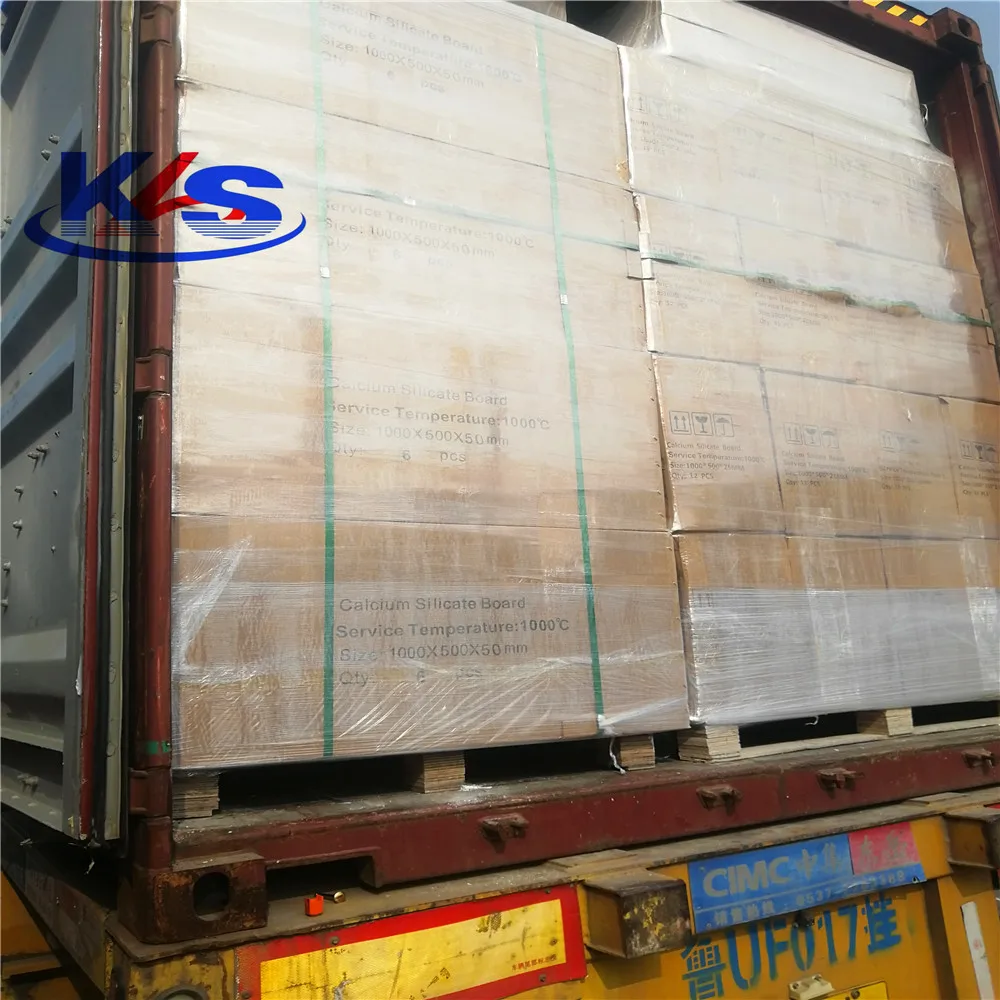

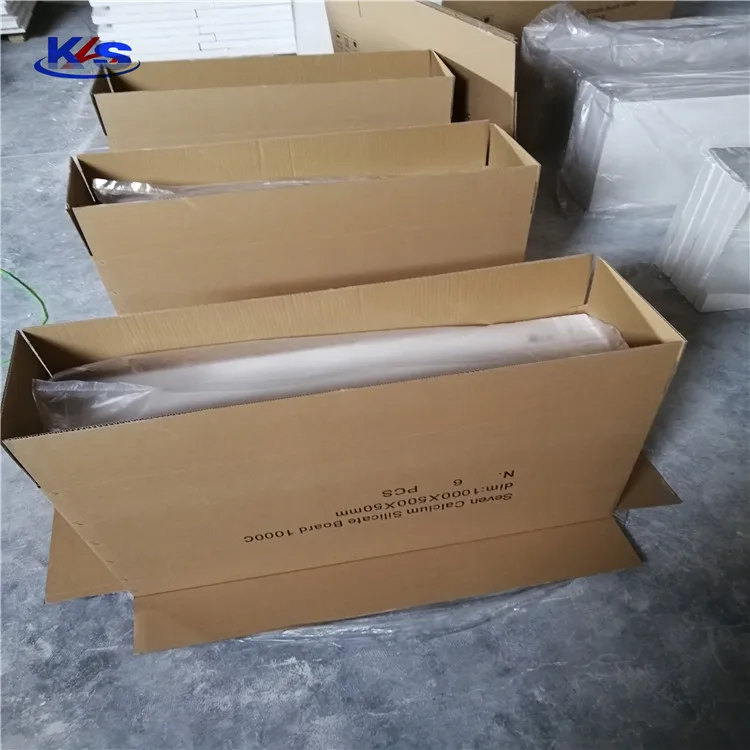

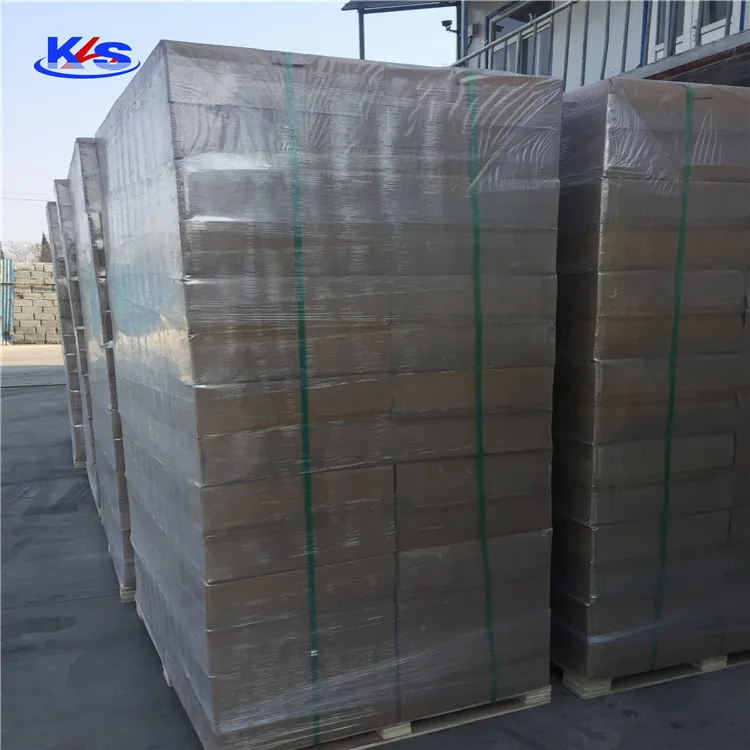

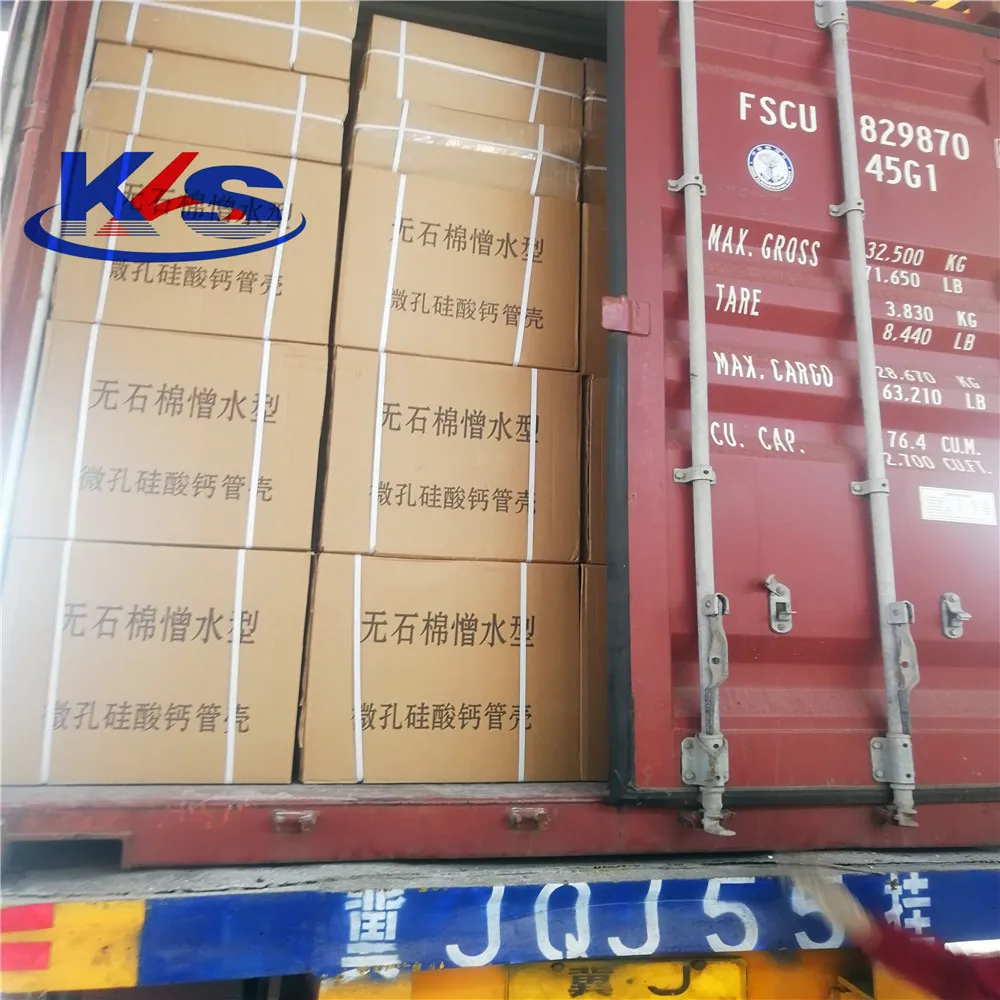

Packing:
1. standard exporting cartons packing
2. cartons with fumigation-free wooden pallet


Calcium Silicate Board Size(can be customized)
Temperature
Size
L*W(mm)
Thickness(mm)
650 or 1050
400*250
25-150
600*300
25-150
600*150
25-150
610*150
25-150
500*500
25-130
1050
600*600
25-130
1000*500
25-130
1200*600
25-130
1000*1000
25-130
1200*1200
25-130
