Stainless Steel Cable Lug Crimp Type Cable Termination Lug
- Category: >>>
- Supplier: Zhejiang Keyi Electric Co. Ltd. [Zhejiang China]Zhejiang
Share on (62341024985):
Product Overview
Description
Product Description

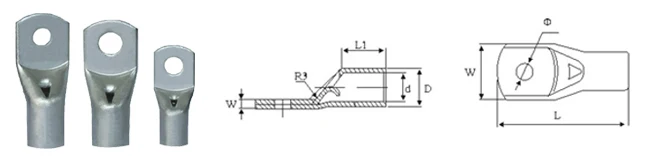

| Part No. | Cable Spec.(mm²) | Dimension(mm) | ||||
| d | W | L | L1 | Φ | ||
| KRF-16 | 16 | 6 | 13 | 32 | 10 | M4,M5,M6,M8 |
| 16 | 38 | M10 | ||||
| 22 | 46 | M12,M14 | ||||
| 24.5 | 52 | M16 | ||||
| KRF-25 | 25 | 8 | 16 | 38 | 11 | M4,M5,M6,M8 |
| 17 | 42 | M10 | ||||
| 22 | 50 | M12,M14 | ||||
| 25 | 57 | M16 | ||||
| KRF-35 | 35 | 9 | 18.5 | 44 | 14 | M5,M6,M8,M10 |
| 22 | 51 | M12,M14 | ||||
| 21 | 51 | M14 | ||||
| 24.5 | 58 | M16 | ||||
| 25 | 60 | M18 | ||||
| KRF-50 | 50 | 11 | 21 | 49 | 17 | M6,M8,M10 |
| 23 | 54 | M12,M14 | ||||
| 25 | 62 | M16 | ||||
| 28 | 68 | M20 | ||||
| KRF-70 | 70 | 13 | 24.5 | 57 | 20 | M6,M8,M10,M12,M14 |
| 28 | 64 | M16 | ||||
| KRF-95 | 95 | 15 | 29 | 68 | 23 | M6,M8,M10,M12,M14,M16 |
| 32 | 74 | M20 | ||||
| KRF-120 | 120 | 17 | 32 | 72 | 25 | M8,M10,M12,M14,M16 |
| KRF-150 | 150 | 19 | 36 | 79 | 28 | M8,M10,M12,M14,M16,M20 |
| KRF-185 | 185 | 21 | 39 | 85 | 31 | M10,M12,M14,M16,M20 |
| KRF-240 | 240 | 24 | 44 | 99 | 34 | M10,M12,M16,M20 |
| KRF-240A | 240 | 22.5 | 42 | 98 | 34 | M10,M12,M16,M20 |
| KRF-300 | 300 | 26 | 47 | 110 | 41 | M10,M12,M16,M20,M24 |
| KRF-300A | 300 | 24.5 | 46 | 115 | 41 | M10,M12,M16,M20 |
| KRF-400 | 400 | 30 | 53 | 121 | 47 | M12,M16,M20 |
| KRF-400A | 400 | 30 | 56 | 120 | 47 | M12,M16,M20 |
| KRF-500 | 500 | 33 | 61 | 150 | 62 | M12,M16,M20 |
Packaging & Shipping
Packaging
1.Normal Package: Inner Bag + Inner Box + Carton.
2.Specific packaging can be made to order.
Shipping
You can specify other shipping methods such as Airmail, FEDEX or DHL. We shall let you know about the shipping cost after receipt of your order.
And also can send by sea or air, kindly send me the port of yours.
Our Services
Customized
1.Print Logo according to your needs
2.Product the cable lugs according to your drawing or sample
3.Package the cable lug according to your needs
