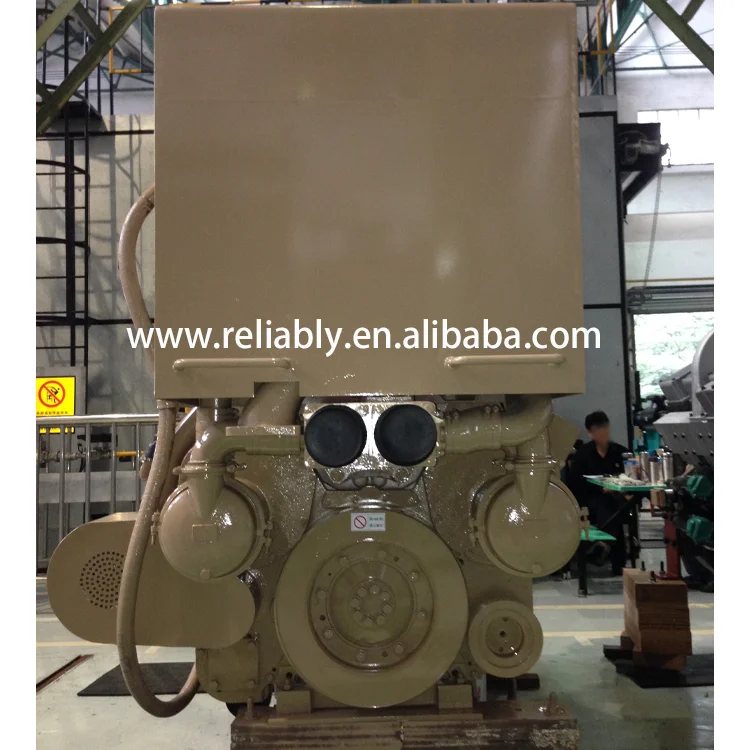

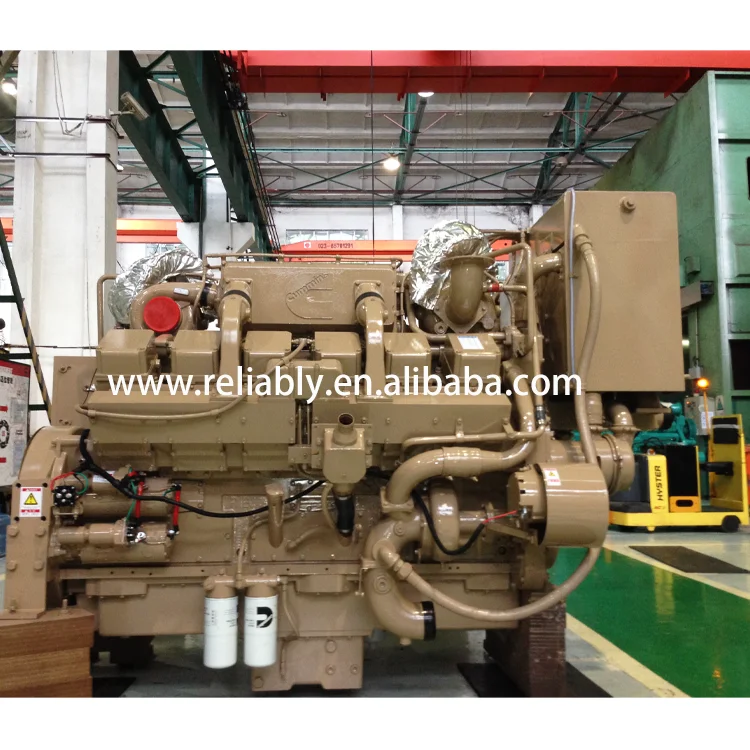

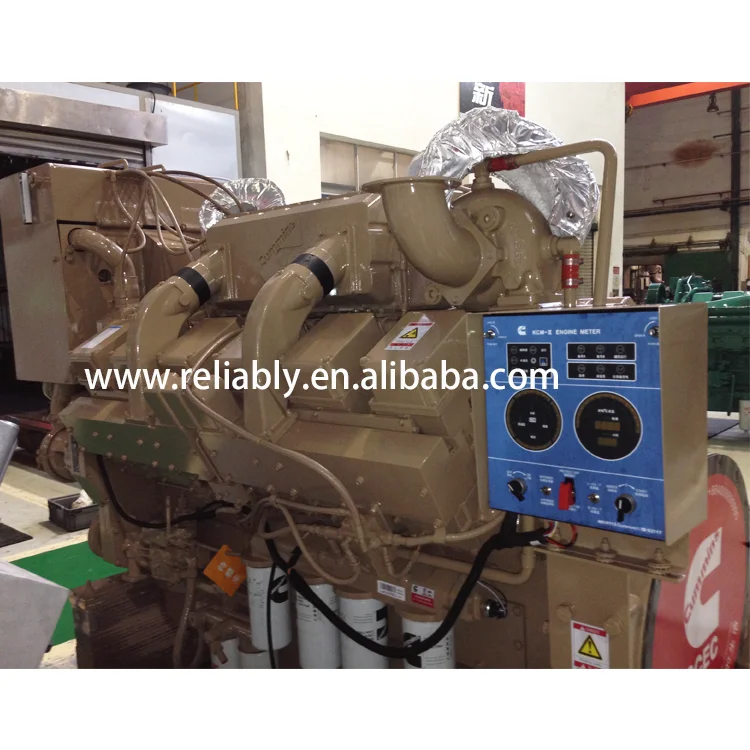

CCEC Chongqing Cummins 1200hp 895kw KTA38 M2 Marine Engine
- Category: >>>
- Supplier: Chongqing TC Machinery Co. Ltd
Share on (62341293797):
Product Overview
Description
Products Description
Technical Specification | ||||||
Engine Model | KTA50-M KTA50-M2 KTA38-M2 | Fuel Consumption at Rated Speed | 80.2gal/hr / 303.6 l/hr | |||
Rating Type | Continuous | Approximate Fuel Flow to Pump | 141gal/hr / 533.7 l/hr | |||
Rated Engine Power | 1193kW/895KW/1342KW | Intake Manifold Pressure | 54in. Hg / 183kPa | |||
Rated Engine Speed | 1800rpm/1900rpm/1950rpm | Intake Air Flow | 2599 cfm / 1227 l/sce | |||
Peak Engine Torque@ 1500 rpm | 4859 lb. H ft. / 6588 NHm | Heat Rejection to Ambient | 4464 BTU/min / 78 kW | |||
Cylinders | 12-16 | Size-Engine Only | 3500*1800*2200mm | |||
Aspiration | Turbocharged & Aftercooled | Weight (Dry) - Engine Only | 5200kg | |||
Compression Ratio | 13.9:1 | Minimum Idle Speed Setting | 650rpm | |||
Piston Speed | 1876 ft/min / 9.5 m/sec | Normal Idle Speed Variation | ±25rpm | |||
Displacement | 38-50L | High Idle Speed Range Minimum | 1860rpm | |||
Bore*Stroke | 159*159mm | High Idle Speed Range Maximum | 1972rpm | |||
Fuel System | PT pump | Standard Thermostat Operating Range (Start to Open - Full Open) | 82°C-95°C | |||
Optional Configuration | According to the Cooling Type( Keel Cooling, Circulating Cooling,etc.) Heat Exchanger, Expansion Tank, Sea Water Pump, Control System, Remote Control System. | |||||
Recommend Products

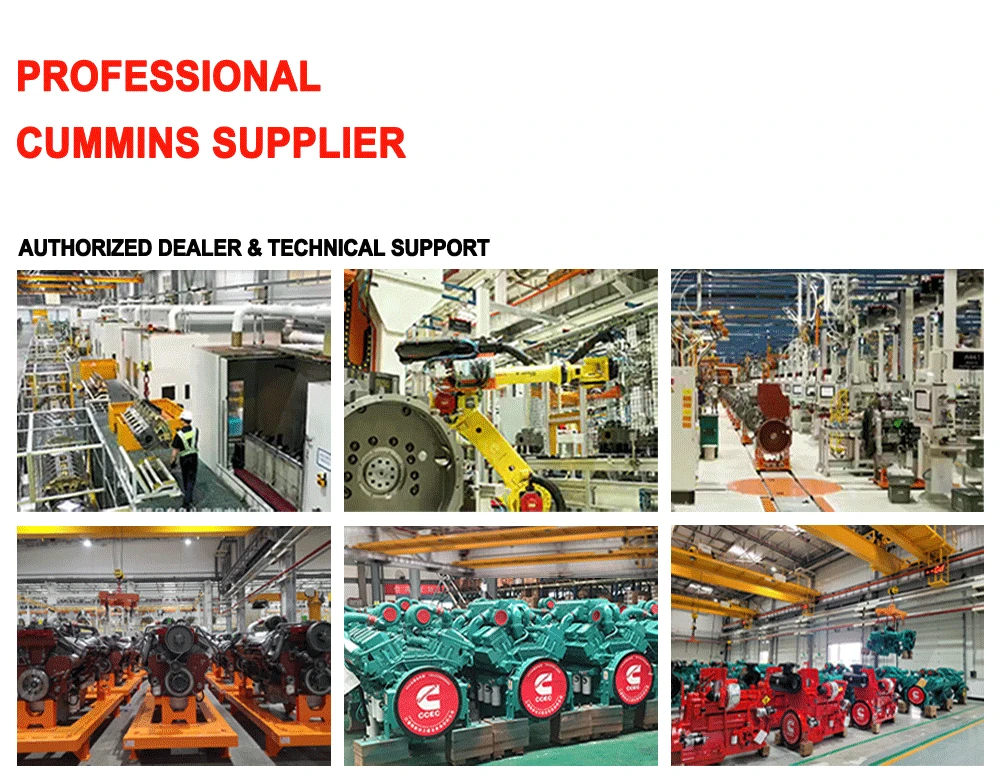

Factory Information
Chongqing TC Machinery Co., Ltd
Chongqing TC Machinery is a comprehensive company based on diesel engines, integrating the production, sales and service of marine engines, diesel generators, diesel pumps, diesel engine supporting power and accessories and other related products. Our company has independent import and export rights. We have established a good cooperative relation with customers all over the world. Adhering to the principle of "quality first, reputation first", our company hopes to create a better tomorrow with domestic and foreign customers hand in hand! The engine model we can supply: KTA50,KTA38,KTA19,KTTA19,M11,NTA855, QSK19,QSM11,.....
Not only we are familiar with technical aspects of the engine itself , we also have a comprehensive Understanding of the additional requirements surrounding the engine , Repowering will often require Structural and electrical modifications in the engine room and elsewhere on the ship . our experience technical have been trained and have the necessary knowledge and equipment to efficiently service your engine .
Not only we are familiar with technical aspects of the engine itself , we also have a comprehensive Understanding of the additional requirements surrounding the engine , Repowering will often require Structural and electrical modifications in the engine room and elsewhere on the ship . our experience technical have been trained and have the necessary knowledge and equipment to efficiently service your engine .
Packaging & Shipping
* We can choose any method of delivery for the customer.
* The express companies we cooperate with are DHL, UPS, TNT, FedEx, EMS, etc.
* The logistics cooperation includes all kinds of large shipping companies and railway
transportation.
FAQ
Q1. Can you provide technical support?
A: Yes, we have an advance technical team with many experienced engineers who can provide you with strong and reliable technicalsupport.
Q2: Can we customize the products?
A: Yes, in addition to providing regular products, we can also customize it for you to meet your requirements.
Q3: How long is the production time of the goods?
A: We have a lot of regular inventory of spare parts, it will take 1-3 days after receiving your advance payment. Engine assembly
and generator sets depends on the items and specification of customers, the quickest delivery time can be 15 days.
Q4: What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We will show you the photos and videos of the goods.
Q5. What is your packing method?
A: Generally, the engine assembly is packed in wooden case, the parts is packed in carton. And we can also according to customers requests.
A: Yes, we have an advance technical team with many experienced engineers who can provide you with strong and reliable technicalsupport.
Q2: Can we customize the products?
A: Yes, in addition to providing regular products, we can also customize it for you to meet your requirements.
Q3: How long is the production time of the goods?
A: We have a lot of regular inventory of spare parts, it will take 1-3 days after receiving your advance payment. Engine assembly
and generator sets depends on the items and specification of customers, the quickest delivery time can be 15 days.
Q4: What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We will show you the photos and videos of the goods.
Q5. What is your packing method?
A: Generally, the engine assembly is packed in wooden case, the parts is packed in carton. And we can also according to customers requests.
