lead acid 36 48 volt golf cart battery charger with LED 36v 5a 48volt 4a club golf car battery charger for Yamaha EZGO CARGO
- Category: >>>
- Supplier: Guangzhou Yunyang Electronic Technology Co. Ltd.
Share on (62341476071):
Product Overview
Description
Product Description
lead acid 36 48 volt golf cart battery charger with LED 36v 5a 48volt 4a club golf car battery charger for Yamaha EZGO CARGO
Specification Detailed
| Parameter | 12V 10A 24V 7A 36V 5A 48V 4A charger for lifepo4/lead acid/lithium ion/li-ion/lipo battery and golf cart,ups power | ||
| AC Input | 90-130 or 200-260V AC, 47 to 63H,could custom made a switch for 100-240VAC | ||
| Out Power | 240W | Efficiency | >85% |

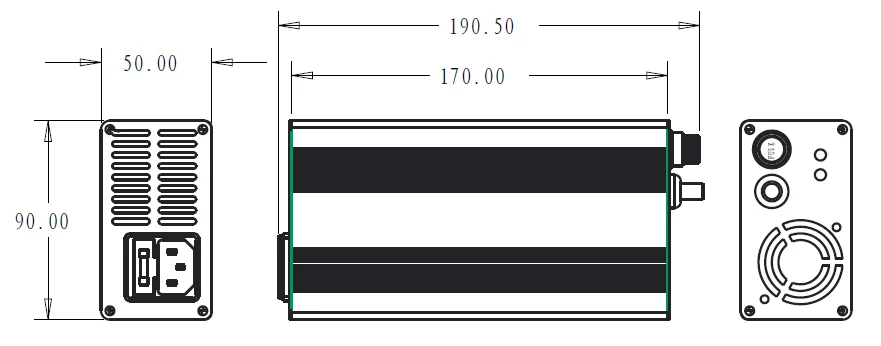

| Dimension | 170*90*50mm | Net Weight | About 3kg,±0.5kg |
| LED indicator | red and green, double color instructions, red charging green finish or standby | ||
| Protect characteristics | Short-circuit protection,Over-current protection,Over-voltage protection, Reverse polarity protection,Over temperture protection | ||
| Working conditions | 1.Ambient temperature: -5 to 40°C | ||
| 2.RH: 5-95% | |||
| 3.Maximum altitude: 2000 meters | |||
| 4.Cooling: UY series chargers use of forced air cooling system | |||
| 5.Under dustless and ventilated conditions, the full load temperature rise not exceeding 40°C | |||
| Storage conditions | 1.Ambient temperature: -40 to 70°C | ||
| 2.RH: 0-95% | |||
| 3.Maximum altitude: 10000 meter | |||
Model | Nominal Voltage | Constant Current | Switching Current | |
Li (8%) | Lead-acid (25%) | |||
1 | 12 V | 10A | 0.8 | 2.5 |
2 | 24 V | 7A | 0.56 | 1.75 |
3 | 36 V | 5A | 0.4 | 1.25 |
4 | 48 V | 4A | 0.32 | 1 |
5 | 60V | 3A | 0.24 | 0.75 |
6 | 72V | 3A | 0.24 | 0.75 |
7 | 84V | 2.5A | 0.2 | 0.63 |
Can customized other voltage and current,welcome to contact us.←Click here
Charging Curve

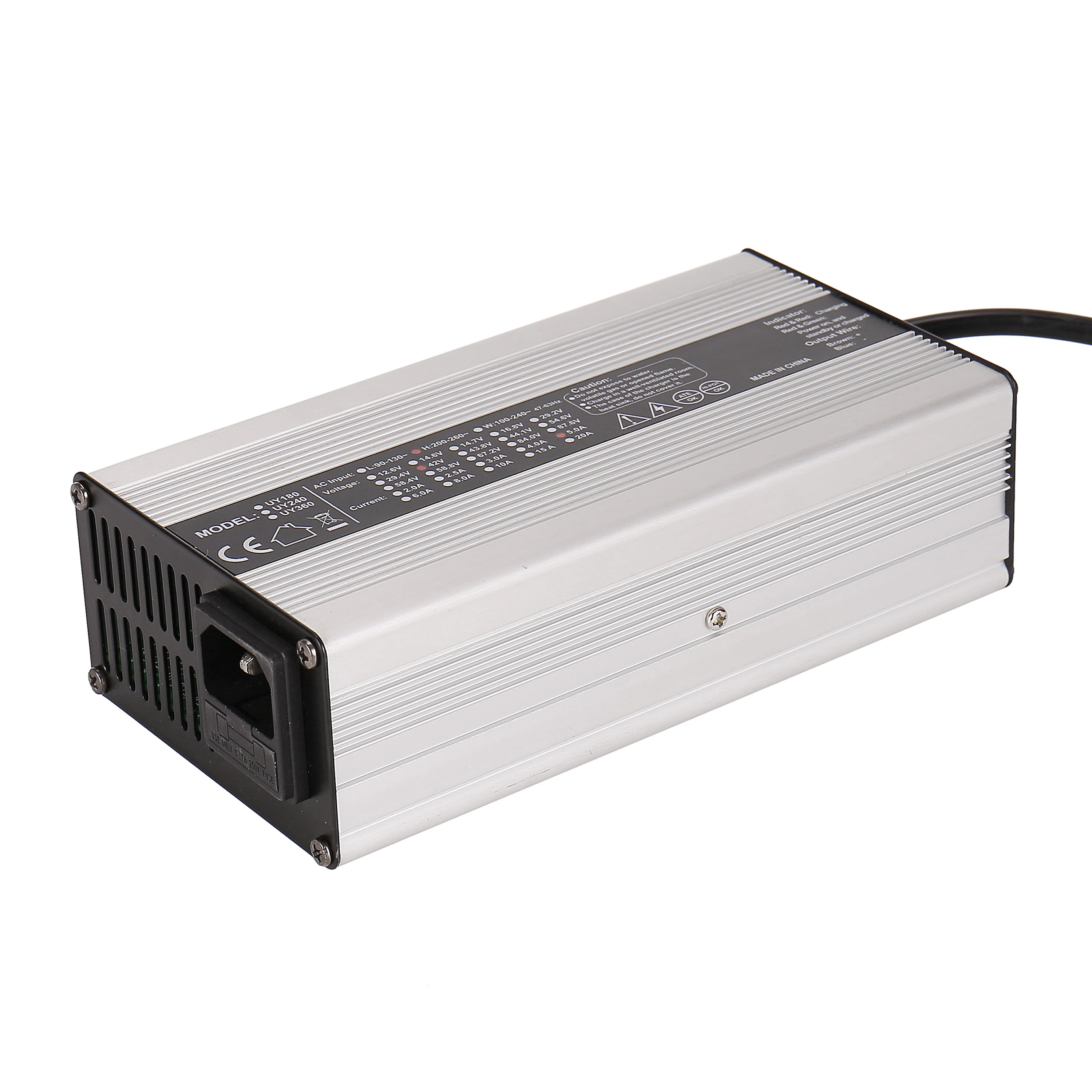

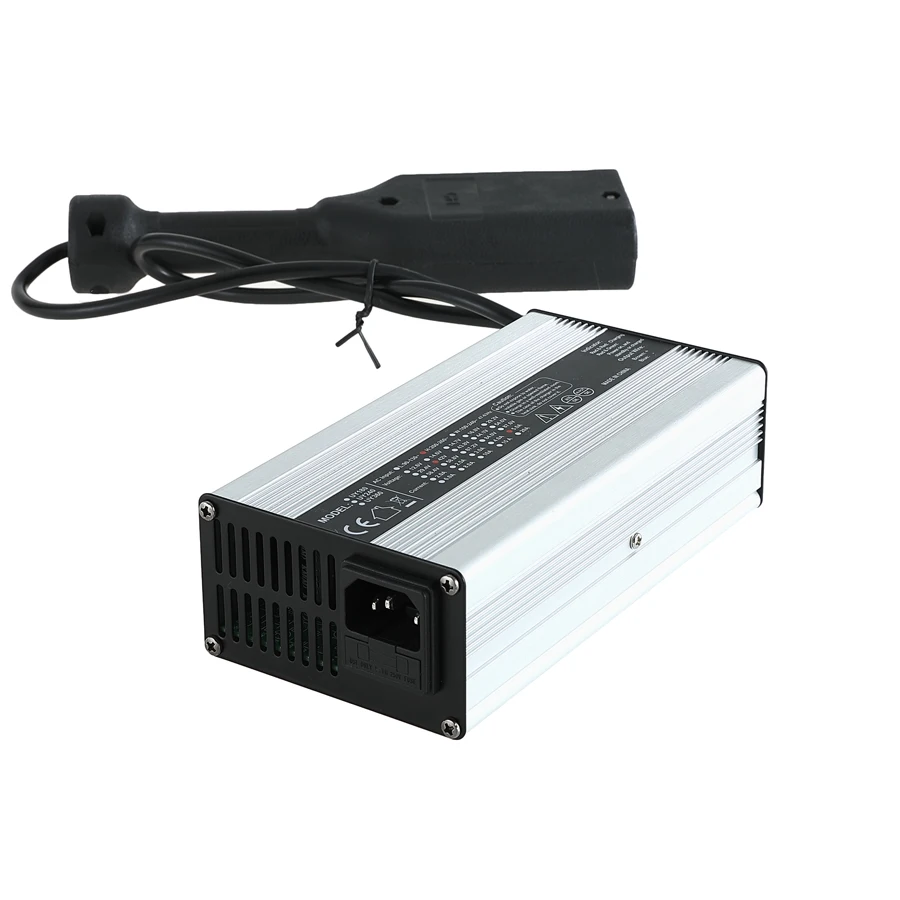

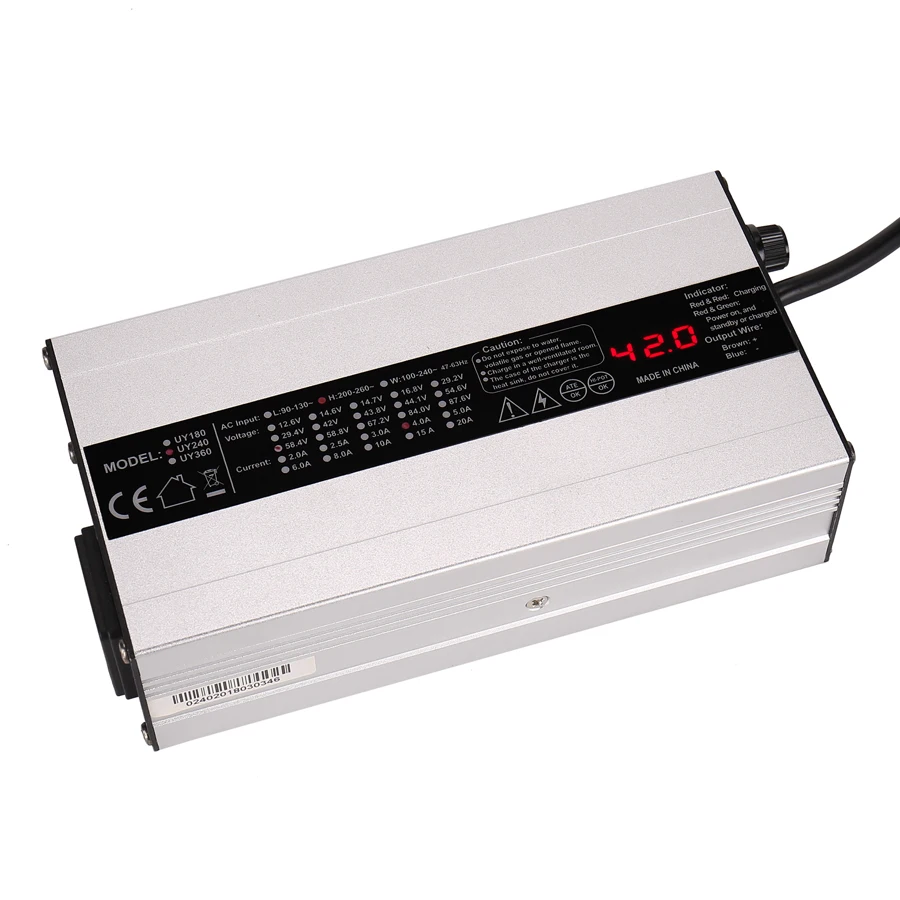

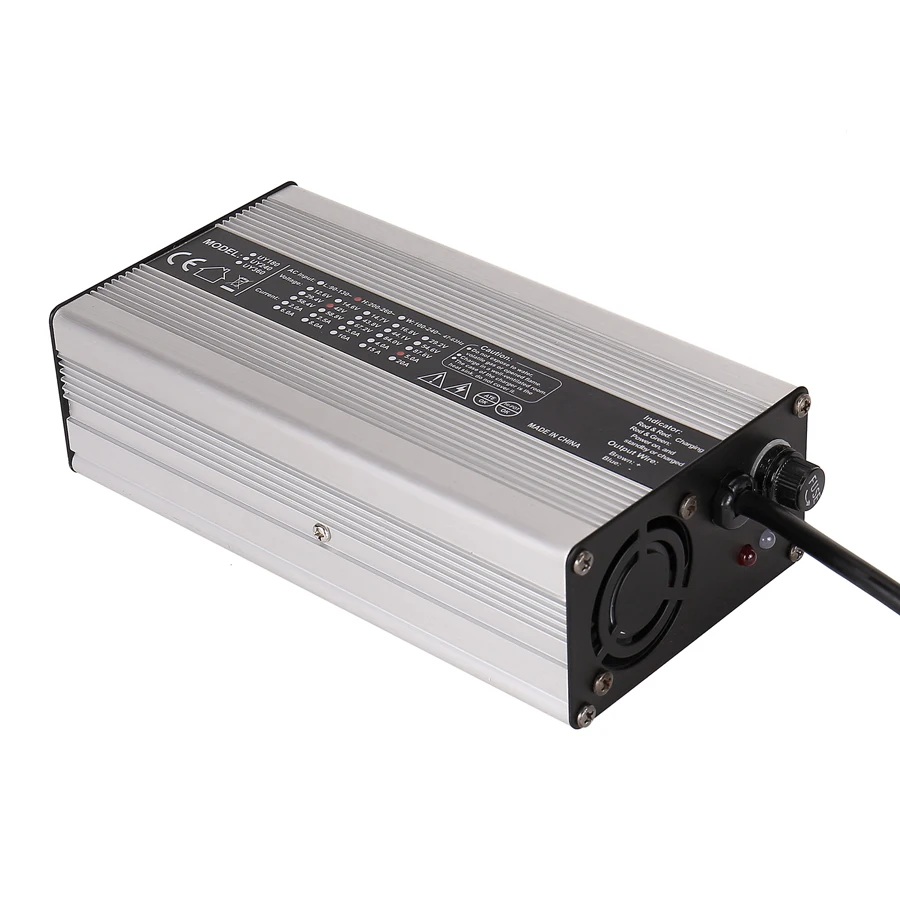

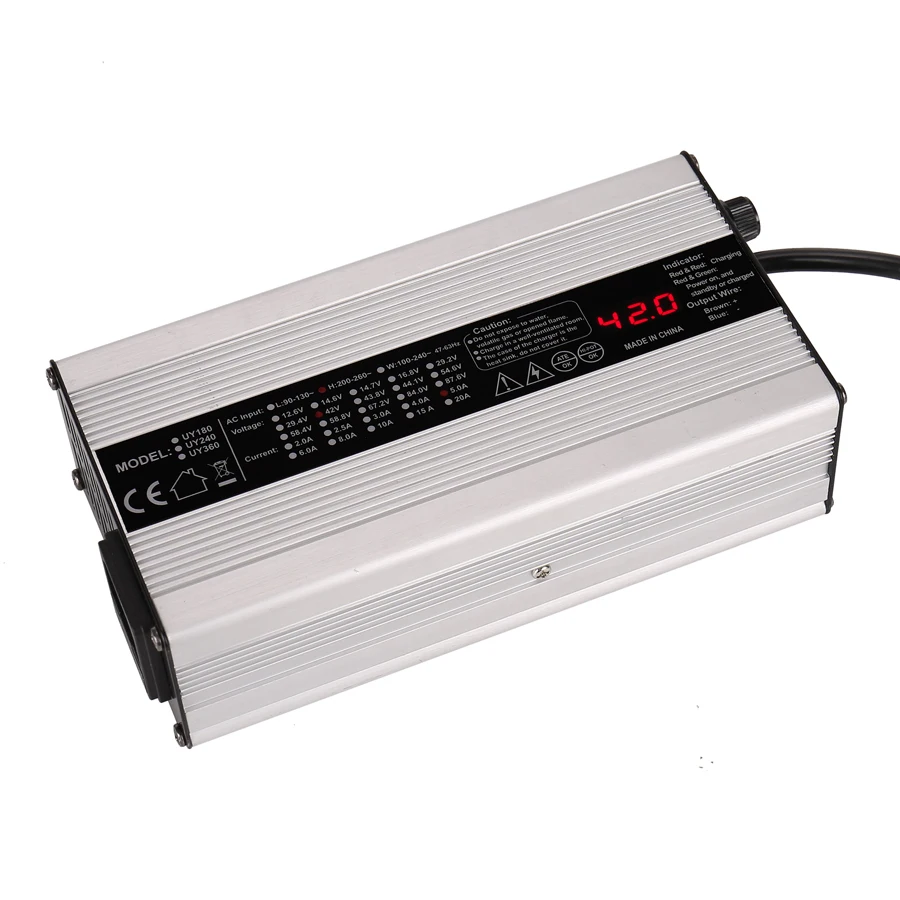

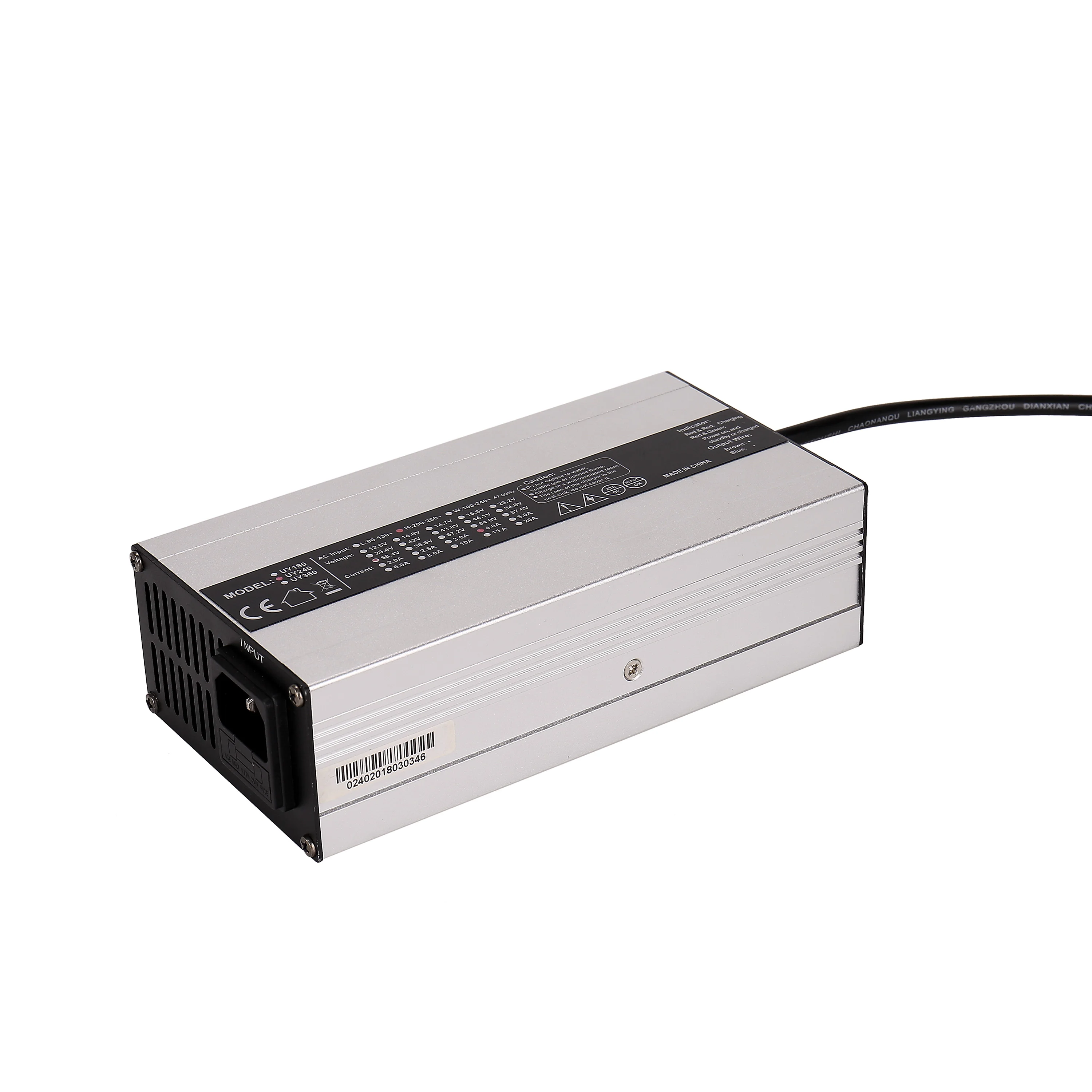

Product Images
The pictures only supply the reference, please take the actual product as the standard.

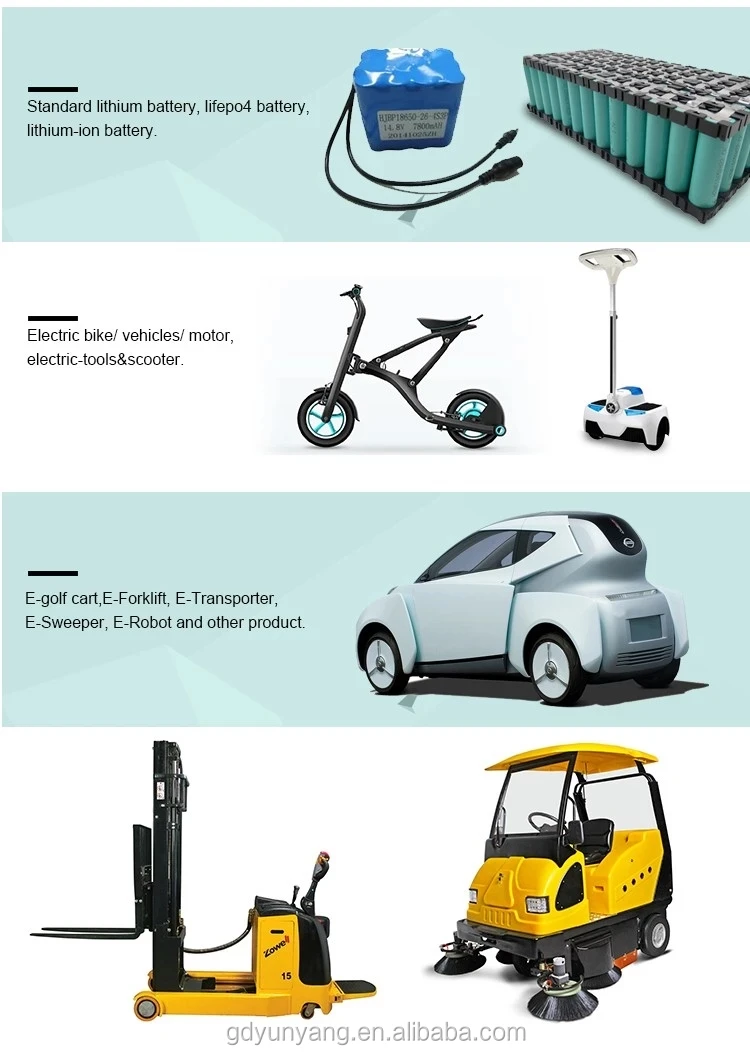

UY240 is widely uesed for: Electric bicycles, electric scooters, golf carts, electric motorcycles, electric vehicles,
unmanned aircraft, Washing machine ,electric motorcycle , two wheeled vehicle, electric tricycle ,patrol car,
sanitation vehicle, Electric cars , electric forklift , electric pallet truck, electric four wheeled vehicles, electric tools,
sightseeing cars, diplopod sweeper, etc.
Packing
Package Contents
1.UY240 battery *1 pc
2.User Manual *1 pc
3.AC Input Connector *1pc
4.Fuse*1 pairs
5.12pcs UY240 chargers in one carton,Gross Weight is about 12KG
6.Carton Dimension is 47*23*32cm
AC and DC Connector
*Below are the more common using typs of connector, we can also provide other connectors
as per customer's request to fit with the battery.

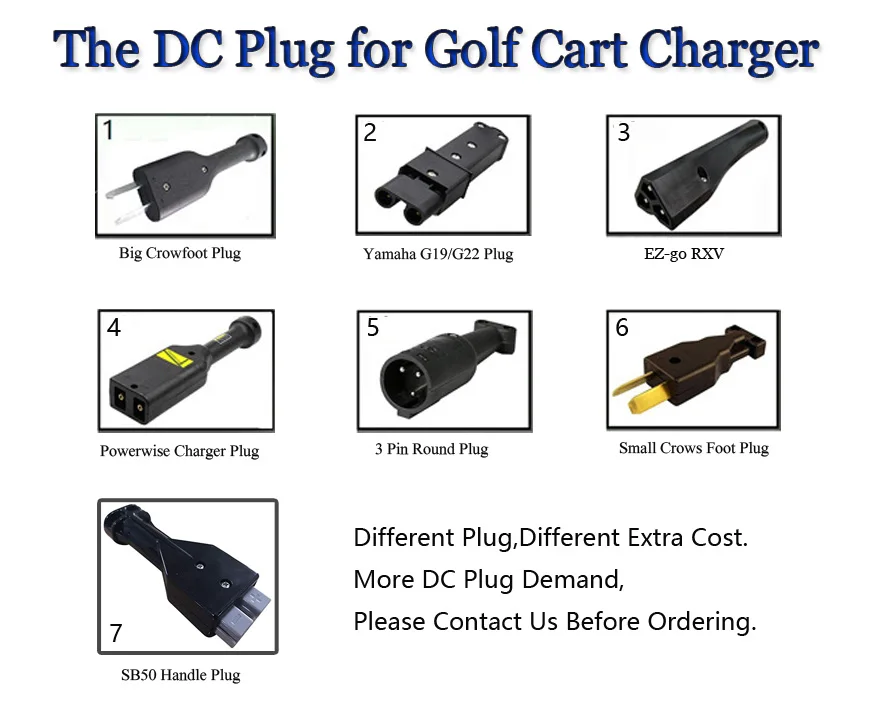

Professional DC Plug for Golf Cart
Company Information
Guangzhou Yunyang Electronic Technology Co.,Ltd,established in Nov,2005.We specialized in lithium,lifepo4 and lead acid battery chargers which are used for Ebike,Escooters,golf cart,forklift,transporter,Esweeper,E-robot and other Electric vehicles and E-tools.
Independent R&D Team with high degree and rich experience makes us have the strong ability to meet different demands from our customers.
Relative Certifications
Exhibition & Customer Visiting
Our Advantages:
1:We are factory company,which can provide competitive prices,direct technical instruct,customized pro-
duction and professional after-sales service.
2:Independent R&D Team with high degree and rich experience,which makes us have the strong ability to
meet different demands from our customers.
2:"Quality is our soul".our products are mainly for European and America high-end market,and insist on
Quality first!
3:Chargers here are high quality,intelligent,stable,portable,small size,light weight and approved by CE.
CB and ROHS.
After-sales support:
1:Quick response for any questions.
2:Responsible attitude,not just sell products.
3:Send engineer to client's loation if need.
