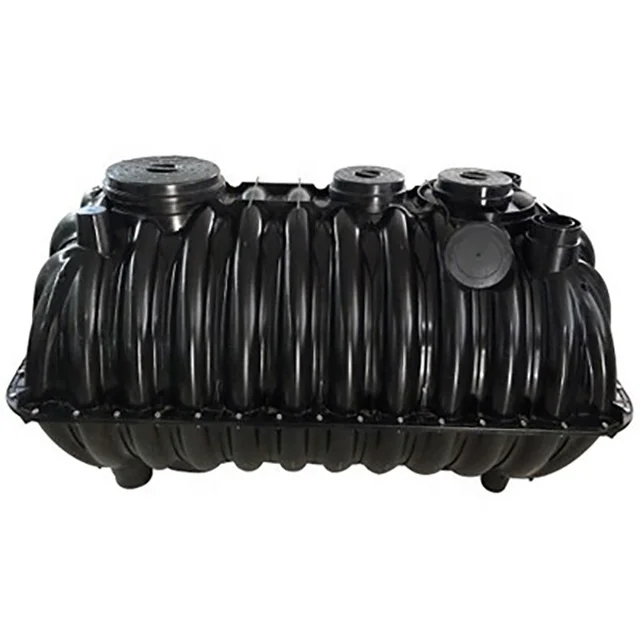

PE Septic tank for school toilet waste water treatment, plastic septic tank
- Category: >>>
- Supplier: Anhui Tianjian Environmental Protection Co. Ltd.
Share on (62341493531):
Product Overview
Description
Underground sewage lifting equipment is mainly used for the discharge of toilet sewage of kinds of buildings’ basement, such as commercial complexes, squares, subway stations, railway stations, supermarkets, shops, clubs, entertainment space, office space, and so on.
Prefabricated three compartment septic tank Prefabricated double urn septic tank
The transformation of dry latrines in rural areas is to transform the traditional latrines of rural households into clean and sanitary flushing latrines, mainly in the form of plastic prefabricated three-compartment septic tanks and prefabricated double-urn septic tanks.

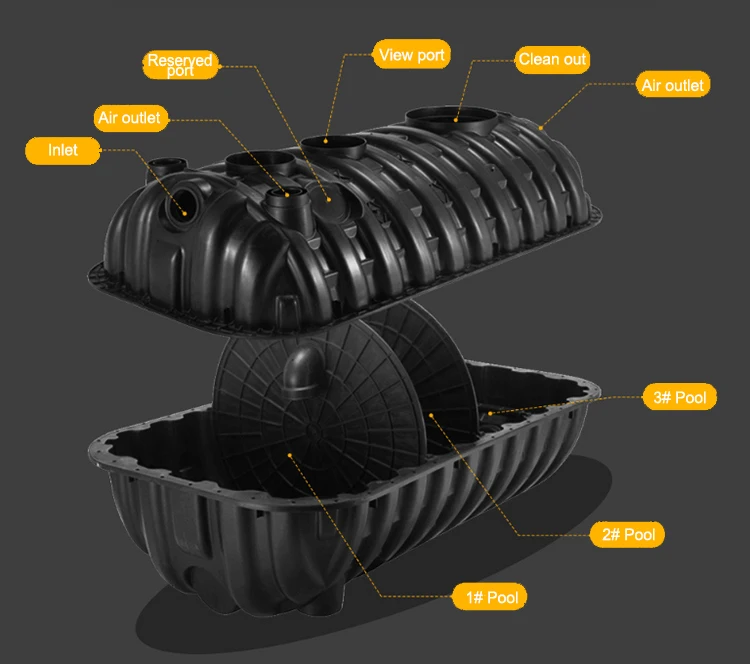

Prefabricated three-compartment septic tank is composed of the upper and lower parts of the urn body assembly, the main volume is divided into 1.0m3, 1.2m3, 1.5m3, there are partitions, the composition of the septic tank is divided into three parts, the diaphragm with connector assembly. The primary function of the separated first chamber is storage and buffering. The role of the second chamber is anaerobic digestion, the use of closed environment to assist anaerobic bacteria corrosion for accelerate the decomposition of feces; The third chamber is mainly used to store the fecal fluid and dung residue after the reaction of the second chamber, and it is extracted once every other period. Generally, only the third chamber is extracted during extraction. In addition to the septic tank urns, the accessories stipulated by the industry generally include squatting urinals, flushing buckets, deodorizers, dung pipes, exhaust pipes and so on.
The structure of the prefabricated double-urn septic tank is composed of two pairs of four identical circular bodies (similar to the shape of paper cups), which are connected by dung pipes to form a complete set, with volumes of 1.0m3 and 1.2m3. Accessories include squatting toilet, flush bucket, deodorizer, dung pipe, exhaust pipe, etc.
Product and instructions: the front urn septic tank is used for receiving and storing excrement and remains valid for more than 40 days. The feces were fully anaerobic fermentation and stratified by precipitation in the front urn. Eggs, pathogens gradually die to achieve the basic harmless requirements; After urn septic tank is mainly to store dung liquid. After digestion and fermentation in the front urn septic tank, the decayed stool liquid flows into the after urn septic tank through the connecting tube, containing a large amount of ammonia, which can be used as high quality fertilizer.
Rural sewage treatment projects, such as the new countryside and beautiful countryside
Residential areas, schools, hospitals, nursing homes, scenic spots and other domestic sewage treatment facilities
Residential buildings, hotels, restaurants, stations and other domestic sewage treatment facilities
Military barracks, aerospace, industrial and mining enterprises and other living areas sewage treatment support
Standard for sanitation of rural toilets GB 19379-2012
Plastic septic tank CJ/T 489-2016
Measures for the management of toilet improvement in rural areas (trial) [2009] no. 4
Technical specifications for toilet improvement in rural areas (trial) [2009] no. 4
Implementation plan for integrated improvement of rural waste and sewage toilets and accelerated improvement of rural living environment [2017] no. 27,
Technical requirements for prefabricated septic tanks - part 1: format 3 DB34/T 2978.1-2017
Technical requirements for prefabricated septic tanks - part 2: dual urn type DB34/T 2978.2-2017
Technical guidelines for rural toilet improvement in anhui province (trial), June 2017
Prefabricated three compartment septic tank
1. Good anti-seepage performance: it is made of PE acid-alkali and corrosion-resistant raw materials by injection molding at one time, which will not be fracture damage caused by foundation settlement and the phenomenon of solidified scum layer in the pool;
2, high compressive strength: reasonable structure design, uniform compression, > 200 cycle test, the upper roller compaction does not settlement, no deformation;
3. Strong treatment effect: compartments were set, graded fermentation was conducted, upper and lower staggered layers were designed, the original direct flow was changed to circulation type flooding, the matrix was transferred smoothly, and the effect of fecal sewage treatment was more than 2 times higher than the tradition;
4, Cover a small area: the area is only about 45% of the brick and concrete septic tank, saving land resources;
5. Good operability: it can be freely combined according to the site, simple installation and fast construction;
6. Low comprehensive cost: the comprehensive cost is 80% of the reinforced concrete structure, with high economy and environmental protection recommended products;
7, long service life: resistant to moisture, acid and alkali, oxidation, high temperature without deformation, durable, normal service life > 50 years.
8, good social benefits: PE septic tank USES thermoplastic plastic, if the replacement is recyclable, in line with circular economy and environmental protection industry management requirements.

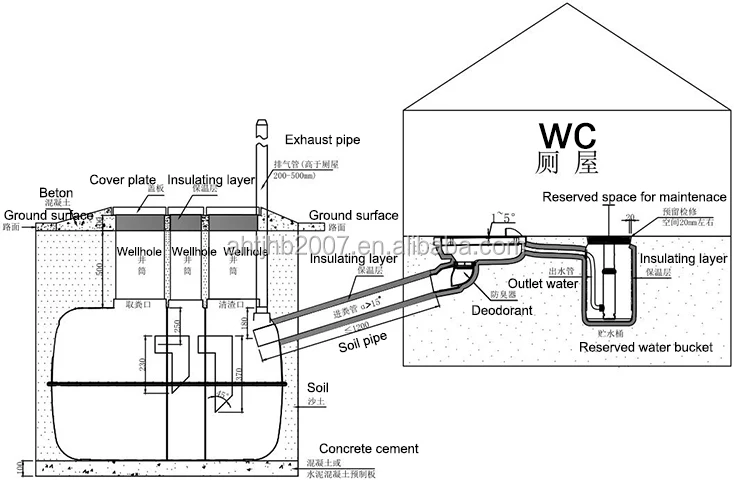

Install show
Performance parameter
| Model | Volume (m3) | Dimension (mm×mm×mm) | minimum wall thickness (mm) | weight (kg) | Load weight (t) |
| TJST-1.0T | 1.0 | 1796×974×930 | ≥3 | 34 | 1.04 |
| TJST-1.2T | 1.2 | 1920×1020×1065 | ≥3 | 41 | 1.25 |
| TJST-1.5T | 1.5 | 2030x1100x1140 | ≥3 | 49 | 1.55 |
| TJST-2.0T | 2.0 | 2350x1200x1170 | ≥3.8 | 82 | 2.09 |
| TJST-2.5T | 2.5 | 2750x1210x1180 | ≥7 | 129 | 2.63 |

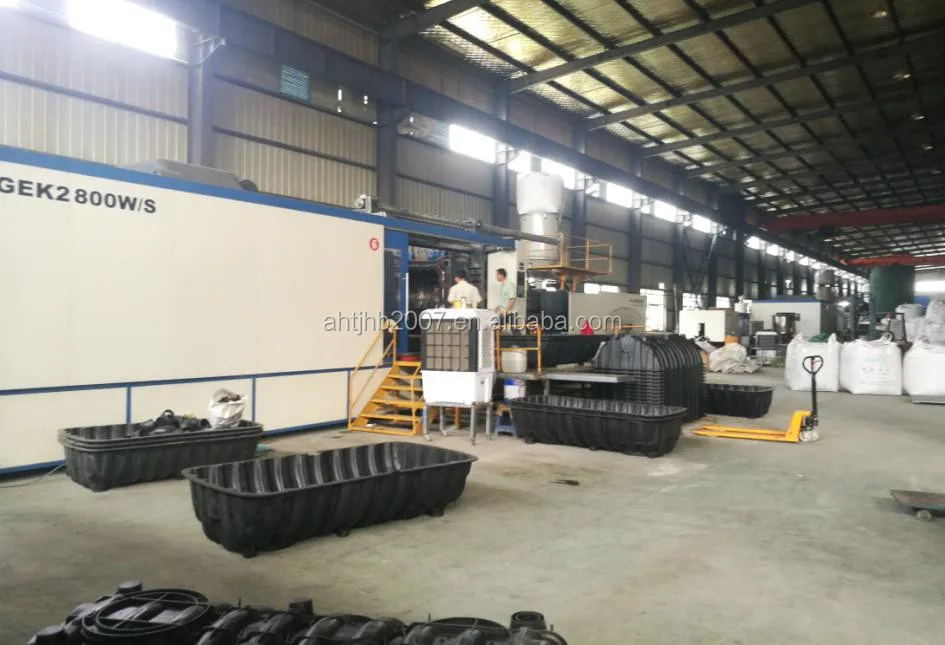

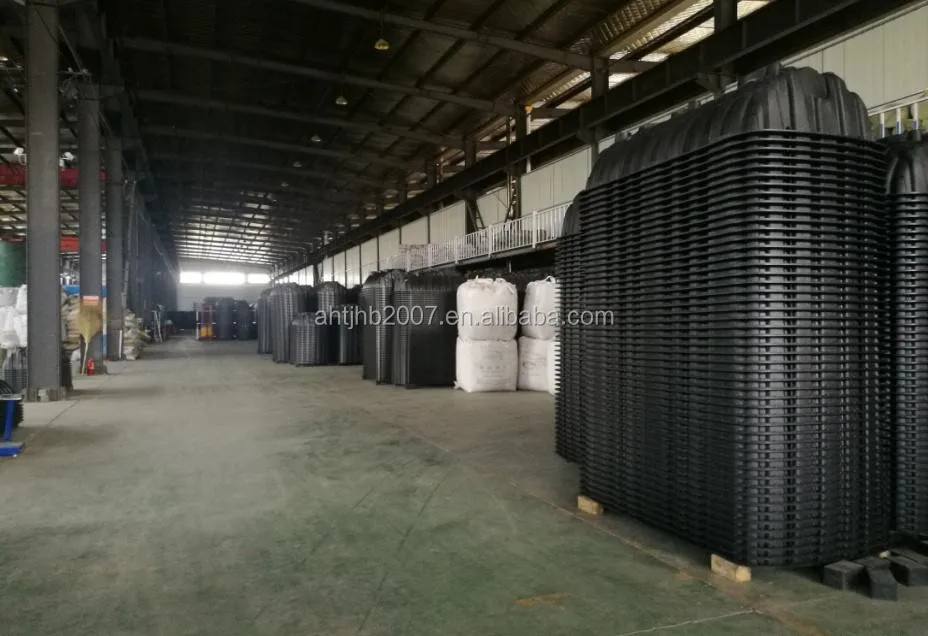

Workshop Show

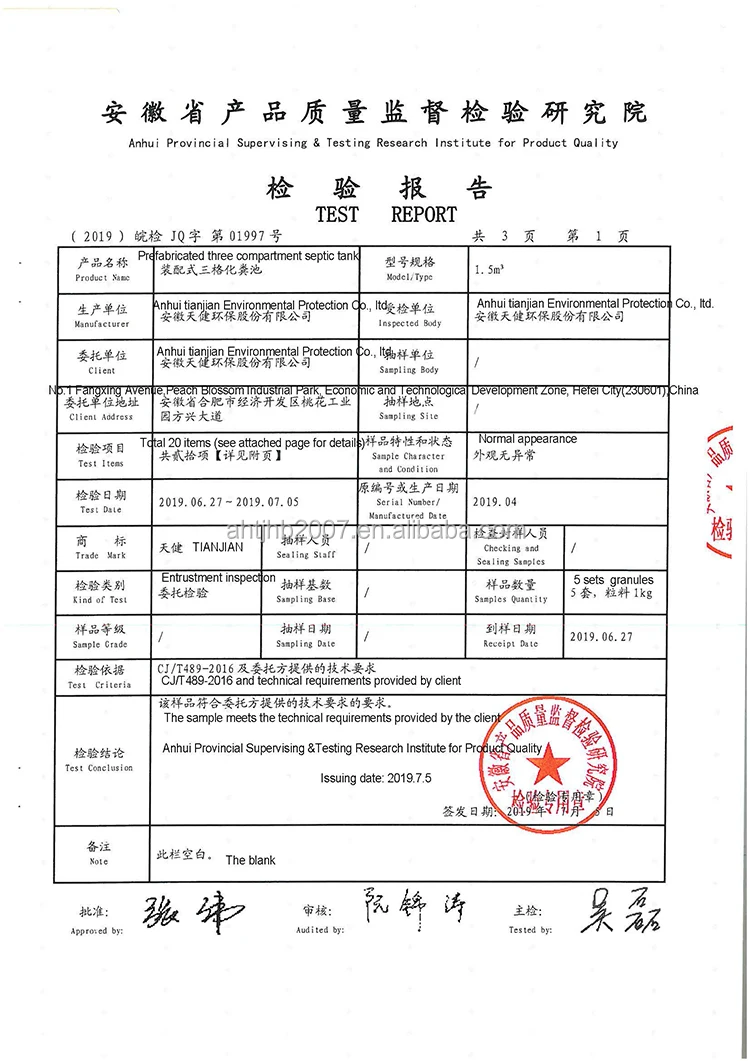

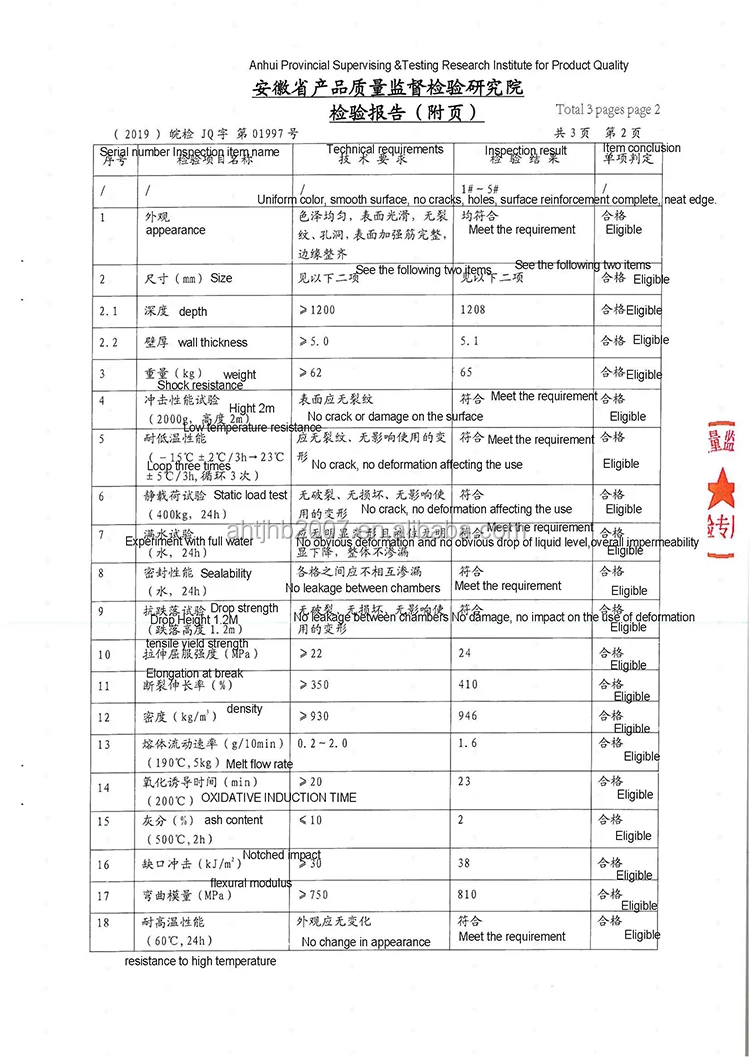

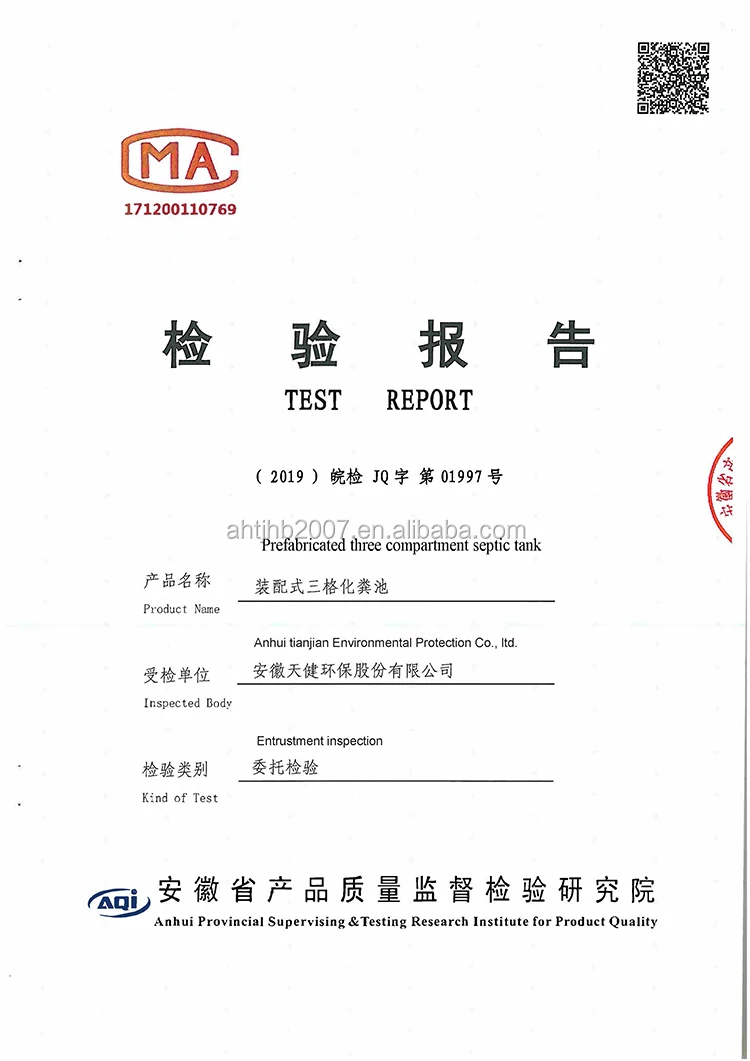

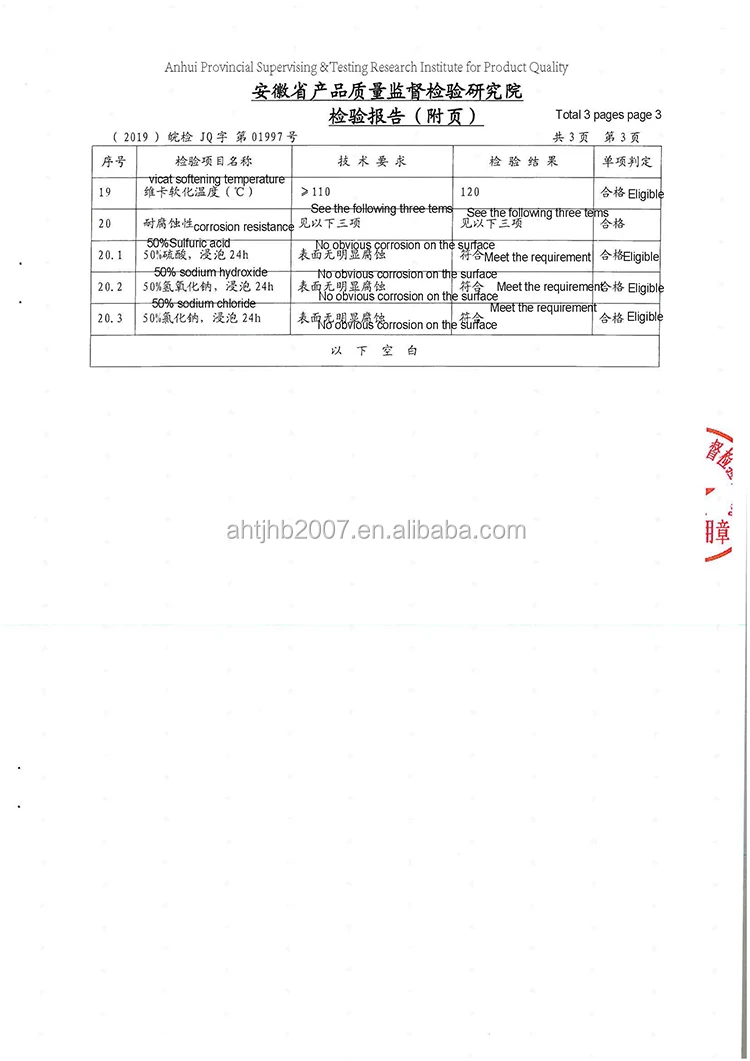

CERTIFICATIONS
