CNC double spindles boring and dowel insertion fitting machine
- Category: Wood Boring Machines >>>
- Supplier: Shanghai Tallntech Machinery Manufactory Co. Ltd.
Share on (62341833700):
Product Overview
Description
Product Description
woodworking CNC boring machine with multi vertical and horizontal boring spindle and scanning gun
Model | NDC011D1 |
Working length | 50-1200mm |
Working thickness | 10-40mm |
Working mode | Scanning / setting |
Dowel insertion Qty | 1pcs/time |
Spacing of drills | 32mm * 3 drills (NC spindle ) |
Operation mode | Touch computer |
Boring spindle quantity | 1pcs horizontal + 1pcs vertical |
Total power | 9.1kw |
Machine weight | 2800kg |
Machine size | 2800*1740*2100mm |

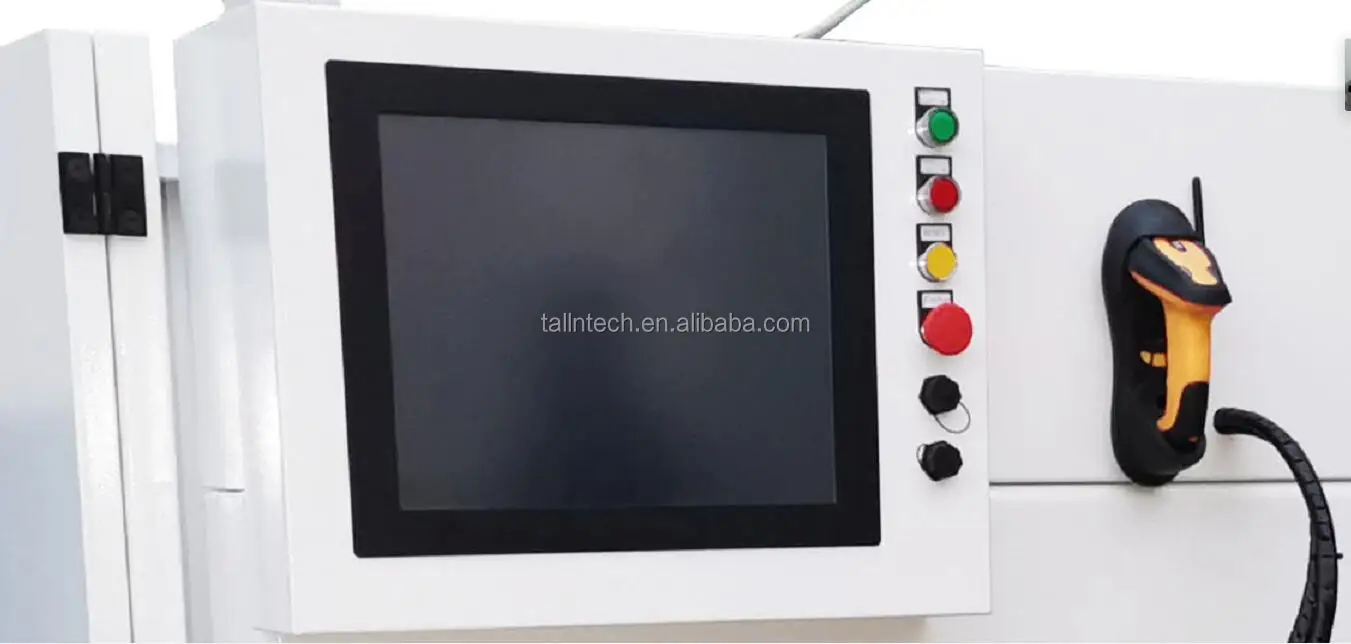

computer with touch screen
woodworking CNC boring machine with multi vertical and horizontal boring spindle and scanning gun
machine control with computer touch screen, easy to operate and get the machine working details. The machine error feedback in the computer for easy to resolve.

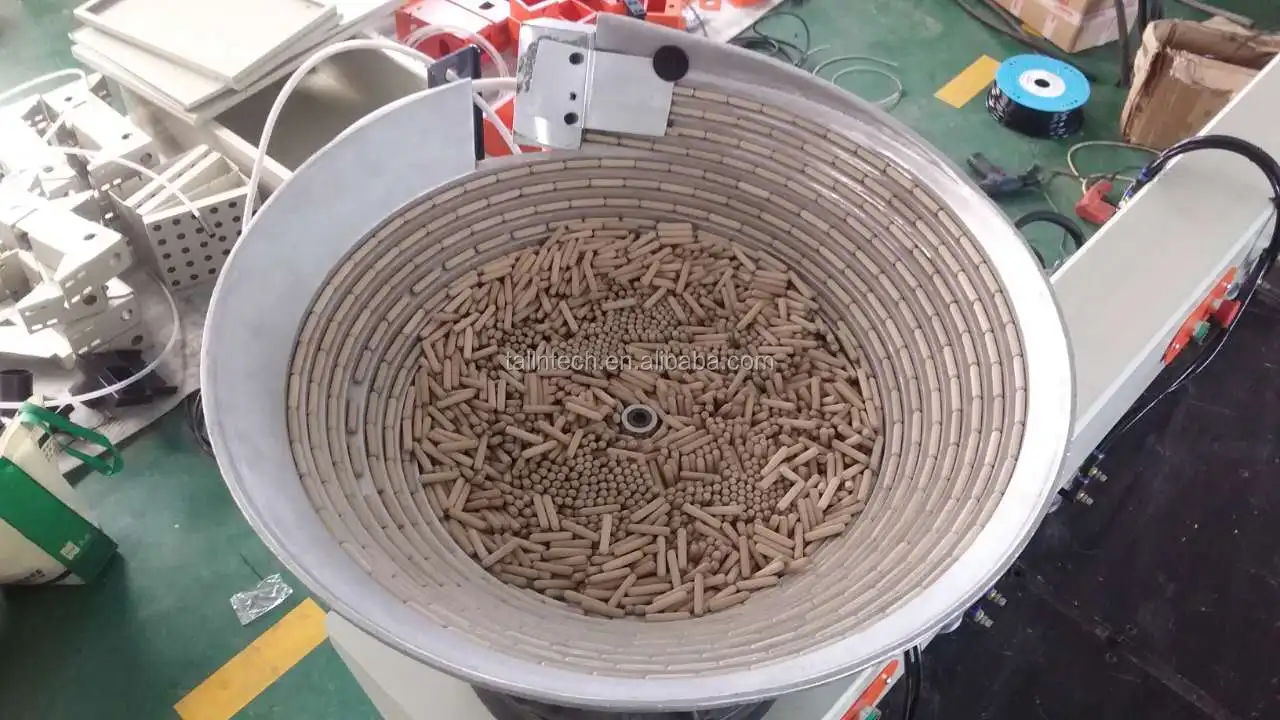

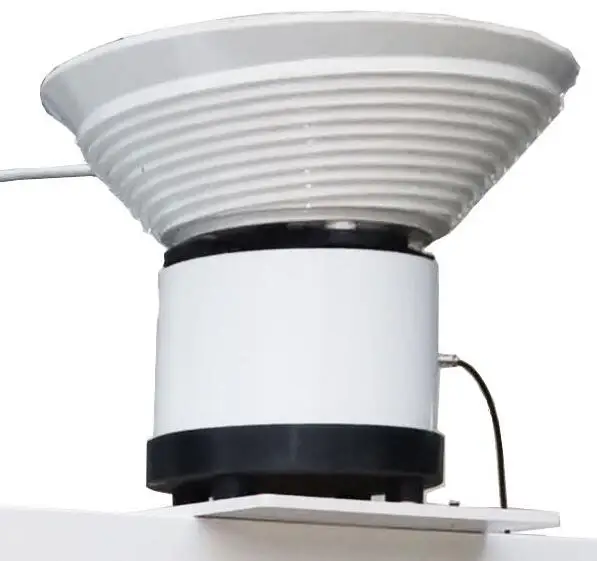

Automatic dowel feeding stock
woodworking CNC boring machine with multi vertical and horizontal boring spindle and scanning gun
Automatic dowel feeding stock can feeding 4pcs dowels together. dowel diameter have 5mm, 6mm, 8mm, 10mm for choice.

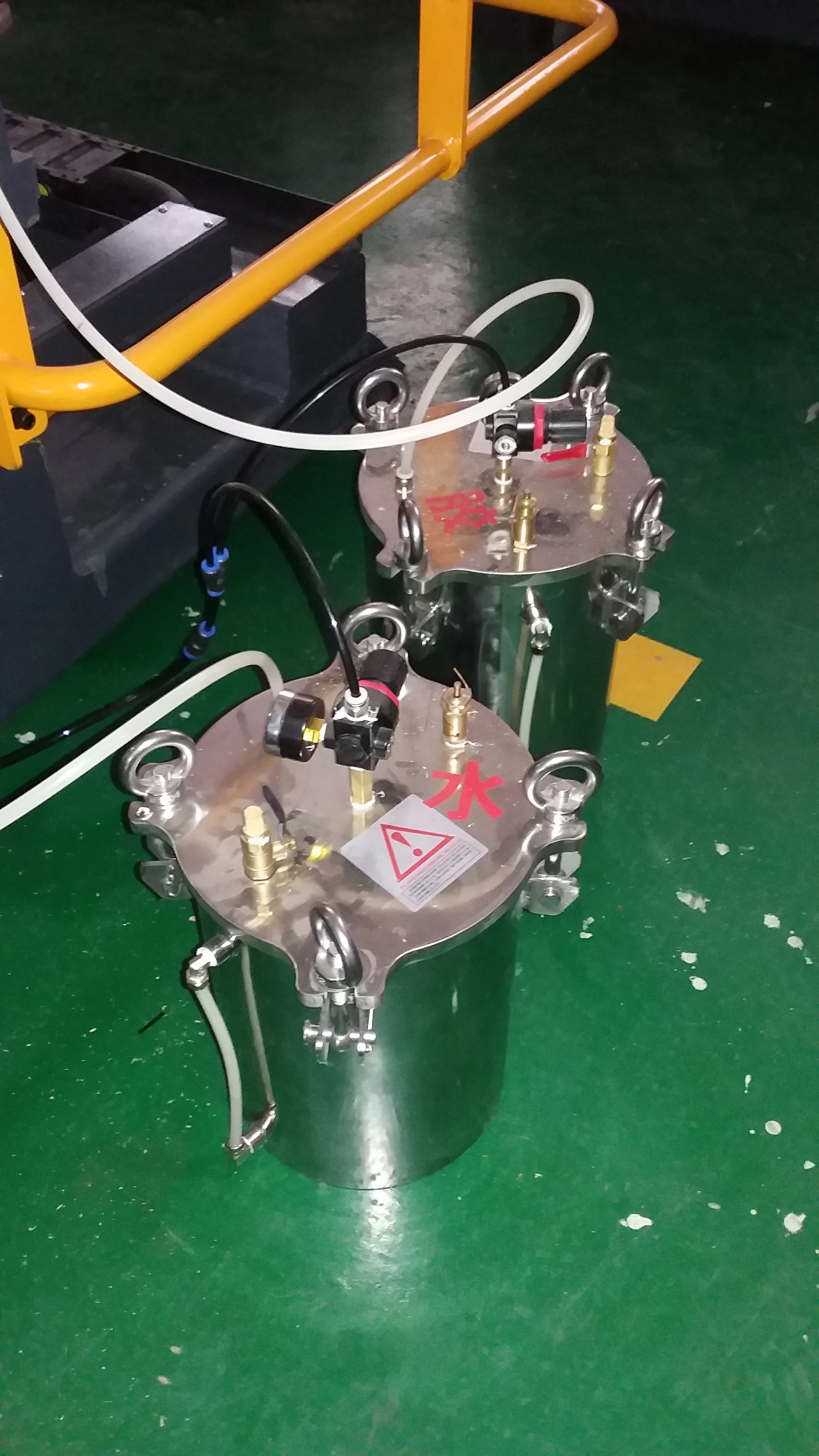

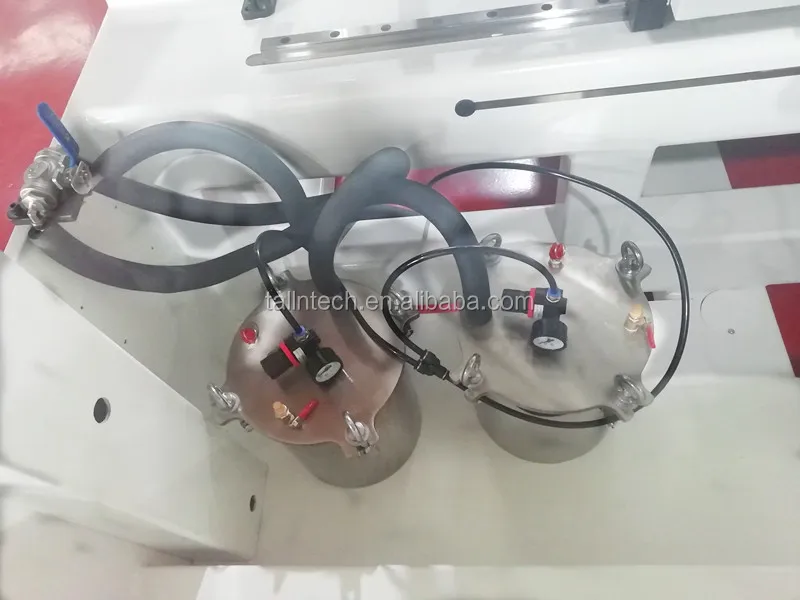

Glue/water tank
woodworking CNC boring machine with multi vertical and horizontal boring spindle and scanning gun
There are glue tank and water for choice. Water tank for glue coated dowel. Glue tank for normal dowel. You can adjust the flow as per the hole depth and diameter.

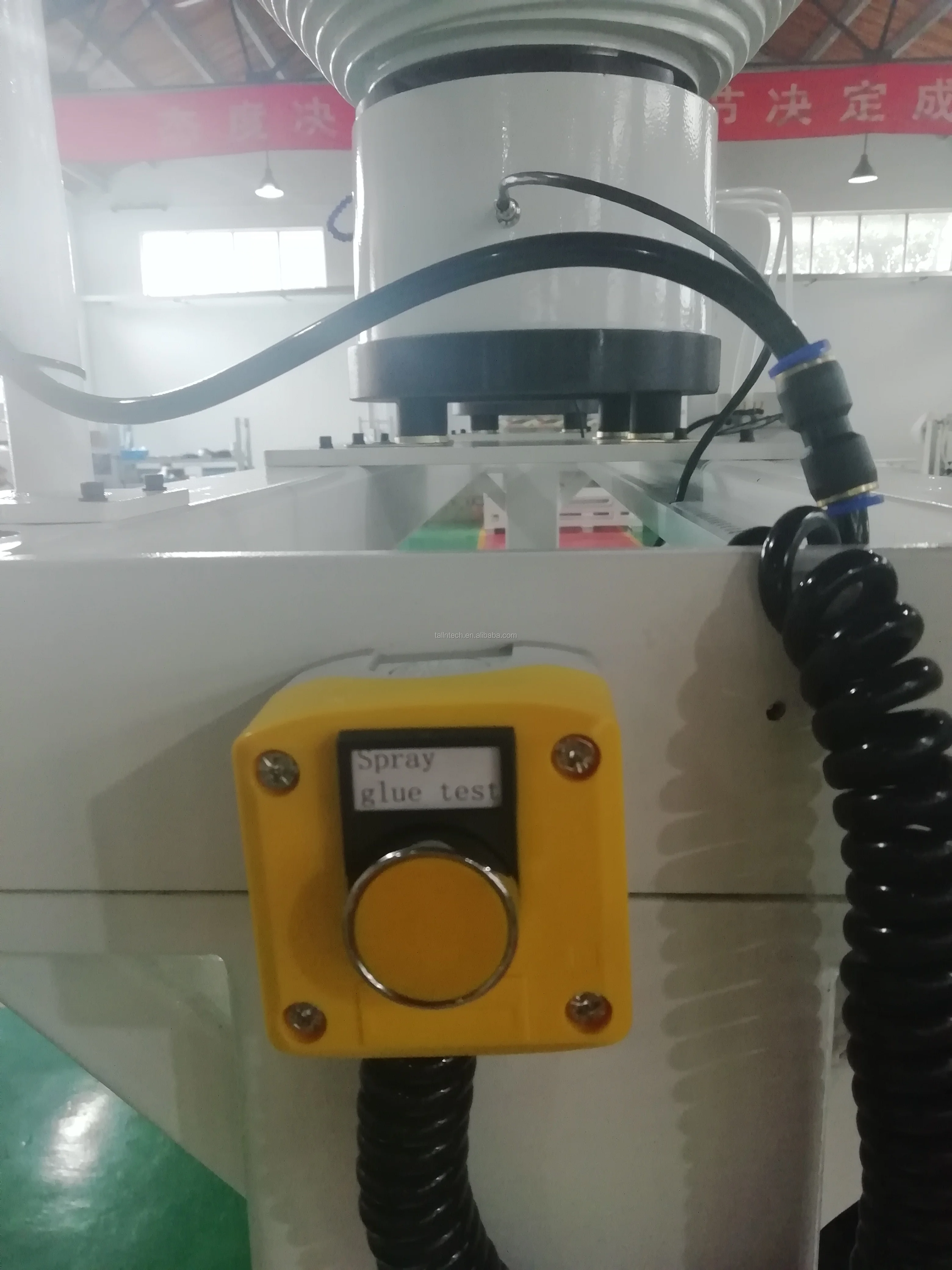

Manual gluing button
woodworking CNC boring machine with multi vertical and horizontal boring spindle and scanning gun
The guling button for guling test and cleaning the gluing unit. Before time off and turn off machine, turn the glue tank to water tank, press the button to clean the parts.

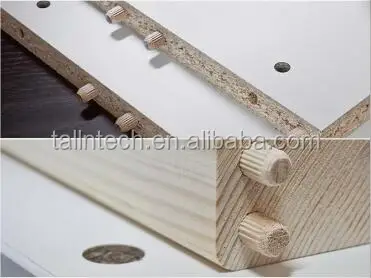

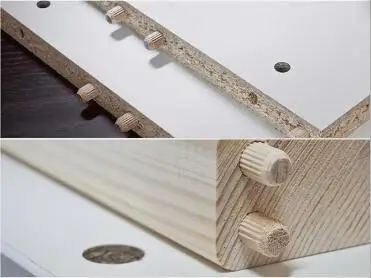

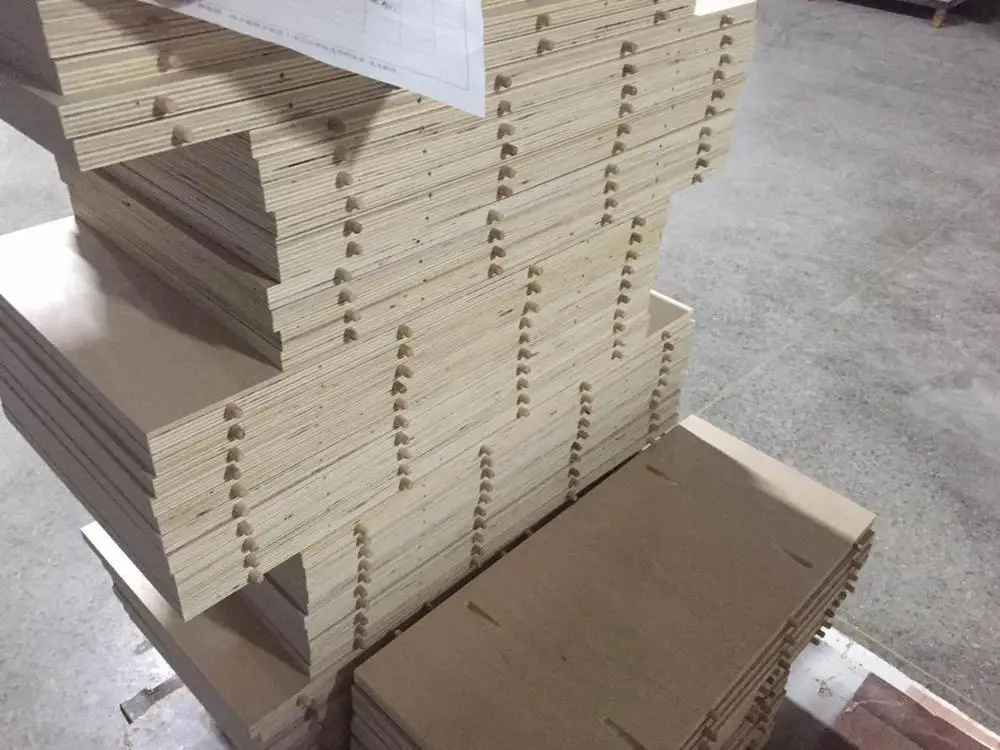

dowel and drilling sample
woodworking CNC boring machine with multi vertical and horizontal boring spindle and scanning gun
You can choose one row or two rows drilling and dowel insertion mode.

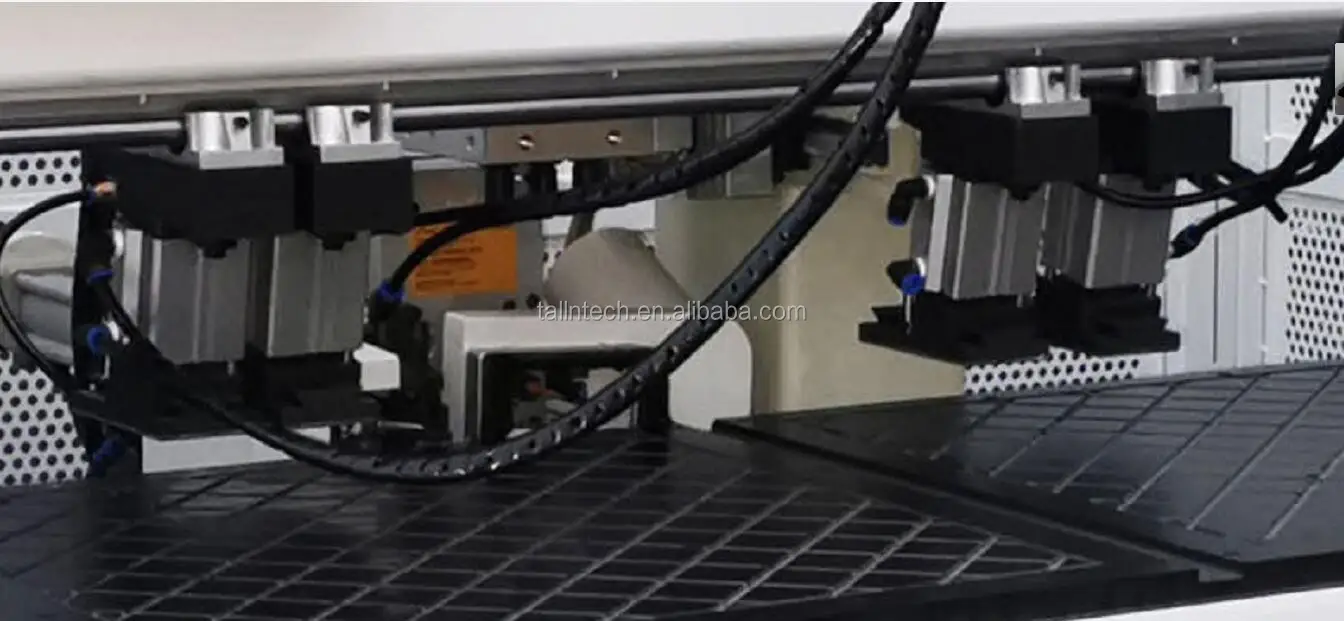

Two working stations
Big panel work full the table, small panel can choose two working tables
Detailed Images

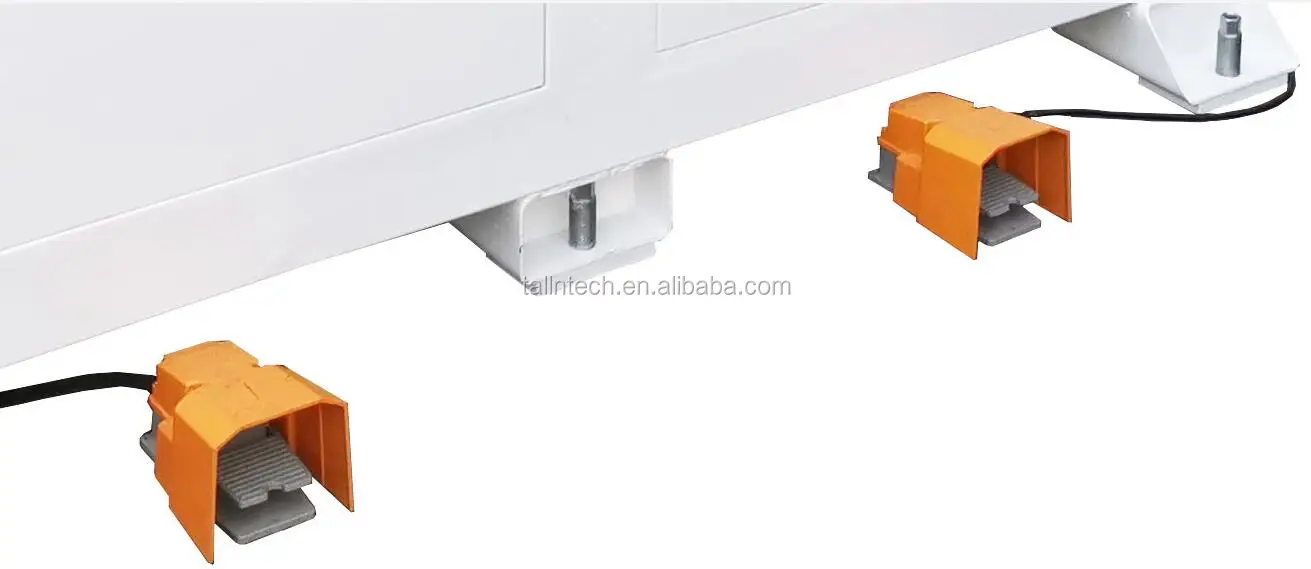

Foot controller
Machine with foot controller easy to Start and Stop working.
Related Products
Packing&Shipping
Different package with different loading requirements or customers' requirements. Automatic stock pneumatic feeding and returning high speed double end narrow panel boring machine with 5 rows 3 sides drilling for drawer and small panel
After Sales Service
After service
1. One year warranty on right operation except wearing parts, consumable parts and plastic parts.
2. Offer installation and trainning oversea, buyer need afford supplier's technician tickets and accommodation oversea.
3. Within warranty, all the parts delivery charge offord by buyer.
4. We supply online service from 8am to 5pm every working day.
5. Welcome customer come to our company to do trainning.
Company Introduction
Shanghai TALLNTECH Machinery Manufacturer Co.,ltd is a professional company engaged in R&D production of Acrylic diamond polishing machine, multi function NC boring sawing and dowel insertion machine, high speed double end boring and dowel insertion machine, narrow panel high speed four sides boring machine, NC horizontal and vertical boring with dowel insertion machine, drawer panel high efficient boring machine, side boring machine, bed baffle panel boring machine, high speed double end bed panel stapling machine, five sides bevel boring machine , automatic double sided brush panel cleaning machine etc.
FAQ
Automatic stock pneumatic feeding and returning high speed double end narrow panel boring machine with 5 rows 3 sides drilling for drawer and small panel
Touch screen operation language
Our machine have two kinds of languages Chinese and English for your choice. Automatic stock pneumatic feeding and returning high speed double end narrow panel boring machine with 5 rows 3 sides drilling for drawer and small panel
User Manual
We also have two languages Chinese and English User manual for your choice. Automatic stock pneumatic feeding and returning high speed double end narrow panel boring machine with 5 rows 3 sides drilling for drawer and small panel
Any requirements or questions about machine please contact us
Automatic stock pneumatic feeding and returning high speed double end narrow panel boring machine with 5 rows 3 sides drilling for drawer and small panel
