Product Overview
Description
Product Description

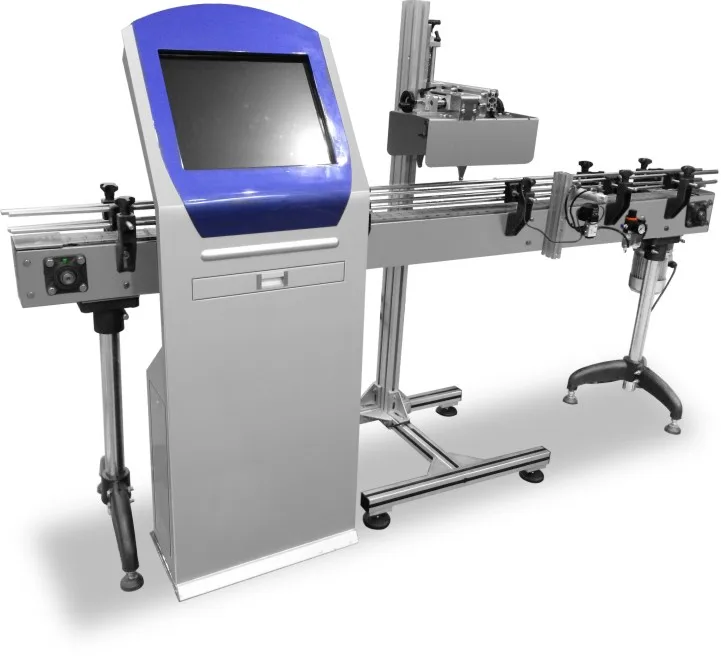

The basic principle of the vacuum detector produced by our company is: If the vacuum degree inside the can (bottle) is different, the appearance deformation of the can (bottle) lid is also different. The machine uses precise components to detect the tiny deformation of the lid. After the data is automatically processed by the computer, it can be immediately analyzed whether the product meets the required vacuum degree. The product that doesn’t reach the vacuum degree will be immediately pushed out of the conveying chain by the rear cylinder. Therefore, the equipment can carry out dynamic online detection on the conveyor belt and automatically remove those cans (bottles) that haven’t reached the set “vacuum” or “inner pressure” after detection.
This machine is suitable for two-piece aluminum cans, three-piece iron cans, glass bottles and other combined vessels. Its operation is simple and highly efficient. Its key components are German and Japanese products. It is the first high-tech product in China and the only substitute for imported products. It has been widely used in many beverage factories and canneries in recent years.
This machine is suitable for two-piece aluminum cans, three-piece iron cans, glass bottles and other combined vessels. Its operation is simple and highly efficient. Its key components are German and Japanese products. It is the first high-tech product in China and the only substitute for imported products. It has been widely used in many beverage factories and canneries in recent years.
Main features
1、Touch screen and key operation, data storage of arbitrary tank type, online data analysis, automatic correction and synchronously rejection.
2、Power loss protection, integrated counter and other multi-layer protection measures.
3、It can effectively reduce the errors caused by the vibration of conveyor belt, the variation of height and diameter of can or bottle, so the errors are very small and the repeatability is good, it is very easy adjust if the tank type needs to be changed.
4、Precision laser line positioning system, 500 containers per minute (high speed type) and 300 or less containers per minute (ordinary type) unlimited tank type.
5、Any container, whether iron, aluminum, glass bottle, aluminum platinum seal, or plastic can, can be inspected as long as the caliber is above 25mm.
6、It can be detected as long as the temperature is stable below 95 degree centigrade, and only takes up 50cm length of the conveyor belt.
2、Power loss protection, integrated counter and other multi-layer protection measures.
3、It can effectively reduce the errors caused by the vibration of conveyor belt, the variation of height and diameter of can or bottle, so the errors are very small and the repeatability is good, it is very easy adjust if the tank type needs to be changed.
4、Precision laser line positioning system, 500 containers per minute (high speed type) and 300 or less containers per minute (ordinary type) unlimited tank type.
5、Any container, whether iron, aluminum, glass bottle, aluminum platinum seal, or plastic can, can be inspected as long as the caliber is above 25mm.
6、It can be detected as long as the temperature is stable below 95 degree centigrade, and only takes up 50cm length of the conveyor belt.
Service
Pre-Sales Service
* Inquiry and consulting support.
* View our Factory.
* View our Factory.
After-Sales Service
* Engineers available to service machinery overseas.
* Field installation, commissioning and training.
* Field maintenance and repair service.
* Field installation, commissioning and training.
* Field maintenance and repair service.
Size Information
Main technical parameters
Model | XWZJ400 |
Production capacity | 0-400cans/min |
Power | 500w |
Weight | 60kg |
Dimension | 1200*800*1400mm |
Company Introduction
Zhejiang NewWay Food Machinery Co., Ltd. is located in Zhoushan, the Oriental Pearl City Thousand Island City. It is 16 kilometers away from Mount Putuo airport. There are multiple flights to and fro Shanghai international airport everyday, 98 kilometers away from Ningbo Lishe airport, the traffic is very convenient.
The company is mainly engaged in the design and manufacture of beverages, canning machine and sealing machine packed with tinplate, aluminum, plastic and paper materials, as well as related products. Undertake the whole production line of easy-to-open beverage (including steam, non steam), sauce filling and sealing production line, Babao porridge canning, food, fruit and vegetable canning production line, etc.
The company fully uses CAD and CAM to design products. It is in a leading position in the field of filling and sealing equipment for canned food and beverage in China. The company specializes in the production of high-speed canning filling and sealing units and production lines, which make due contributions to the localization of similar imported equipment, reduce investment costs in the food and beverage industry, improve labor productivity of enterprises, and promote the rapid development and growth of the industry.
The company relies on strong technical force and effective technical guarantee, flexible business philosophy and quality service, advanced manufacturing technology, excellence in product quality and good reputation, to serve the vast number of new and old customers and welcome friends from all walks of life to visit and patronize.
The company is mainly engaged in the design and manufacture of beverages, canning machine and sealing machine packed with tinplate, aluminum, plastic and paper materials, as well as related products. Undertake the whole production line of easy-to-open beverage (including steam, non steam), sauce filling and sealing production line, Babao porridge canning, food, fruit and vegetable canning production line, etc.
The company fully uses CAD and CAM to design products. It is in a leading position in the field of filling and sealing equipment for canned food and beverage in China. The company specializes in the production of high-speed canning filling and sealing units and production lines, which make due contributions to the localization of similar imported equipment, reduce investment costs in the food and beverage industry, improve labor productivity of enterprises, and promote the rapid development and growth of the industry.
The company relies on strong technical force and effective technical guarantee, flexible business philosophy and quality service, advanced manufacturing technology, excellence in product quality and good reputation, to serve the vast number of new and old customers and welcome friends from all walks of life to visit and patronize.
