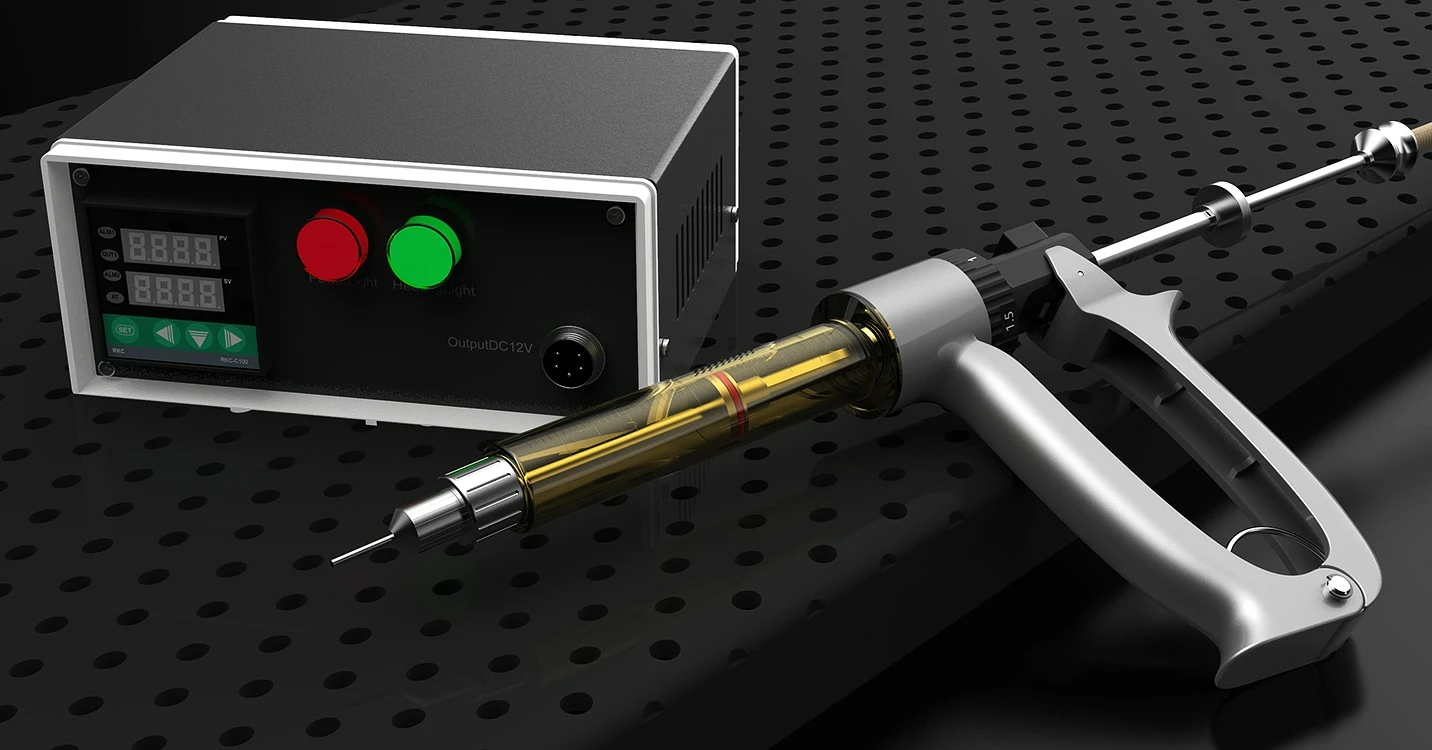

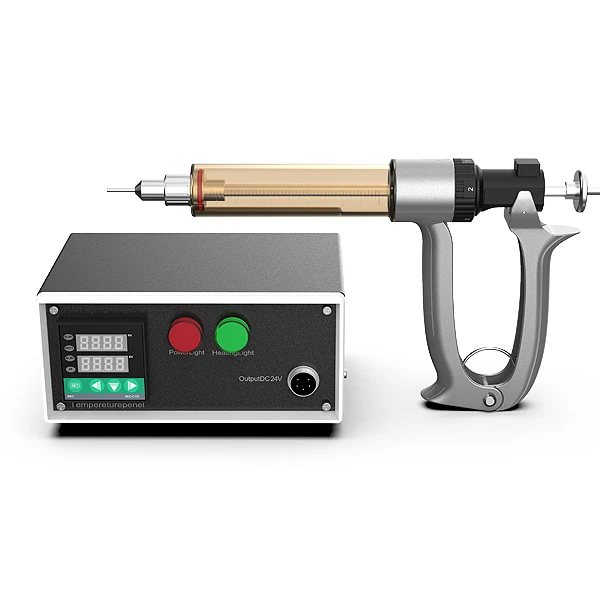

LAVA CORE is the first-generation oil injector developed by BBELL Technology. This oil injector has integrated heating and oil injection as a whole. It adopts a special structure with internal central heating, which has higher heat transfer efficiency and faster heating. The larger oil suction port diameter makes it suitable for both thin and concentrated oils. It uses extremely simple oil suction and oil injection principles, and combines with clever structure, which makes operation very simple and injection more efficient, and saves time & labor costs.
SPECIFICATIONS FOR BBELL LAVA CORE
Voltage
A.C 100---240V
Power Ratio
40W
Heating Temperature
0-100℃
Color
Sliver
N.W
2.0kg
G.W
3.0kg
Size
Controller
170(L)*130(W)*90(H)mm
Filler
250(L)*35(W)*150(H)mm
Heating Rod/Lead Wire
⌀5*400mm/1m

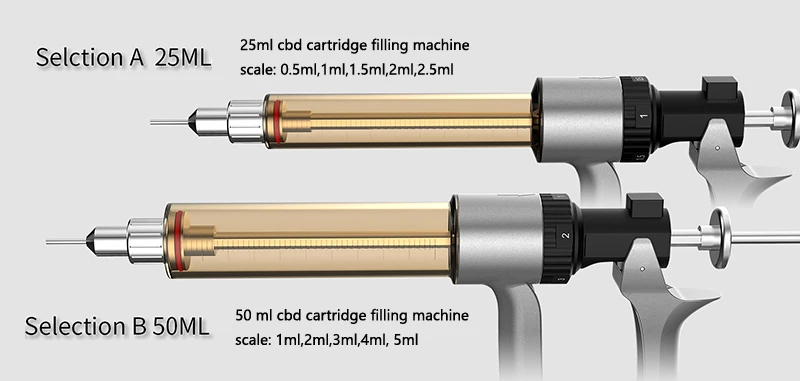

Capacity
25ml
50ml
Gear
25 mL - 5-gear
0.5/1/1.5/2/2.5ml
50 mL - 5-gear
1/2/3/4/5ml
Power Line
1.5m
FAQ
(1) what if I use my thick concentrate/distillate? Re: LAVA Core has 2x oilhole, best suit for various viscosity of concentrate / distillate.
(2) what's the capacity? Re: We have two capacities.25ml and 50ml.You can choose according to your requirements.
(3) What about the delivery? Re: We can deliver all the express channels on Alibaba. 5-7 business day.
(4) What's the warranty? Re: We have 12 months warranty on it. If your items is broken, please contact the sales, the sales will cope with it immediately.
Packing & Delivery
Size
440*270*100mm
Weight
3.0kg
Packing Details
The normal package is paper box(Size: L*W*H).If container is too tigher,we will use pe film for packing or pack it according to customers special request.
