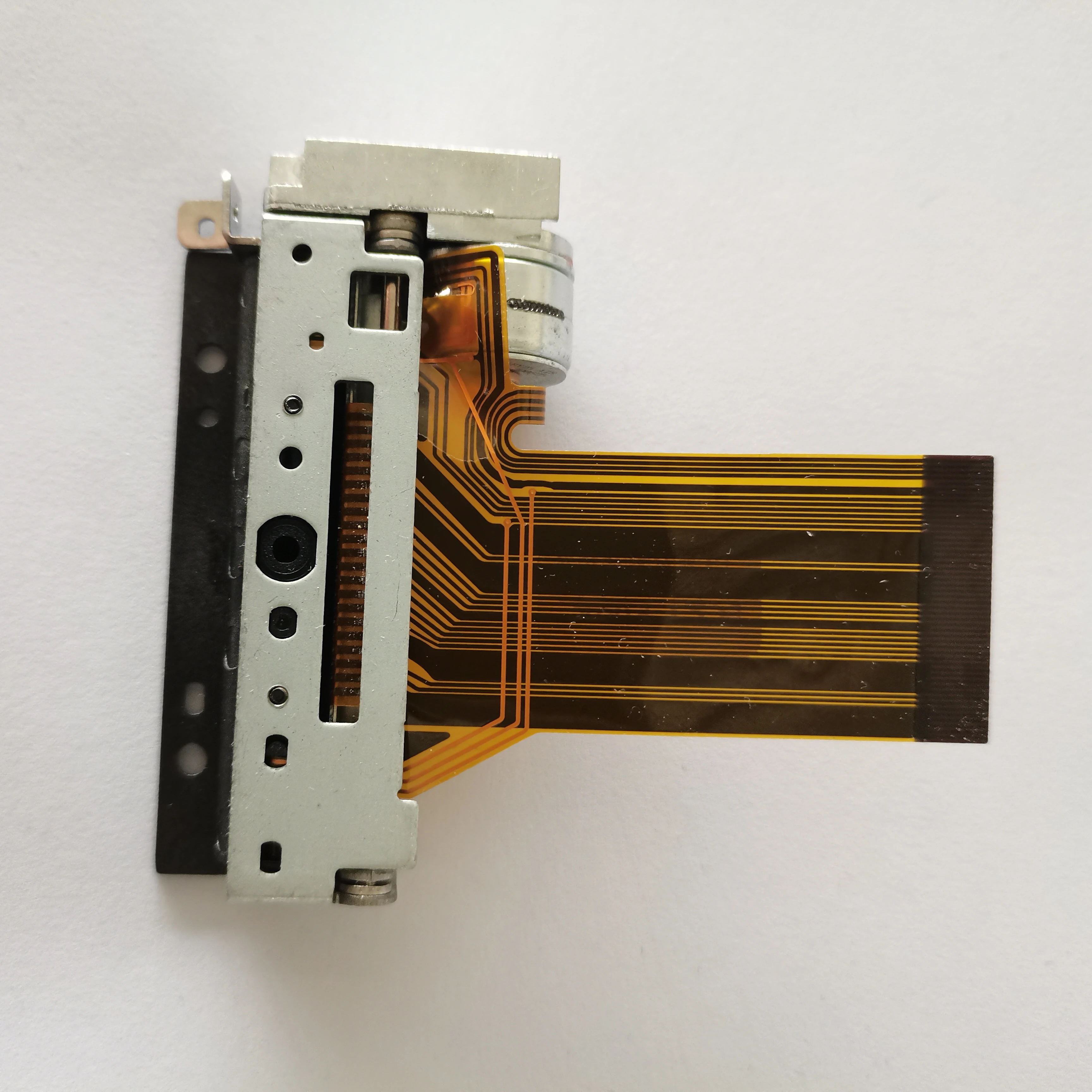

2 Inch 58mm Thermal Printer Head Measuring Instrument LTPD245 Thermal Printer Mechanism LTPD245A for Cash Register

Model:

LTPD245A/B

LTPD345A/B

Print

Method

Thermal Point Print

Number of rows (lattice/line)

384

576

Degree of solution (lattice/mm)

8

Paper width (mm)

58+0/-1

80+0/-1

Print width (mm)

48

72

Print speed (mm/s) highest

100

80

Paper feeding

And then

Detection methods

Print head heat

Thermosensitive sensing

Paper-press shaft deviation detection

Mechanical switches

Missing paper detection

Light sensors

Electricity (V)

Working voltage (Vdd)

2.7 to 3.6/4.75 to 5.25

Working voltage (Vp)

4.75 to 9.5

Current (A)

Printhead

3.66(voltage 9.5 V/64)

3.60(voltage 9.5 V/64)

5.49(voltage 9.5 V/96)

5.40(voltage 9.5 V/64)

Motor

0.6

Print head life

Number of pulses

100 million pulses

Print length (km)

50(use of recommended heat sensitive paper)

Operating temperature (℃)

-10 to 50

Size

Vertical

69.0 X 30.0X 15.0

91.0 X 30.0X 15.0

(wide × deep × high mm)

Transverse

69.0 X15.0X 30.0

91.0 X15.0X30.0

Weight (g)

About 40

About 58
