pvc door and windows machine for Walter Slot Milling

Product Overview

Description



Auto Double Head Walter Slot Milling Machine

                 TWSM3

Features:

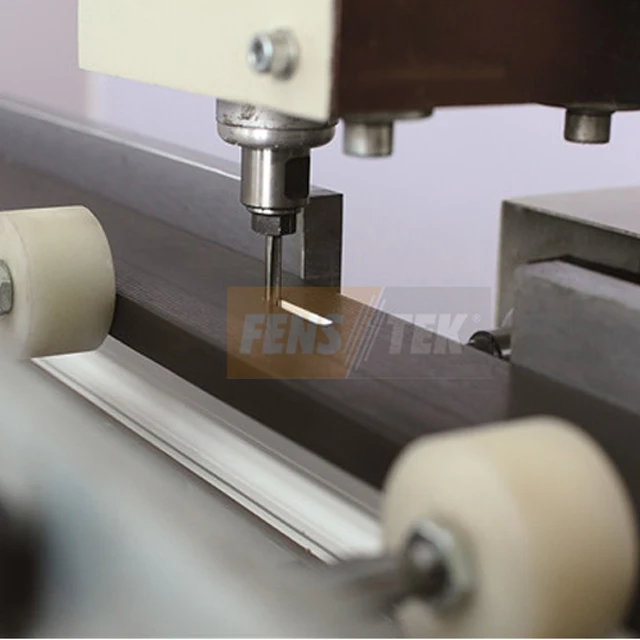

1. Used for milling all kinds of water slots and air pressure balance grooves.

2. Two groups of three-axis milling heads along guide, with high precise processing and high production efficiency.

3. The length of milling water slot within 60mm is adjustable and use widely.

4. Absolute milling feeding without professional maintenance and high quality.

5. Apply to high grade and mass windows production.



Parameter:

Input Voltage:     220V/50Hz

Input Power:       2.28(kW)

Air Pressure: 0.5~0.8(MPa)

Air Consumption:   30(L/min)

Main-shaft Revolution:25000(r/min)

Cutter Diameter:  φ5 φ4 (mm)

Slot Depth:       50(mm)

Slot Length:      30~60(mm)

Overall Dimension:4300×860×1600(mm)

Weight:           1100(kg)



Main accessory:
•  Solenoid valve------ Germany FESTO
• Cylinder------JPC(FESTO Joint Venture Brand)
• Motor----Hitachi
• Air Filter Device: ----STNC

• Electrical Button and Switcher----Schneider

• AC Contactor and Circuit Breaker----- Schneider

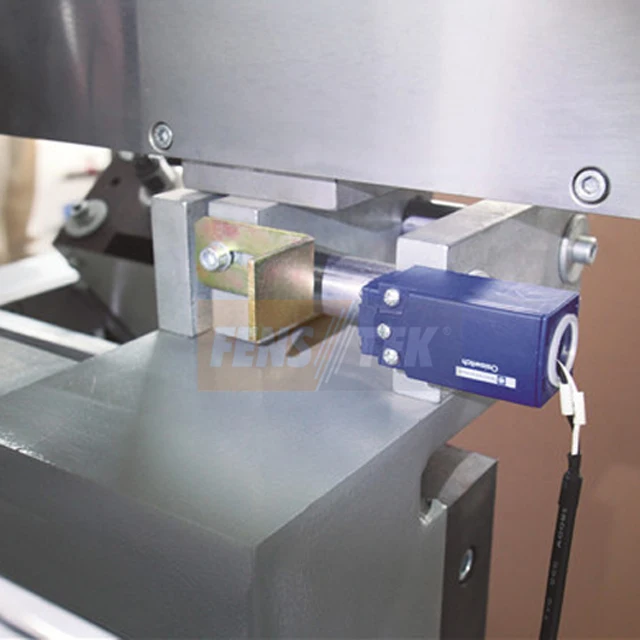

• Approach Switcher------Swiss CONTRINEX or Japan Omron

Standard accessory:
• Drill bit :                     2pcs                         • Air Gun:                      1pc

• Complete tooling :             1set                         • Certificate:                   1pc                          • Operation Manual:             1pc

Optional Device:

• Special support jig             depending on profile         • Coolant Device                 1pc
