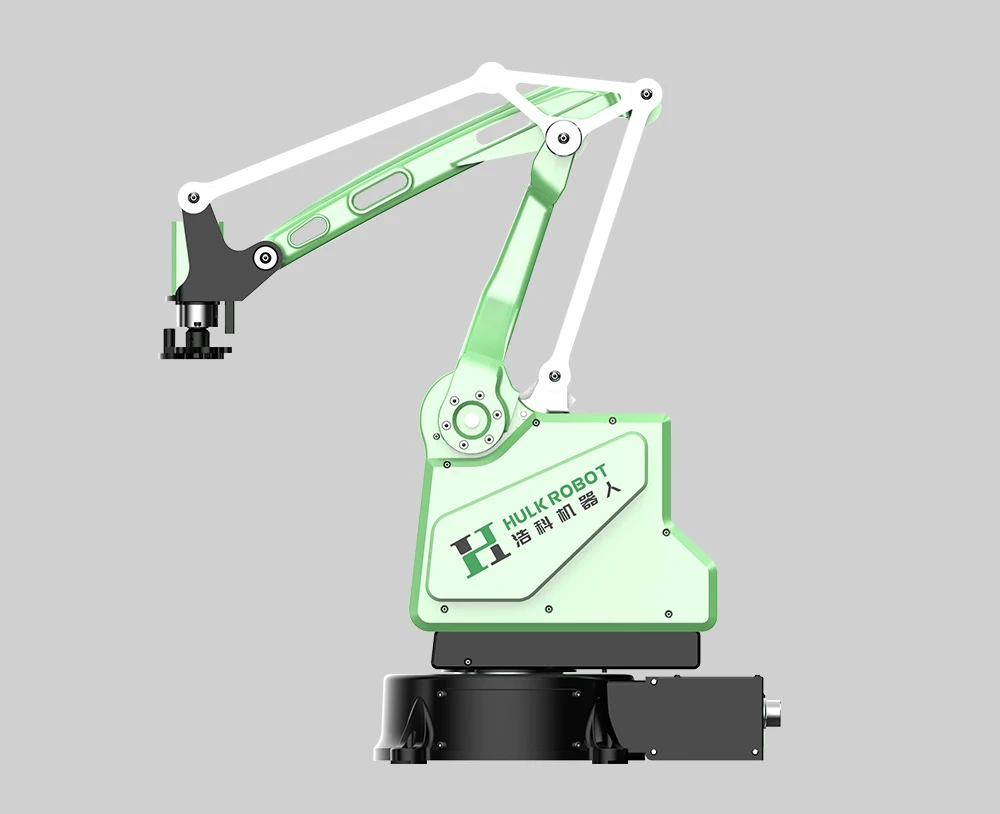

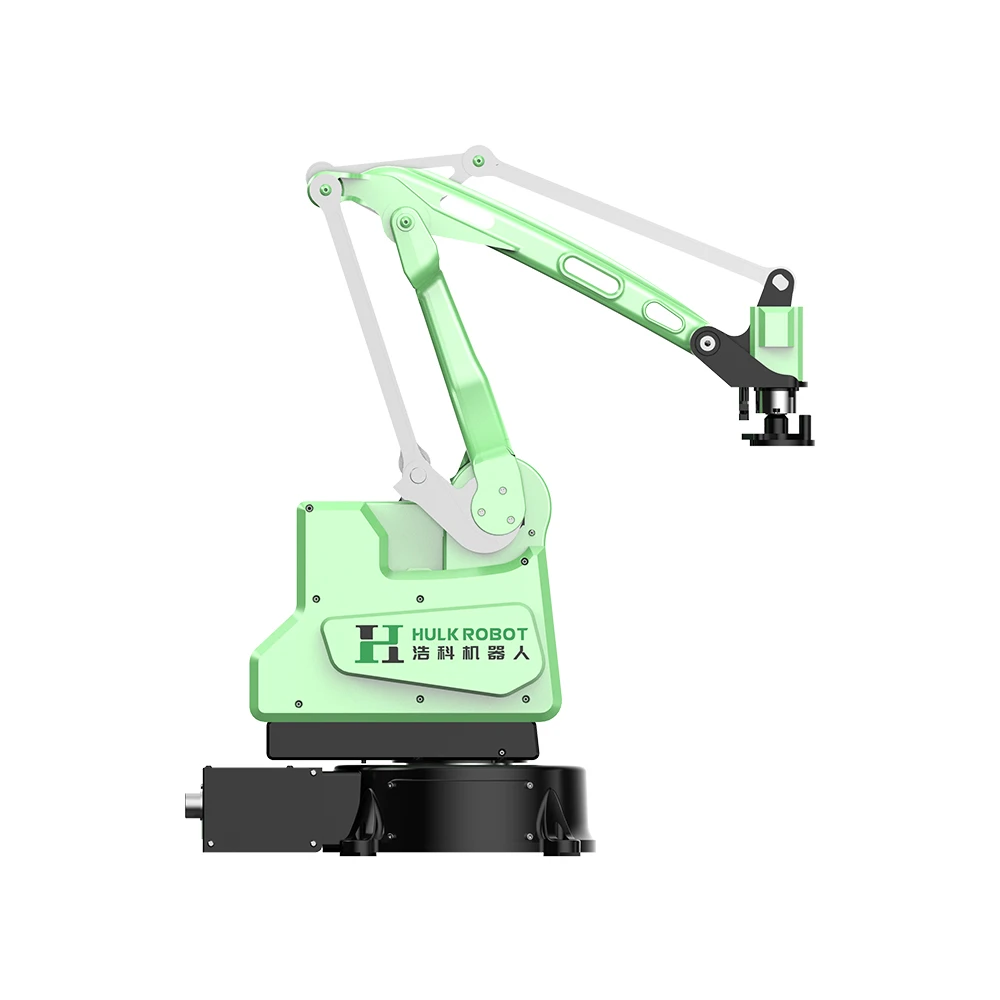

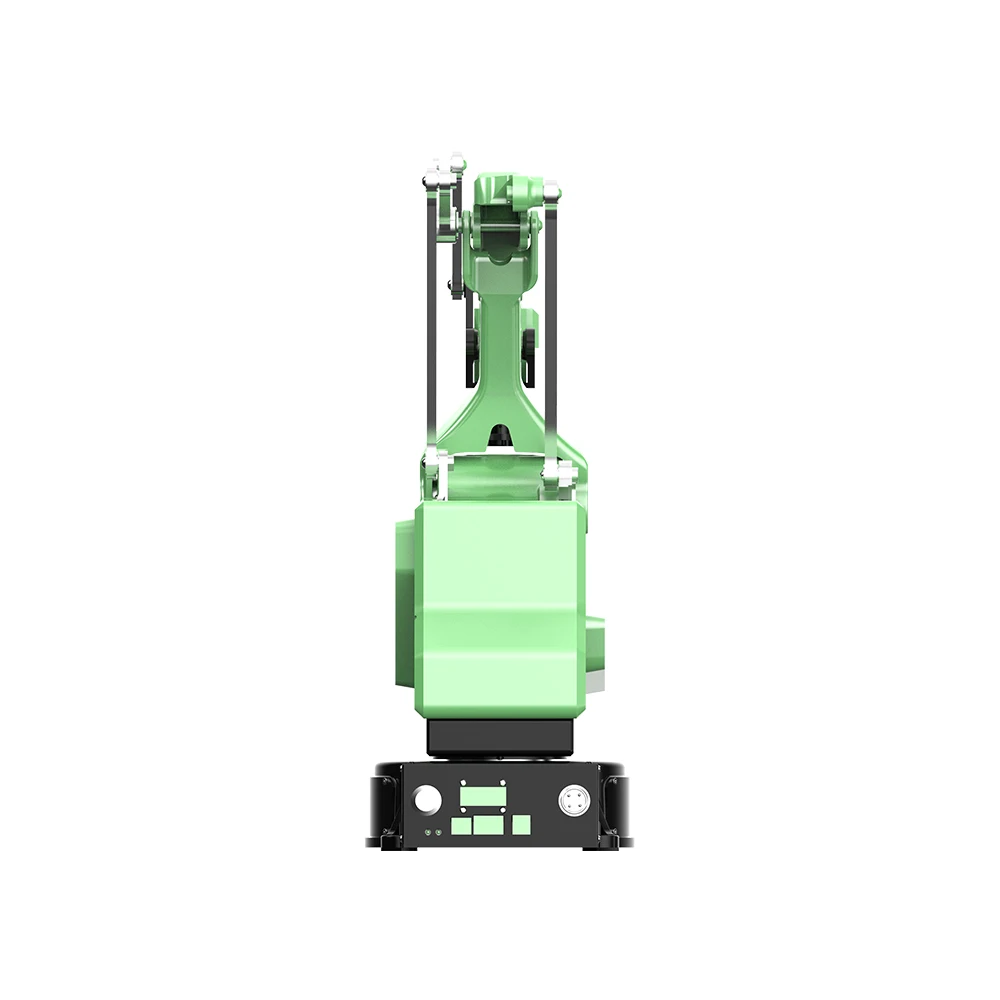

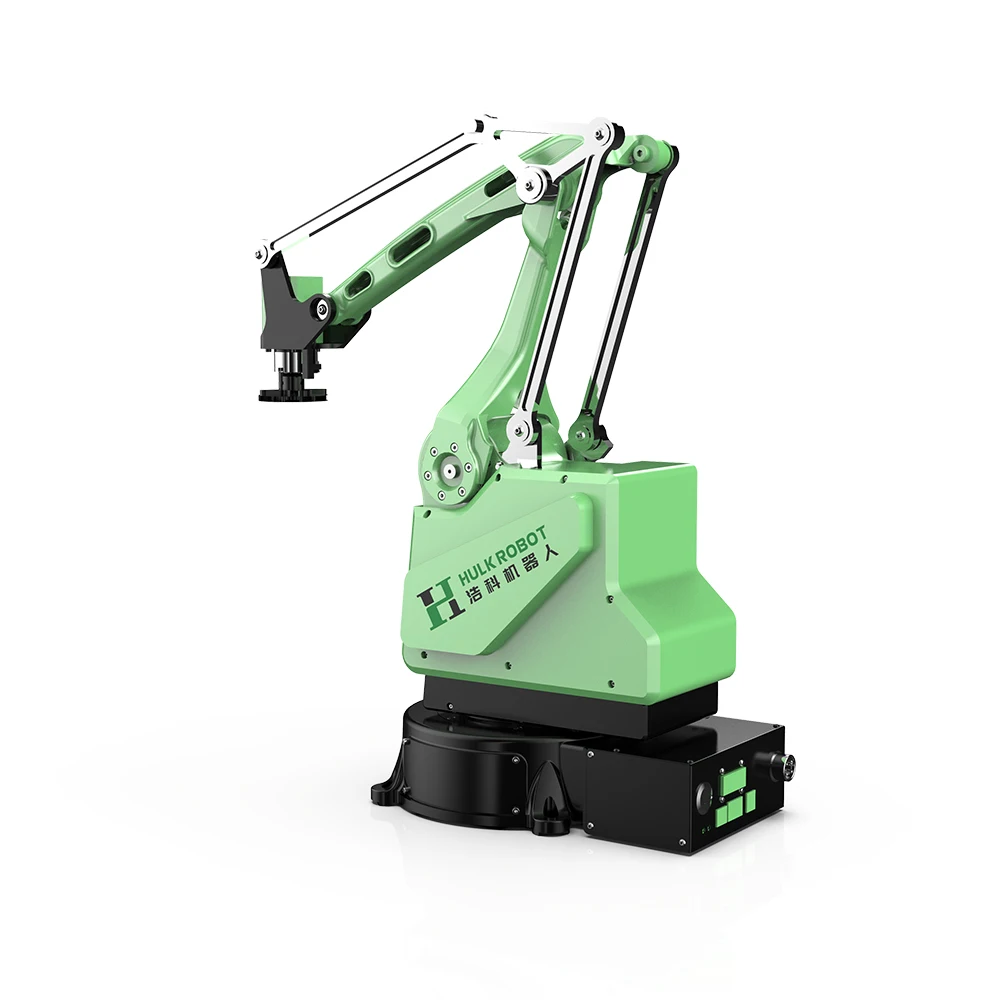

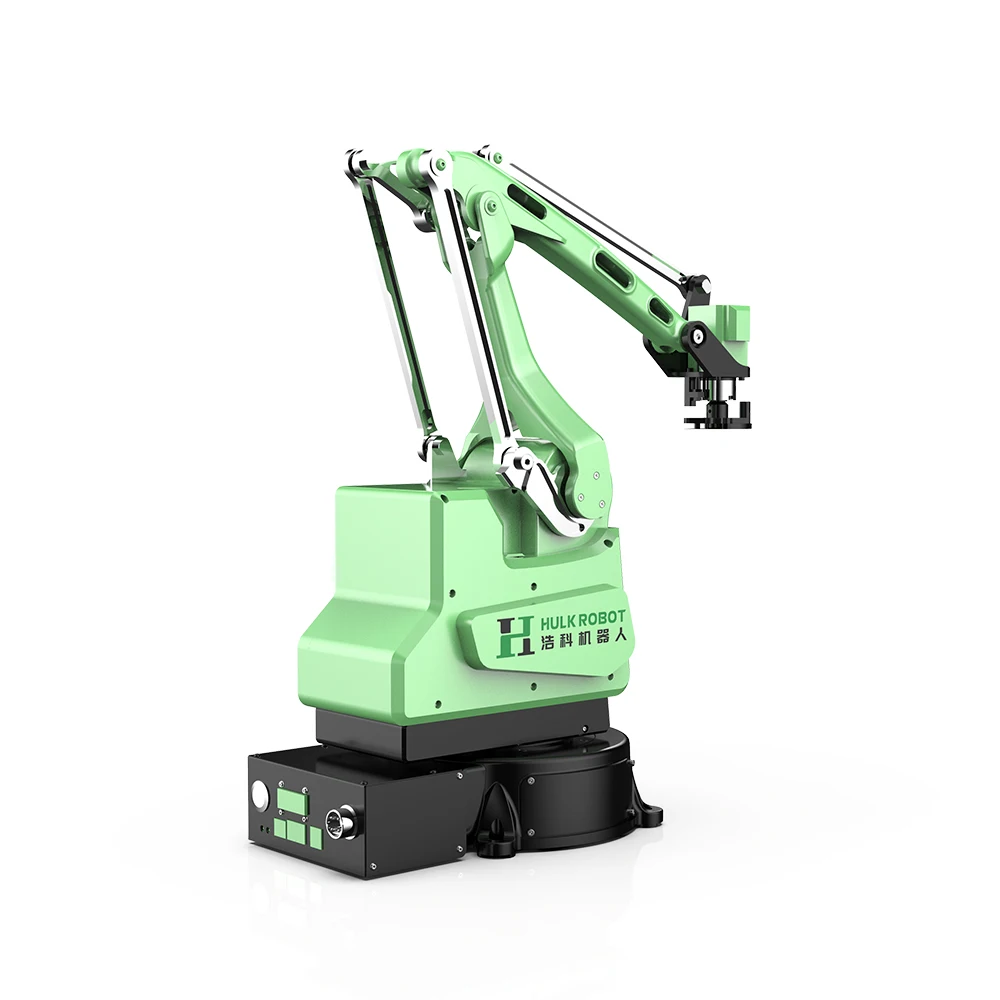

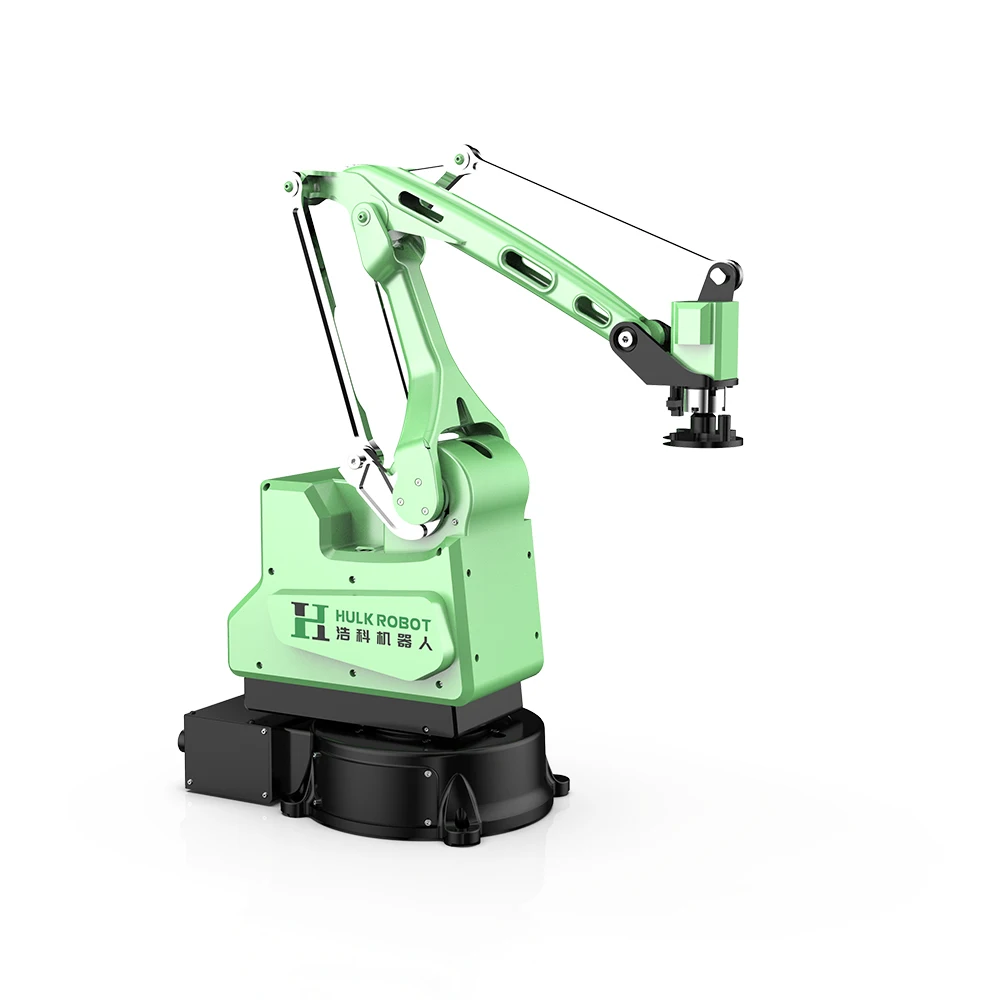

4 axis metal Grab transport Intelligent remote control desktop mini china industrial robot arm
- Category: >>>
- Supplier: Hulk Robot (suzhou) Co. Ltd.
Share on (62342676367):
Product Overview
Description
Product Description
Product Parameters:
| Model | HK1560 |

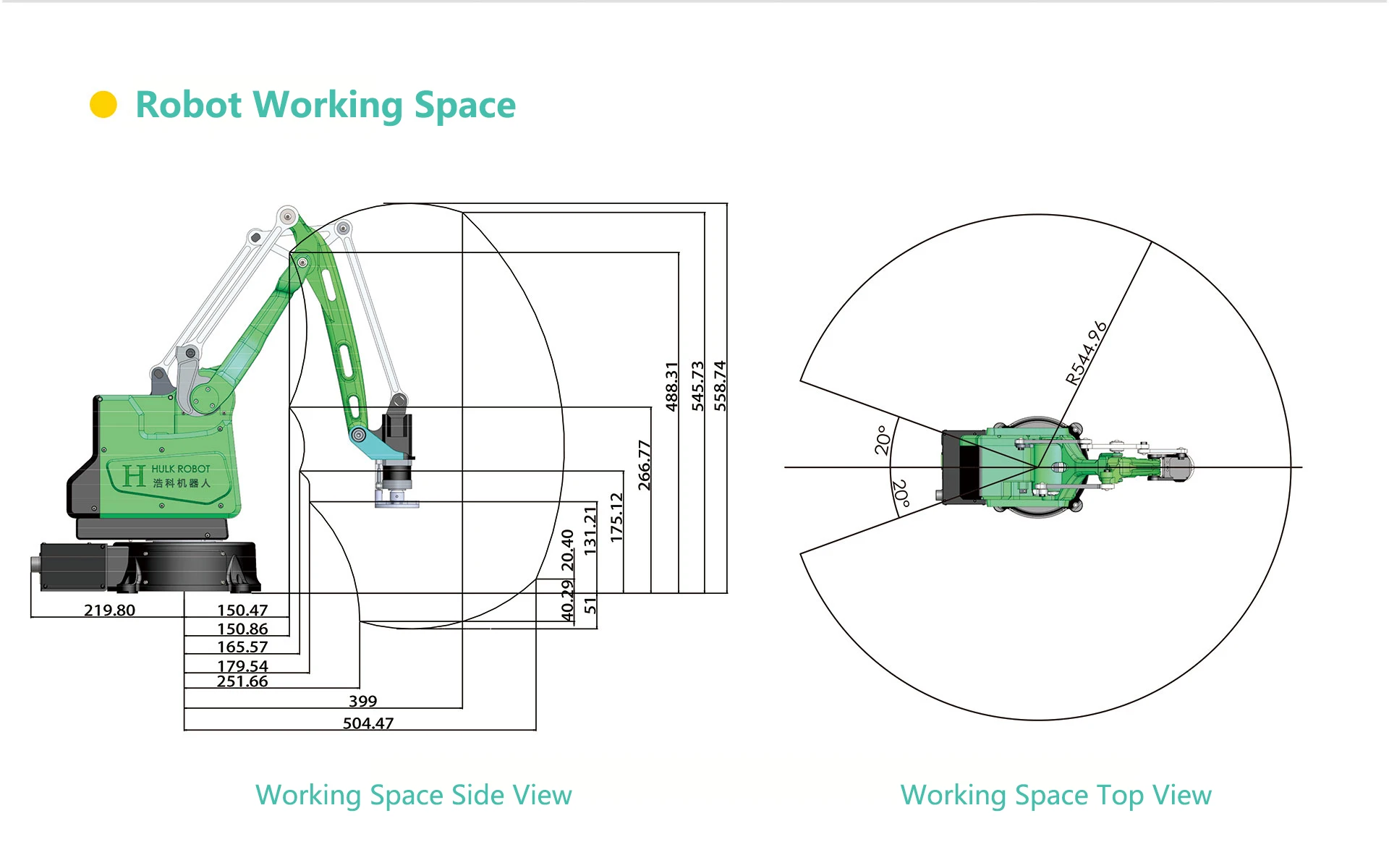

| Working radius | 540mm |
| Number of axis | 3 Axis/4 Axis |

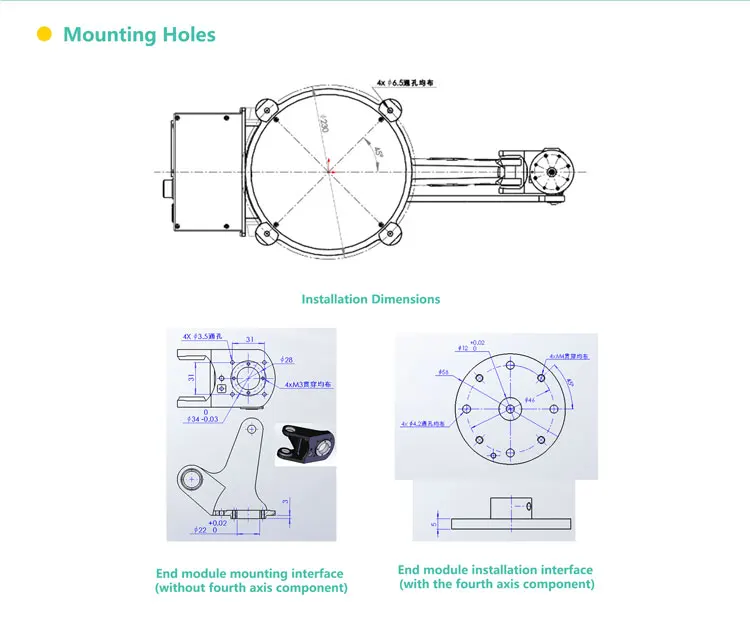

| Installation | Fall to the ground |
| N.W. | 13kg |
| Repeat Positioning Accuracy | ±0.05mm |
| Maximum load | 1kg |
| Power Consume | 0.4KVA |
| Voltage rating | 220V |
| Communication interface | RS485/232/WIFI/USB/Ethernet |
| Application | Welding, Polishing, Assembly, Picking and Etc. |
Axis'Working Range:
| Axis | Working Range | Max Speed |
| Axis 1 | ±160° | 180°/s |
| Axis 2 | -42°~85° | 180°/s |
| Axis 3 | -20°~100° | 180°/s |
| Axis 4 | ±165° | 180°/s |

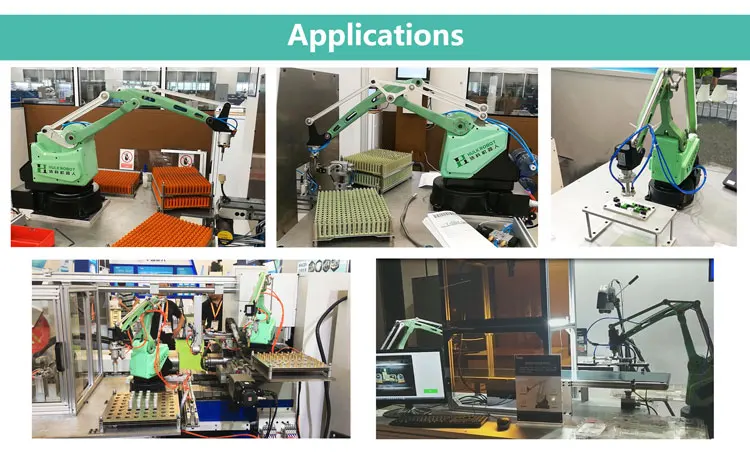

Our robot arm can be used in load&unload / assembiing / picking with camera / education / gripping / Handling / stacking / Vending machine and etc.
