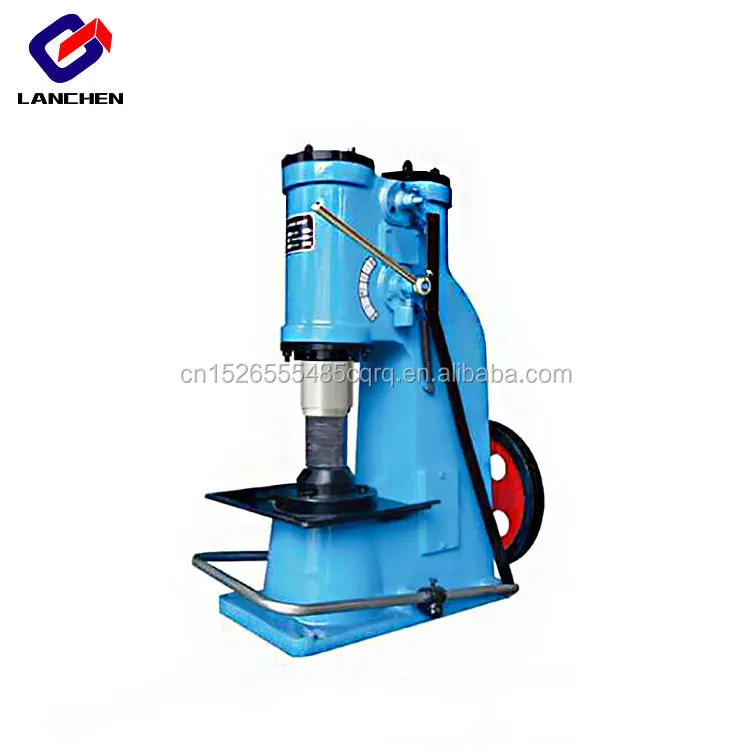

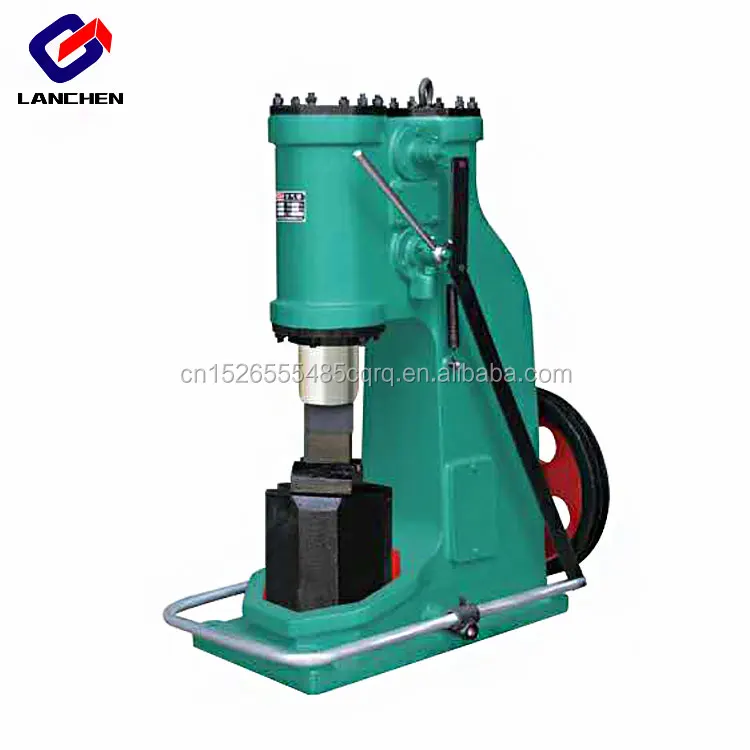

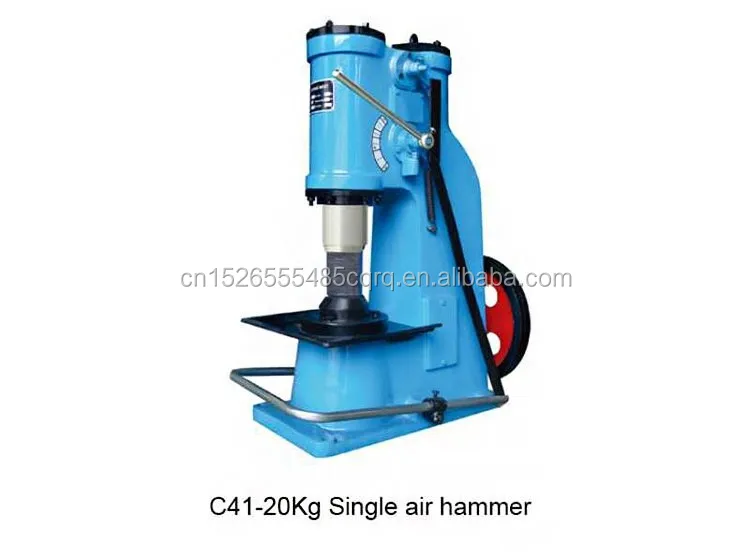

16kg blacksmith power forging hammer for sale
- Category: >>>
- Supplier: Zhengzhou Lanchen Electronic Technology Co. Ltd.
Share on (62342767283):
Product Overview
Description

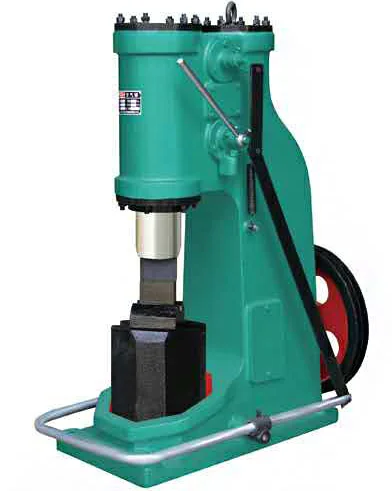

C41-16kg drop forging air hammer for iron blacksmith
Product Uses
| General description | High efficiency C41-16kg power runner hammer also called wrought iron blacksmith power hammer.Lanchen power hammer from 16kg to 150kg are widely used by blacksmith for the art forging;from 150kg to 2000kg are widely used in the industrial forging. Pneumatic forging hammer/power hammer is widely used for general Forging works, such as drawing-out, upsetting, punching,chiseling, forging welding, bending and twisting. It is also used for forging in bolster dies. |
| Main feature | 1.Unlike steam hammers or air hammers fed from a supplementary compressor, the Pneumatic forging hammer with itself-contained cylinder,require no ancillary power raising plant. |
Product Description
Technical parameter of C41-16kg model air hammer
Air hammer technical parameters | ||
Items | C41-16KG A single air hammer | C41-16KG B |
Photo |
|
|
Weight of falling parts | 16KGS | 16KGS |
Attack Energy(J) | 180 | 180 |
Height of working area | 180 mm | 180mm |
Attack Number of times(T/Min) | 258 | 258 |
Dimension of top and bottom die syrface (LxW) |
70*40 mm |
70*40 mm |
Max.square steel can be forged | 20*20 mm | 20*20 mm |
Max.Malleable Round steel Length of Side(mm) | D≤ 22 mm | D≤ 22 mm |
Mold come with machine
Modle 2-101 | |
|
Rate power(KW) | 1.5 KW /2.04HP | 1.5 KW /2.04HP |
Speed of motor | 1440 r.p.m | 1440 r.p.m |
Weight of base plate | 40KGS | / |
Anvil weight | / | / |
Total Weight (KG) | 290KGS | 250KGS |
Size | 800*420*1170 mm | 800*420*1170 mm |
Display of air hammer mold

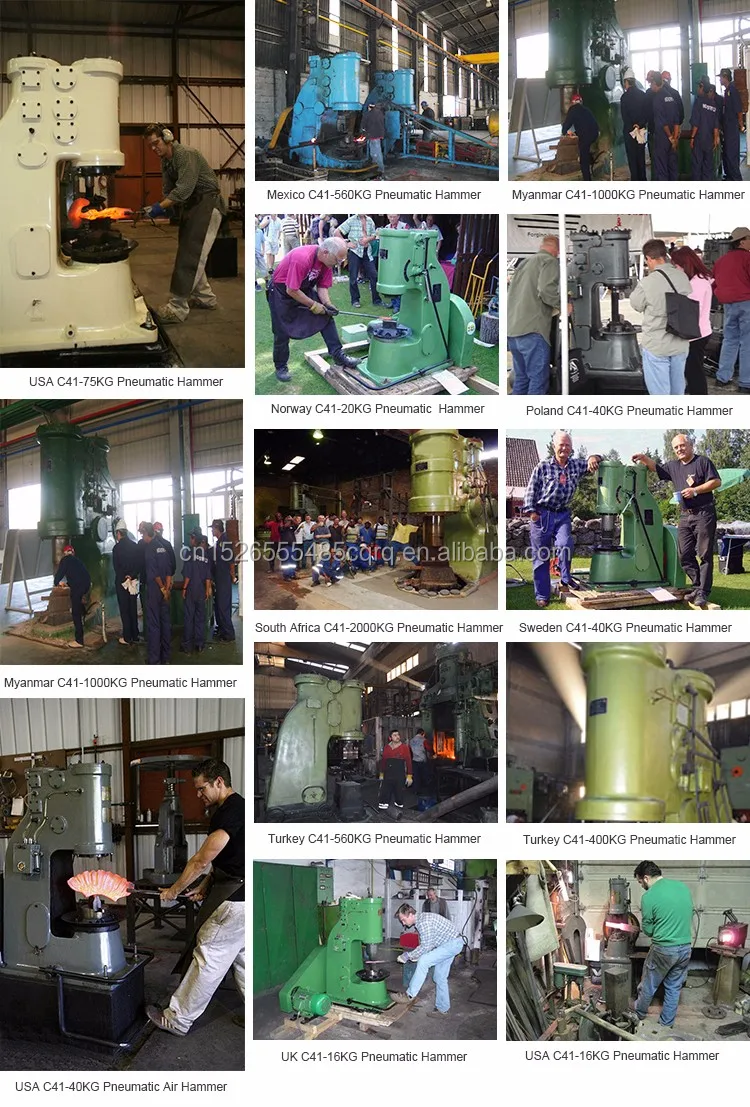

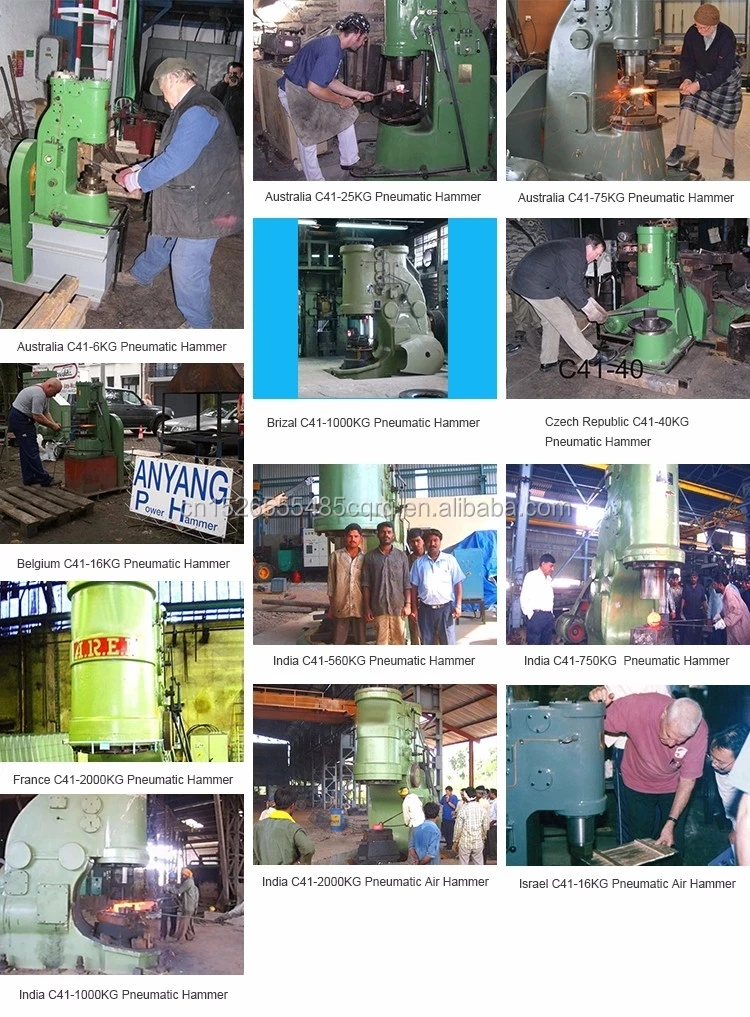

Feedback hammer
Contact with us
| Zhengzhou Lan Chen Electronic Technology Co.,LTD | |
| Telphone | 0086 18539568166 (Daisy Lee) |
| Mobile phone | 0086 18595369118 (Diana Liu / PO3A ) |
| IM tools | Whatsapp/Wechat/Viber/Facebook/VK: (0086 18539568166 / 0086 18595369118) |
| Website | https://cn1526555485cqrq.en.alibaba.com |
If you are interested in any of our products, please leave us an inquiry!!
