Glazing bead cutting machine
Gleazing bead cutting saw

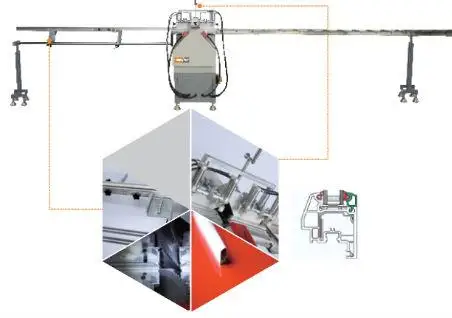

GBS1800
Product Description
GLeazing bead cutting machine
Features:

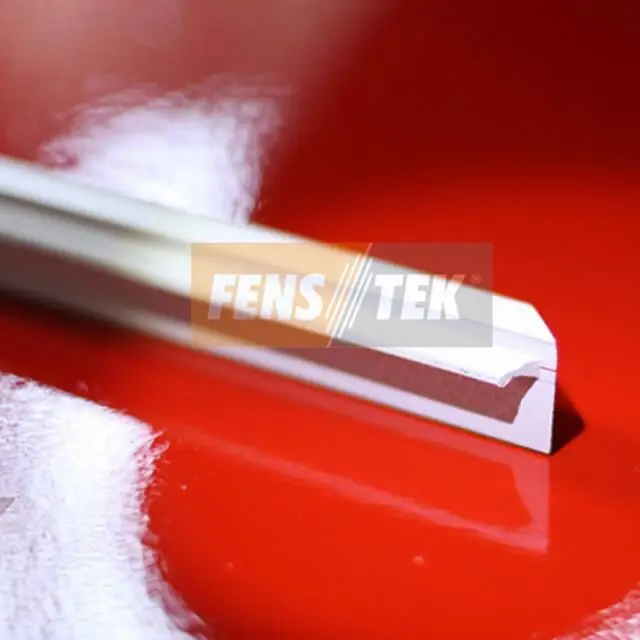

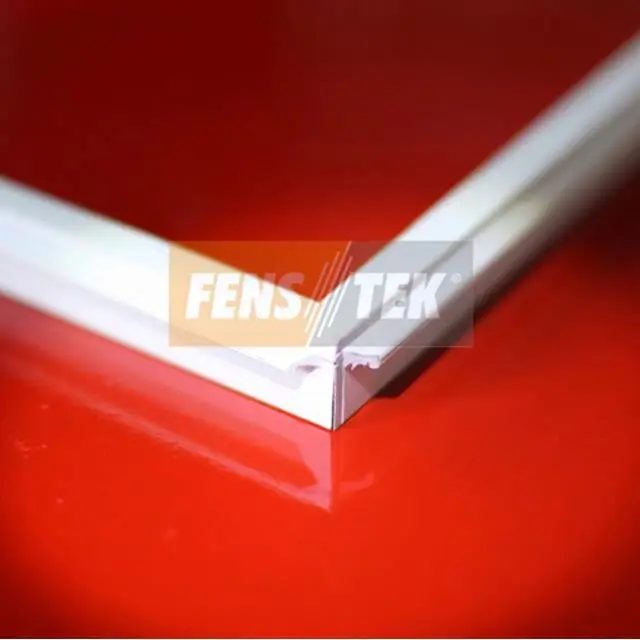

1. Automatic 45 degree cutting u-PVC glazing bead profile.
2. Two glazing beads cutting in one time.

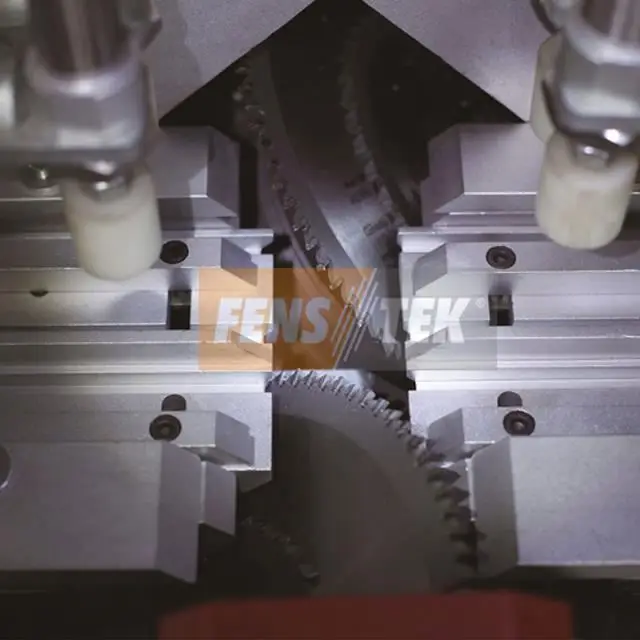

3. 4 pieces saw blade ensure precise cutting, double cutting one each end to mill the hook foot.

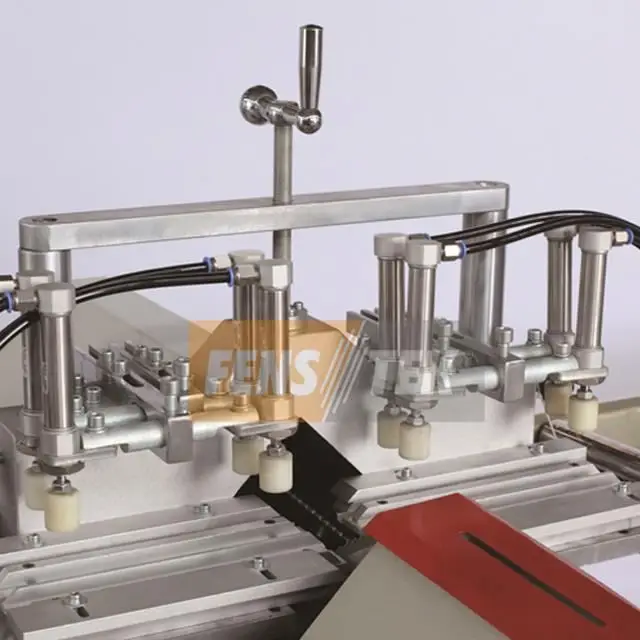

4. Vertical clamping device and special designed cutting jig ensure stable positioning.
5. Two hand safety operation

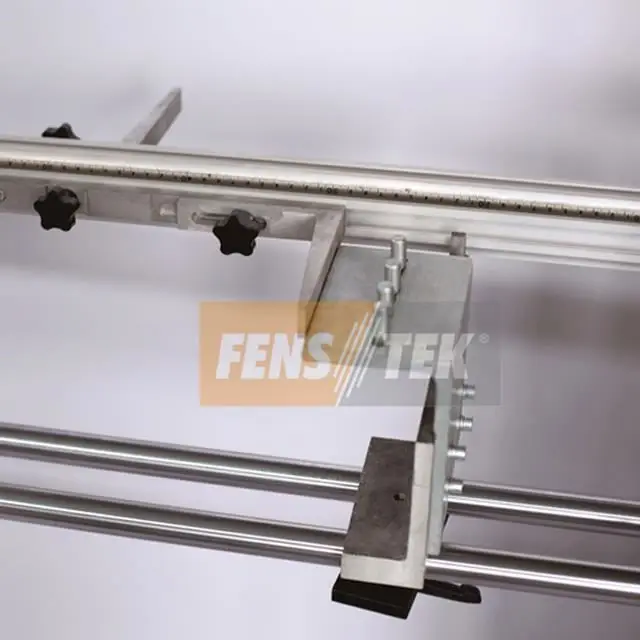

6. Precise & easy operated measuring table (Only for GBST1800)
Parameter: | |
Air Pressure | 0.5~0.8(MPa) |
Air Consumption | 20(L/min) |
Input Voltage | 380V 50HZ or as customer specification |
Input Power | 1.1(Kw) |
Cutting Height | 33(mm) |
Cutting Width | 100(mm) |
Cutting Length | 320-1800(mm) |
Overall Dimension | 1500*750*1500 mm For GBS1800; 2500*1380*1300 mm For GBST1800 |
Weight | 250(kg) for GBS1800; 400kg for GBST1800
|
Main Accessory | |
Saw blade | Japan UNIKEN |
Solenoid valve | Germany FESTO |
Cylinder | JPC(FESTO Joint Venture Brand) |
Motor | Anhui Sanyang (Best Chinese Motor Brand) |
Air Filter Device: | STNC |
Electrical Button and Switcher | Schneider |
AC Contactor and Circuit Breaker | Schneider |
Approach Switcher | Swiss CONTRINEX or Japan Omron |
Linear bearing system | Linear (South Korean brand) |
Standard Accessory | |
Saw blade | 4pcs |
Measuring Rod | 1set |
Air Gun | 1pc |
Complete tooling | 1set |
Certificate | 1pc |
Operation Manual | 1pc |
Optional Device | |
Coolant Spray Device | Special support jig depending on profile |
