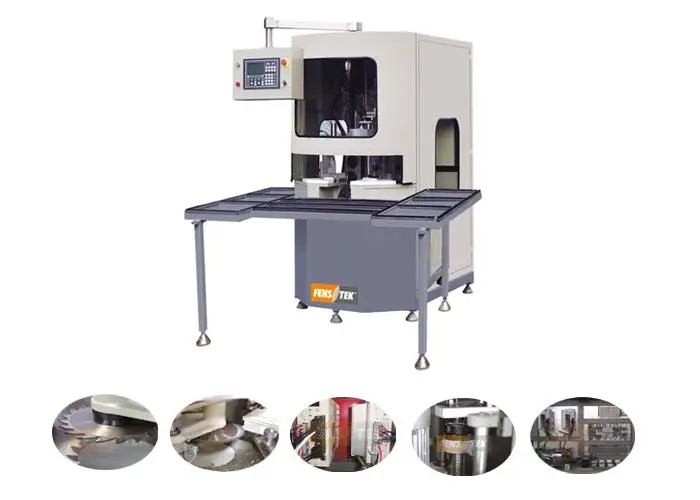

Features of window machine cnc corner cleaning machine:
1. Most stable welcomed mature CNC corner cleaning machine.

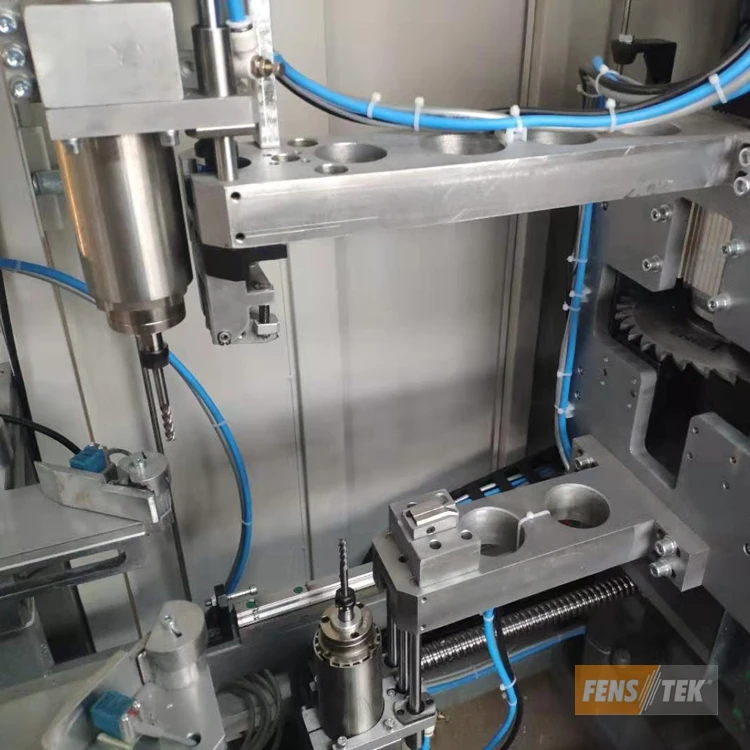

2. Totally 5 cutters will be automatically cleaning surface, vertical and inside rubber
Gasket groove. No need tool change.

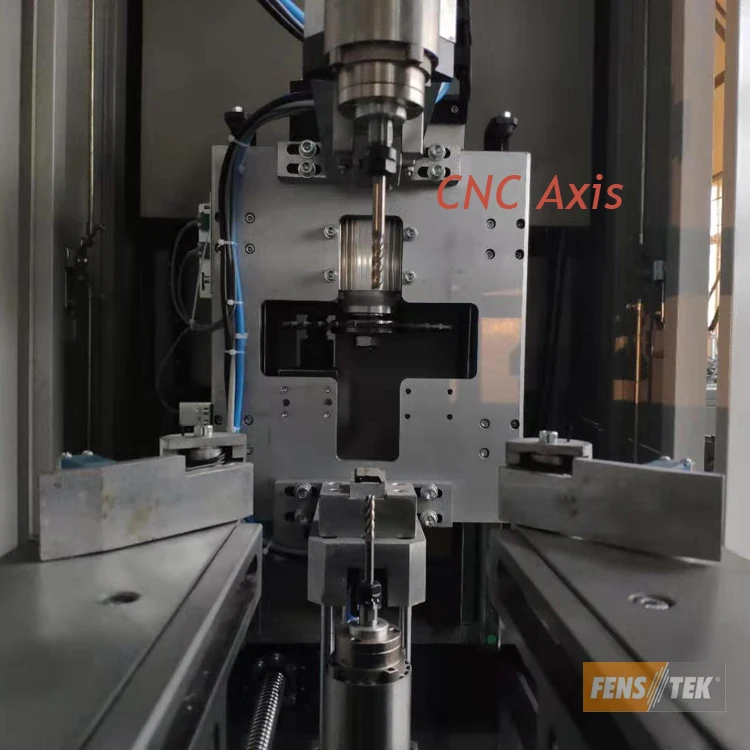

3. Advanced IPC controlled full machinery automatically precise running.
4. Memory for 60 profile data.
5. Two axis moved by call screw shaft.
6. Within 25 seconds finish one corner complete cleaning.
7. Can be linked with horizontal welding machine to become welding & corner cleaning
production line for grand imagine and high efficiency.
8. Friendly operation. Quick learning.
Parameter
Air Pressure
0.5~0.8MPa
Air Consumption
60L/min
Input Voltage
380V 50Hz or As Customer Specification
Input Power
2.8Kw
Milling Cutter Revolution
2800r/min
Profile Height
30~120mm
Profile Width
20~120mm
Overall Dimension
1800×1050×1800mm
Weight
584kg
Main accessory
Saw blade
Japan UNIKEN
Solenoid valve
Germany FESTO
Cylinder
JPC(FESTO Joint Venture Brand)
Motor
Anhui Sanyang (Best Chinese Motor Brand)
Air Filter Device
STNC
Electrical Button and Switcher
Schneider
AC Contactor and Circuit Breaker
Schneider
Approach Switcher
Swiss CONTRINEX or Japan Omron
Linear bearing system
Linear (South Korean brand)

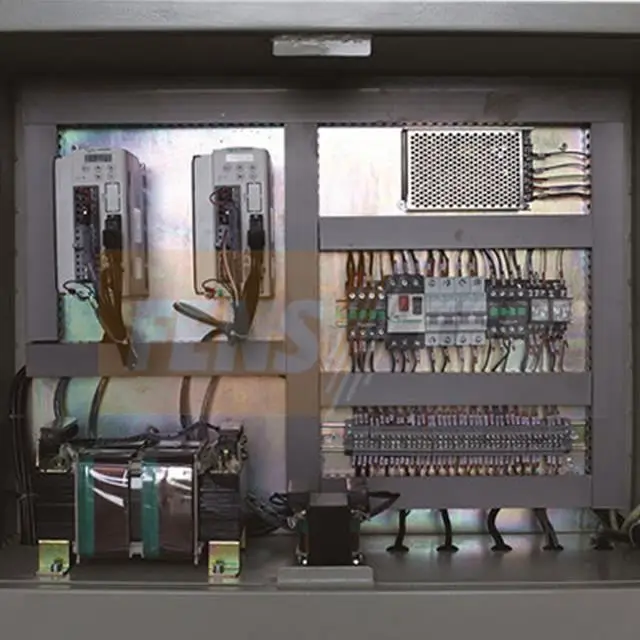

Controlling System
Japan YASKAWA
Servo Driver
Japan YASKAWA
Operation panel
Taiwan ANC
Standard accessory
Saw blade
1pcs
Work piece supports
2set
Air Gun
1pc
Complete tooling
1set
Certificate
1pc
Operation Manual
1pc
Groove surface cutter
2pcs
Optional Device
Dust Collector System
Flat surface cutter
Quality Control
Our engineers have years of experience in window machine fabrication, which makes the precision and stability better than others.
After machine production finished, the products will be tested in professional ways make sure its performance.
Packaging & Shipping
FENSTEK produce high quality machines, also pay attention to package. The machines will be packed with steel pallet and standard export wooden case, to make sure customer will receive the machines they ordered Intact.
Our Services
Our senior engineer is available to travel aboard, help the installation, maintenance and training staff.
By offering this support, we make sure the cutomer start the business smoothly, to realise win-win cooperation.
FENSTEK always looking for long term cooperaion, not one time deal.

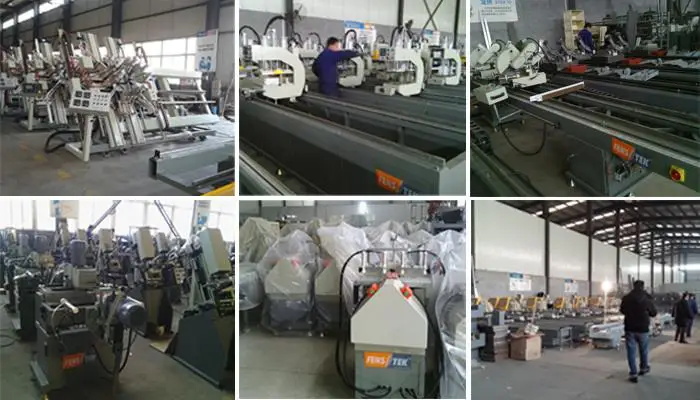

Factory View
