Cutting Machine for Aluminum Windows and Doors Equipment

Price:RUB 561,026.16

Quantity:

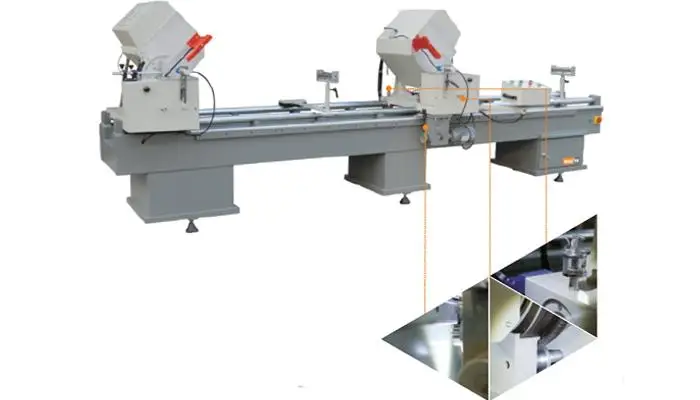

Double Head Cutting Saw DS450x3700

DS450X3700

Product Description

Cutting Machine for Aluminum Windows and Doors Equipment

90°, inside 45, outside 45 cutting plastic and aluminum profile. Various angle cutting is available.
Right head moving is driven by motor automatically and easily. Auto brake device.
Micro cutting length adjustment device ensure precision and easy operation.
With the additional intermediate supporting mechanism of equivalent length, convenient feed and location.
The linear guiding pair ensures steady processing accuracy.

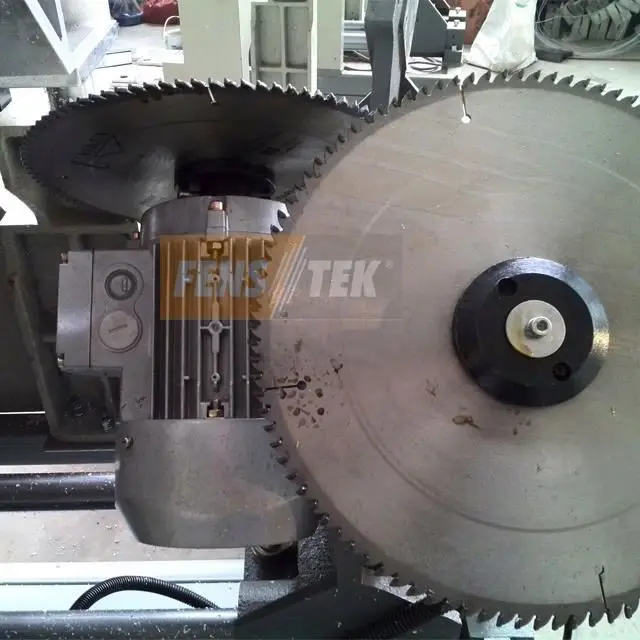

Saw blade rotates smoothly due to high accuracy main spindle.
Saw blade straight feeding from inside to outside stably and precisely by pneumatic cylinder. Optional Hydro-pneumatic feeding cylinder is available.
Carbide Saw blade ensure high cutting surface precision.
Two hand safety operation Cutting Machine for Aluminum Windows and Doors Equipment

Parameter
Air Pressure:	0.4-0.6MPa
Air Consumption	200(L/min)
Input Voltage:	3N-50Hz 380/220V or As Customer Specification
Input Power:	3(Kw)
Saw Blade Diameter:	Φ 450
Motor Rotary Speed:	2800(r/min)
Cutting Height:	200(mm)
Cutting Width	120(mm)
Cutting Length:	45° max 3700mm Min 550mm 90° max 3700mm Min 400mm
Overall Dimension:	4500mm×1170mm×1400mm
Weight:	1500(kg)

Main Accessory
Saw blade	Japan UNIKEN
Solenoid valve	Germany FESTO
Cylinder	JPC(FESTO Joint Venture Brand)
Motor	Anhui Sanyang (Best Chinese Motor Brand)
Air Filter Device:	STNC
Electrical Button and Switcher	Schneider
AC Contactor and Circuit Breaker	Schneider
Approach Switcher	Swiss CONTRINEX or Japan Omron

Optional Device
Coolant Spray Device	Dust Collector System
Hydro-pneumatic feeding cylinder	Digital displaying device (Model: DS450x3700D)
