Factory price Macro channel diode laser stack 760nm 808nm 1064nm / handle replacement Germany laser bar stack

Product Overview

Description

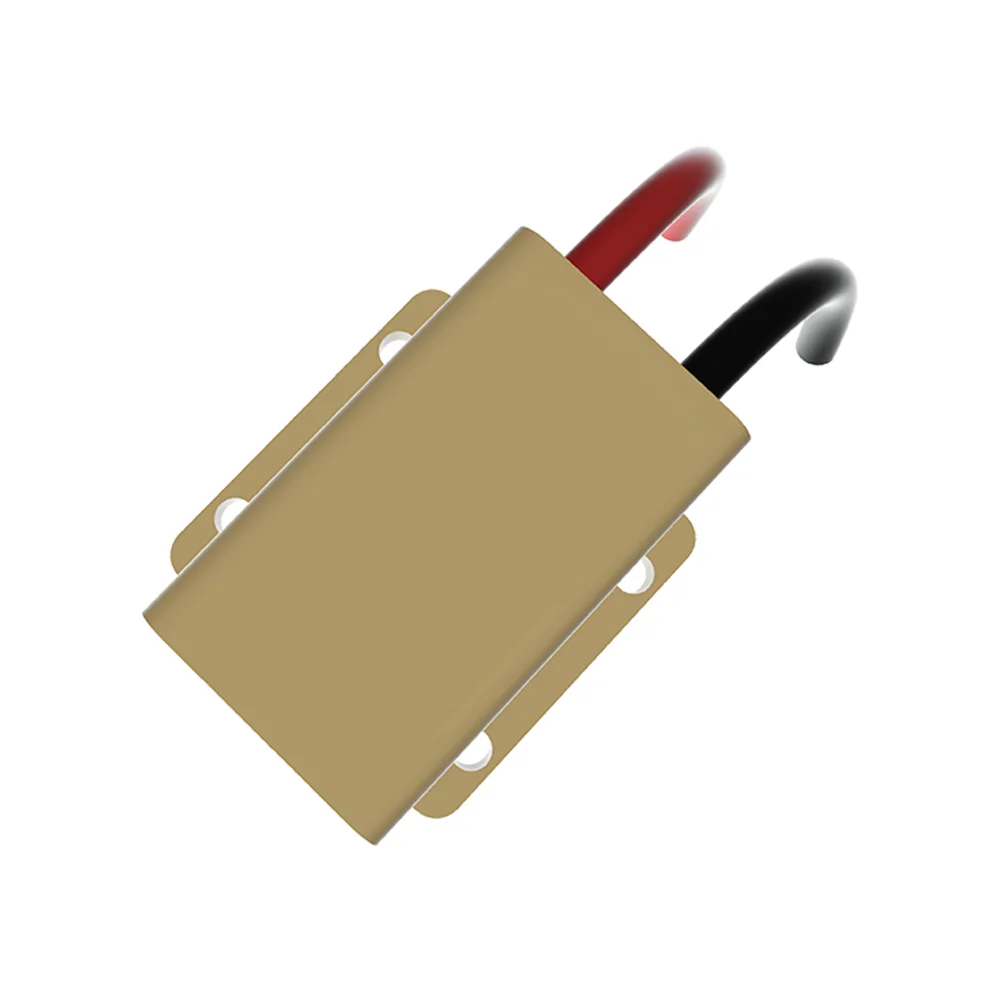

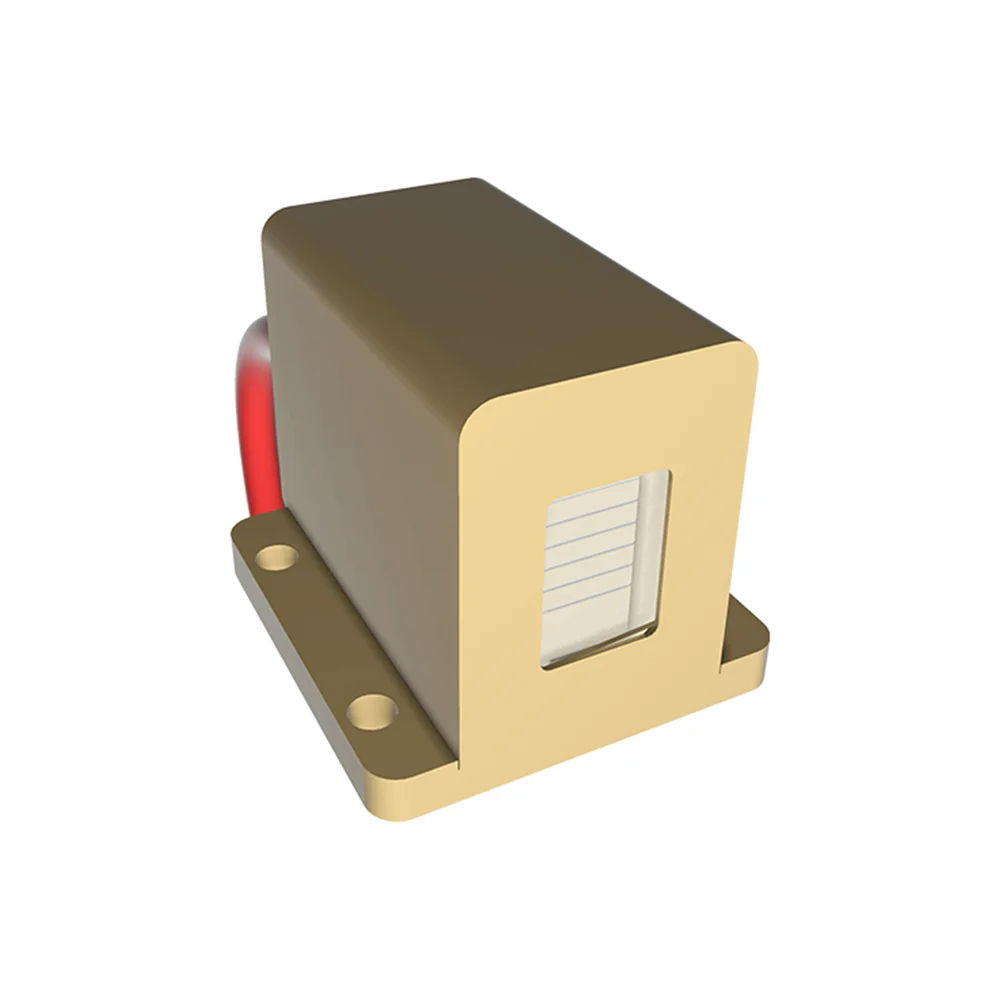

Factory price Macro channel diode laser stack 760nm 808nm 1064nm / handle replacement Germany laser bar stack

Model no.: JC-E13F-A300



Output power 300W, Bars number up to 6 (760nm*2 & 808nm*2 & 1064nm*2).



Features

-AuSn hard-solder package, higher stability

-Higher power conversion efficiency

-Macro channel package, sealed house

-Higher reliability, longer life time

-Up to 50W QCW per Bar

-2.0mm pitch between Bars

-Up to 6-16 Bars in a single stack module

-Single or multi-wavelength 760nm, 808nm, 1064nm in a single stack module

-Active water cooling for optimized lifetime and power

-Low thermal resistance package



Applications

*Fast permanent Hair removal

*Skin rejuvenation

Specifications

Optical Parameters	Typical Value	Unit
Central Wavelength	760&808&1064	nm
Central Wavelength Tolerance	±15	nm
Output Power	300	W
Number of Bars	760*2 & 808*2 & 1064*2	#
Pitch Between Bars	2	mm
Polarization Mode	TE	-
Slope Efficiency per Bar	>1.2	W/A
Fast-Axis Divergence (FWHM)	32	º
Slow-Axis Divergence (FWHM)	8	º
Wavelength Coefficient	~0.27	nm/℃
Electrical Parameters
Power Conversion Efficiency	>50	%
Threshold Current	<10	A
Operating Current	50	A
Pulse Width	400	ms
Duty Cycle	40	%
Operating Voltage per Bar	<1.9	V
Thermal Parameters
Operating Temperature Range	20-30	℃
Storage Temperature Range	0-55	℃
Cooling Type	purified water	-
Water Pressure	0.35-0.5	MPa
Water Flow	4~6	L/min





Attentions:

 Avoid eyes or skin exposure to direct or scattered radiation in case of laser working

Anti-static measures must be taken when transporting, storing and using

Use constant current power supply to avoid surge when working

Used under rated current and rated power, otherwise reduce lifetime

Maintain good thermal dissipation during laser operation



What JCLASER can do?

1. Tech Support

    (1)Tech support

    Hard solder sintering process, which effectively prevents the problems that have occurred in      indium solders-creep, electromigration and thermal fatigue of indium solder, to improve its          reliability, stability and long lifetime.

    (2) Optimizing the design of water channel and packaging structure, and adopt high-efficiency             material with high thermal conductivity, low expansion coefficient, high temperature                         resistance, corrosion resistance and oxidantion resistance, effectively improve the heat                   dissipation capability of the laser, ensure higher output power of the laser bar & stability &               longer lifetime.



	Hard solder sintering process	Indium solder sintering process
Manufacturer	JCLASER	others
Solder	AuSn	Indium
Creep	X	√
Electromigration	X	√
Heat fatigue	X	√
Reliability	√	X
Stability	√	X
Longer lifetime	√	X





















2. OEM/ODM

Offering customized lasers and integrated solutions from design to production, which can reduce and simplify your development processing, improve the stability of whole device and speed time to market.



3. After-sales Service

Timely and efficient after-sales technical services and complete supporting, to support online/email/phone/video/webcam.



4. Please be freely contact us while you had the same problems in following:

1. Your laser hair removal machine cannot emit.

2. You have different troubles with laser diode stacks, DPSS laser, QCW laser stacks (for beauty, industry etc.)

3. Want to knowledge much about laser stacks & integrated solutions and update industry information

4. Want to repair

5. Try to find a reliable manufacturer of customized laser diode

6. How to reduce market development progressing?
